Door Locks

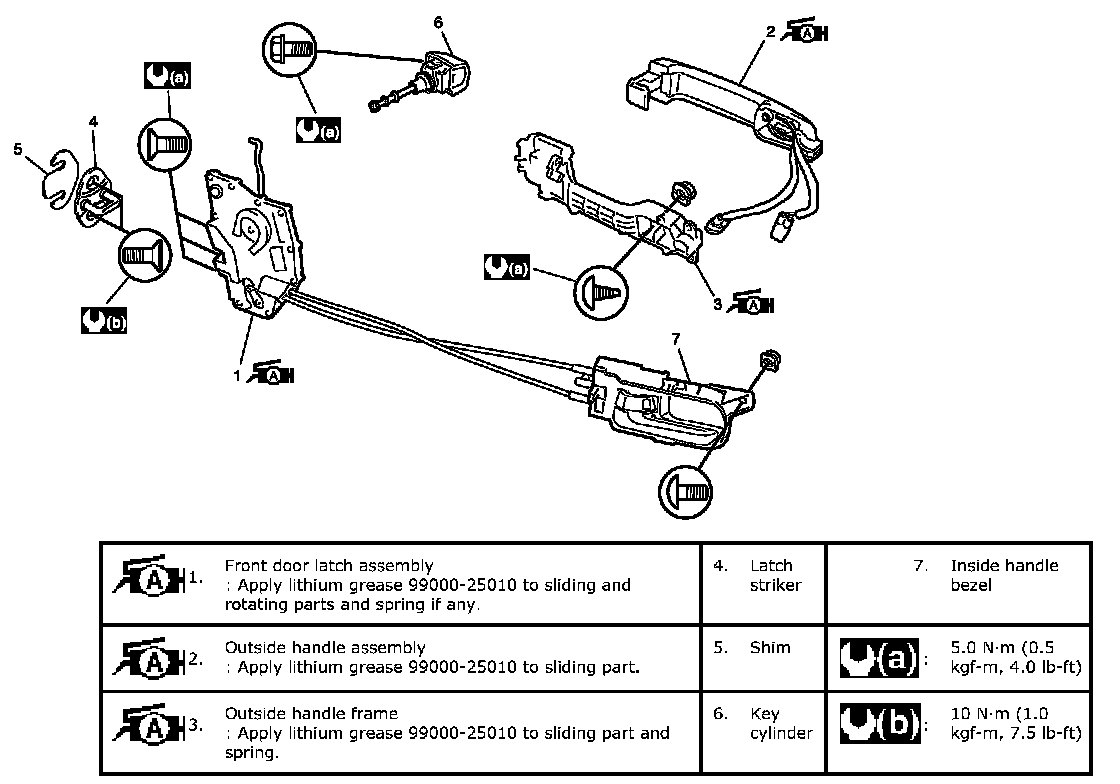

Front Door Lock Assembly Components:

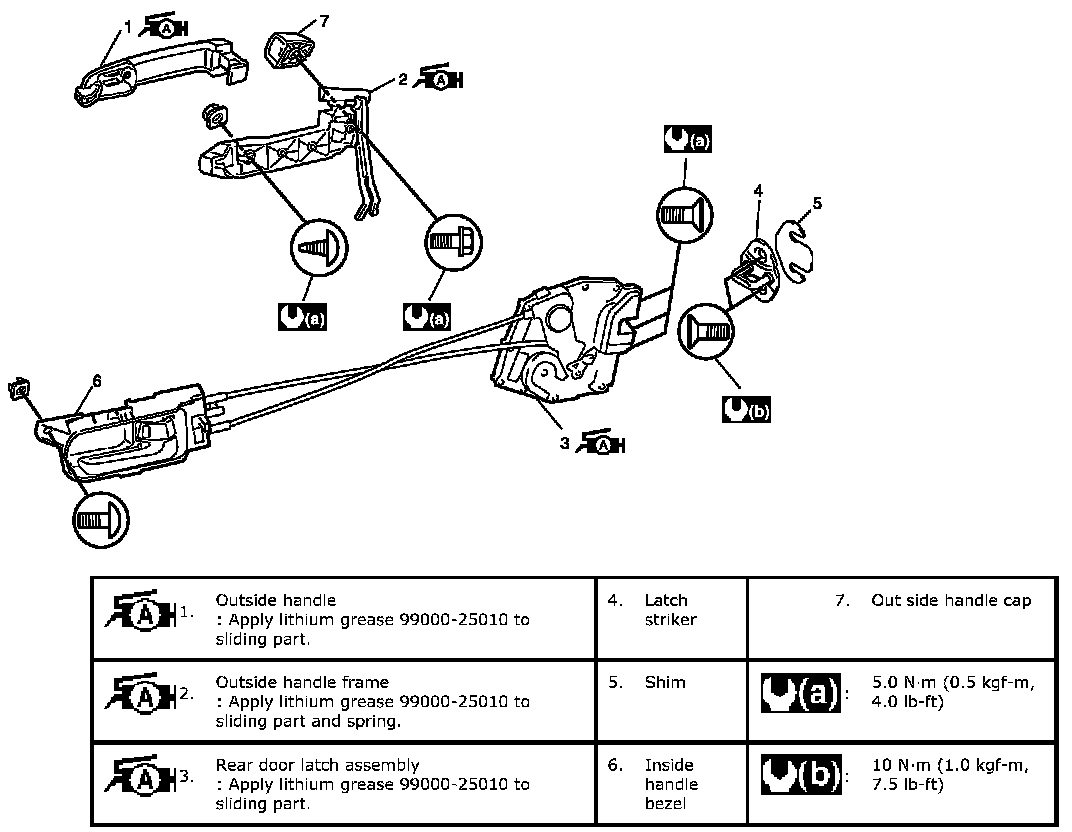

Rear Door Lock Assembly Components:

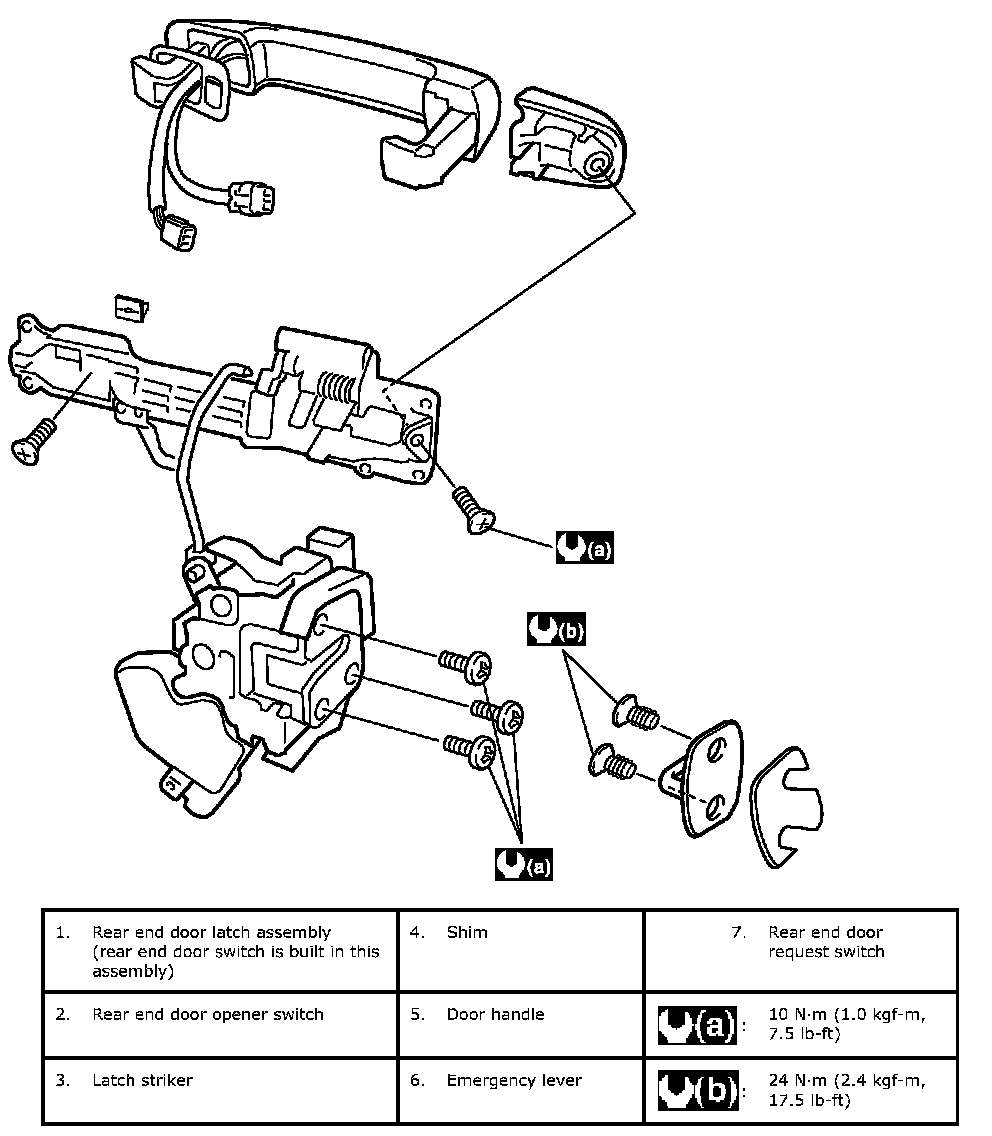

Rear End Door Lock Assembly Components:
