System Specifications

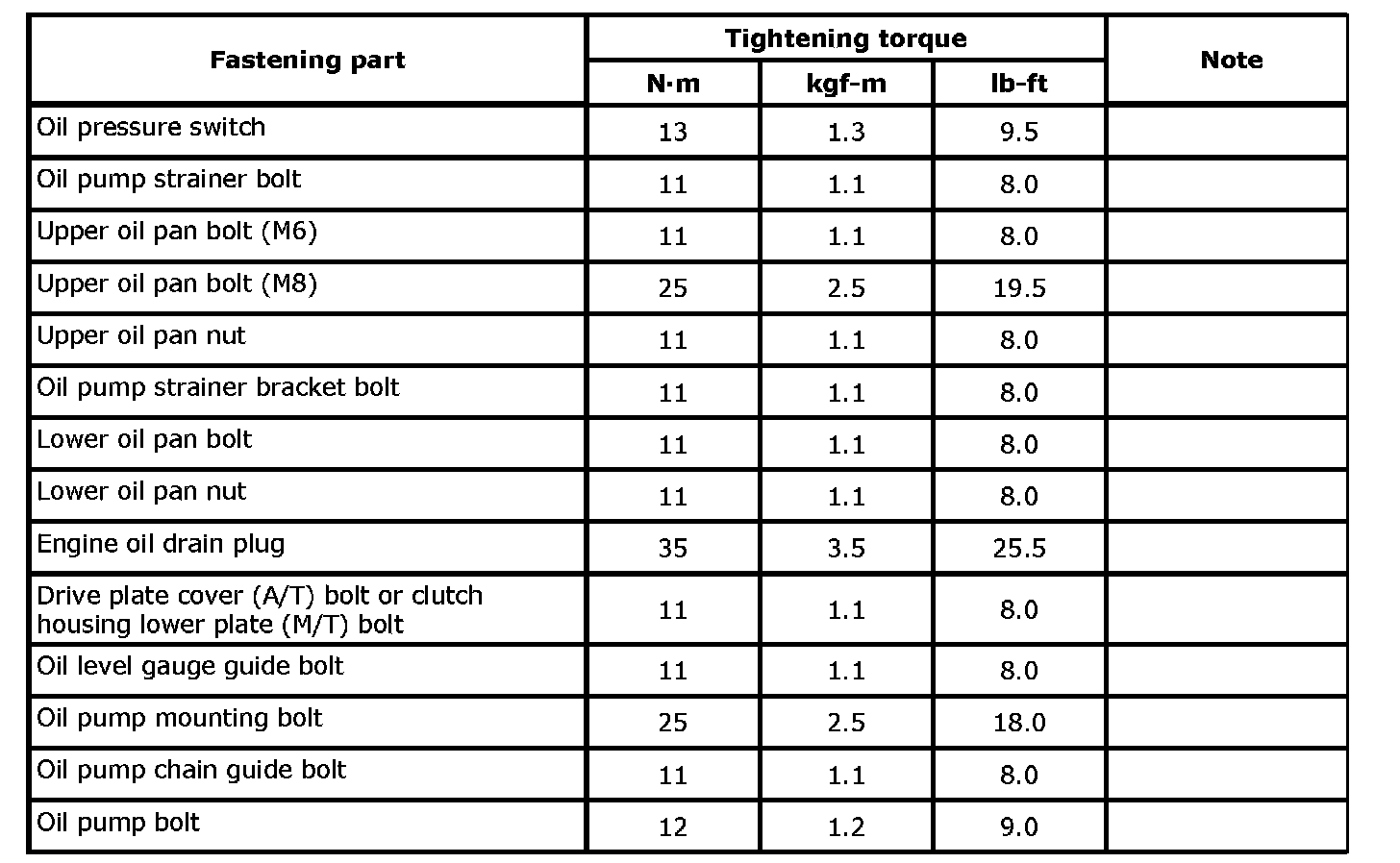

Tightening Torque Specifications





NOTE:
The specified tightening torque is also described in the following.
Oil Pan and Oil Pump Strainer Components
Oil Pump and 0H Pump Chain Components
