System Specifications

Tightening Torque Specifications

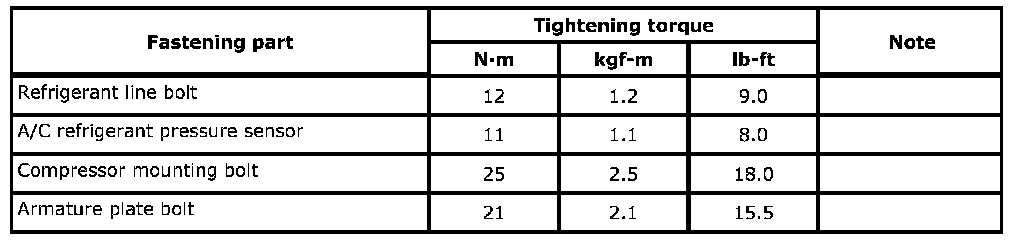

Tightening Torque Specifications:

NOTE: The specified tightening torque is also described in the following.
Magnet Clutch Components

Reference:
For the tightening torque of fastener not specified in this section, refer to Fastener Information.
