Alarm Function
Alarm Function
Alarm Function

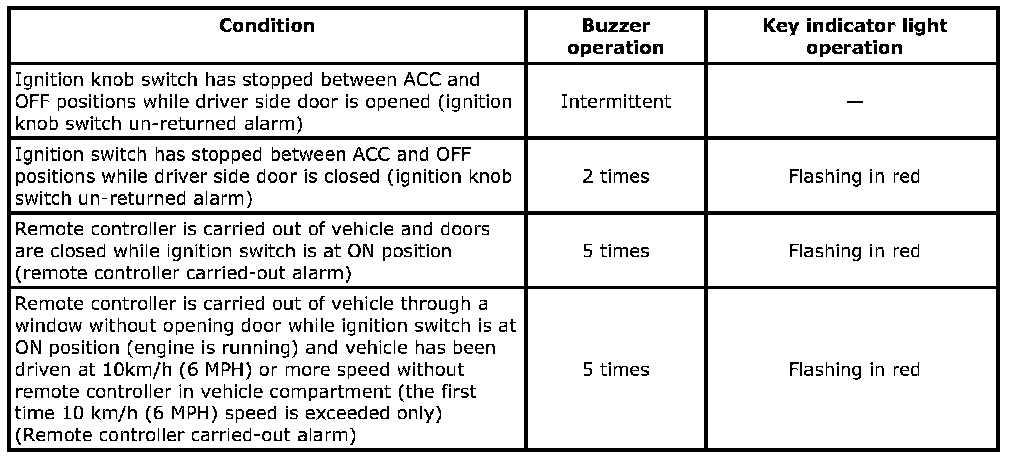

Under conditions as described in the table below, the
keyless start control module
makes the key indicator light flash in red and the buzzer sound to call the driver s attention.
