Electronic Throttle Control Module

Throttle Actuator Control (TAC) Module

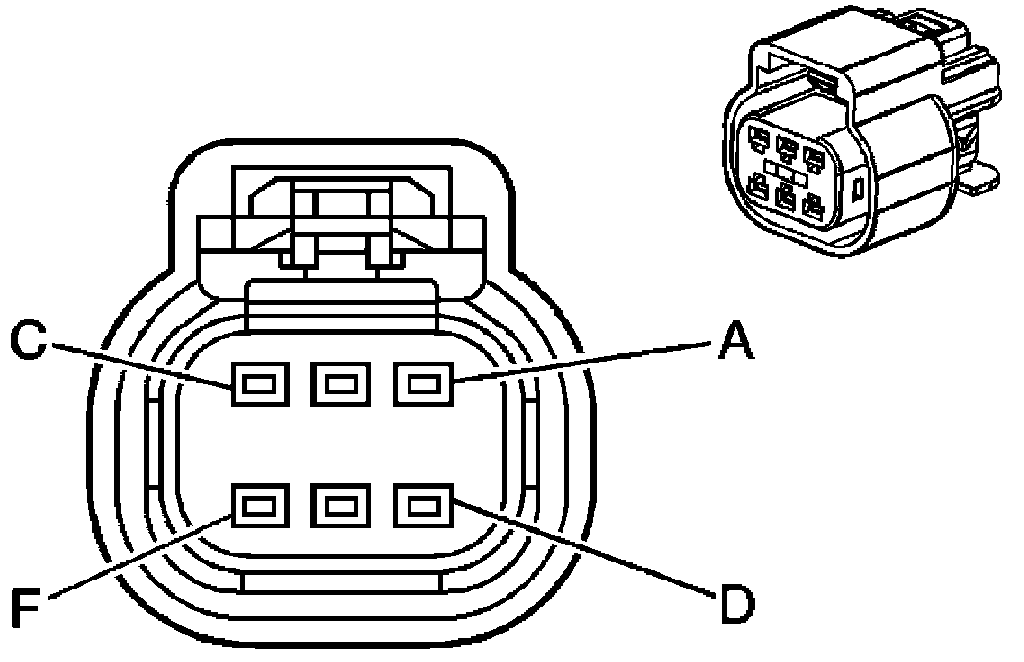

Connector Part Information
OEM: 15355297
Service: 19115594
Description: 6-Way F GT 150 Series, Sealed (BK)

Terminal Part Information
Terminal/Tray: 15326427/5
Core/Insulation Crimp: Pins A-B - 2/A
Core/Insulation Crimp: Pins C-F - E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

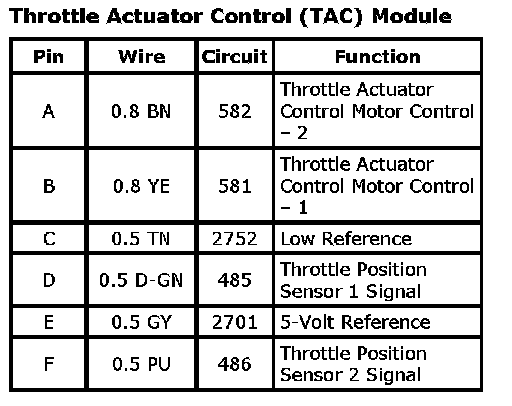

Throttle Actuator Control (TAC) Module:
