Engine Control Module

Engine Control Module (ECM) X1






Connector Part Information
OEM: 1928404927
Service: See Catalog
Description: 96-Way F 1.2 Series Sealed (BK)

Terminal Part Information
Terminal/Tray: 1928498135/19
Core/Insulation Crimp: J/J
Release Tool/Test Probe: J-38125-213/J-35616-64B (L-BU)

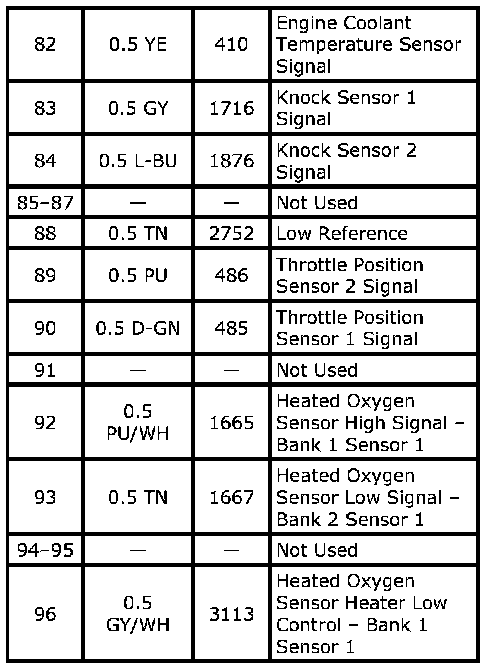

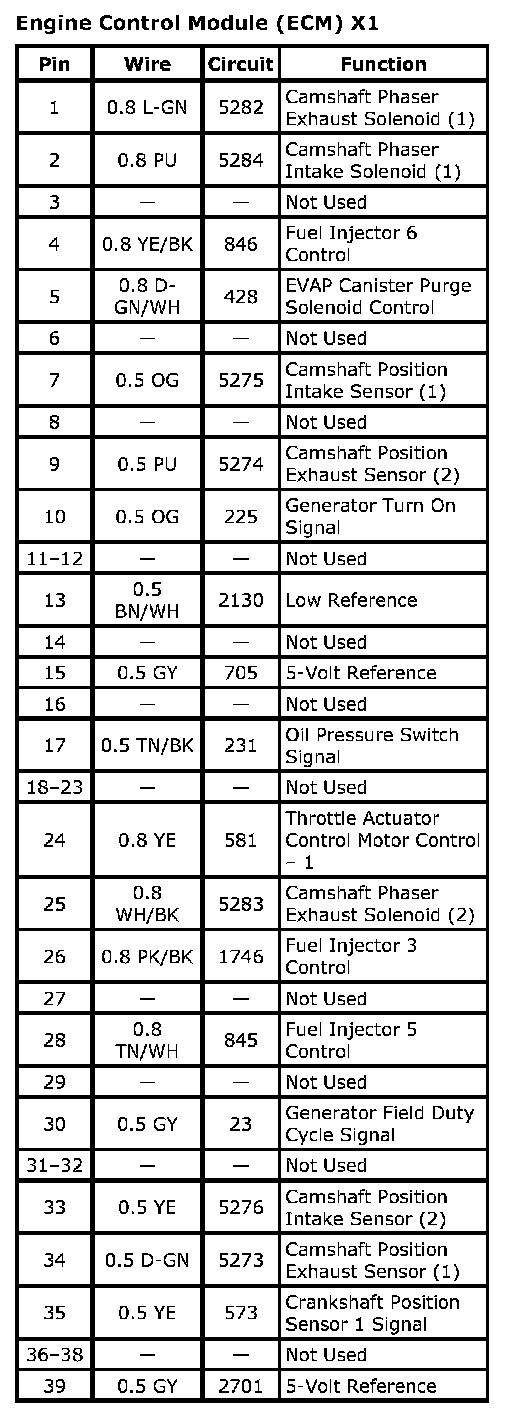

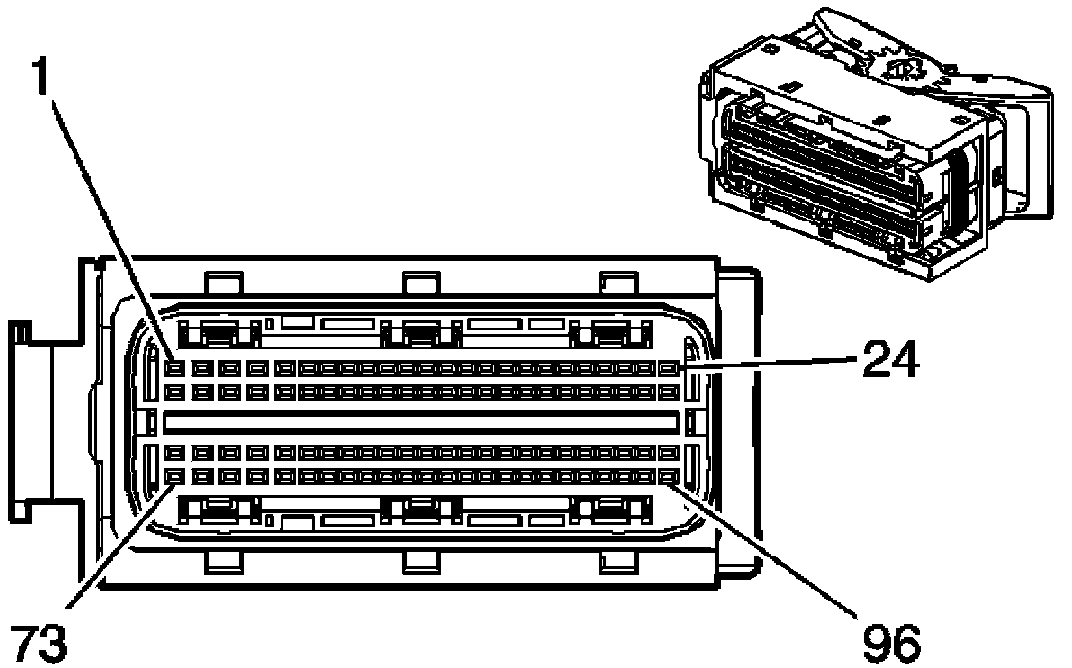

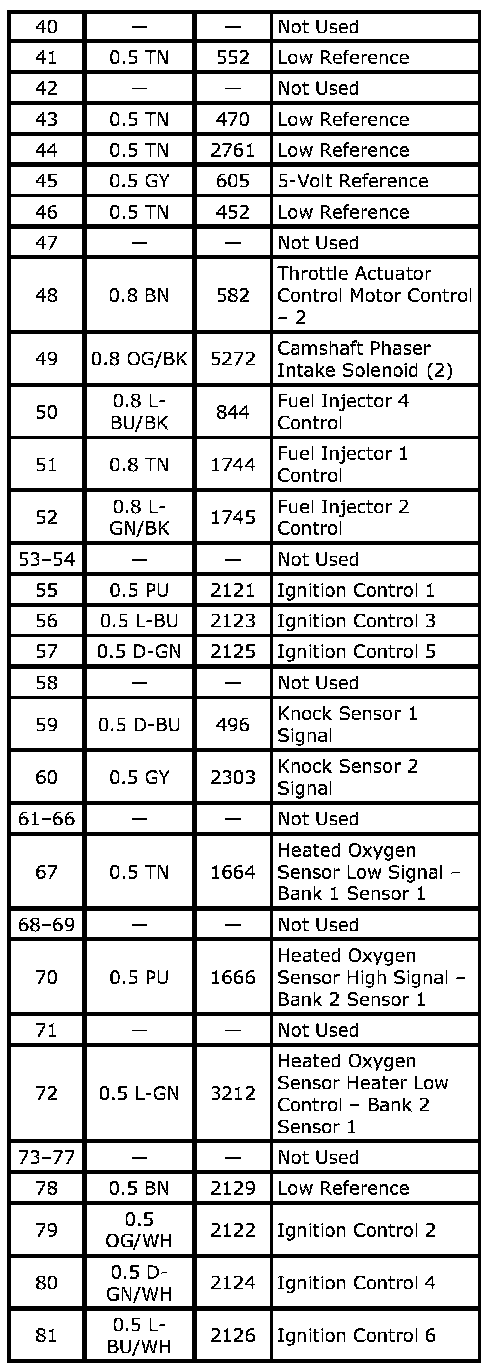

Engine Control Module (ECM) X1 (Part 1):

Engine Control Module (ECM) X1 (Part 2):

Engine Control Module (ECM) X1 (Part 3):

Engine Control Module (ECM) X2






Connector Part Information
OEM: 1928404916
Service: 19115599
Description: 58-Way F 2.8 Series Sealed (BK)

Terminal Part Information
Pins: 1-2, 4-5
Terminal/Tray: 1928498058/8
Core/Insulation Crimp: E/1
Release Tool/Test Probe: J-38125-561/J-35616-4A (PU)
Pins: 7, 9, 10-15, 17, 19-20, 22-25, 27, 34-36, 38-39, 41-42, 44-52, 54-58
Terminal/Tray: 1928498135/19
Core/Insulation Crimp: J/J
Release Tool/Test Probe: J-38125-213/J-35616-64B (L-BU)

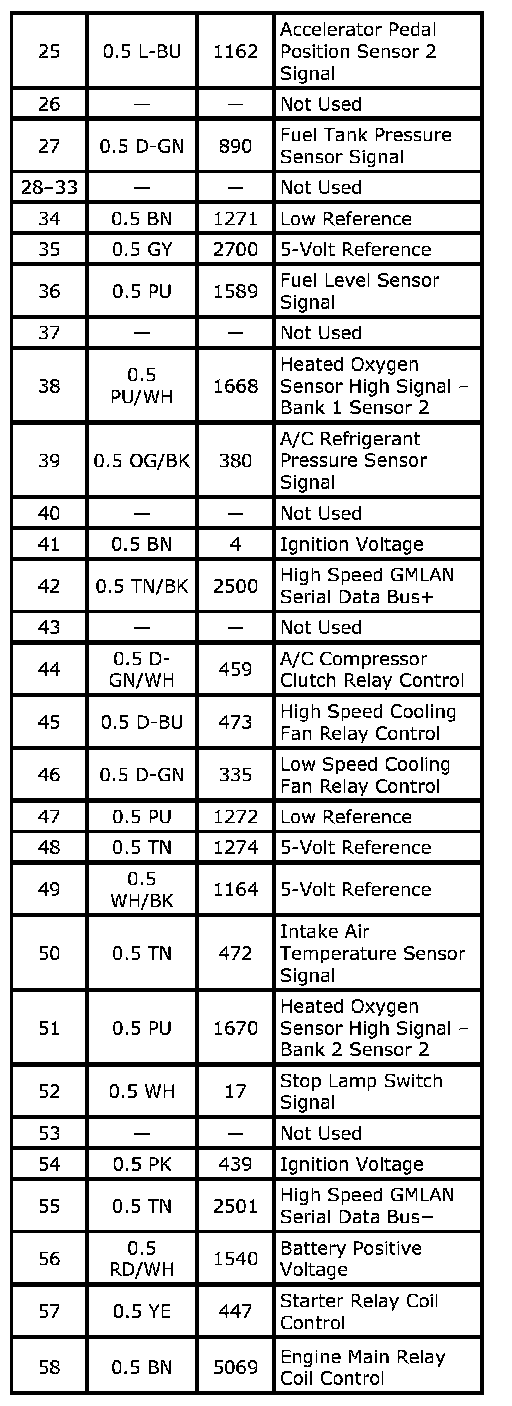

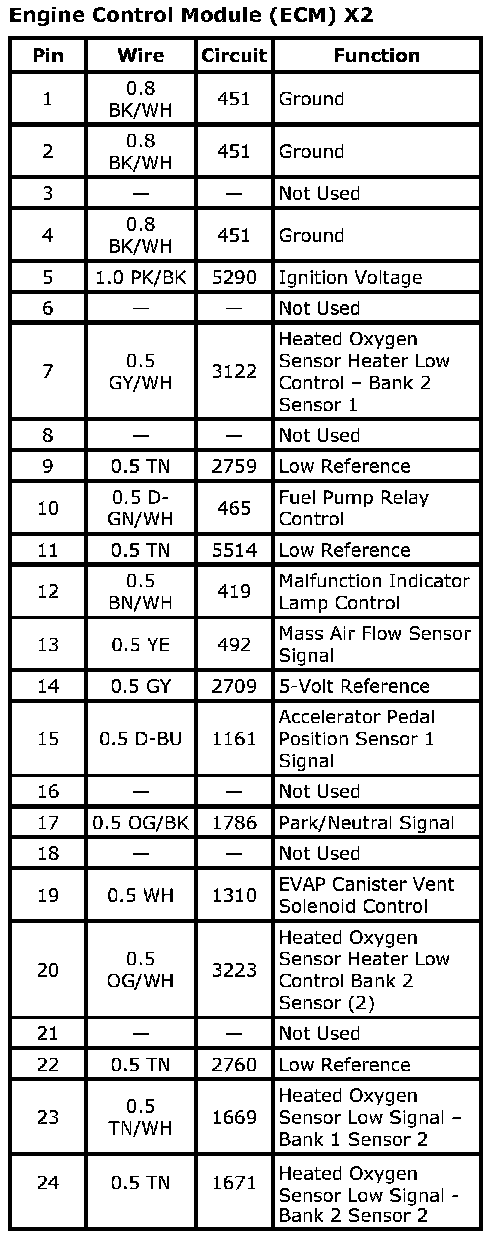

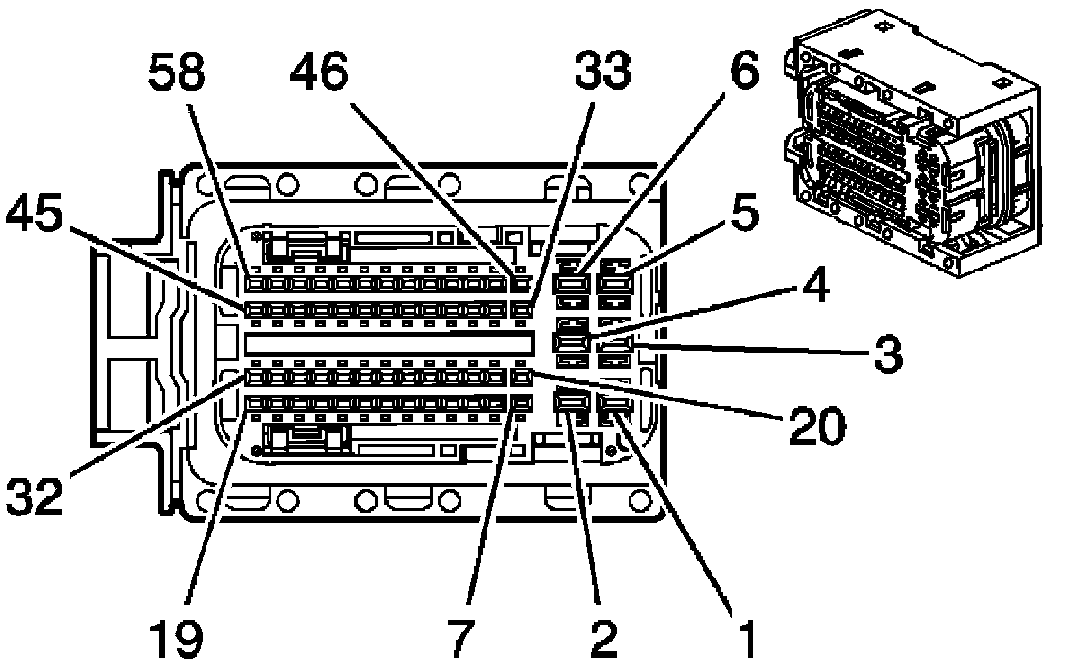

Engine Control Module (ECM) X2 (Part 1):

Engine Control Module (ECM) X2 (Part 2):
