Combination Switch Input Circuit Check

Combination Switch Input Circuit Check

Diagnosis Procedure
Regarding Wiring Diagram information, refer to [BCM: Wiring Diagram]. Electrical Diagrams

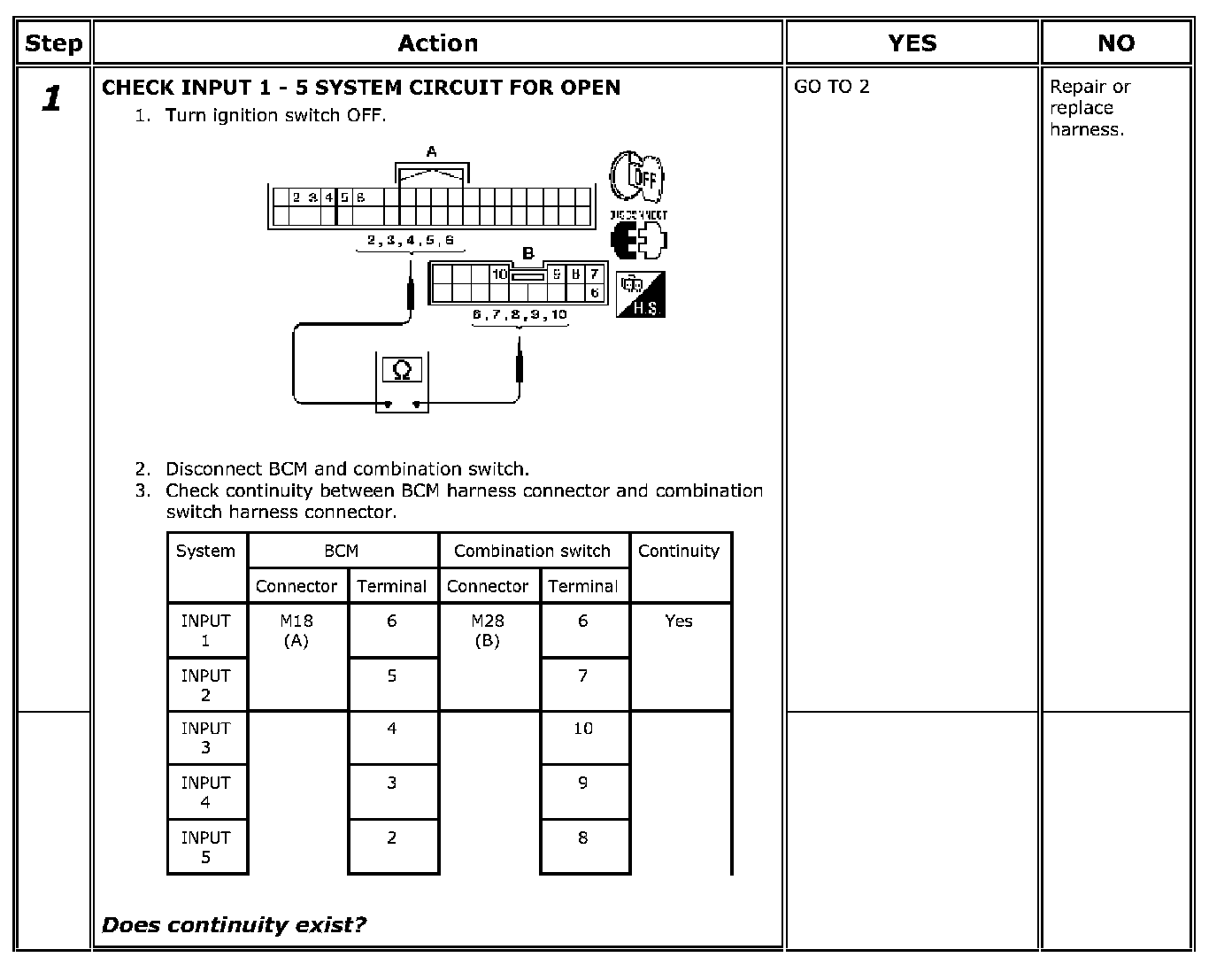

Step 1:

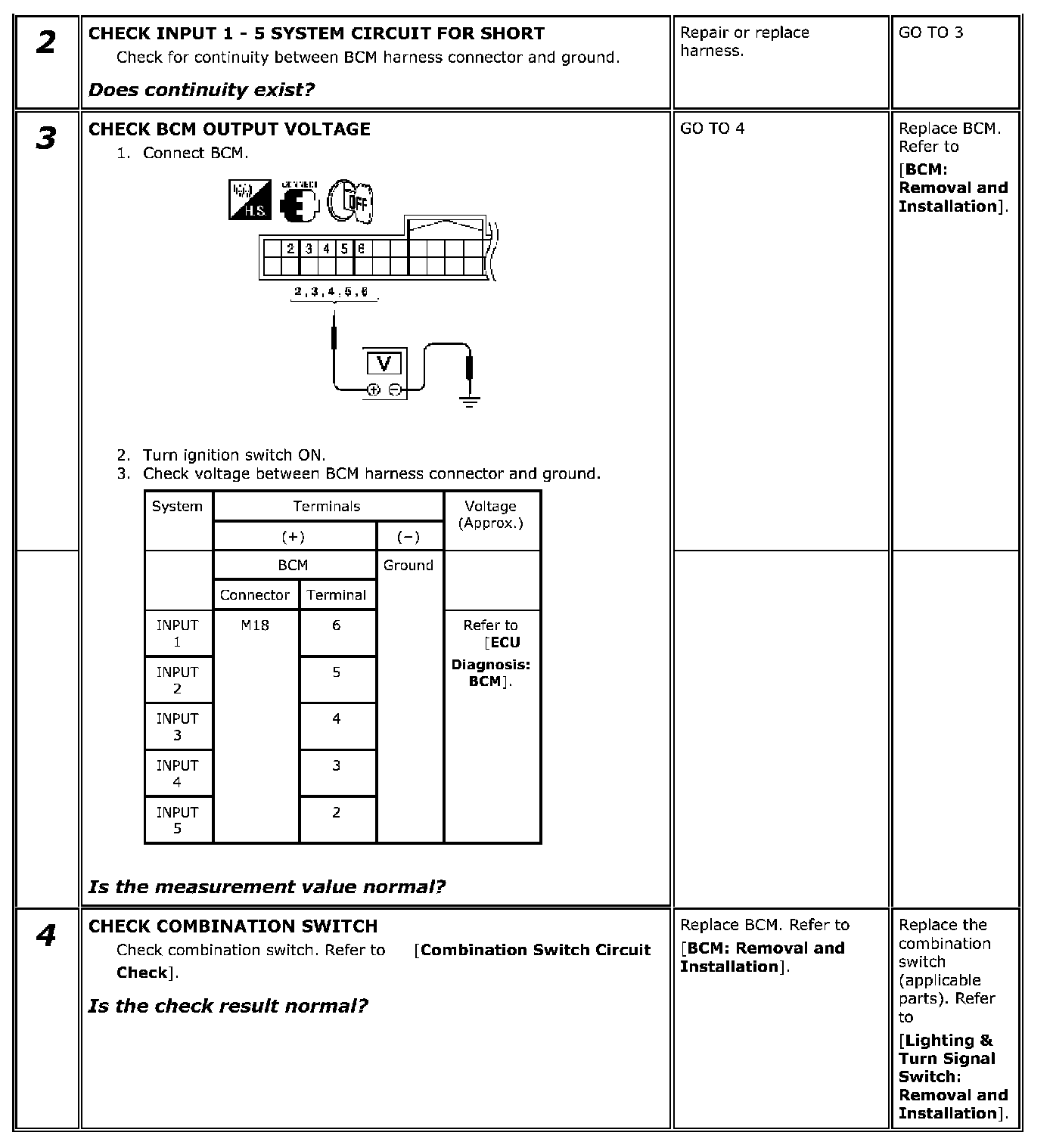

Step 2-4:

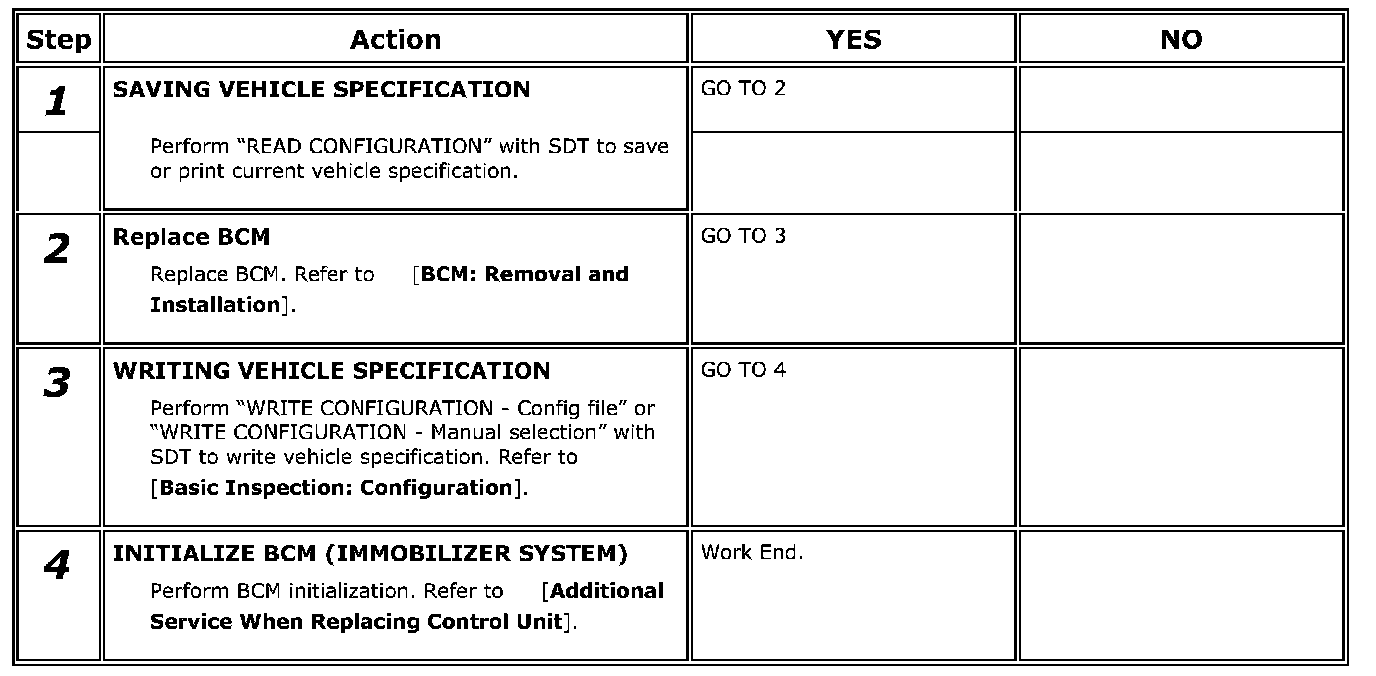

Special Repair Requirement

Step 1-4:
