Combination Switch Output Circuit Check

Combination Switch Output Circuit Check

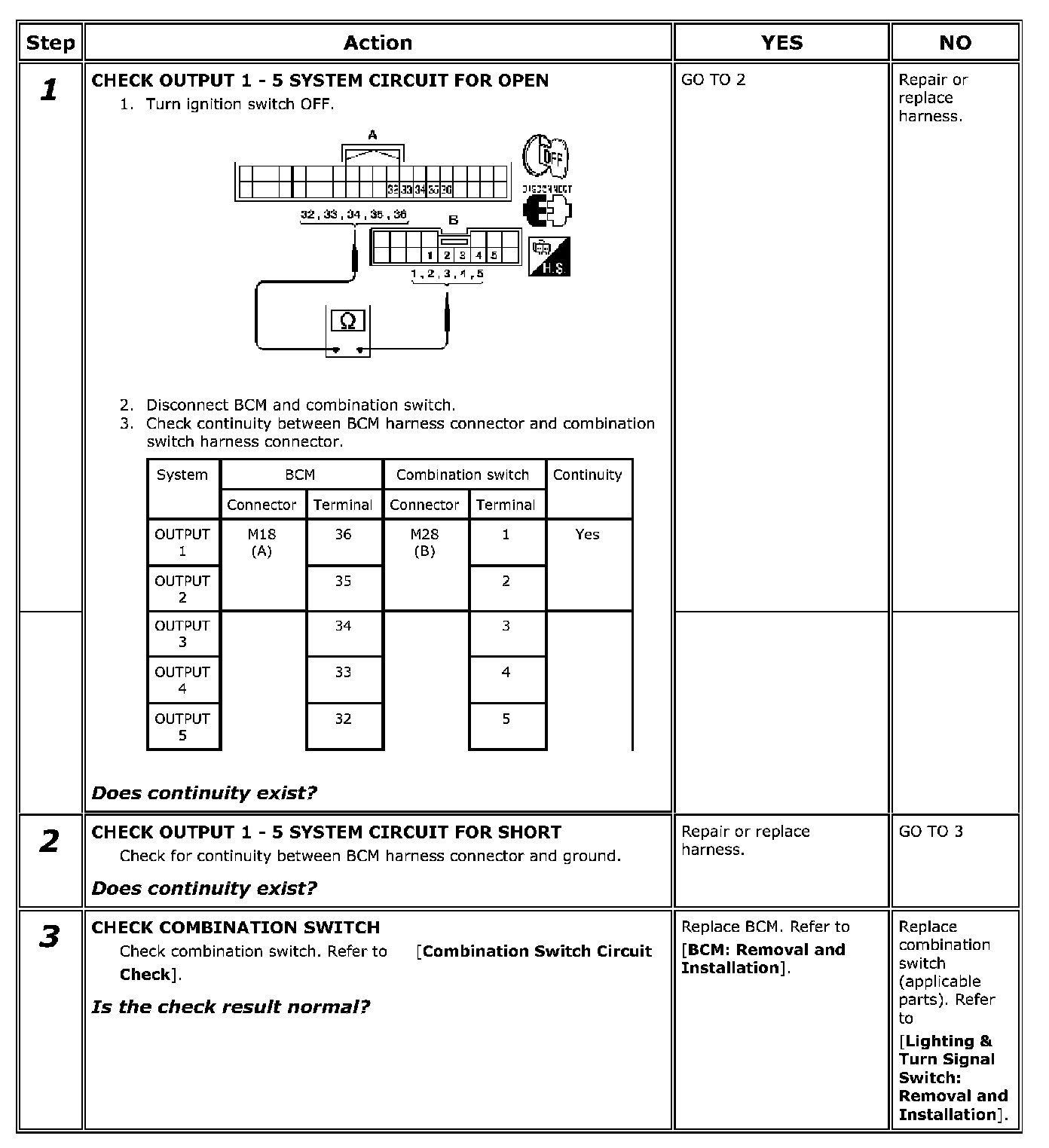

Diagnosis Procedure
Regarding Wiring Diagram information, refer to [BCM: Wiring Diagram]. Electrical Diagrams

Step 1-3:

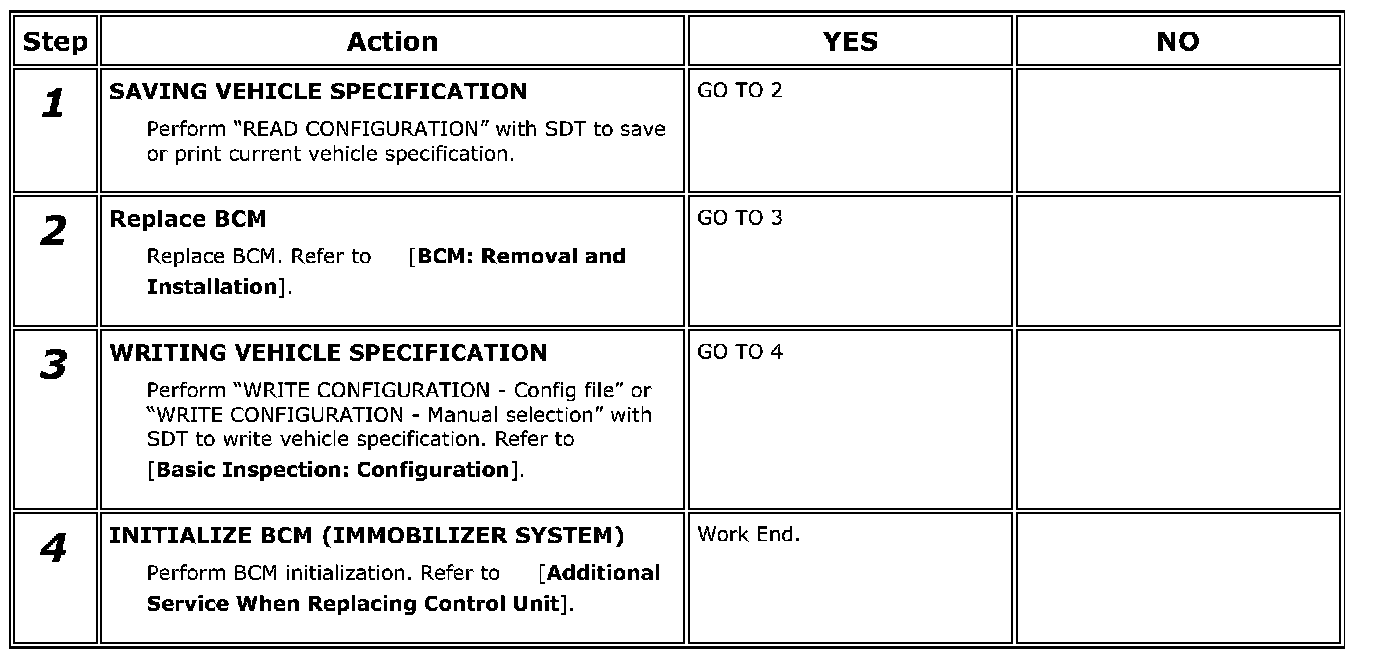

Special Repair Requirement

Step 1-4:
