Control Unit, Differential Lock

Differential Lock Control Unit: Wiring Diagram

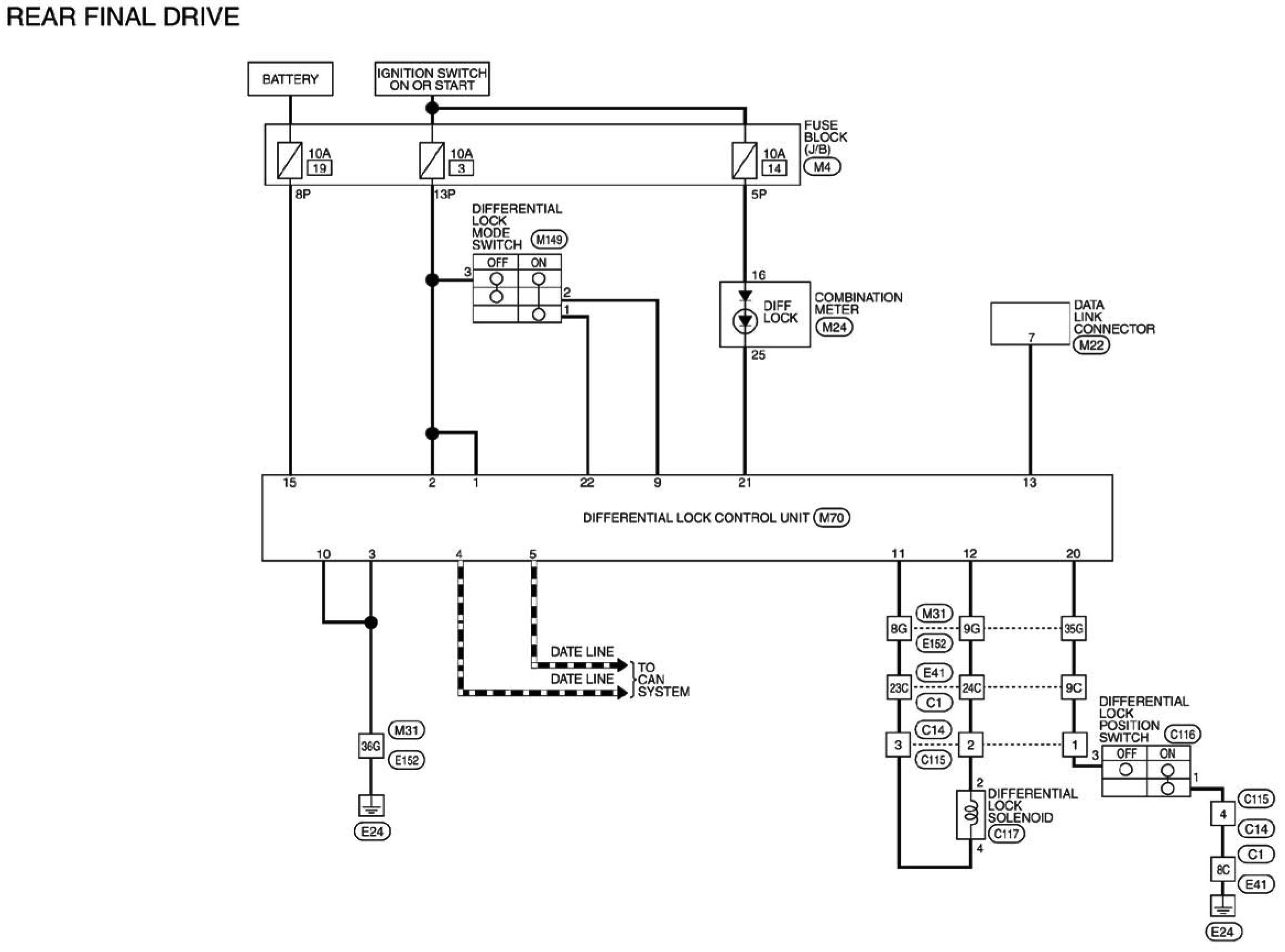

Rear Final Drive:






Rear Drive Connectors

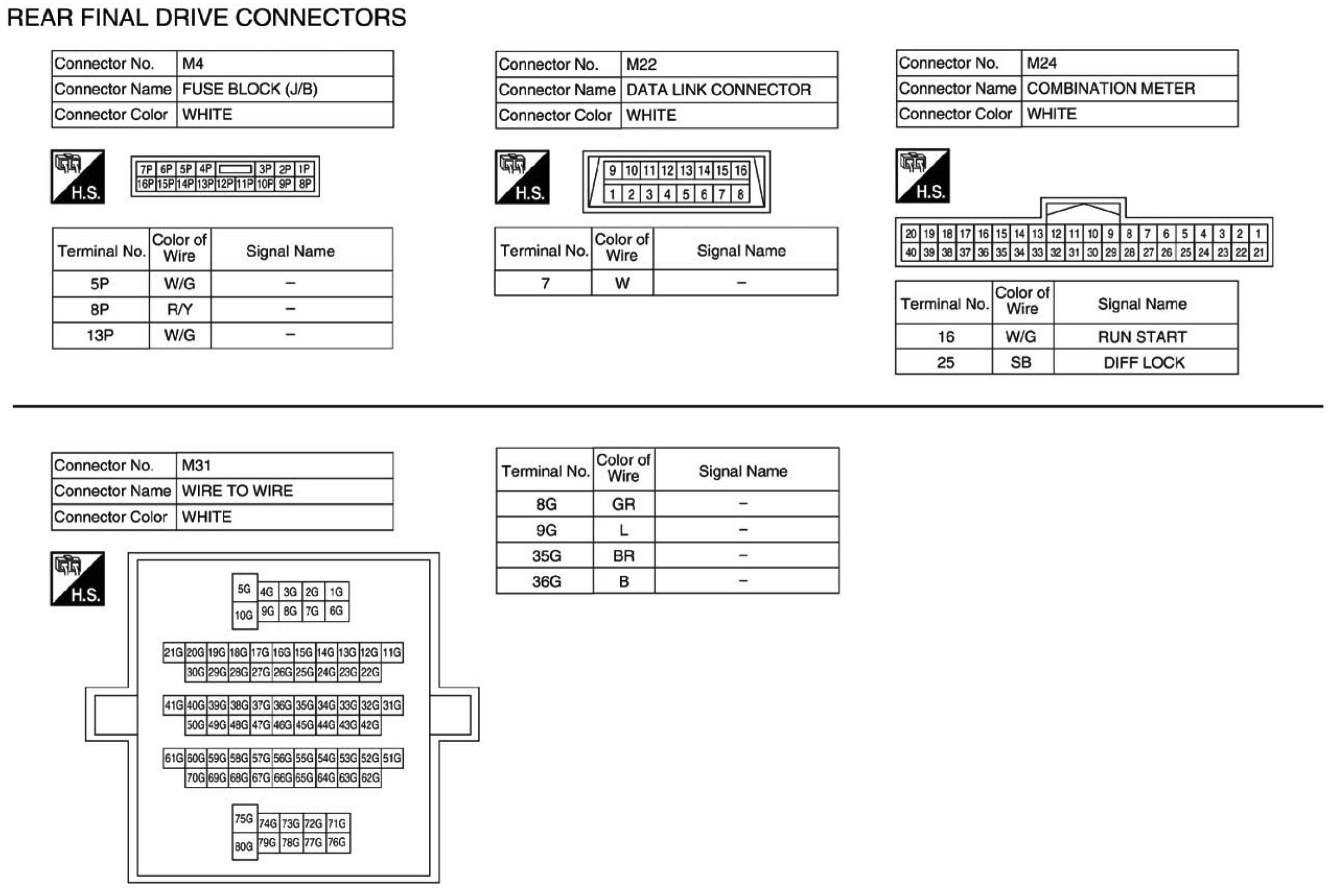

Rear Final Drive Connectors (Part 1):

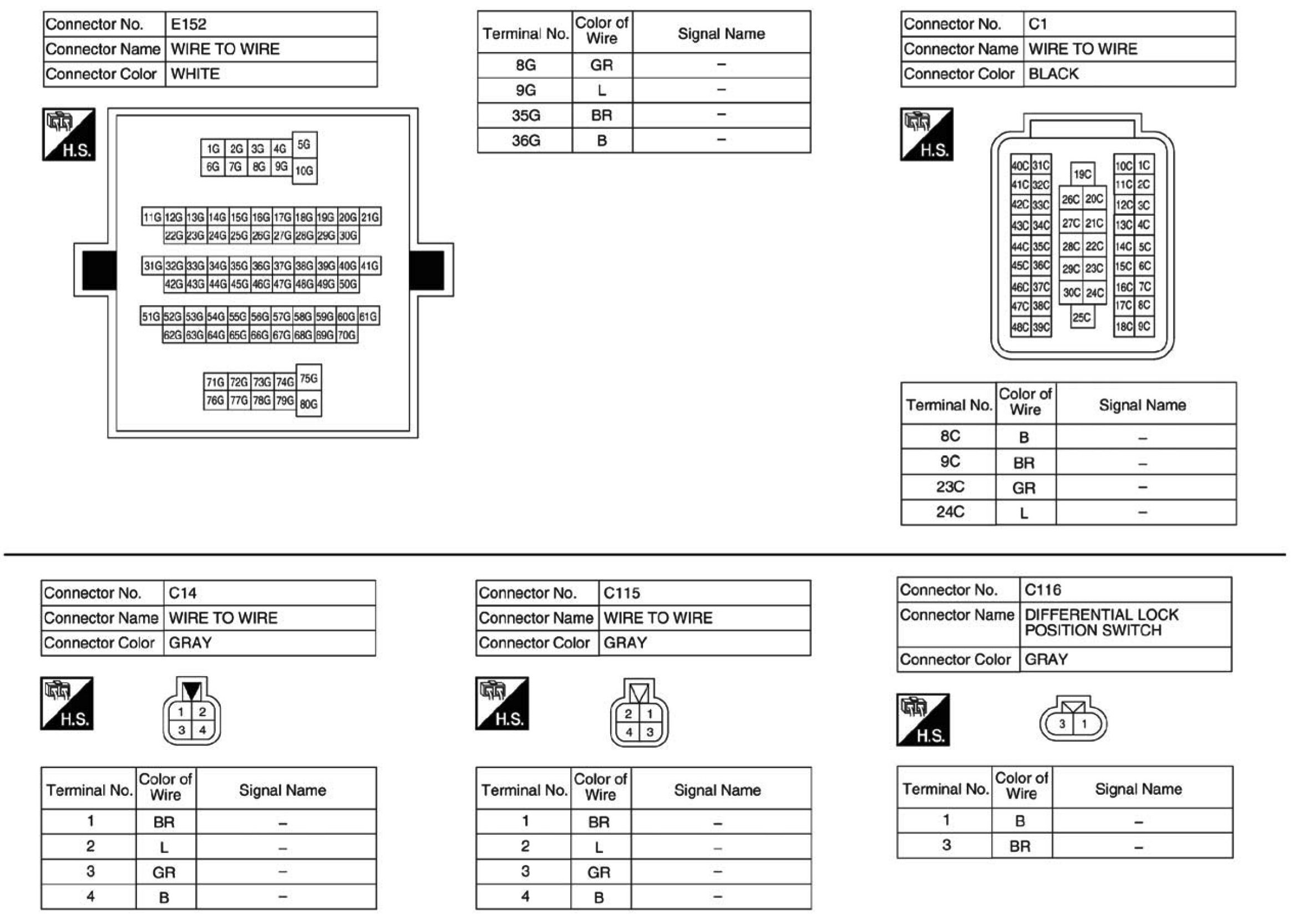

Rear Final Drive Connectors (Part 2):

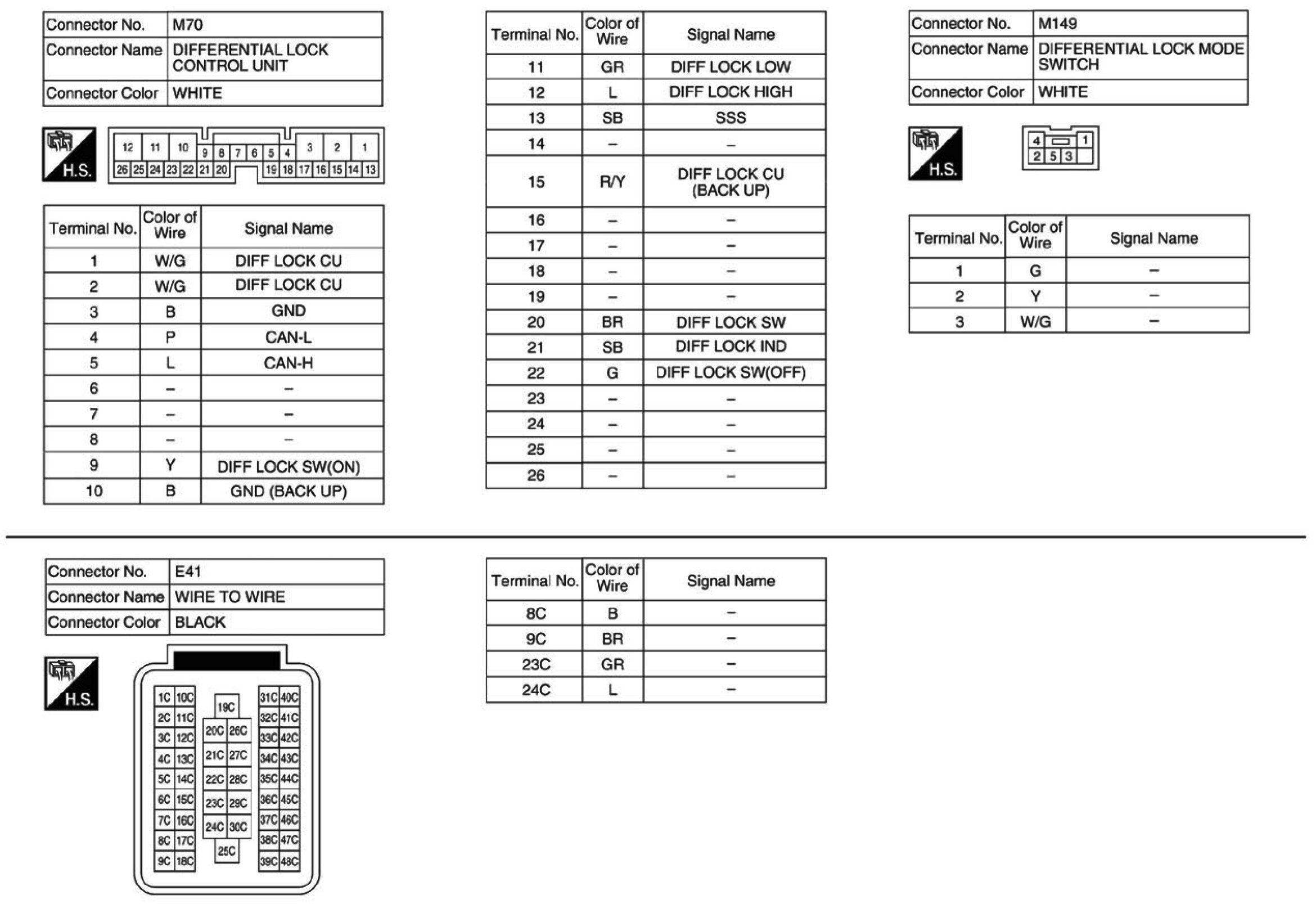

Rear Final Drive Connectors (Part 3):

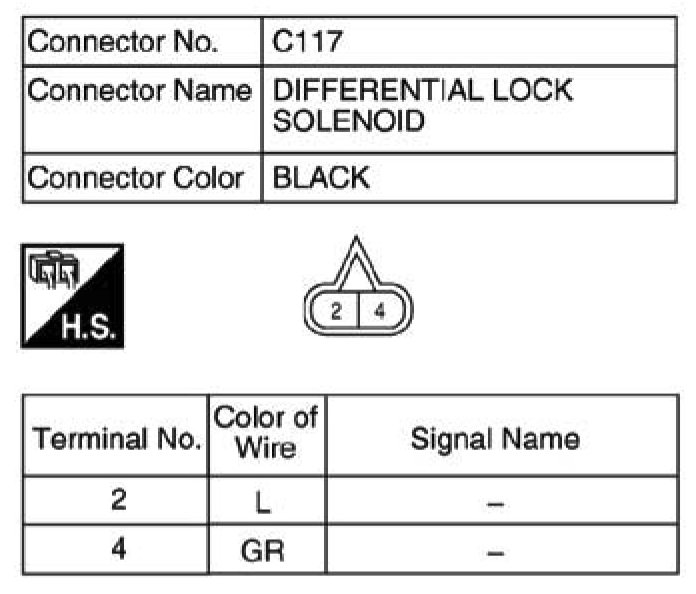

Rear Final Drive Connectors (Part 4):
