Suzuki Truck
>>
2010
>>
Equator 2WD L4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Console
Console

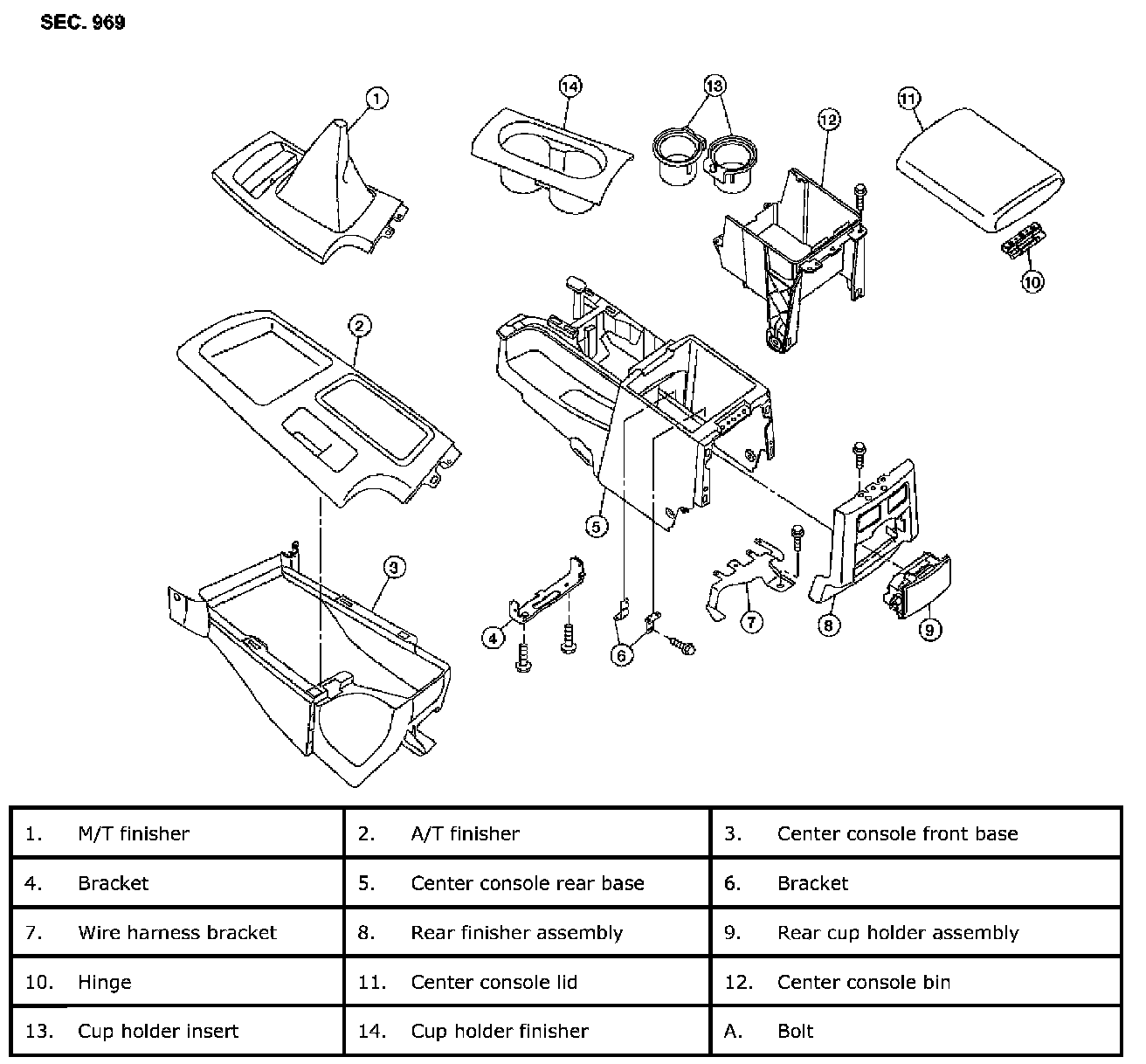

Center Console Assembly: Exploded View
