Suzuki Truck
>>
2010
>>
Equator 2WD L4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Pressure Plate
>>
5M/T]
5M/T]
Clutch Disc

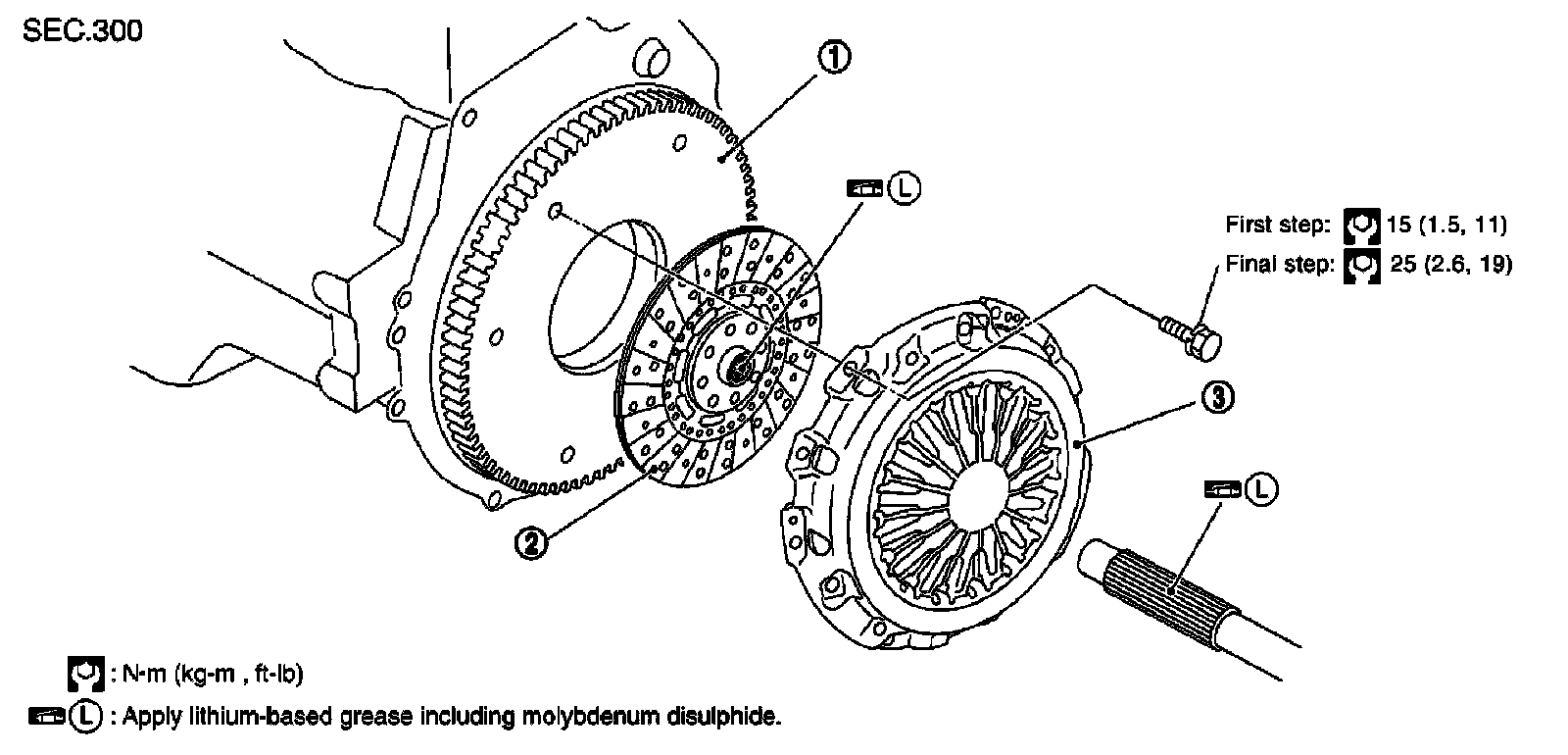

, Clutch Cover: Exploded View [5M/T]
