Operation CHARM
: Car repair manuals for everyone.
Home
>>
Suzuki Truck
>>
2010
>>
Equator 2WD L4-2.5L
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Main Harness
Main Harness
Main Harness

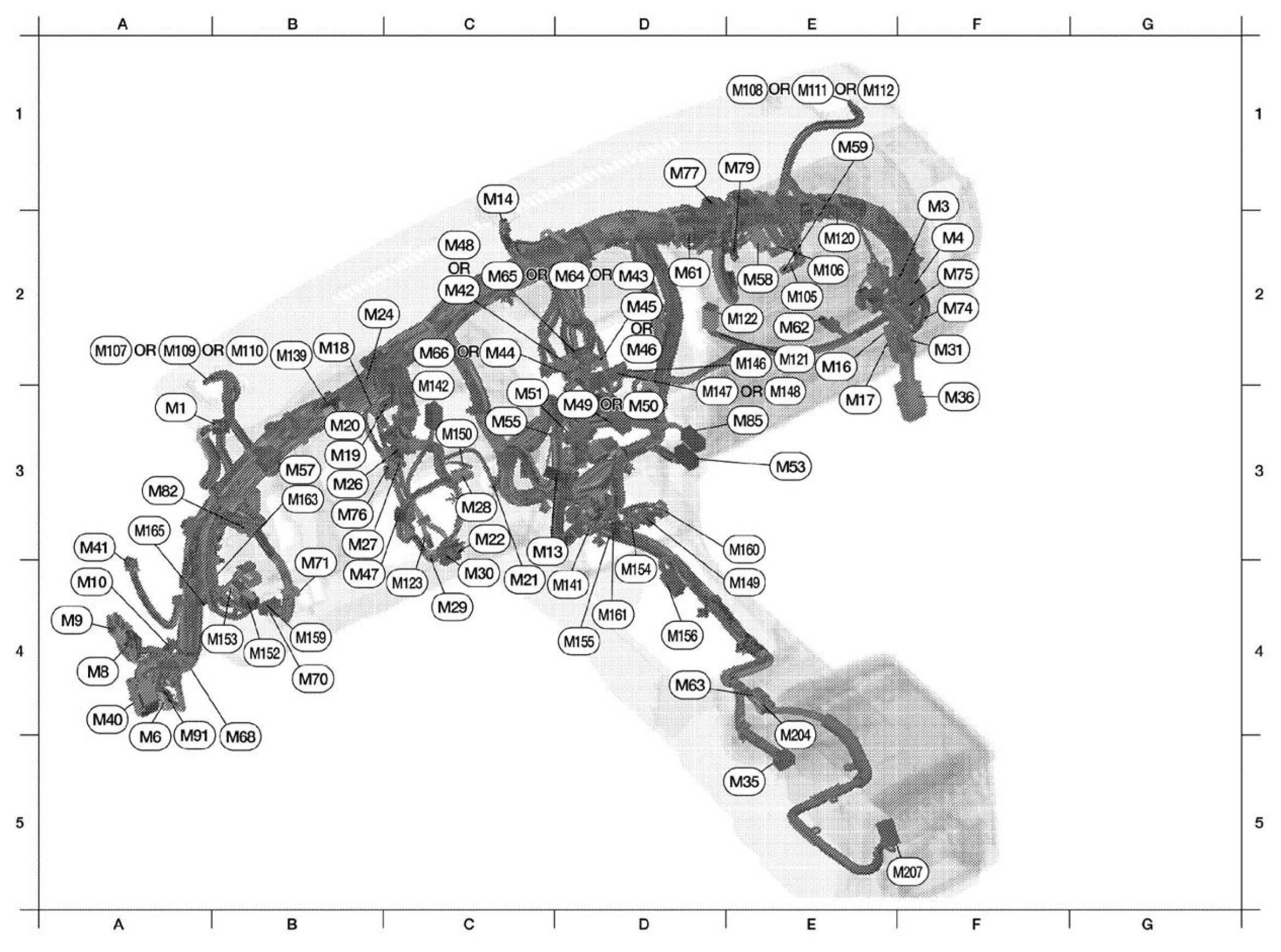

Main Harness View:

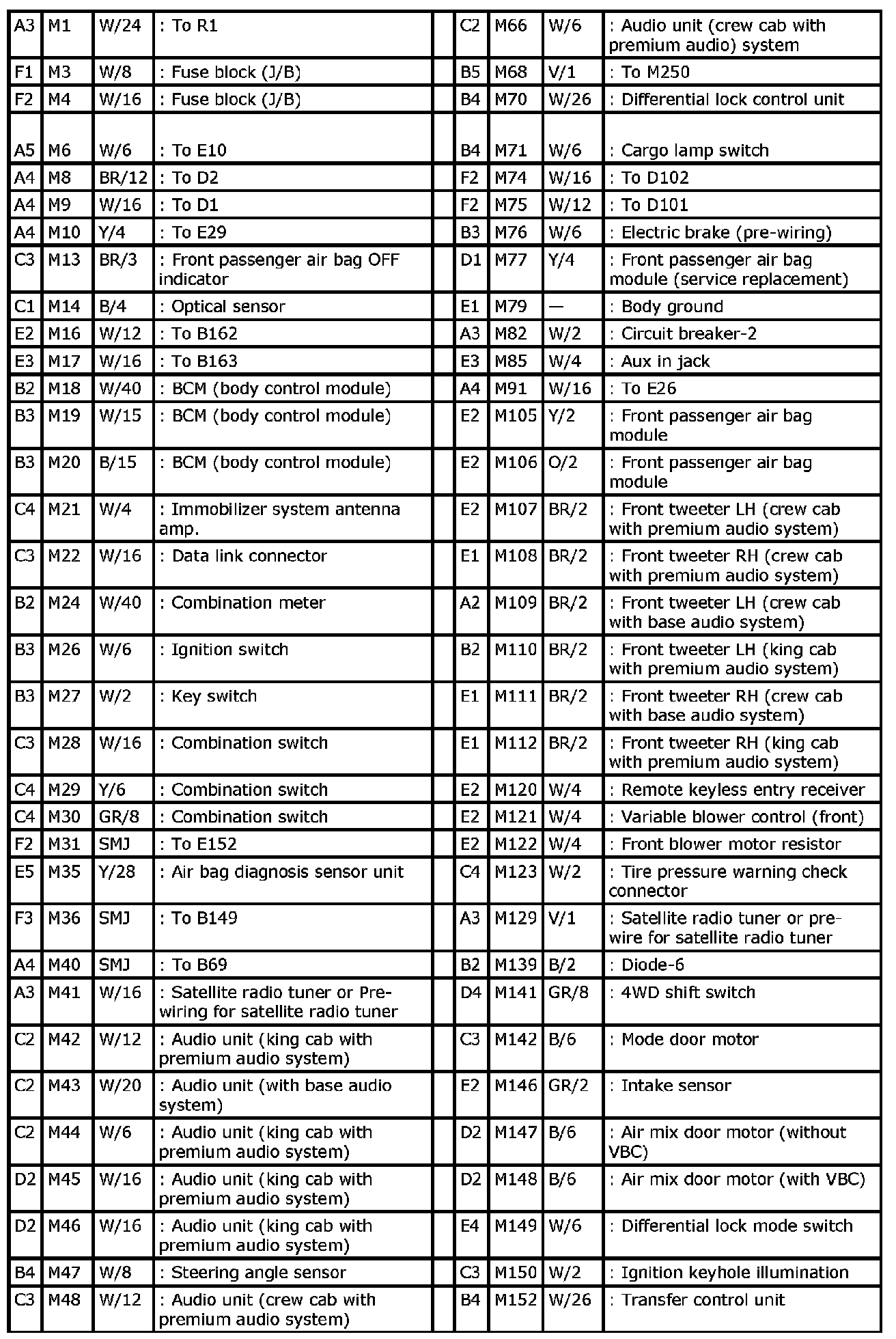

Main Harness Index (Part 1):

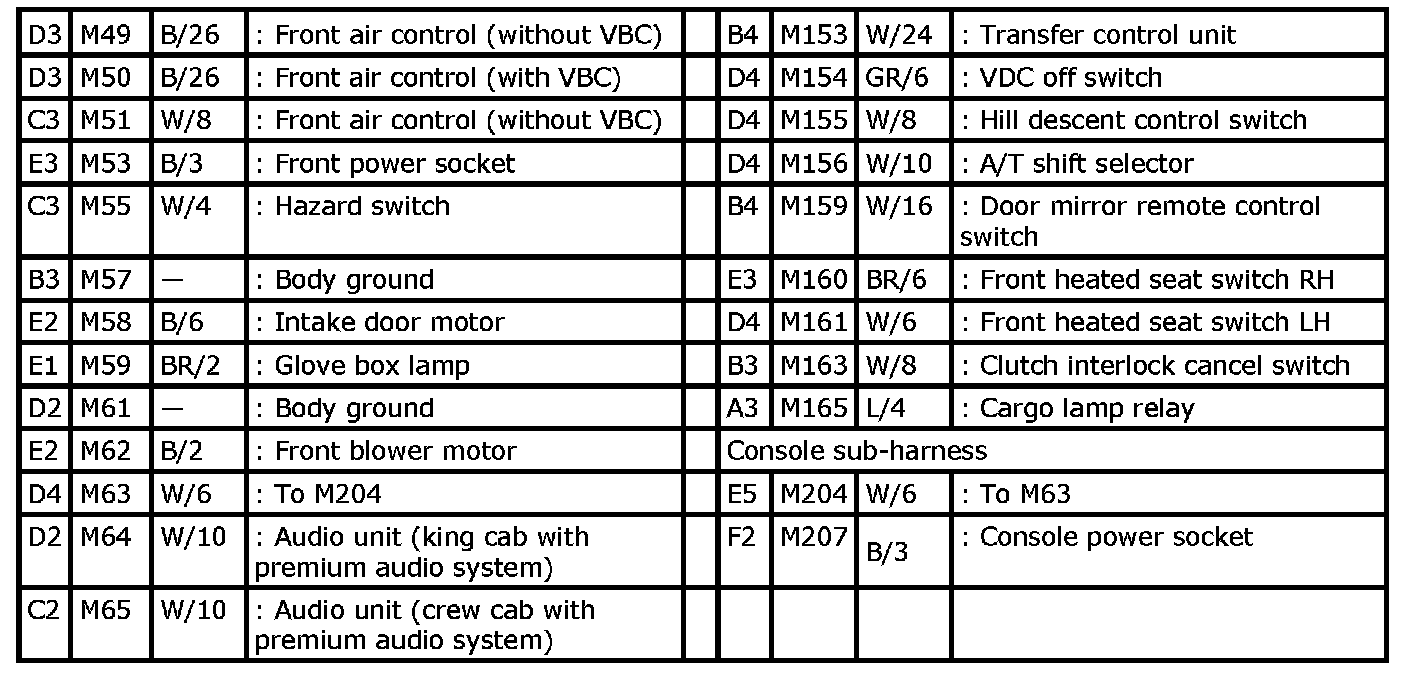

Main Harness Index (Part 2):
