Vehicle Lifting: Service and Repair

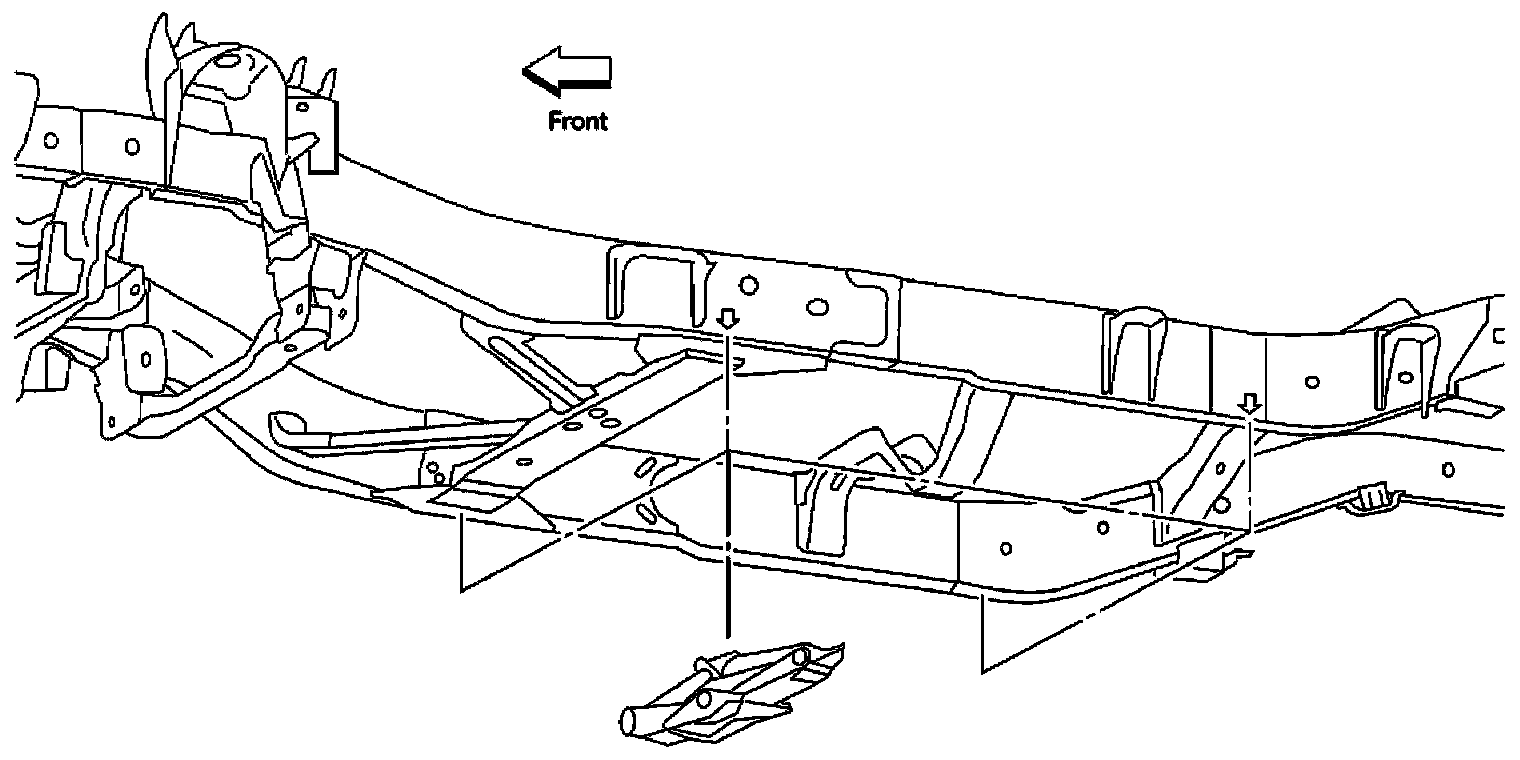

Lifting PointPantograph Jack
WARNING:
- Never get under the vehicle while it is supported only by the jack. Always use safety stands to support the frame when you have to get under the vehicle.
- Place wheel chocks at both front and back of the wheels on the ground.

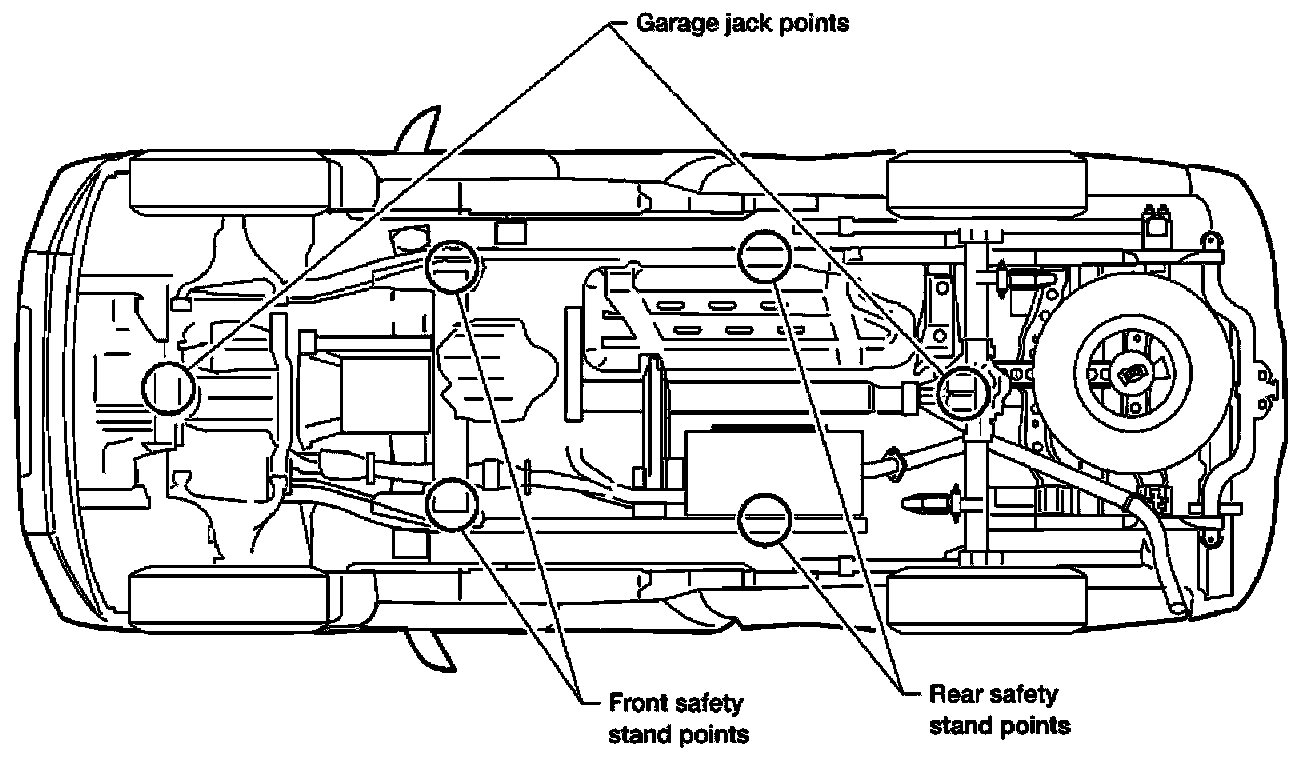

Garage Jack and Safety Stand
CAUTION: Place a wooden or rubber block between safety stand and vehicle body when the supporting body is flat.

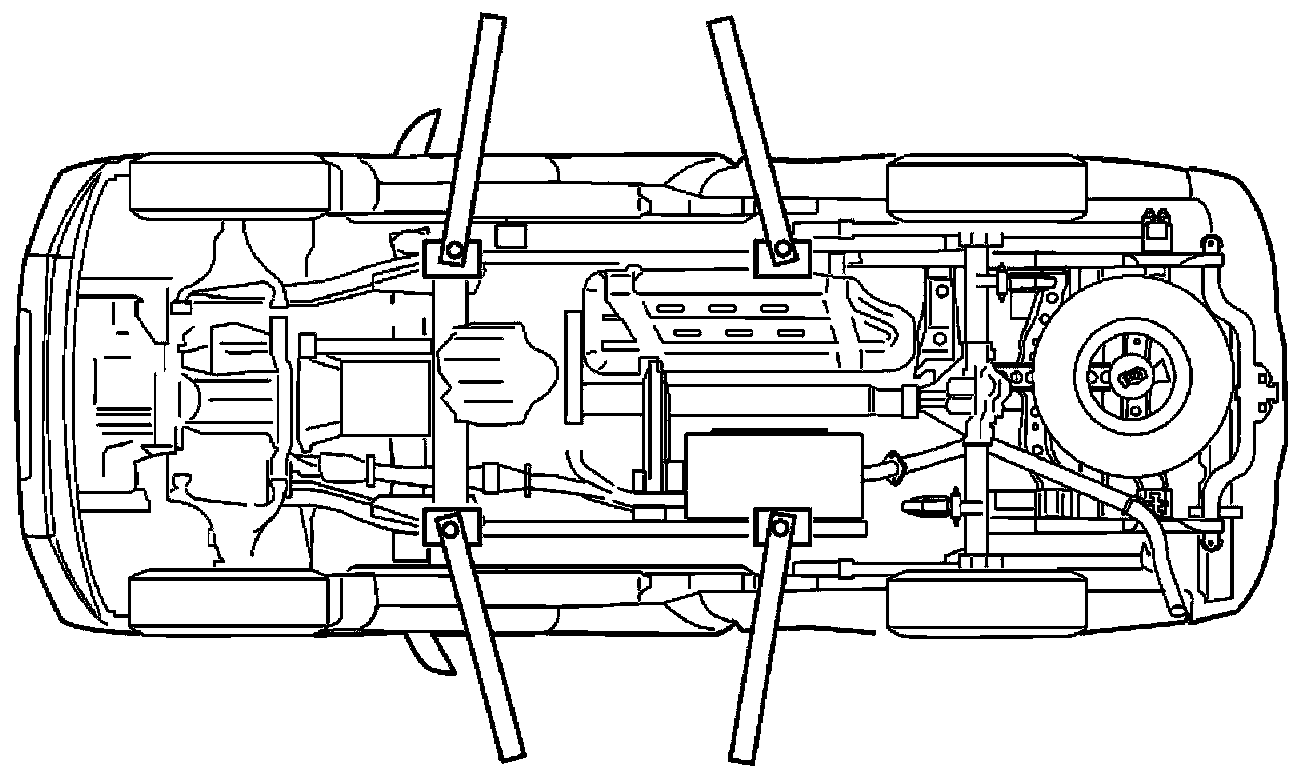

2-Pole Lift
WARNING:
- When lifting the vehicle, open the lift arms as wide as possible and ensure that the front and rear of the vehicle are well balanced.
- When setting the lift arm, do not allow the arm to contact the brake tubes, brake cable, or fuel lines.
