SDT Function (BCM)

SDT Function (BCM)

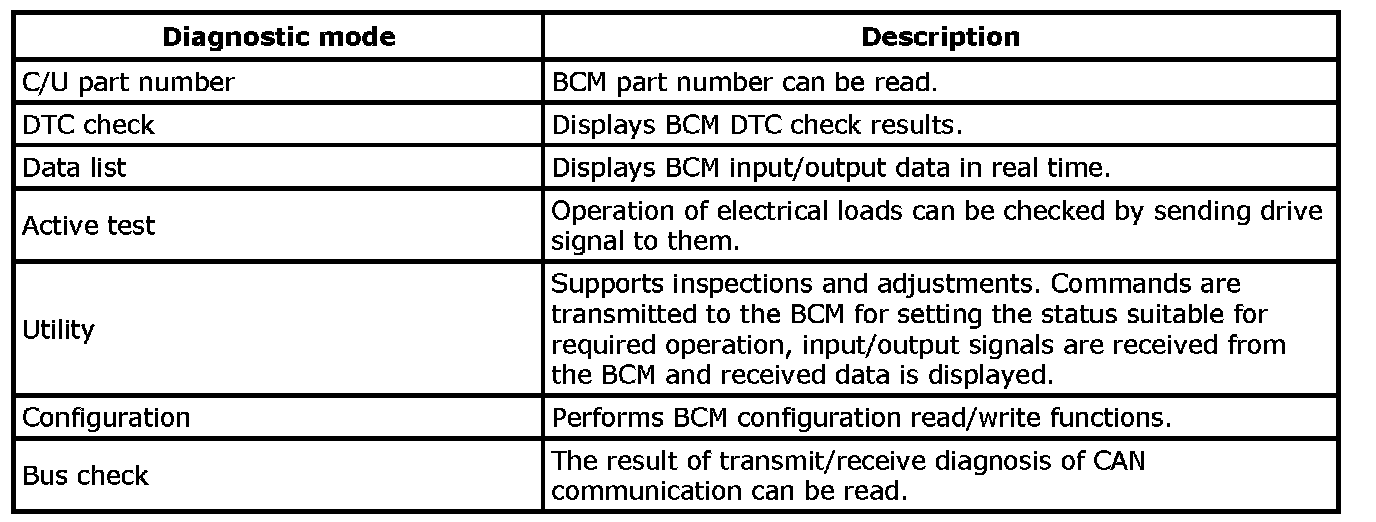

SDT Diagnostic Modes
SDT can display each diagnostic item using the diagnostic test modes shown following.






Description
During driving, the tire pressure monitoring system receives the signal transmitted from the transmitter installed in each wheel, and turns on the low tire pressure warning lamp when the tire pressure becomes low. The control unit (BCM) for this system has pressure judgement and "DTC check" functions.

Function
When the tire pressure monitoring system detects low inflation pressure or an internal malfunction, the low tire pressure warning lamp in the combination meter comes on. The malfunction is indicated by the low tire pressure warning lamp flashing.

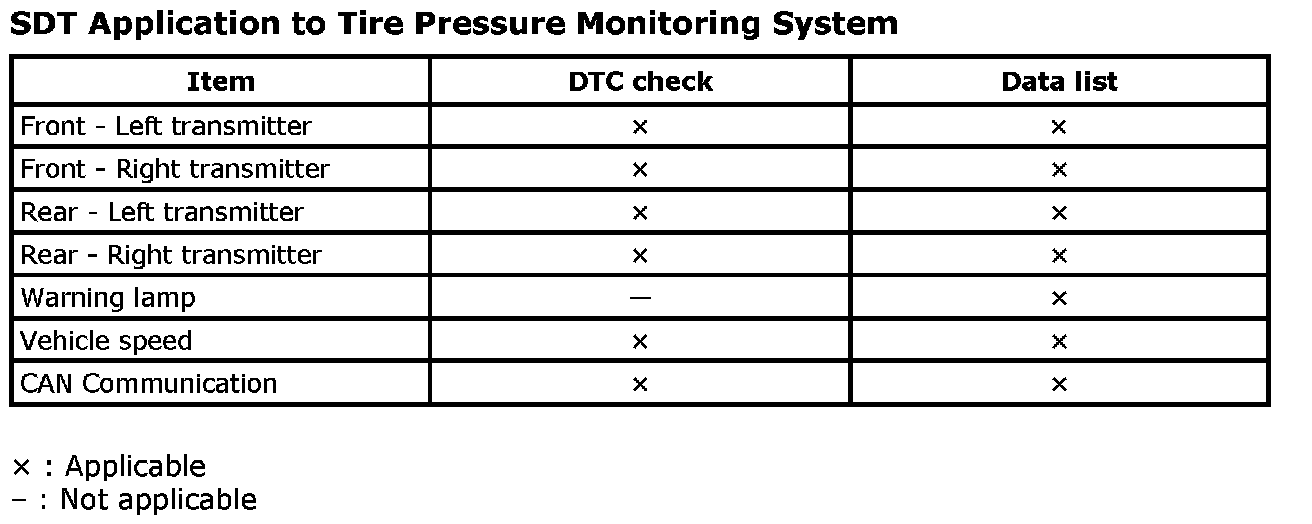

SDT Application to Tire Pressure Monitoring System

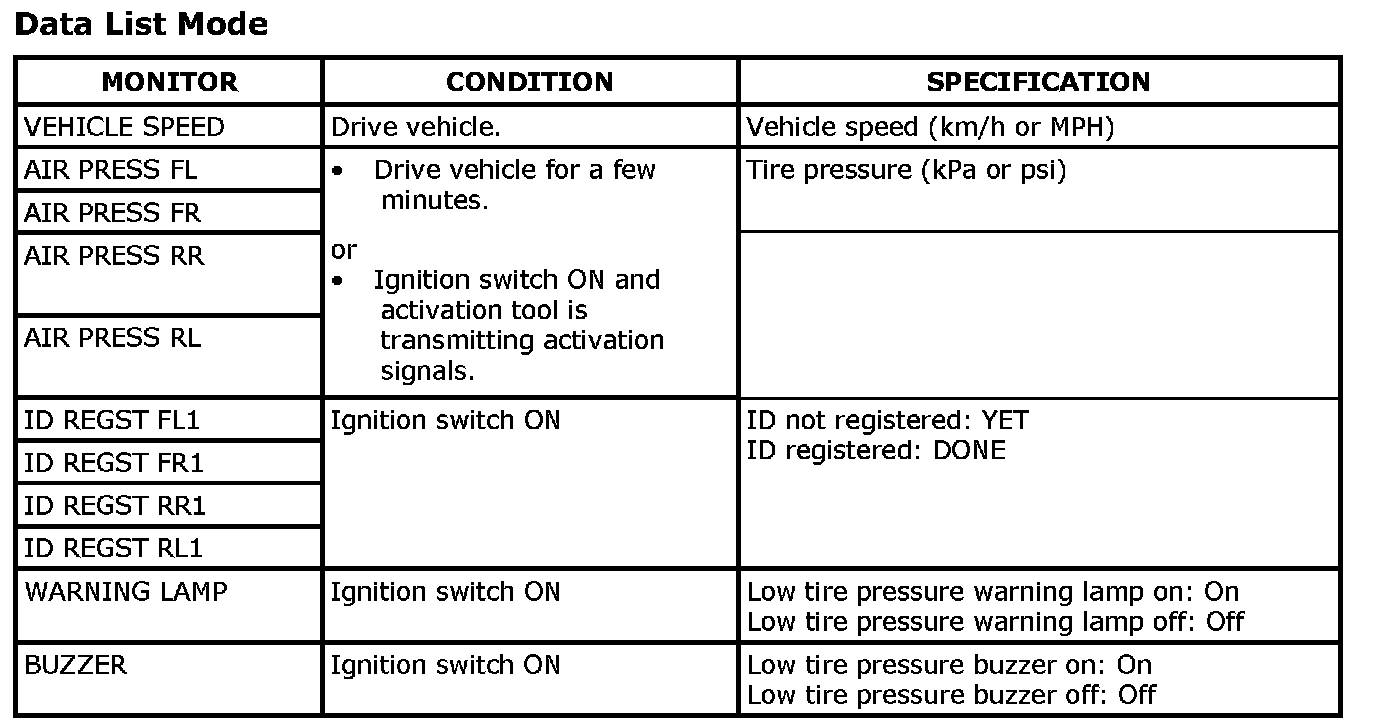

Data List Mode







NOTE: Before performing "DTC check", be sure to register the ID, or the actual malfunction location may be different from that displayed on SDT.

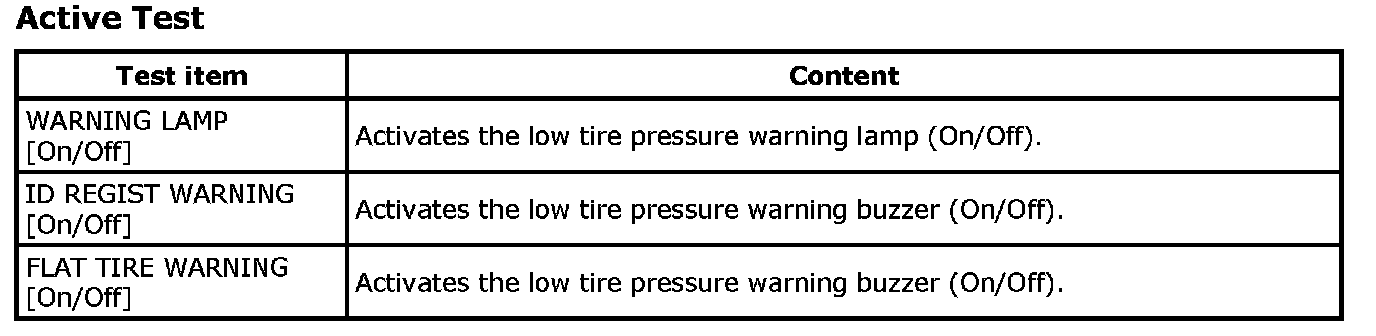

Active Test







Utility
