DTC Check Mode
DTC Check Mode

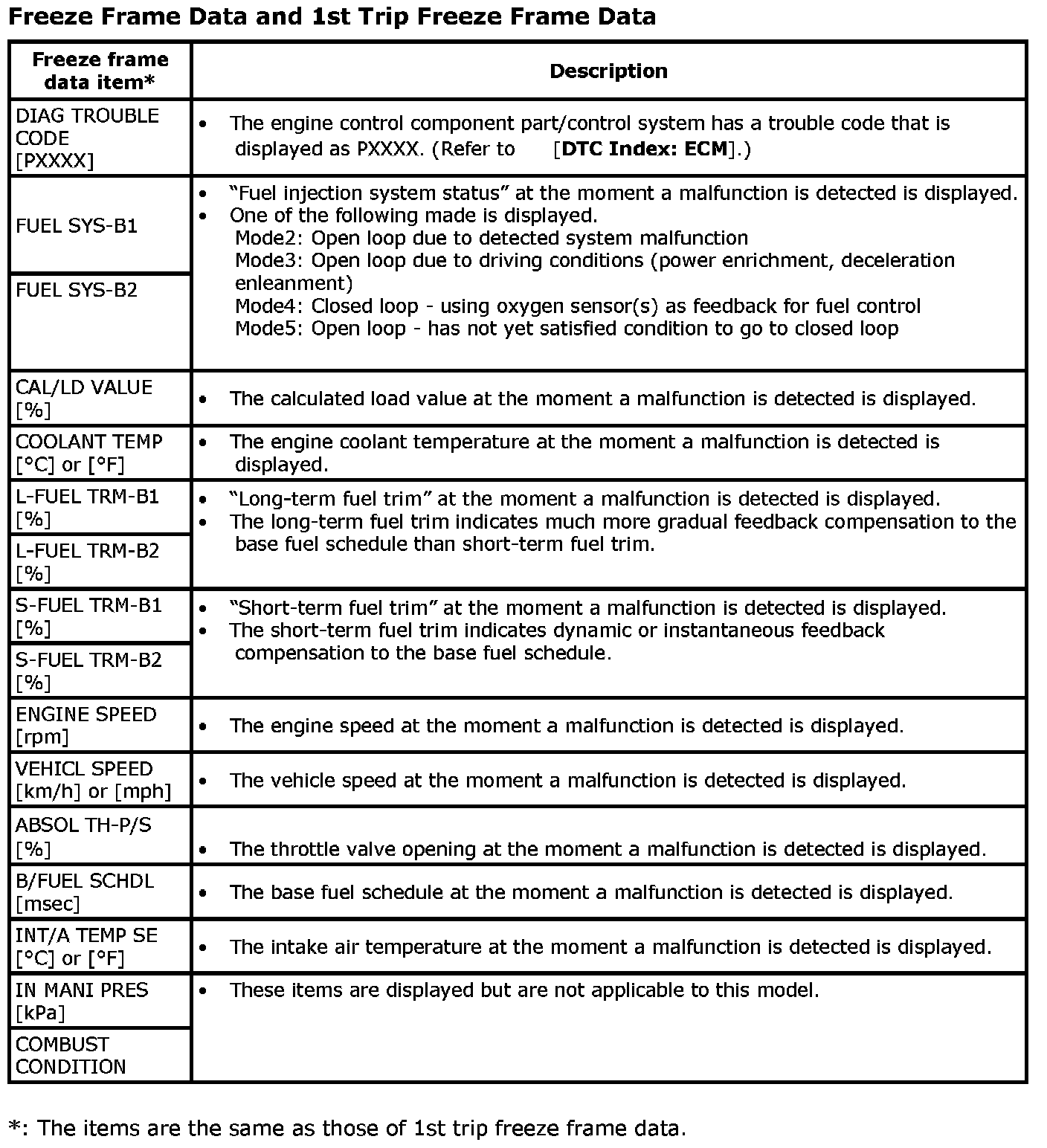

DTC Check Item
Regarding items of "DTC and 1st trip DTC", refer to [DTC Index: ECM].
Diagnostic Trouble Code Descriptions
