Engine Control System: System Diagram
Engine Control System: System Diagram
Engine Control System: System Diagram

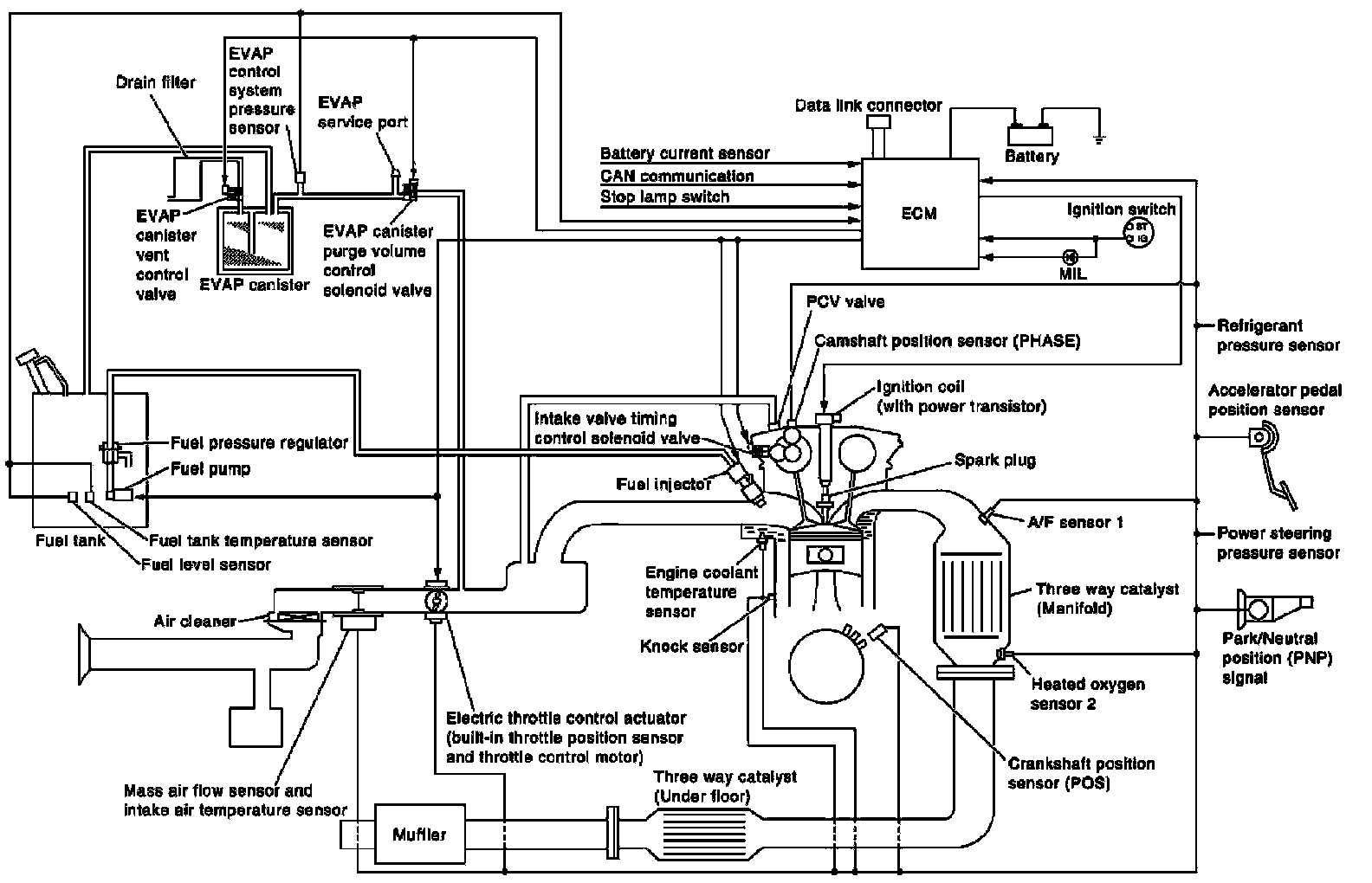

Engine Control System: System Diagram:
