Home >> Suzuki Truck >> 2010 >> Equator 2WD L4-2.5L >> Repair and Diagnosis >> Powertrain Management >> Locations

Powertrain Management: Locations

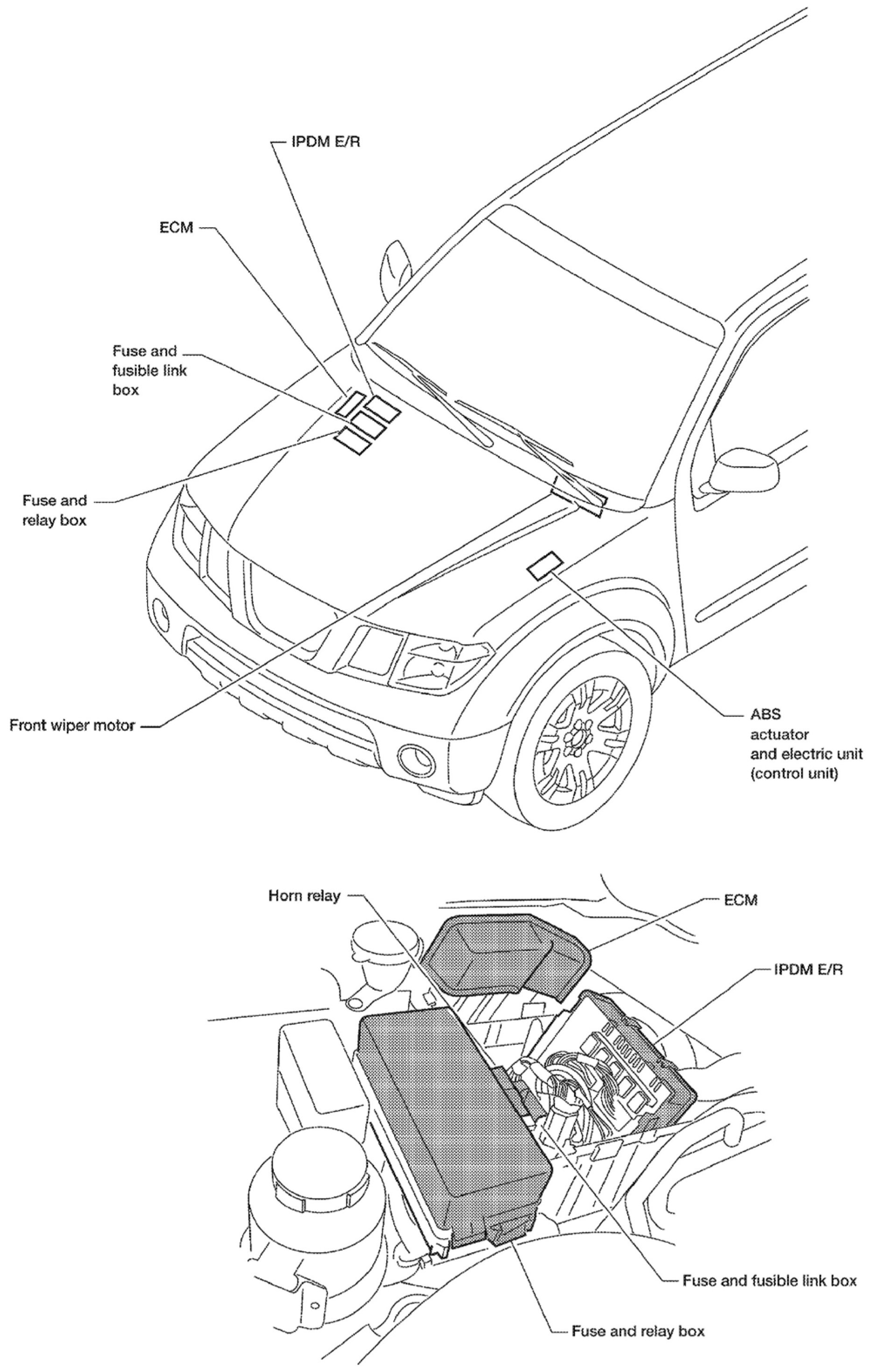

Electrical Unit Locations

Engine Compartment
