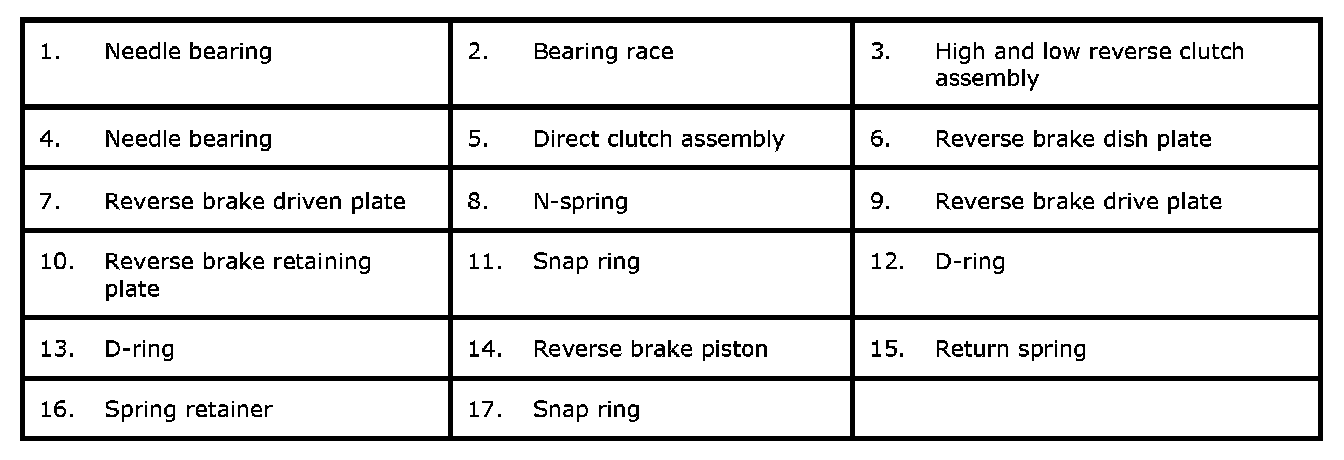

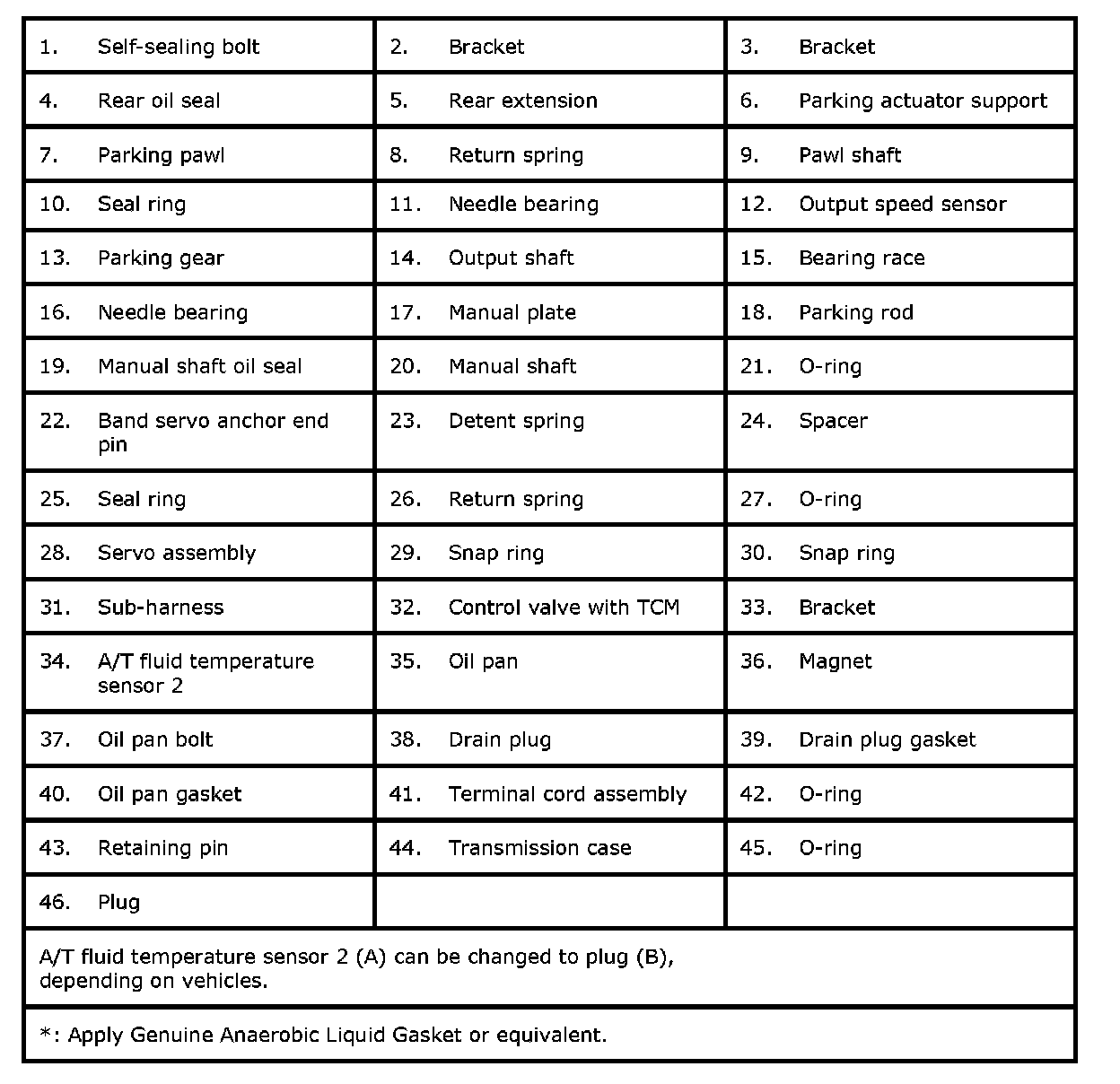

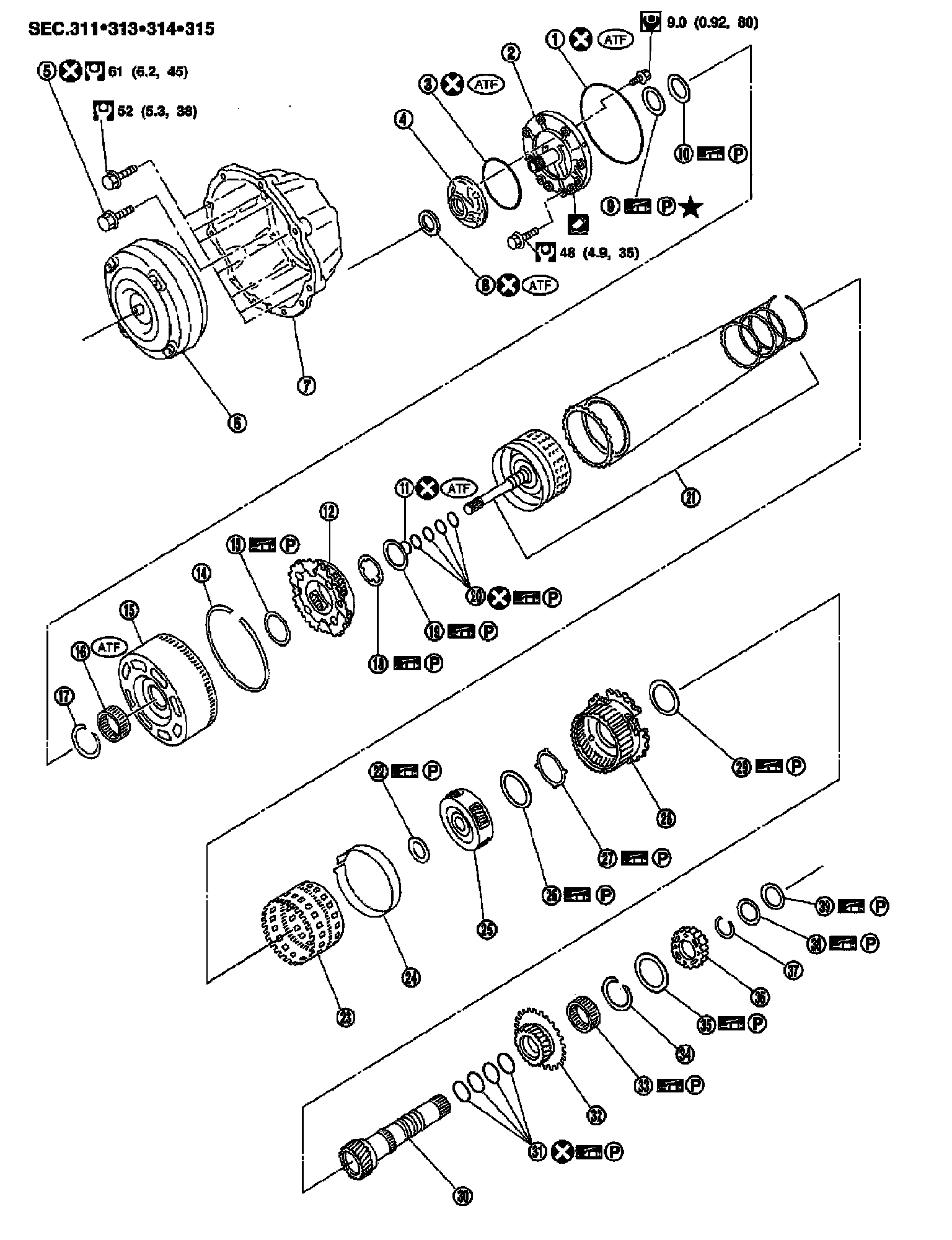

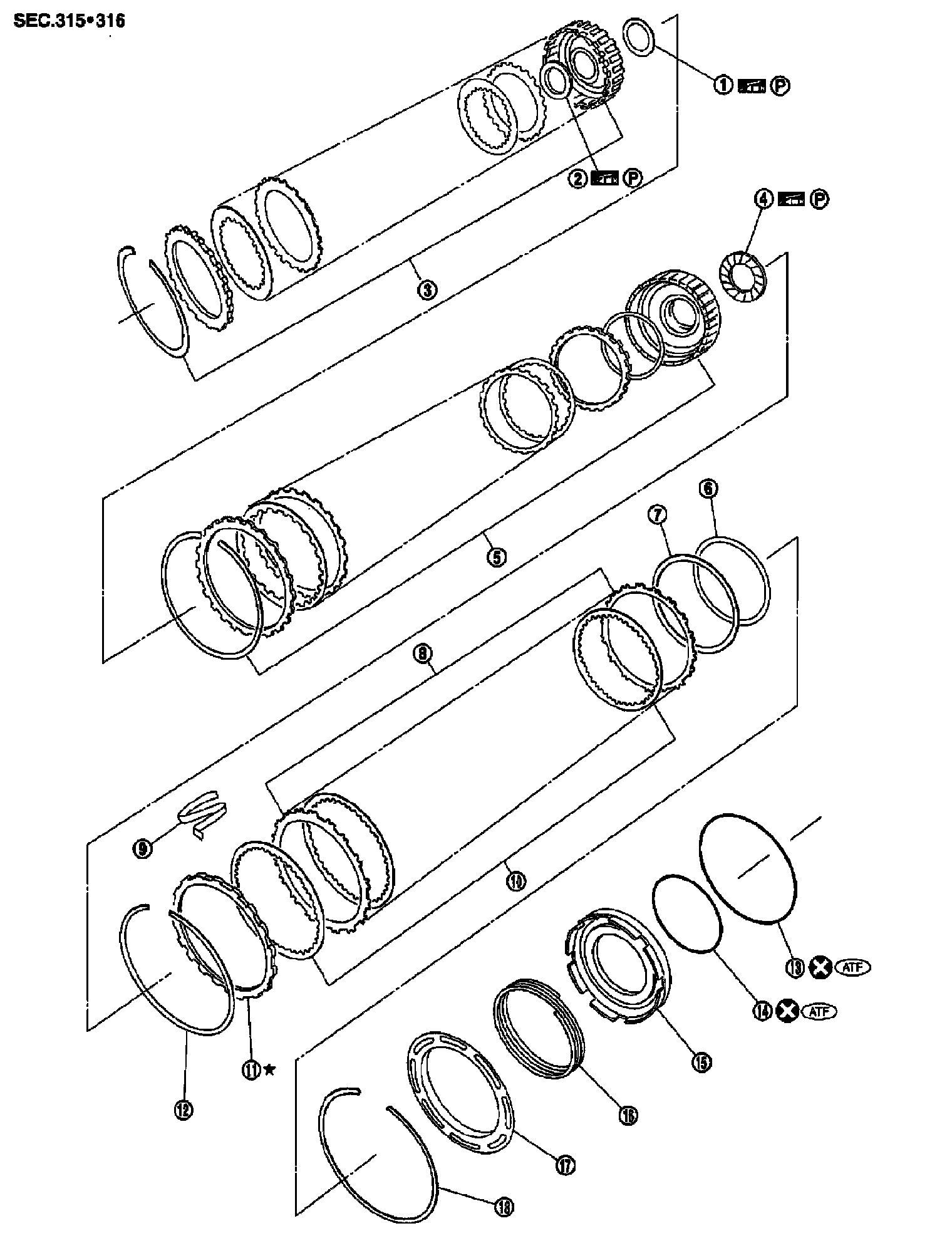

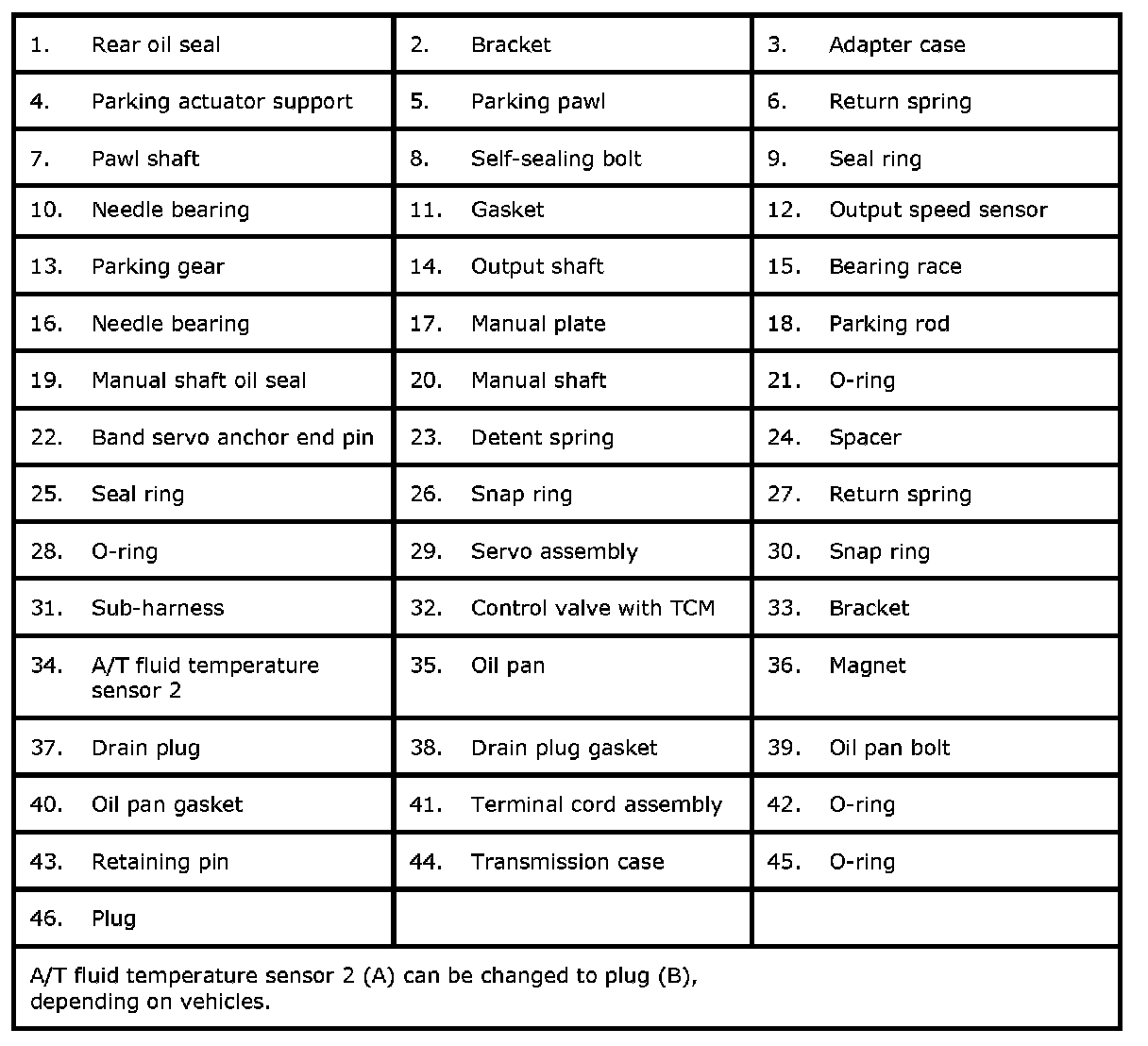

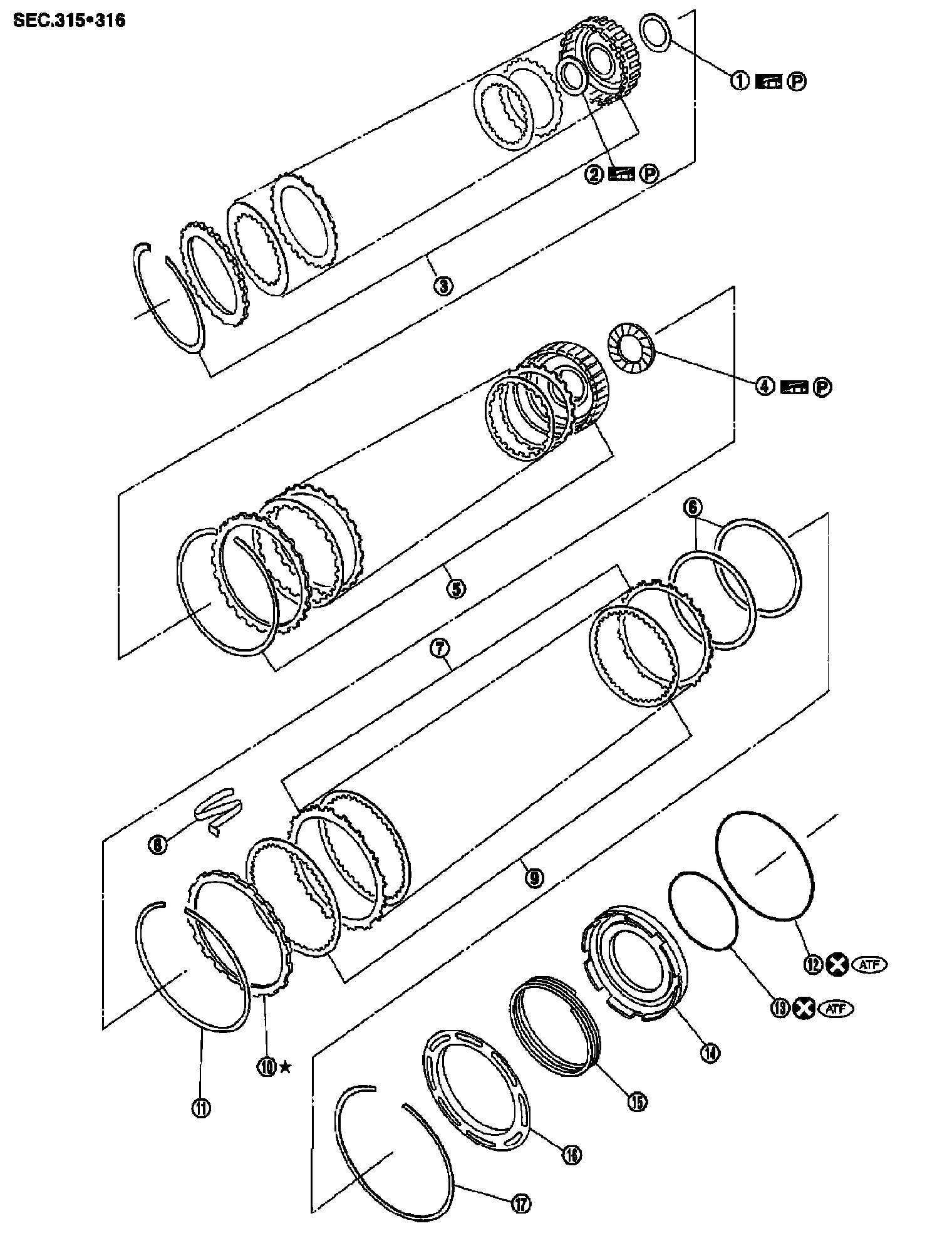

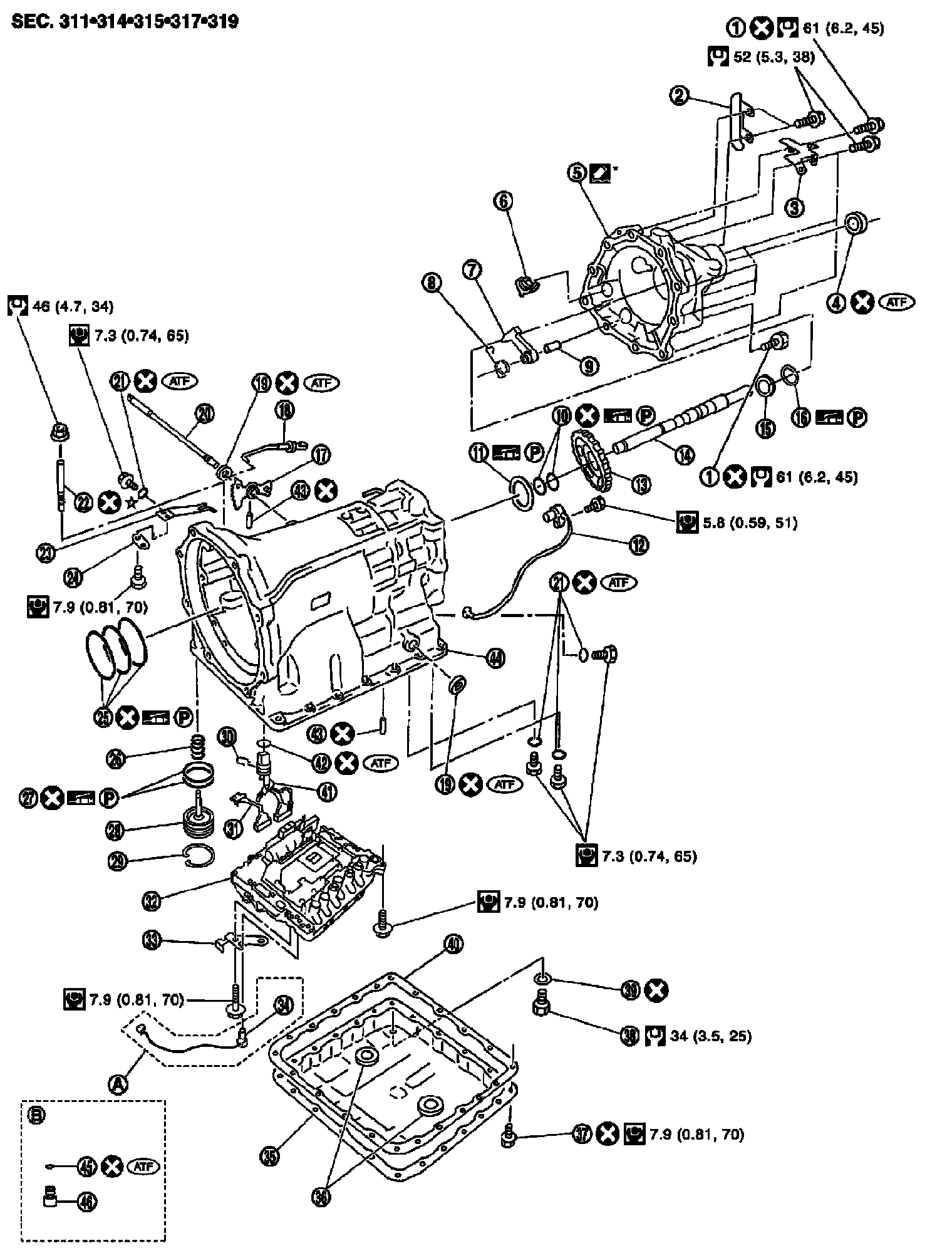

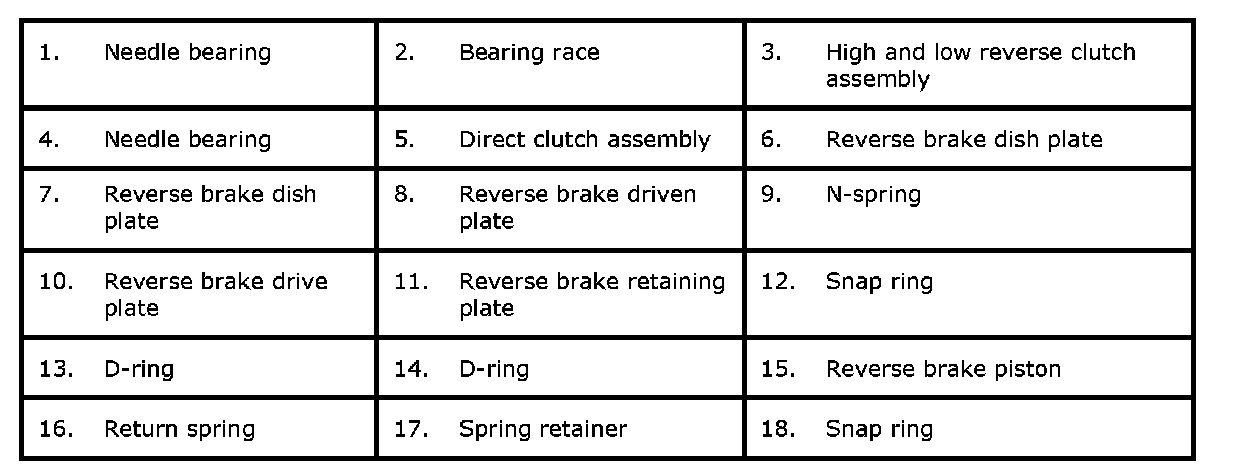

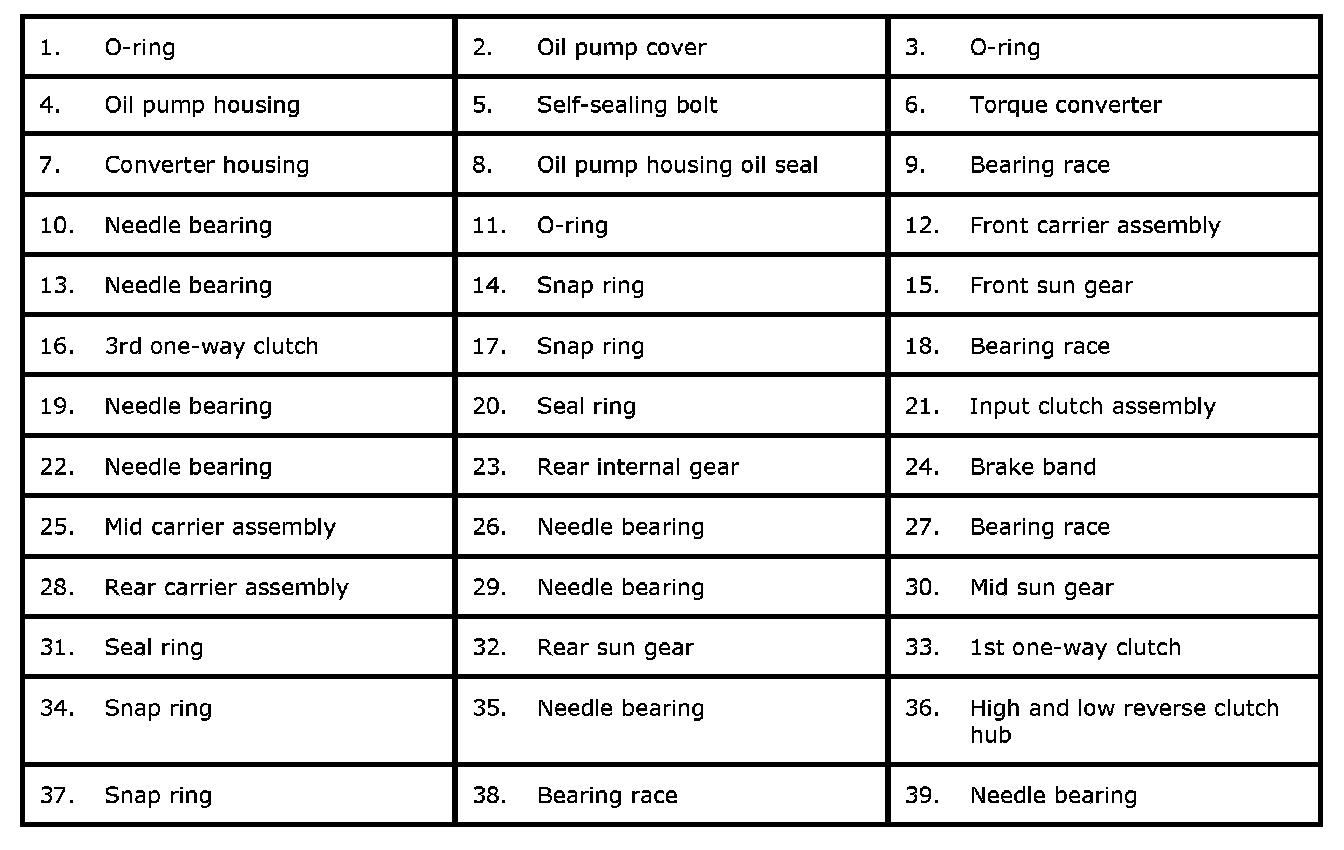

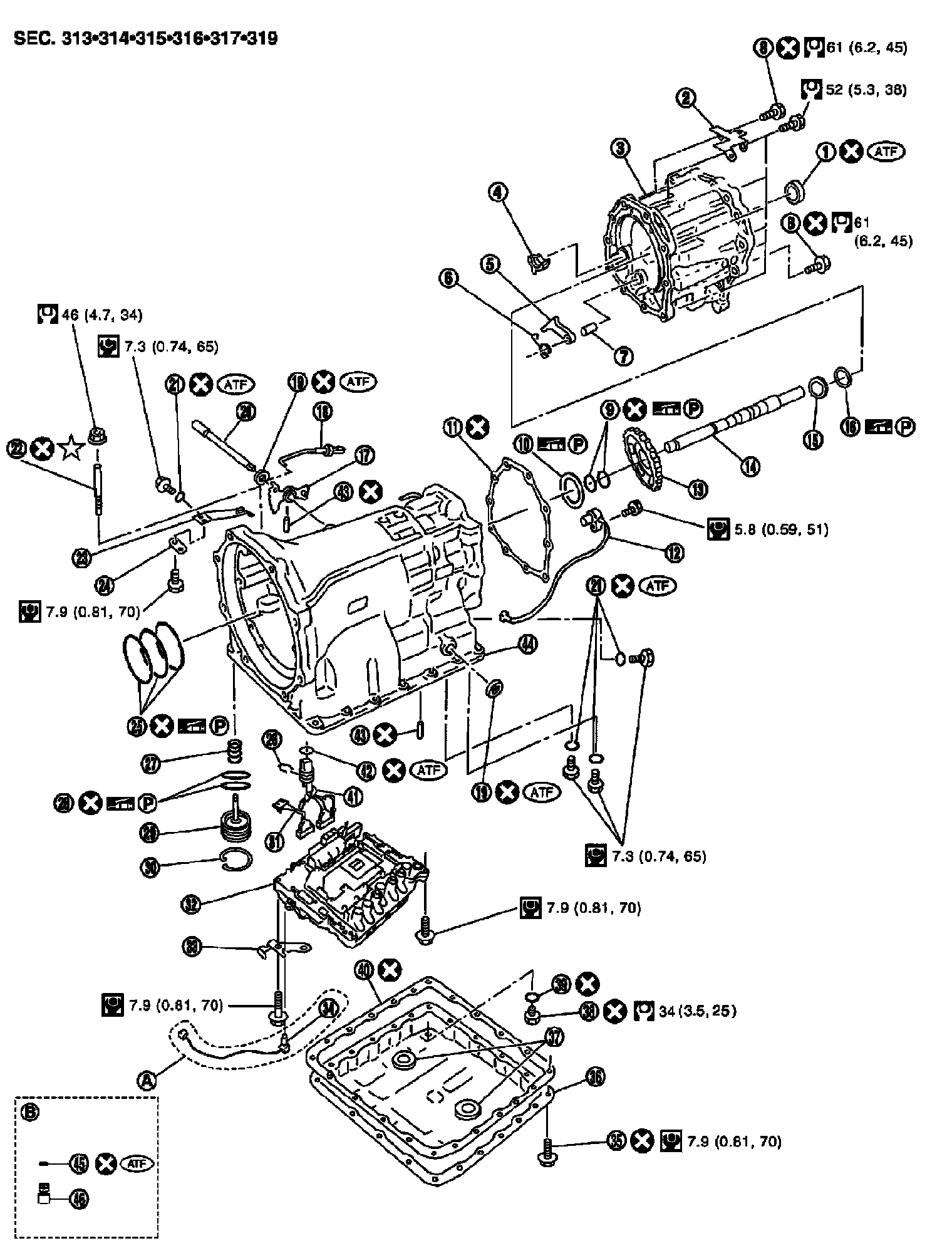

Transmission Assembly Exploded View
Transmission Assembly Exploded View
Transmission Assembly Exploded View
