Scan Tool Testing and Procedures

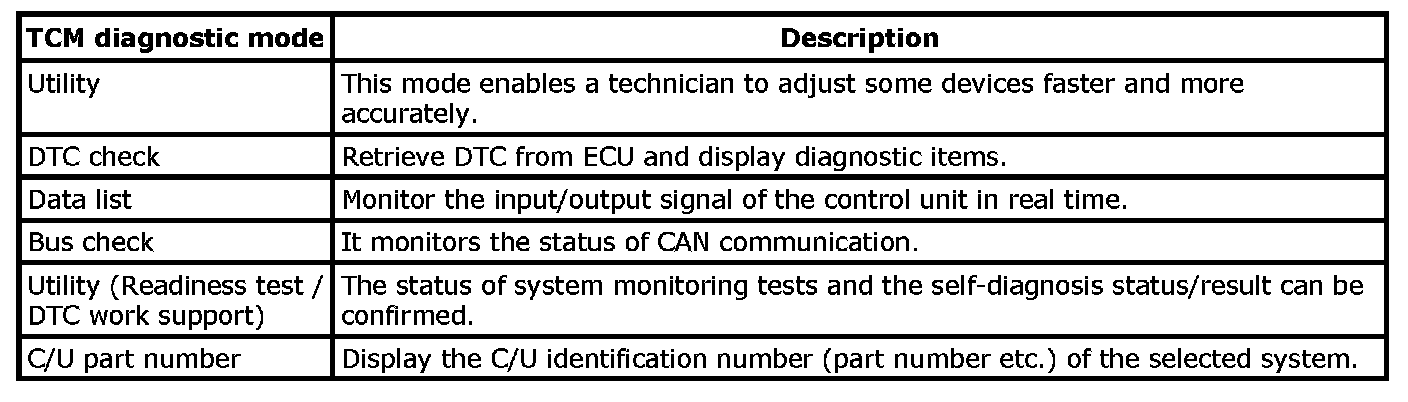

SDT Function (AT)

Function

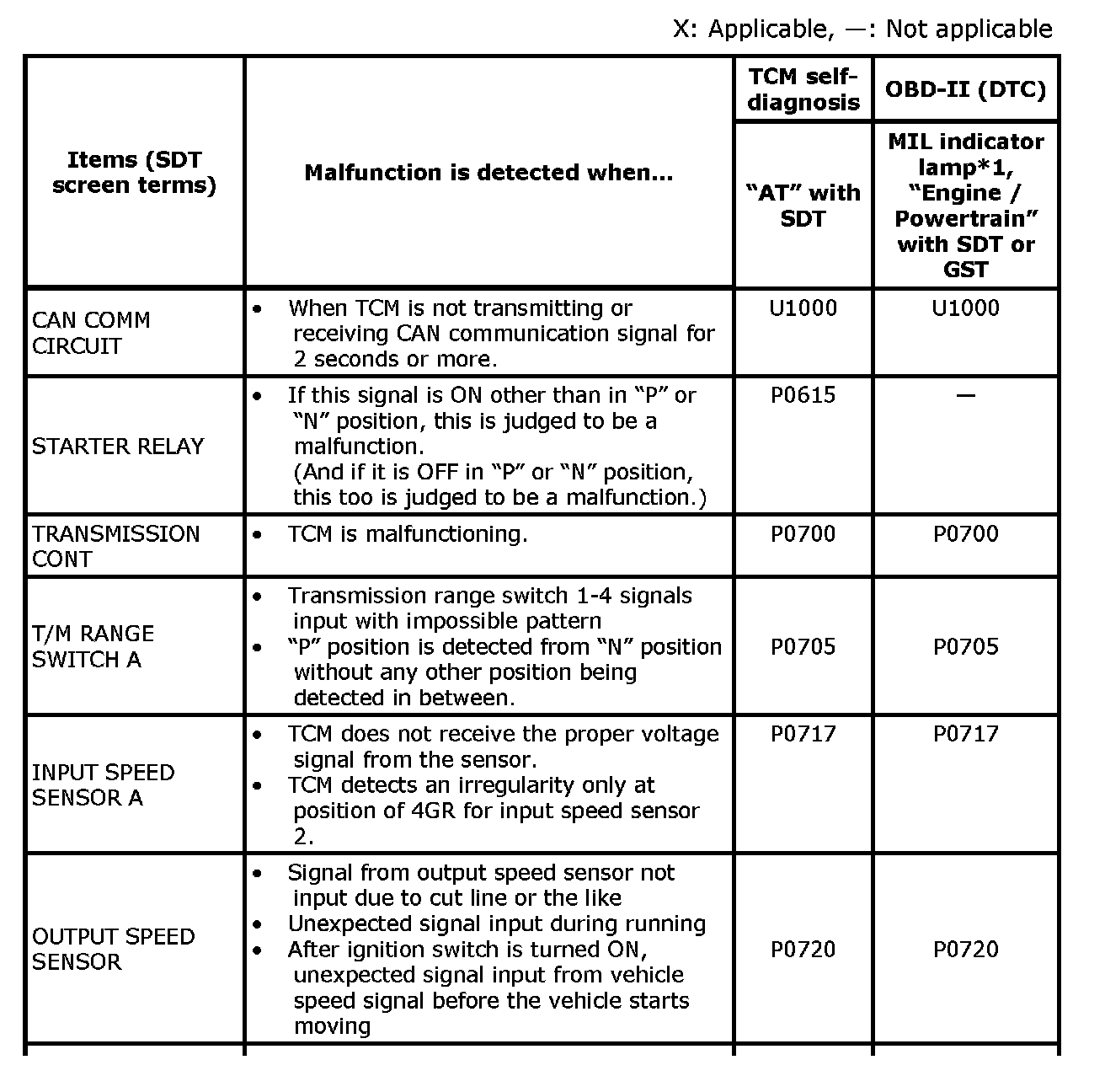

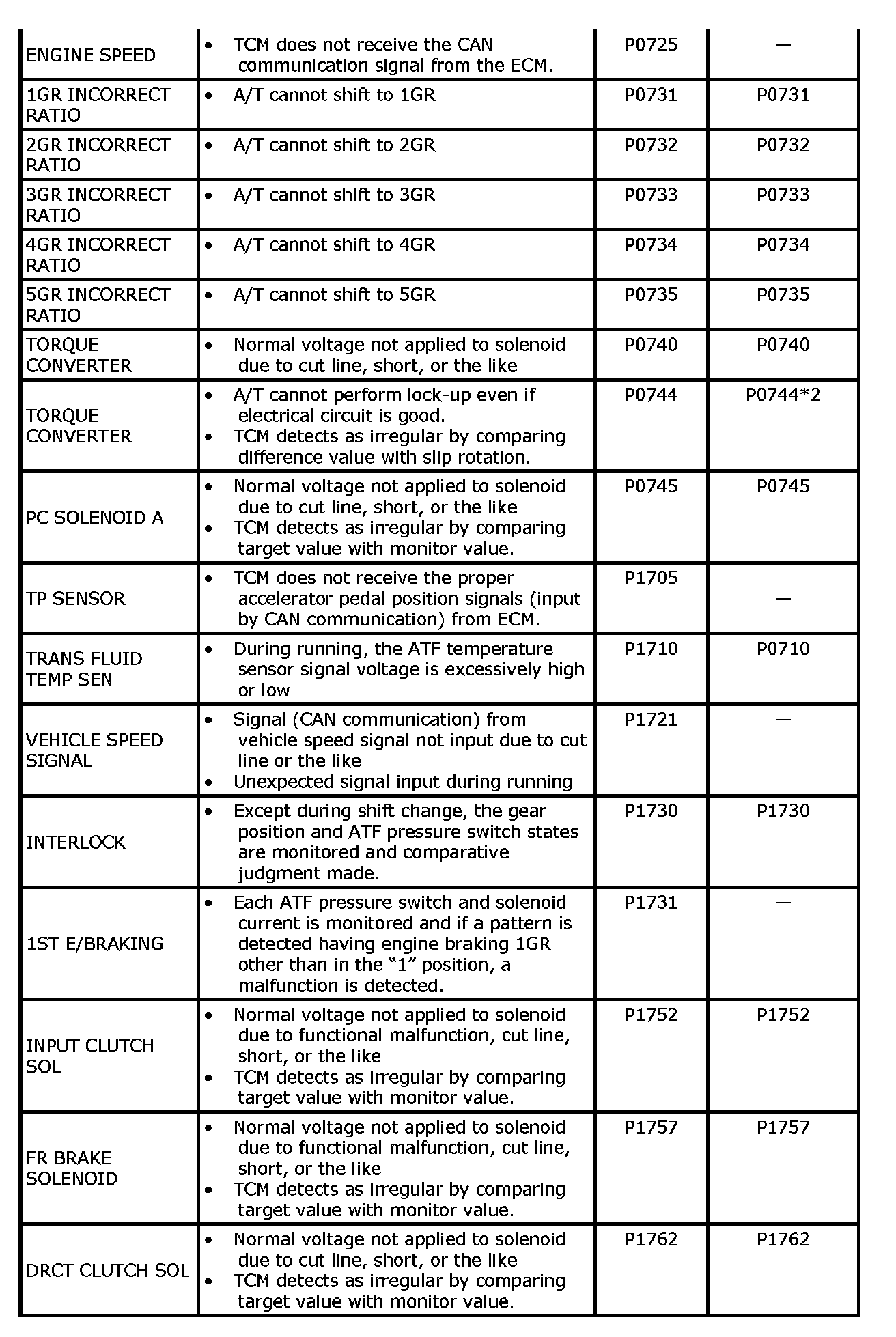

DTC Check Mode

Display Items List











*1: Refer to [Malfunction Indicator Lamp (MIL)]. Malfunction Indicator Lamp (MIL)
*2:These malfunctions cannot be displayed MIL if another malfunction is assigned to MIL.

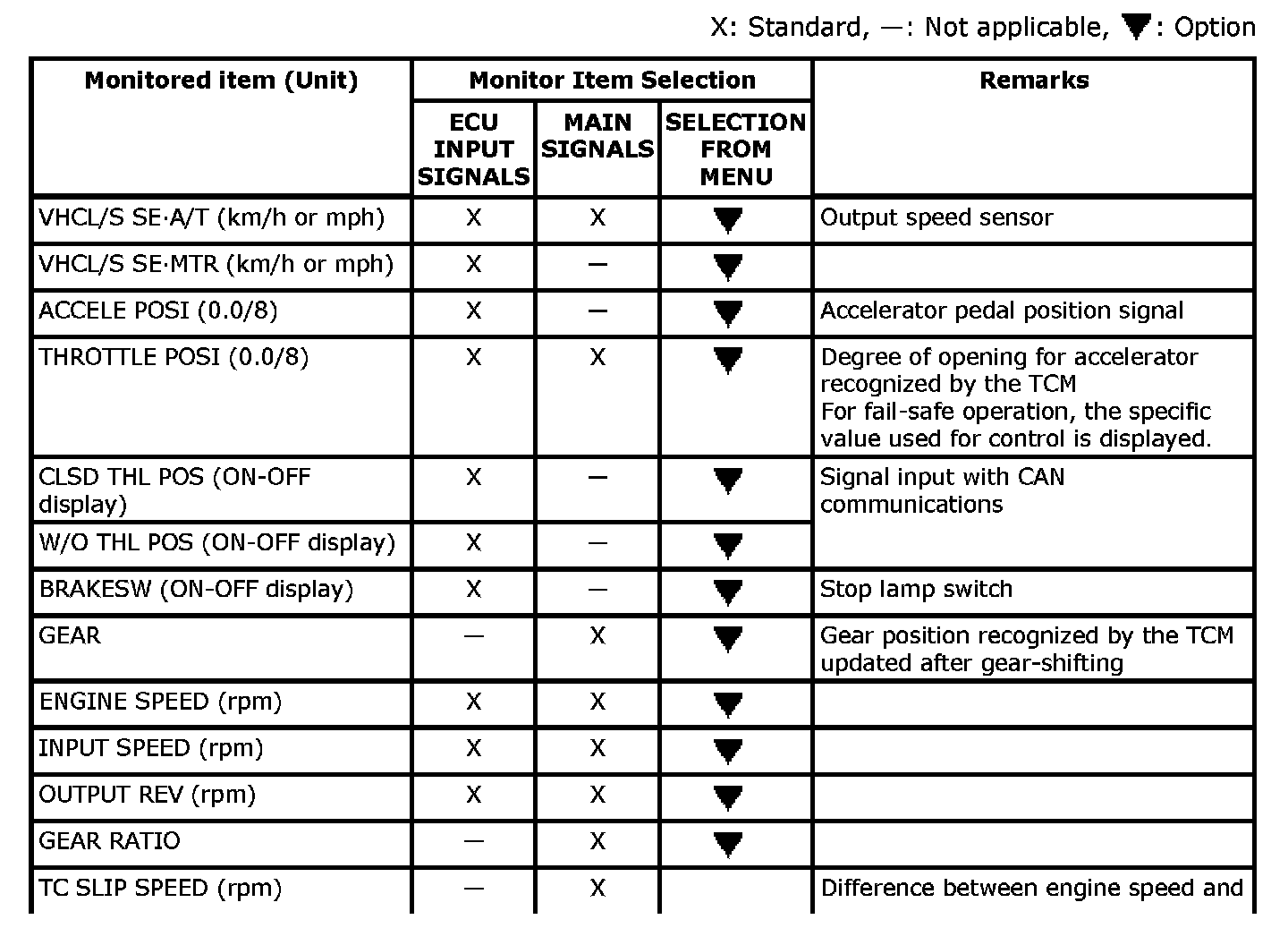

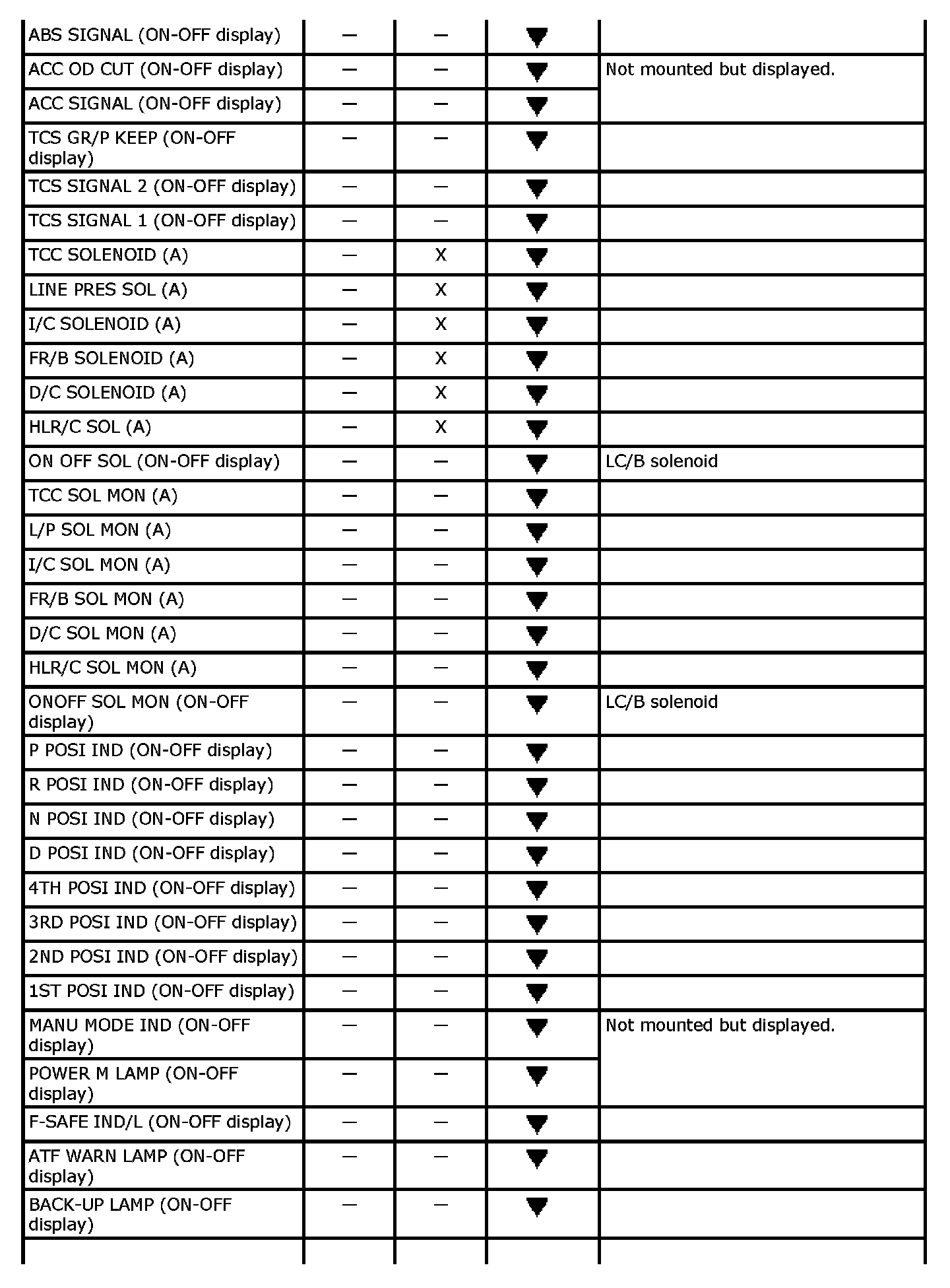

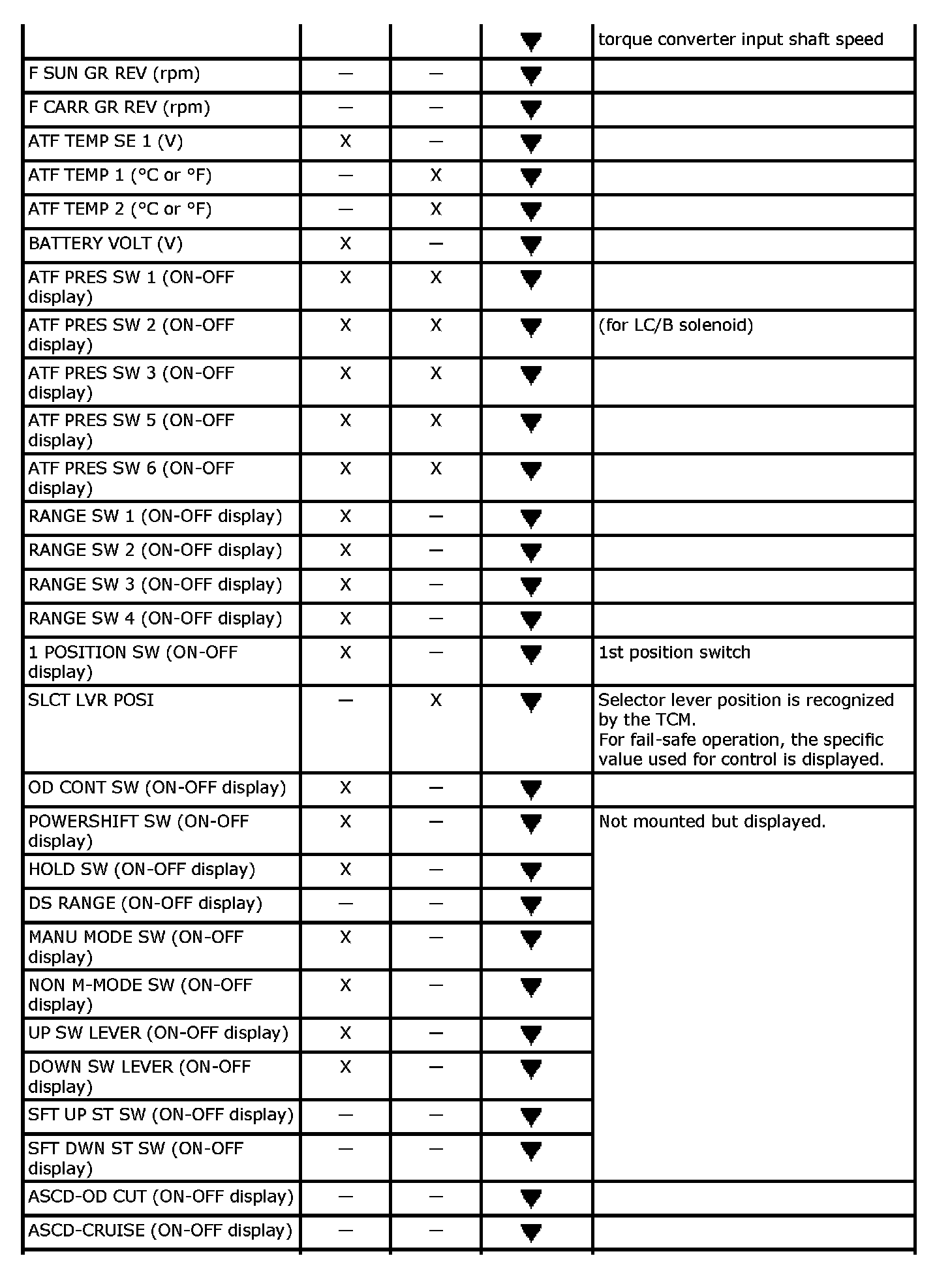

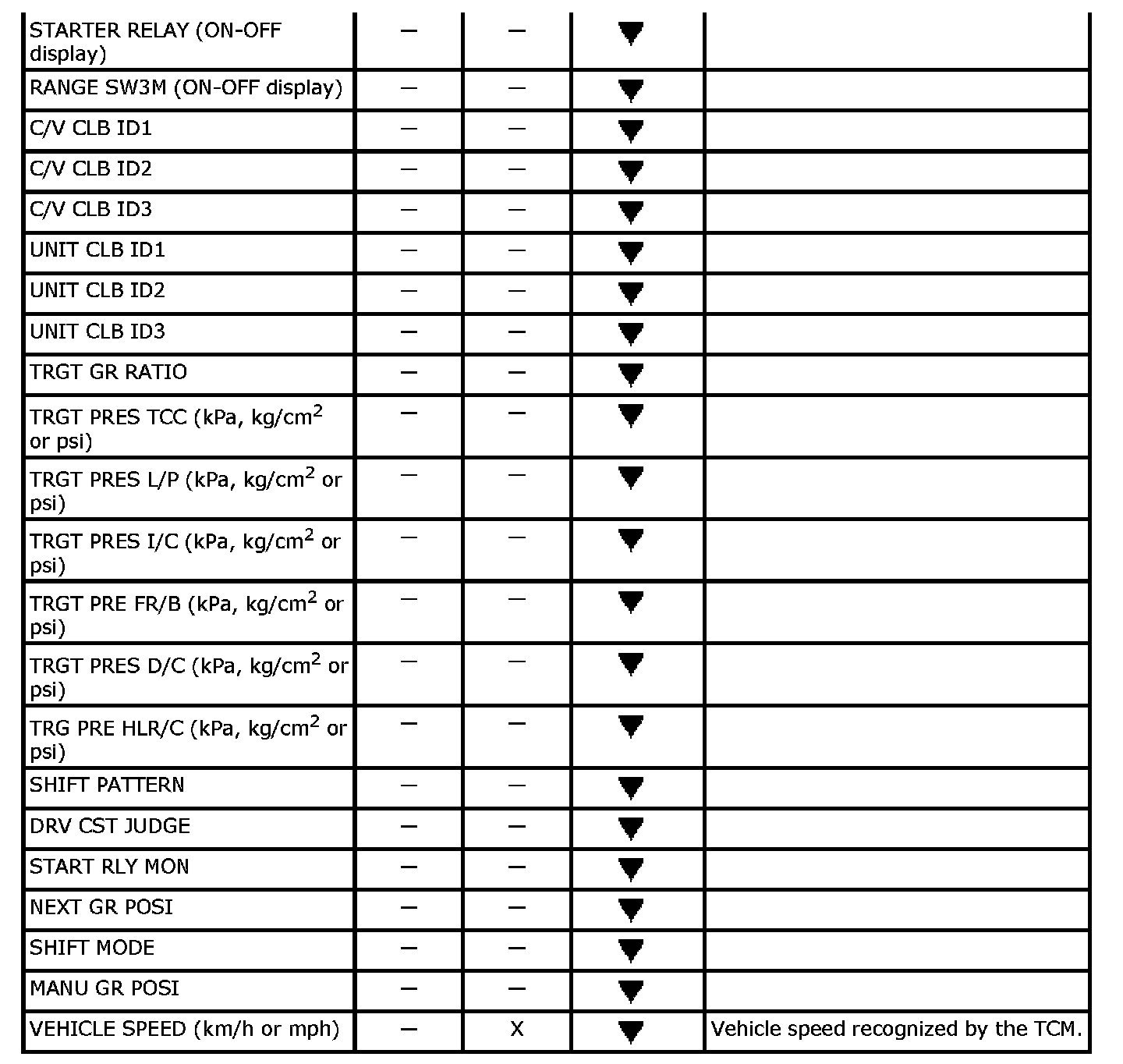

Data List Mode

Display Items List














Utility (Readiness Test / DTC Work Support)

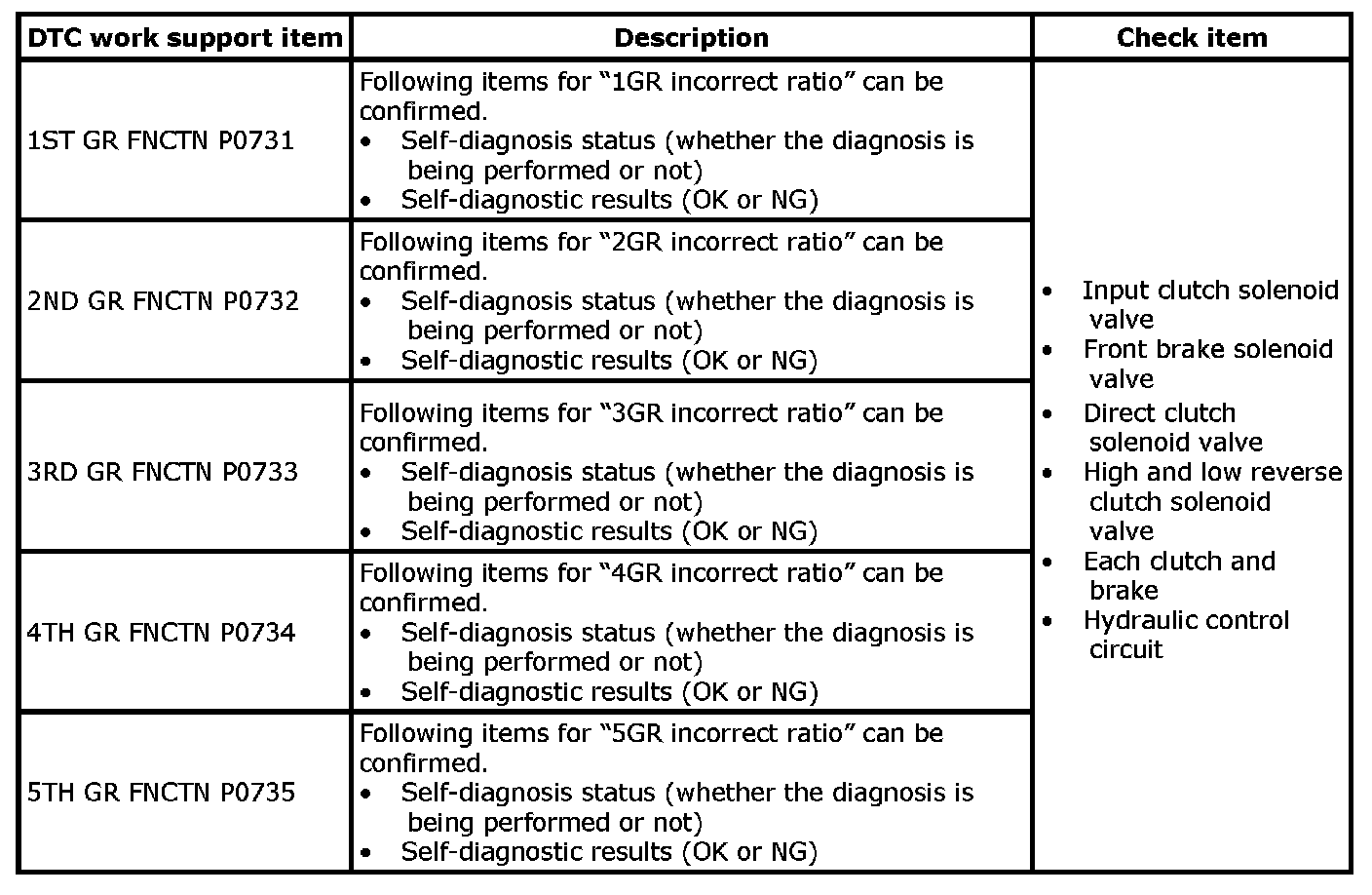

DTC Work Support Mode
