Power Window Main Switch: Removal and Installation

Power Window Main Switch: Removal and Installation

Removal

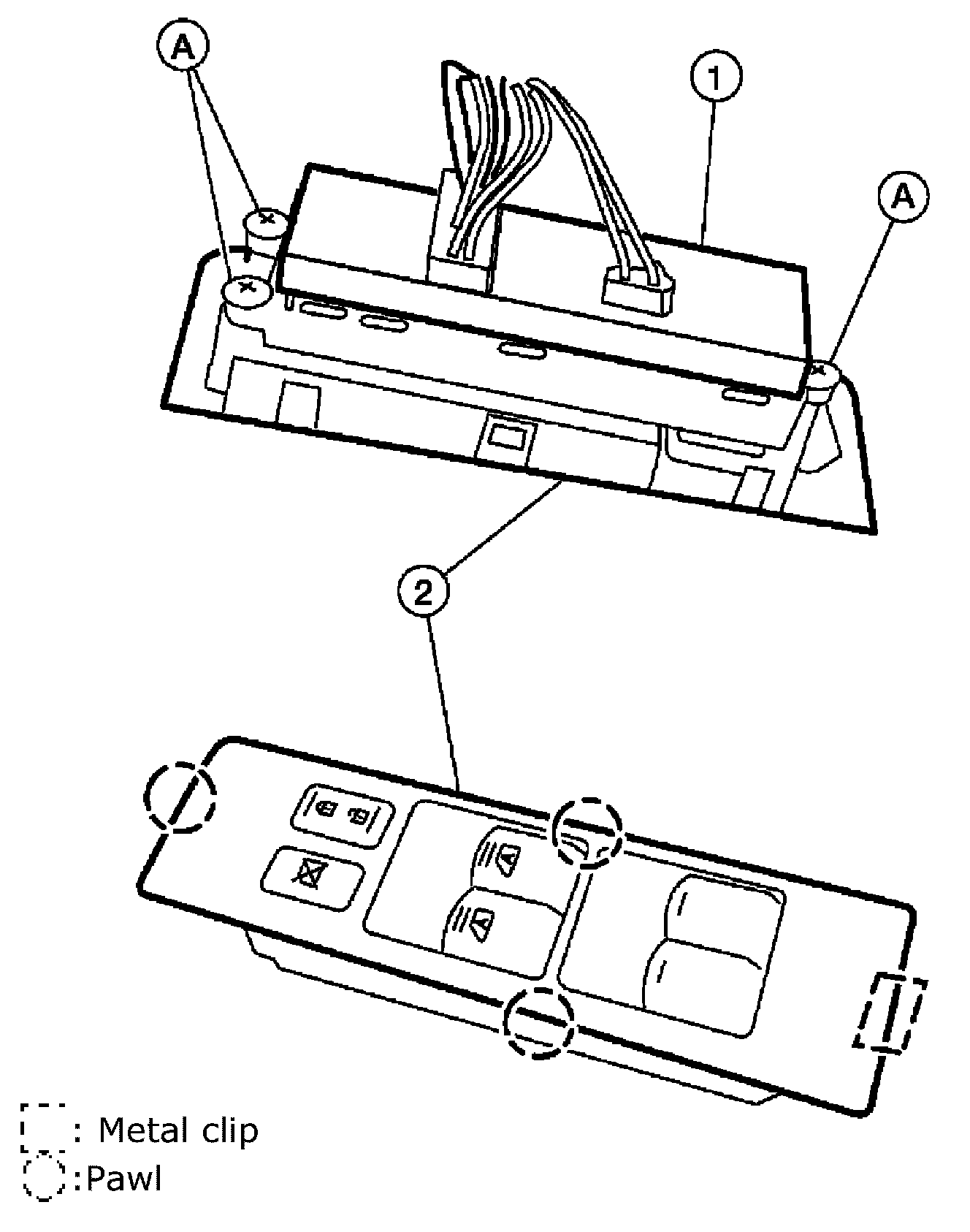

1. Remove the power window main switch finisher (2) from the front door finisher LH. Refer to [Door Finisher: Removal and Installation].







2. Remove the three screws (A) from the power window main switch (1), then separate from the finisher (2).

Installation
Installation is in the reverse order of removal.
