Basic Inspection

Basic Inspection

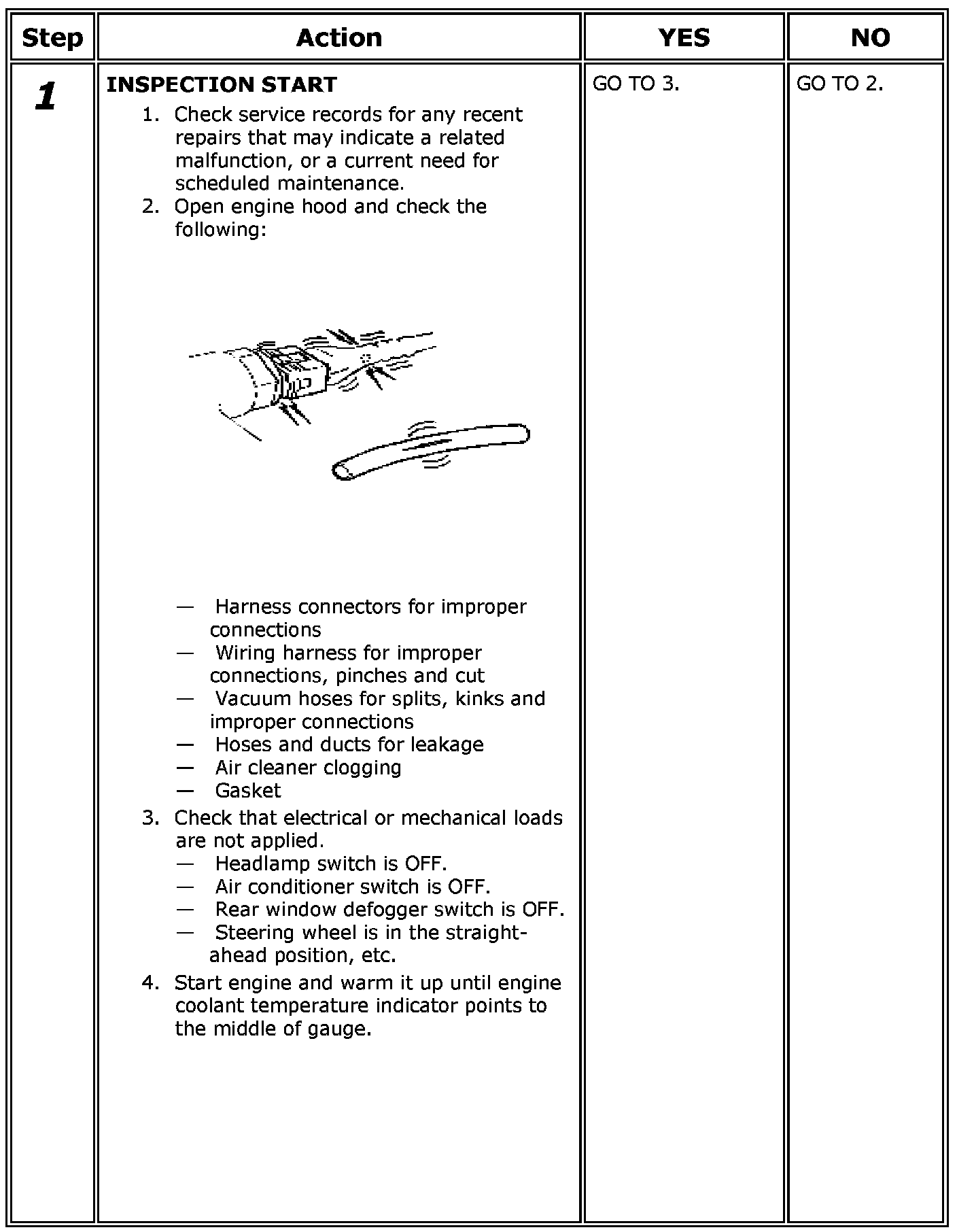

Step 1:

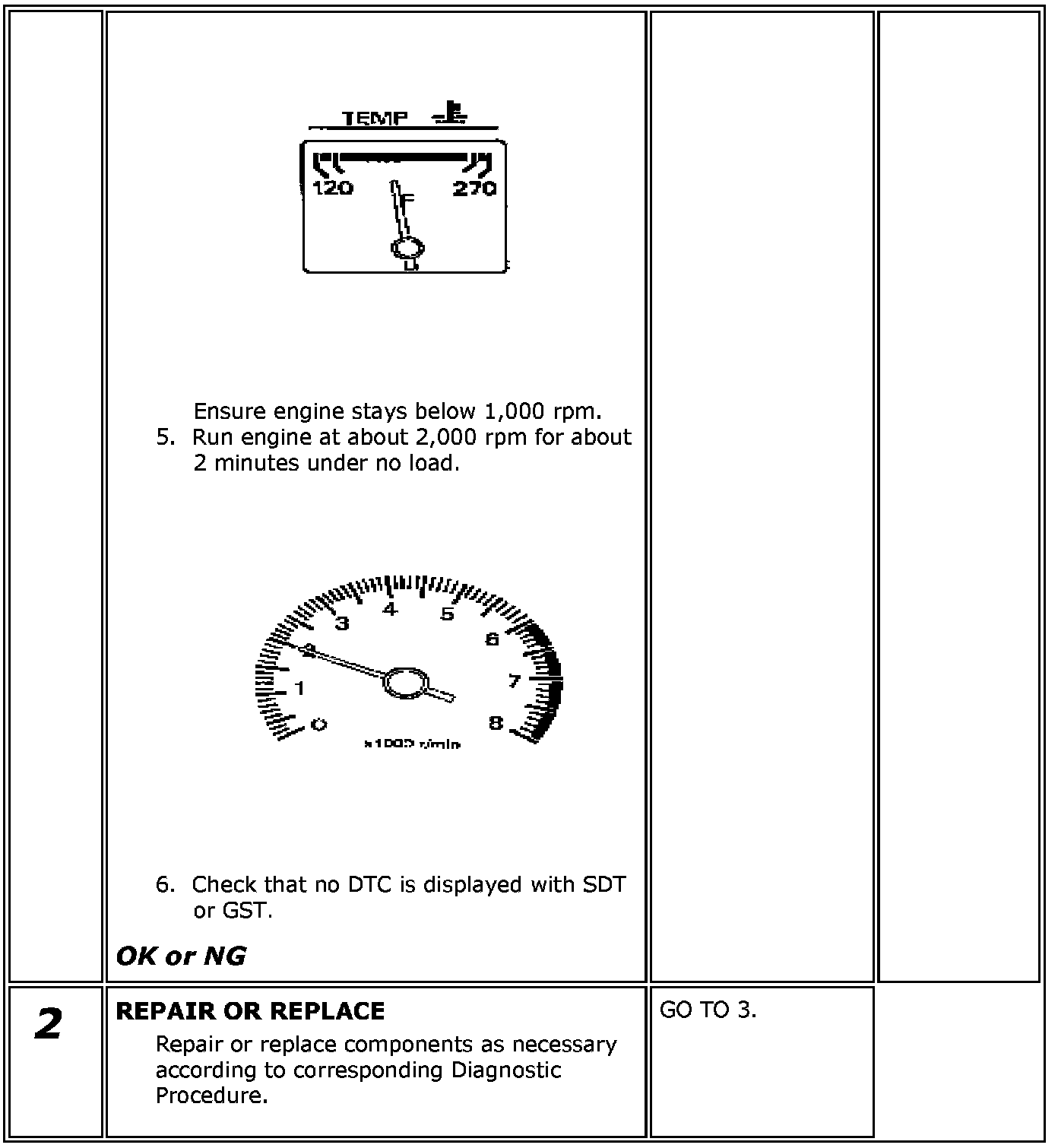

Step 1 (Continued)-2:

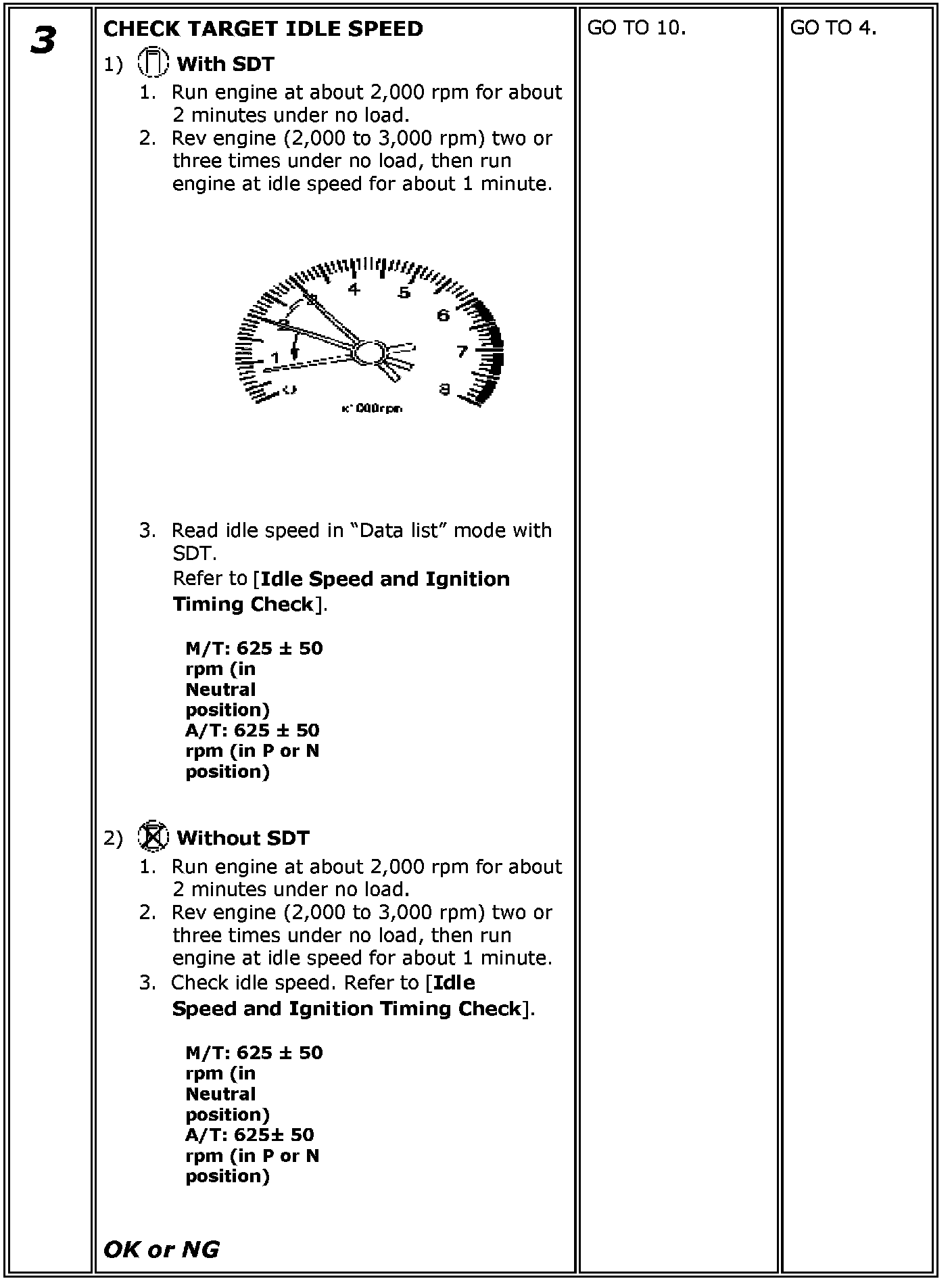

Step 3:

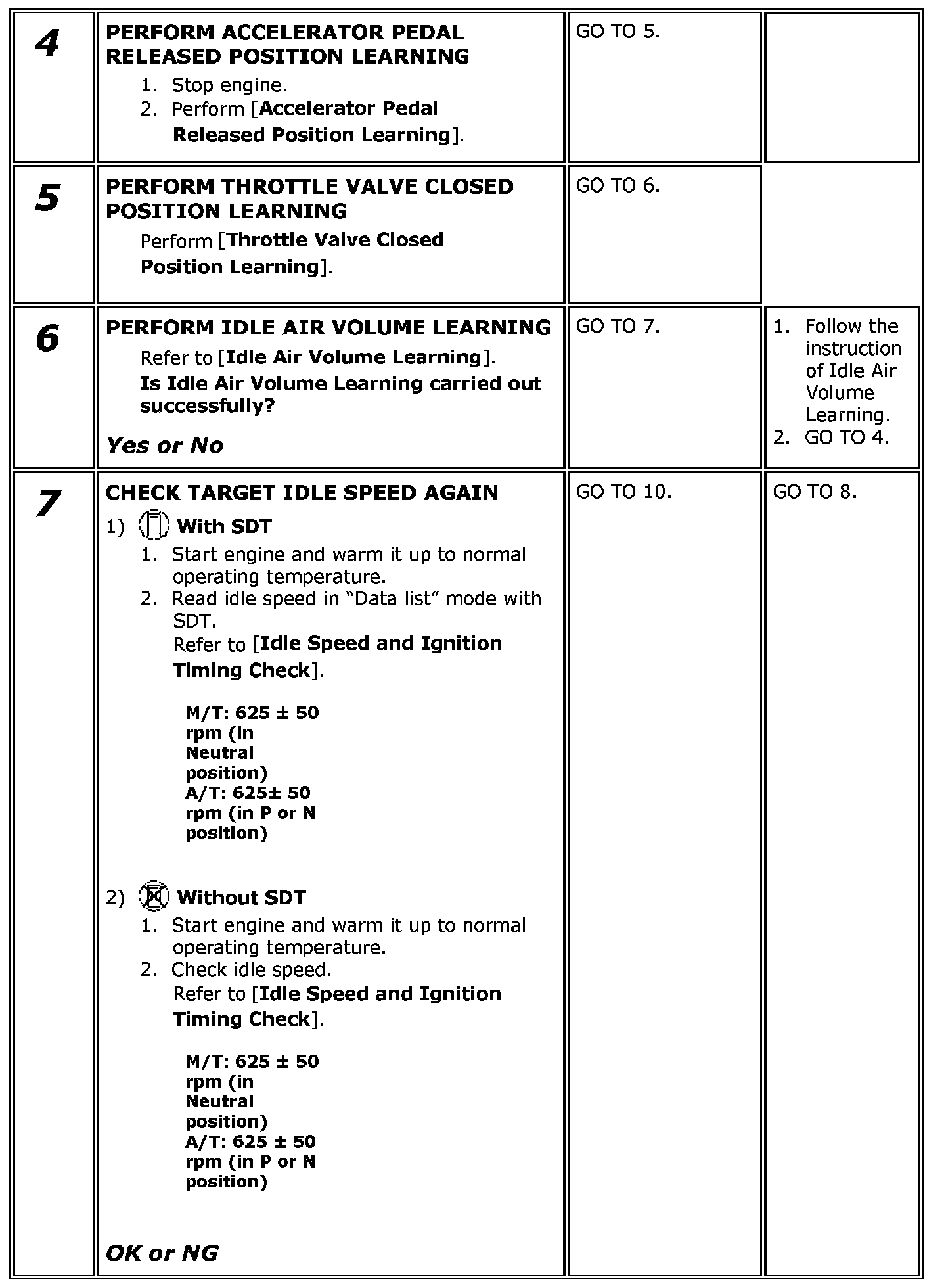

Step 4-7:

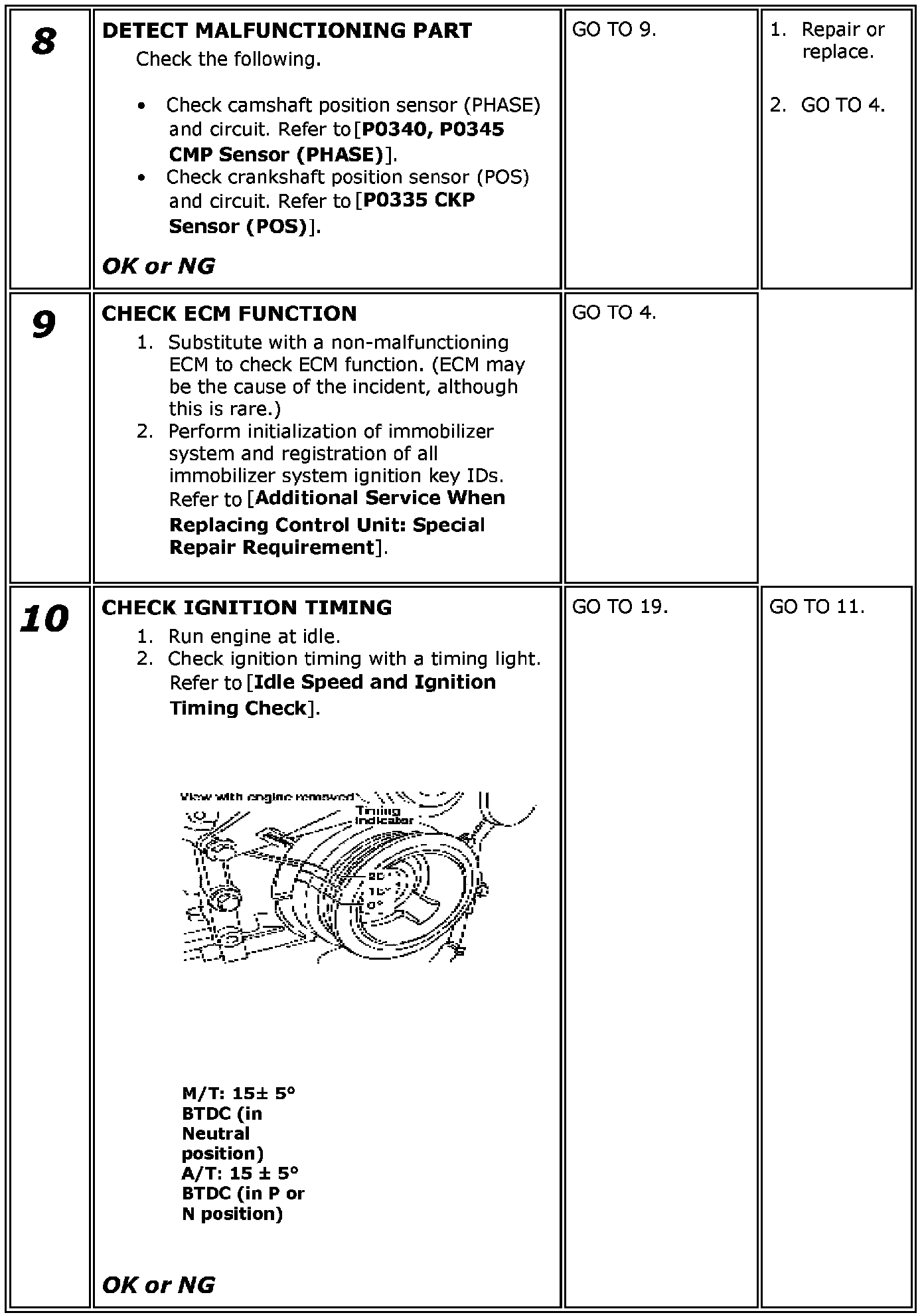

Step 8-10:

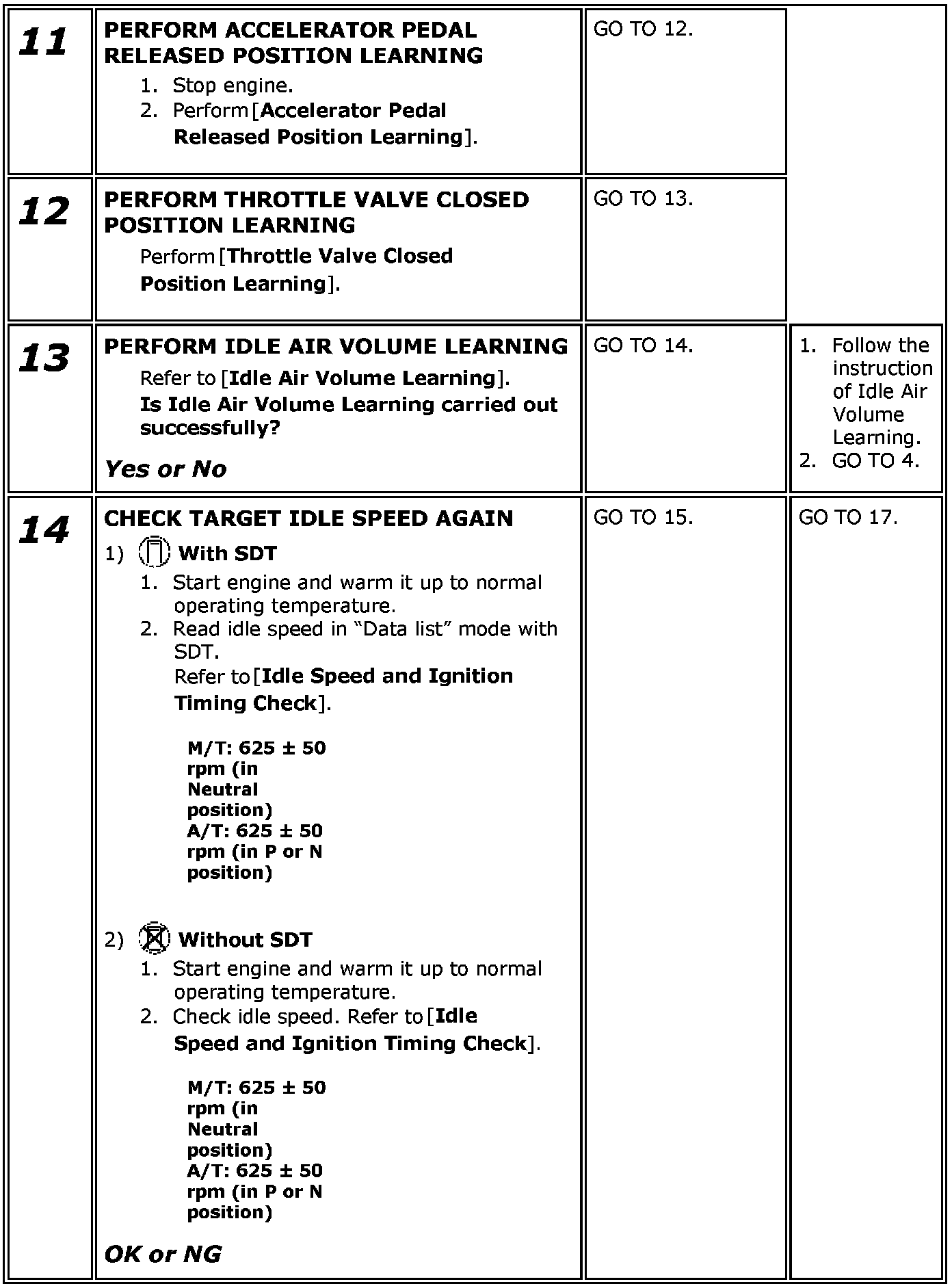

Step 11-14:

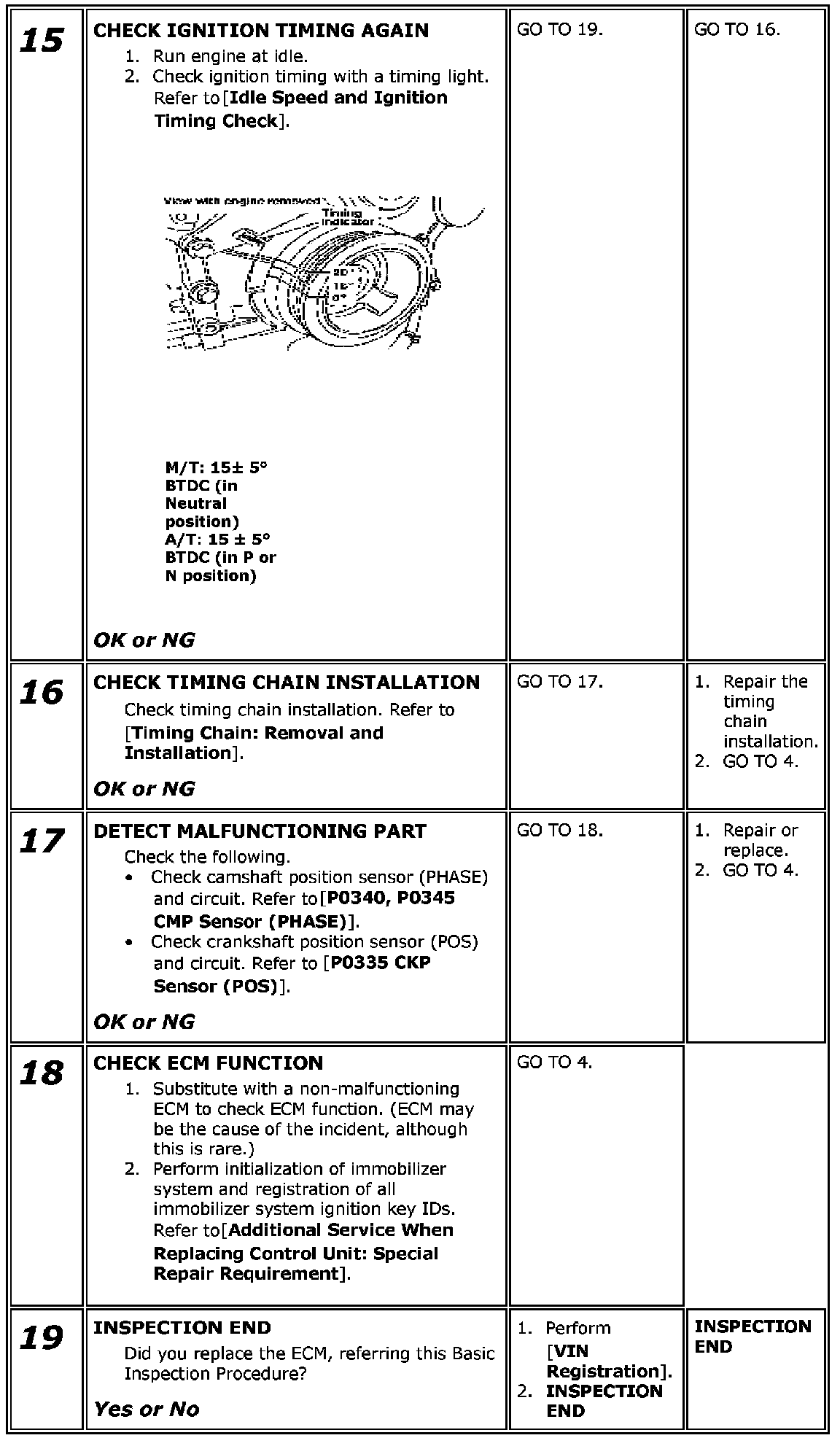

Step 15-19:
