Alternator: Service and Repair

Generator: Removal and Installation - VQ40DE Models






Removal
1. Disconnect the negative battery terminal.
2. Partially drain engine coolant. Refer to [Changing Engine Coolant].
3. Remove engine room cover.
4. Remove air duct and resonator assembly. Refer to [Air Cleaner and Air Duct: Exploded View].
5. Remove upper radiator hose.
6. Disconnect coolant reservoir hose from radiator.
7. Remove the fan shroud. Refer to [Radiator: Exploded View].
8. Remove engine cooling fan (Motor driven type).
9. Remove the drive belt.

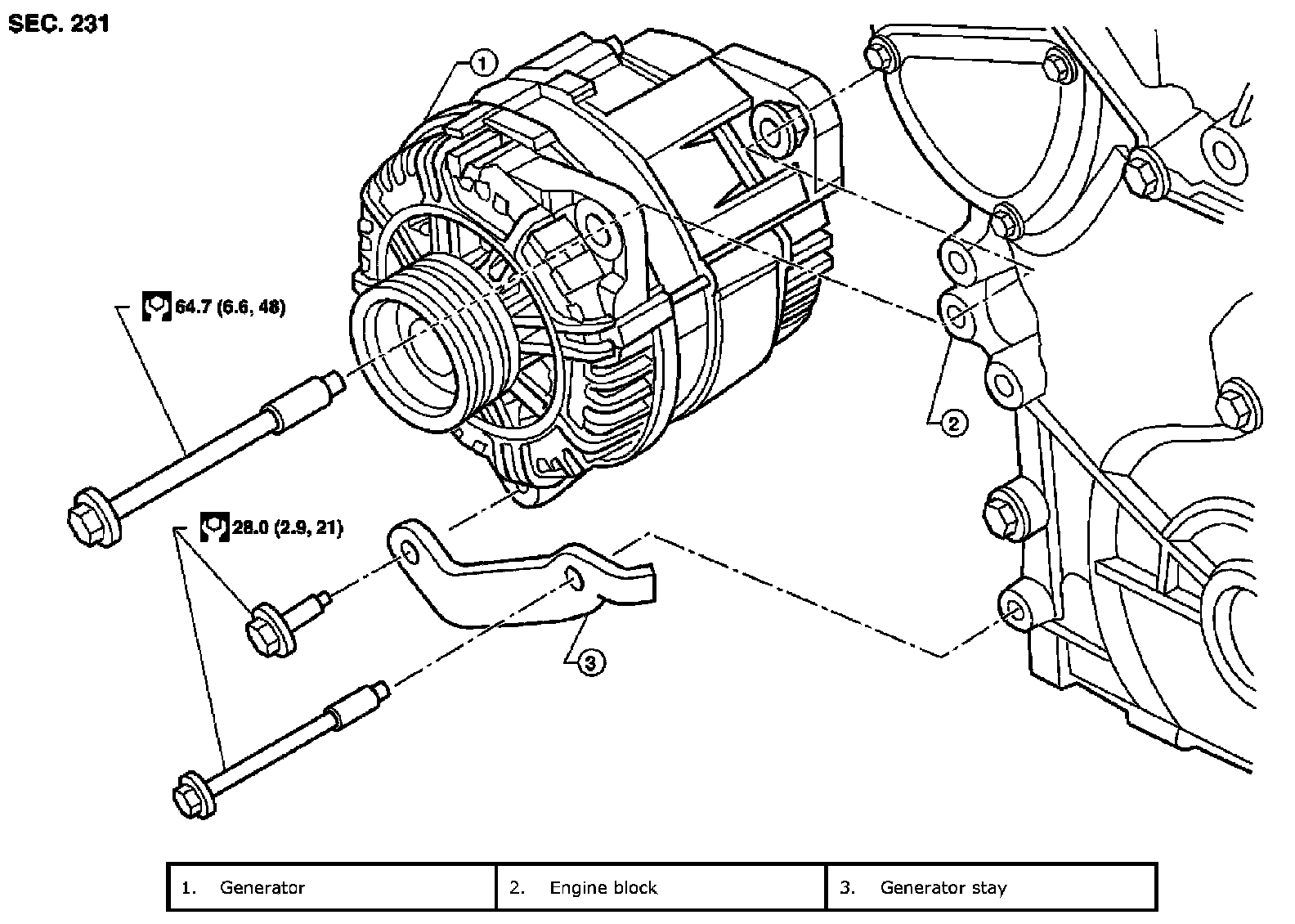

10. Remove generator stay, using power tools.
11. Remove the generator upper bolt, using power tools.
12. Disconnect the generator harness connectors.
13. Remove the generator.

Installation
Installation is in the reverse order of removal.
- Install the generator and check tension of drive belt. Refer to [Drive Belts: Adjustment].
Terminal "1" nut : 10.8 N.m (1.1 kg-m, 8 ft-lb)

CAUTION: Be sure to tighten terminal "1" nut carefully.

- For this model, the power generation voltage variable control system that controls the power generation voltage of the generator has been adopted. Therefore, the power generation voltage variable control system operation inspection should be performed after replacing the generator, and then make sure that the system operates normally. Refer to [Power Generation Voltage Variable Control System Operation Inspection].
