Control Module, Transfer Case

Transfer Control Unit: Wiring Diagram

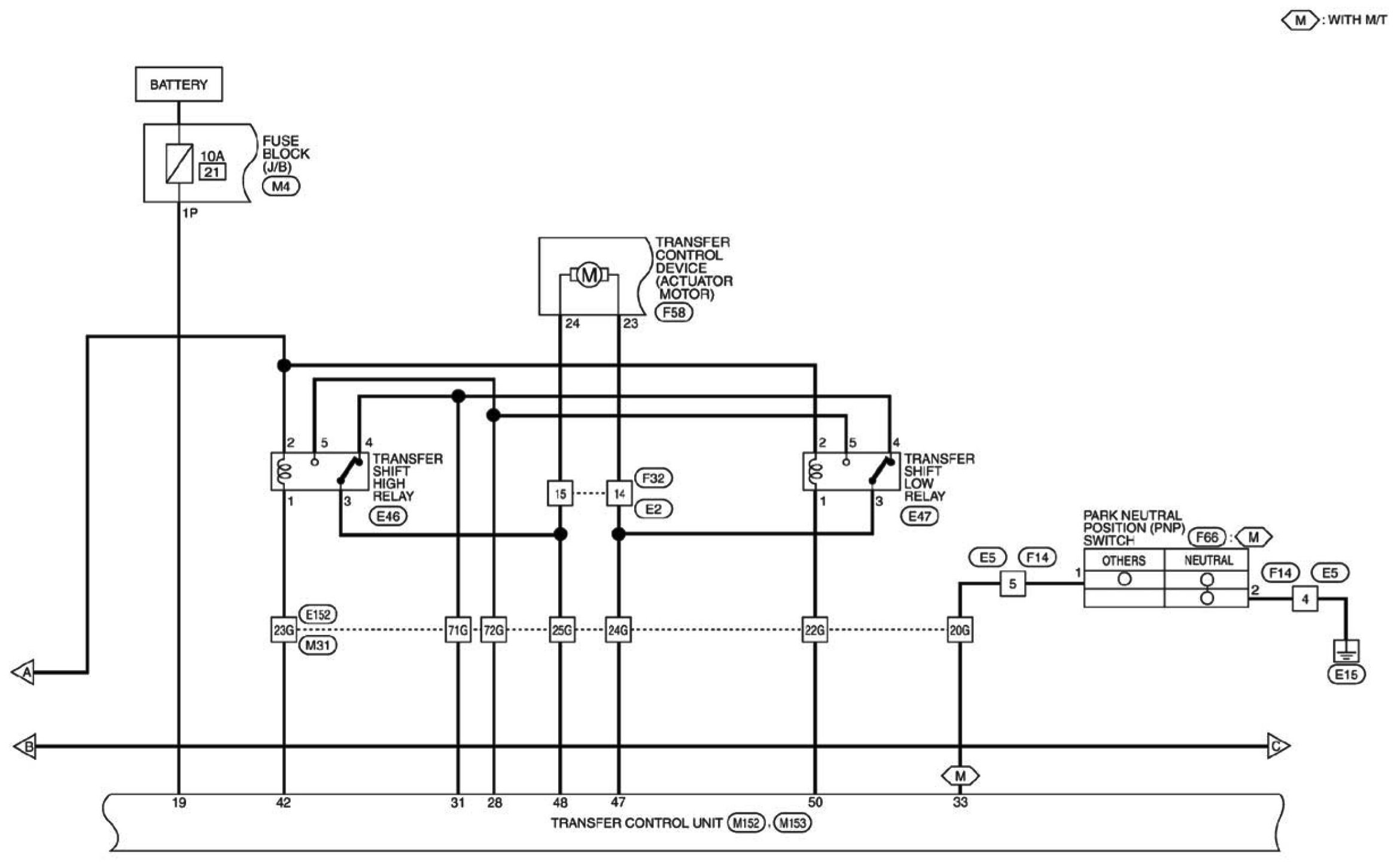

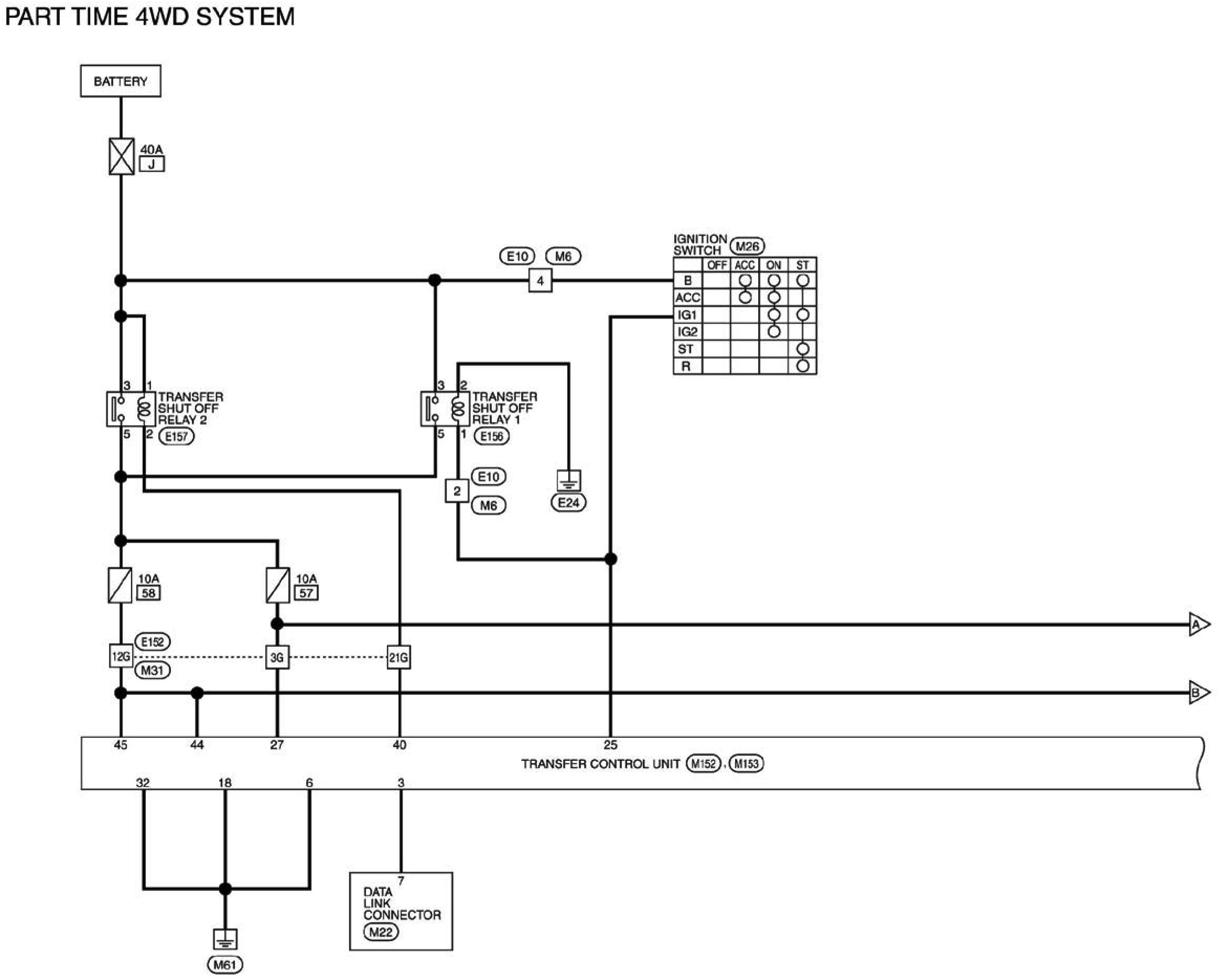

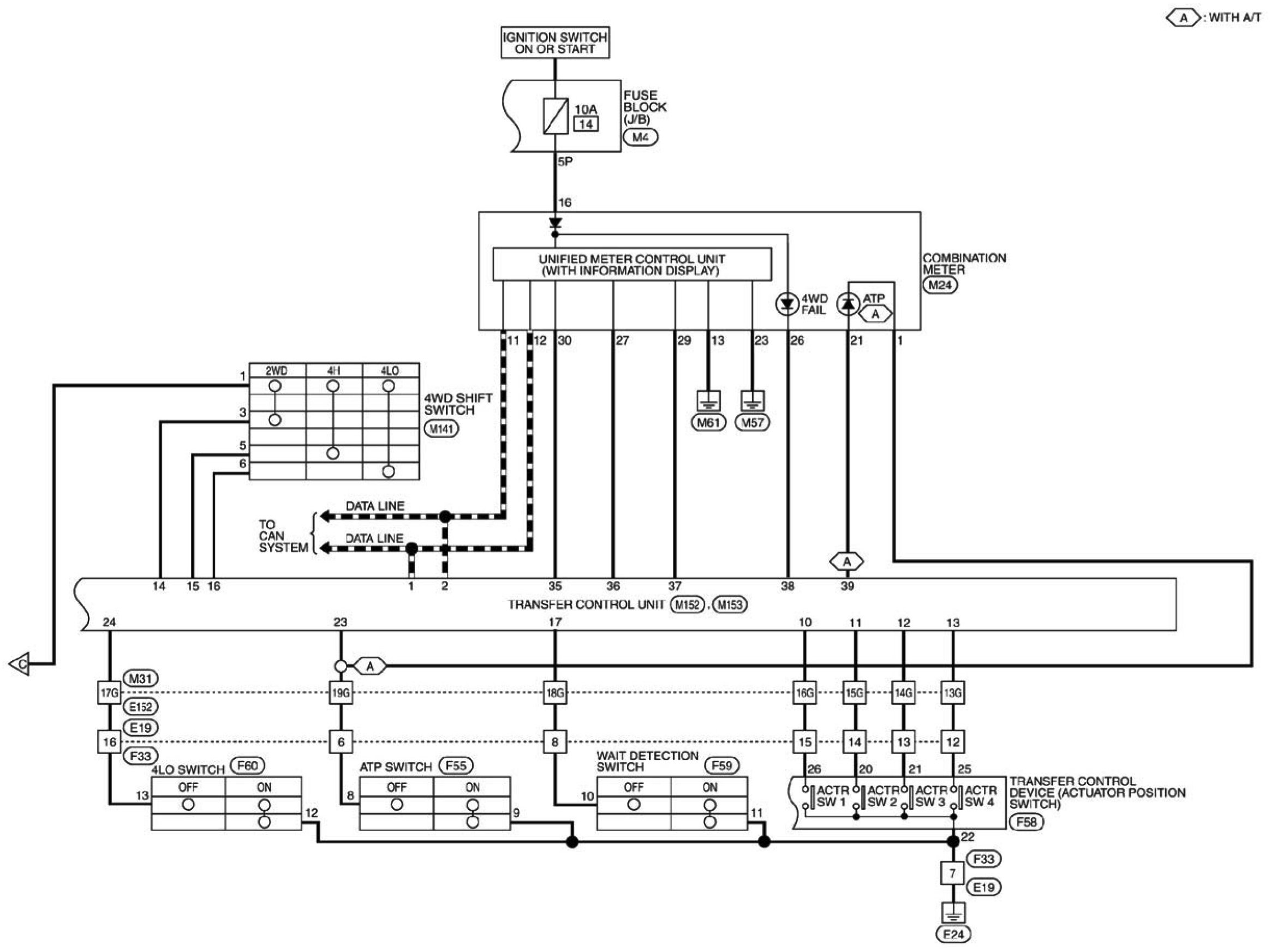

Part Time System (Part 1):




Part Time System (Part 2):




Part Time System (Part 3):






Part Time 4WD Connectors

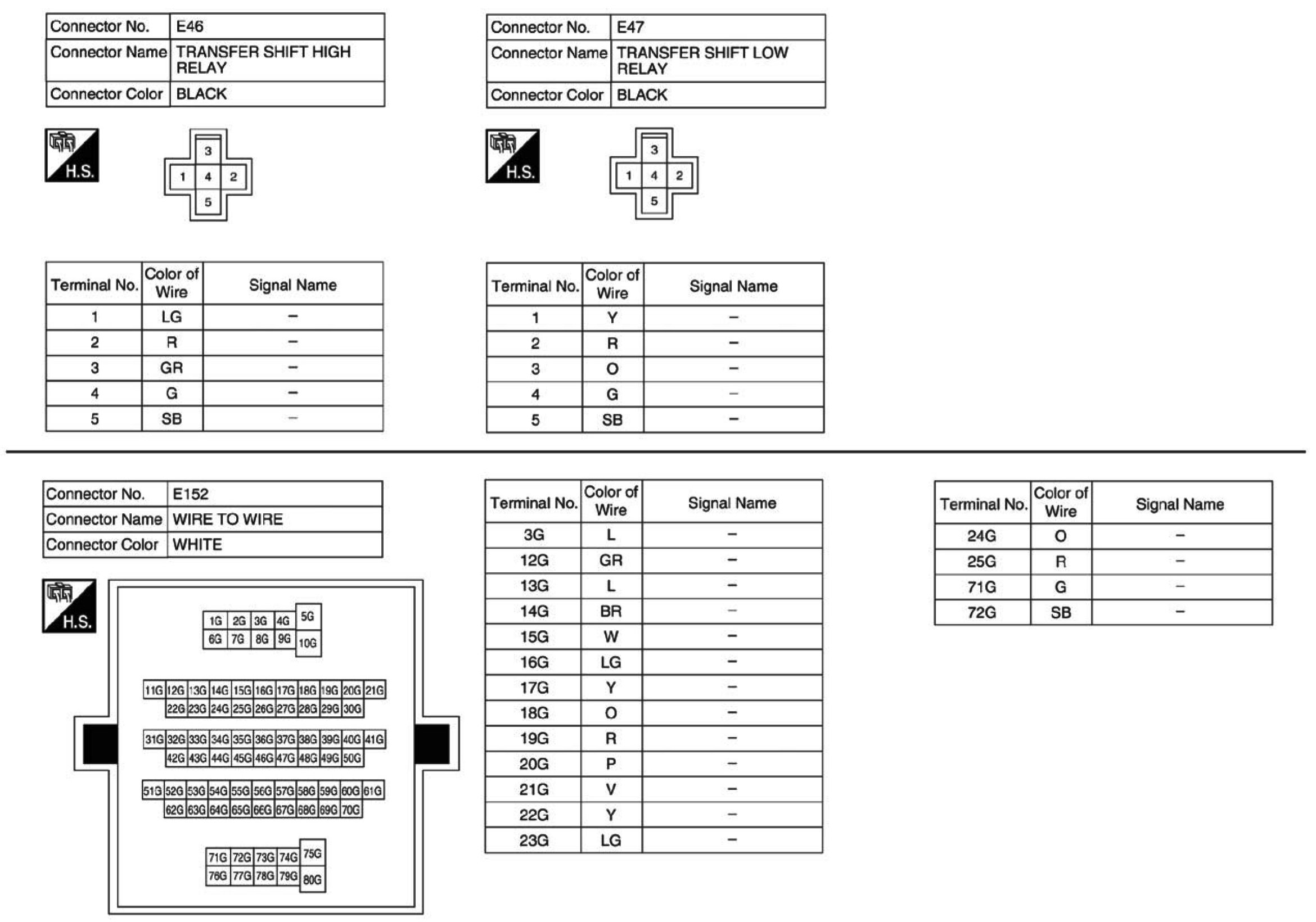

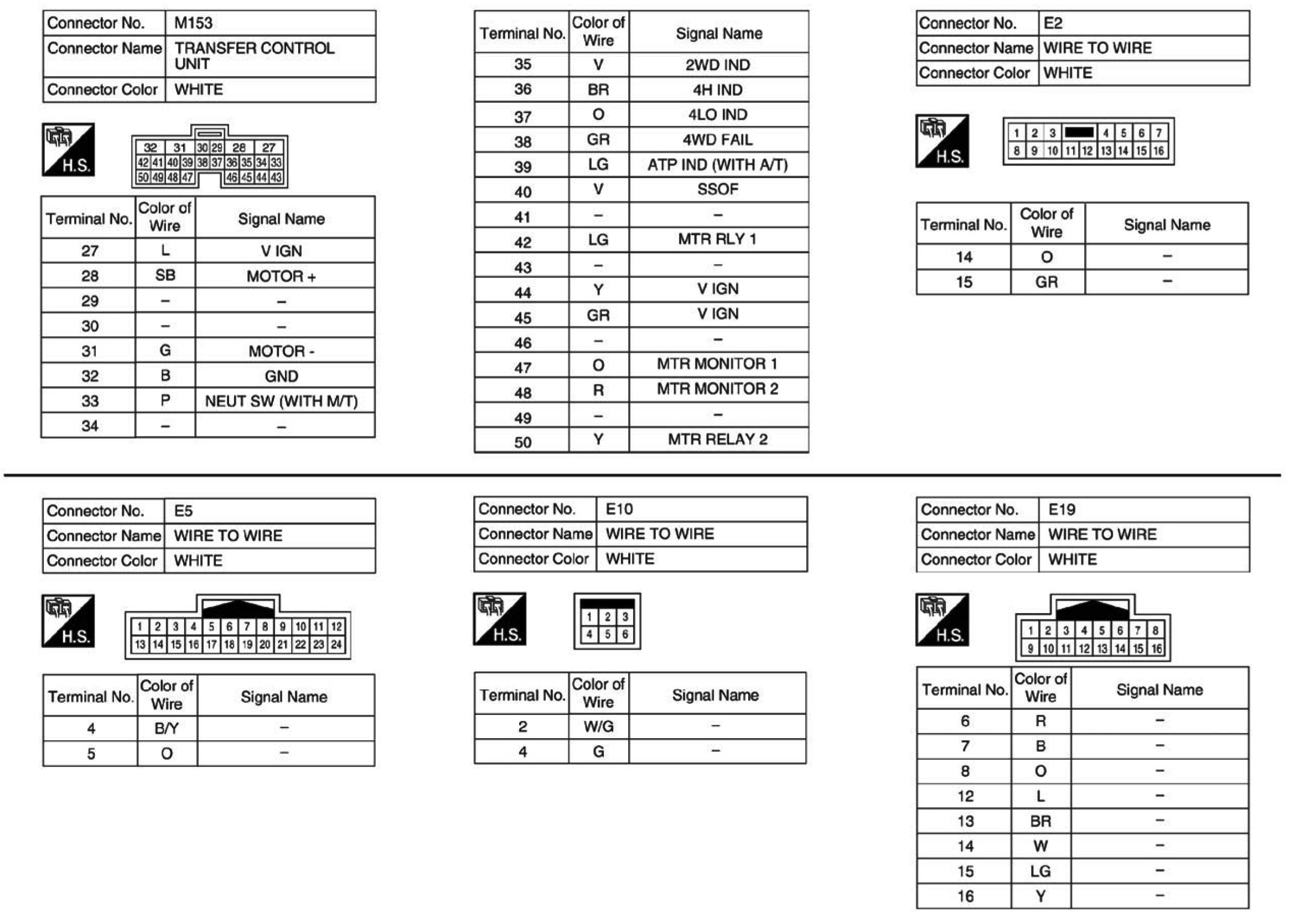

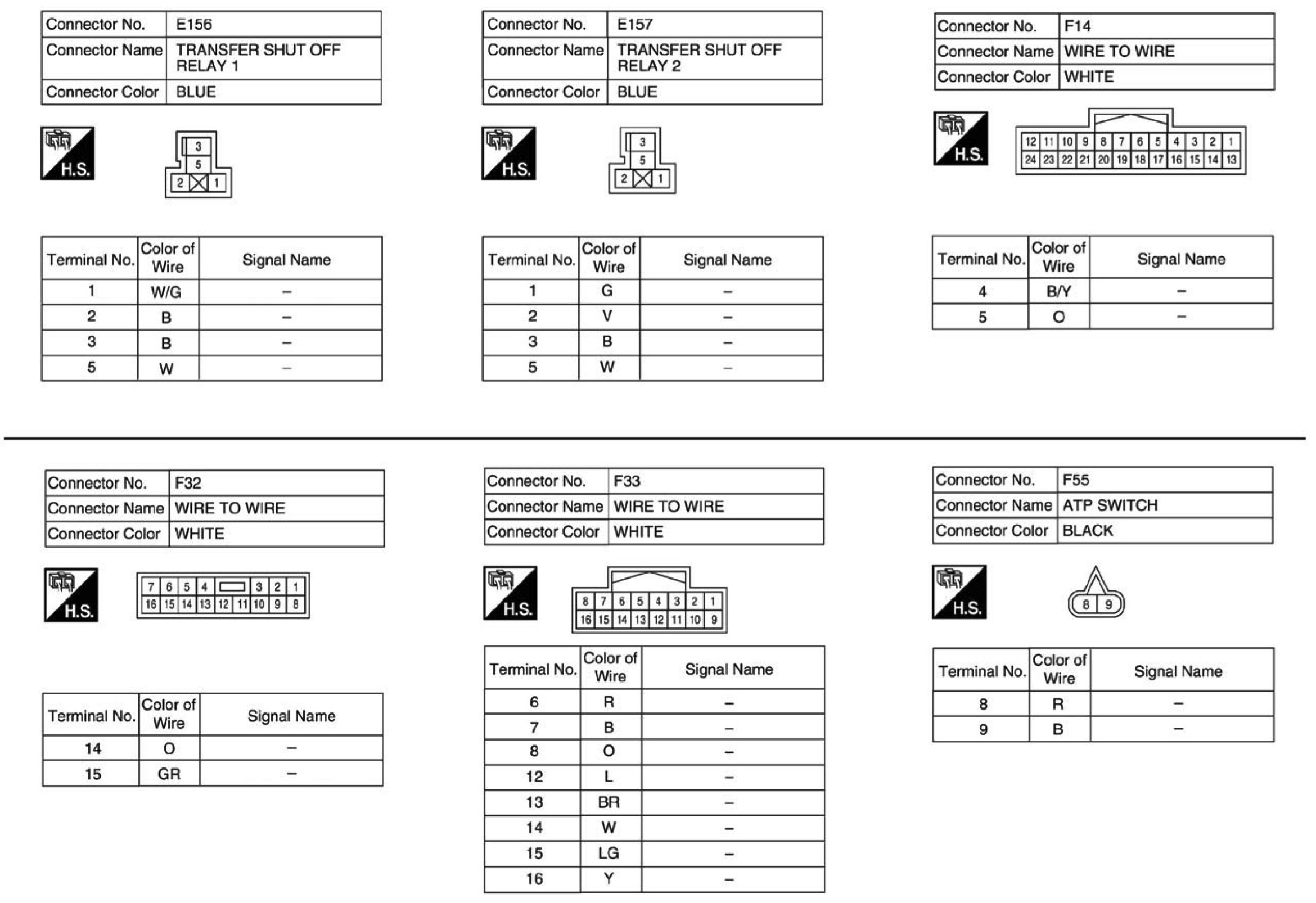

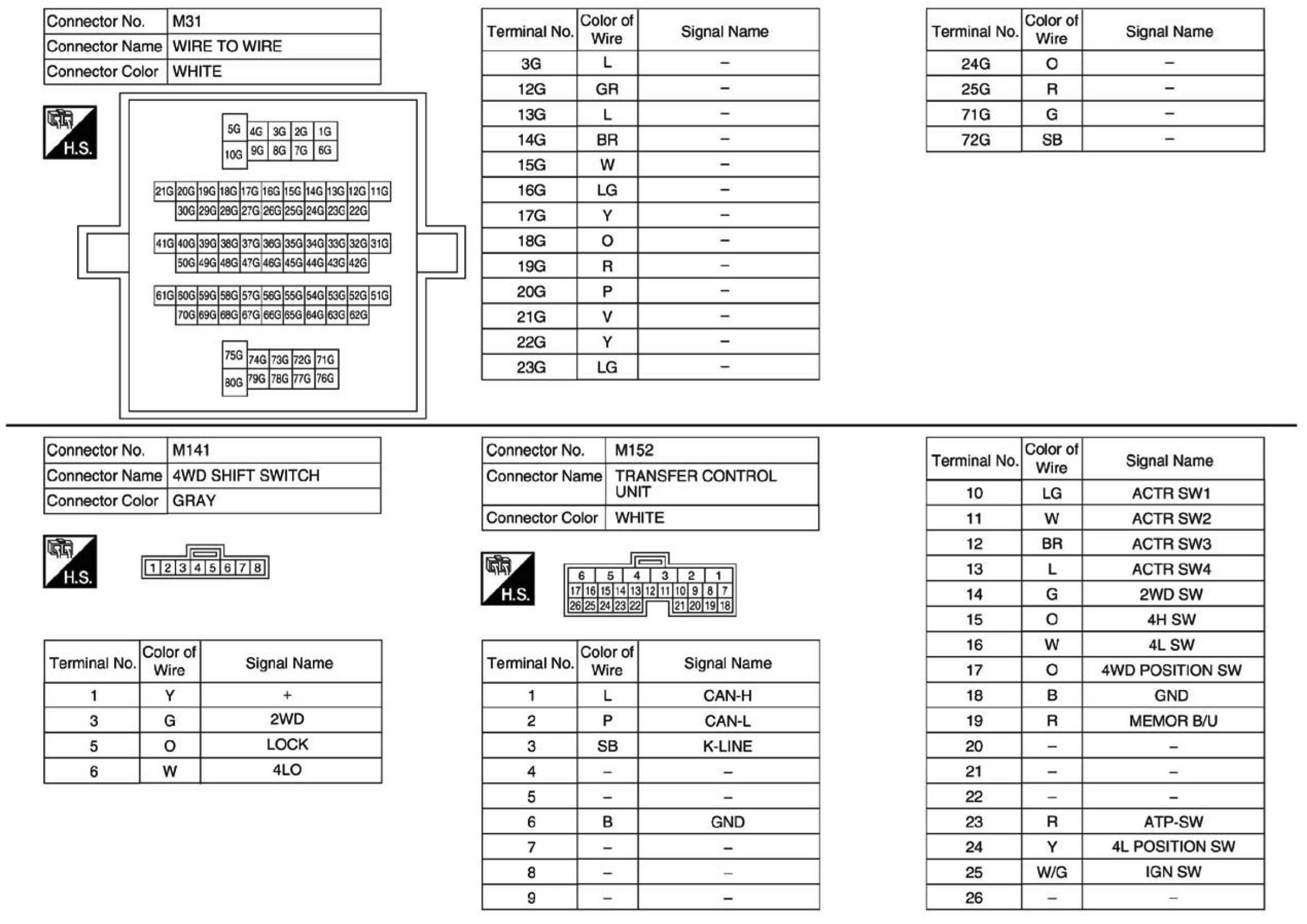

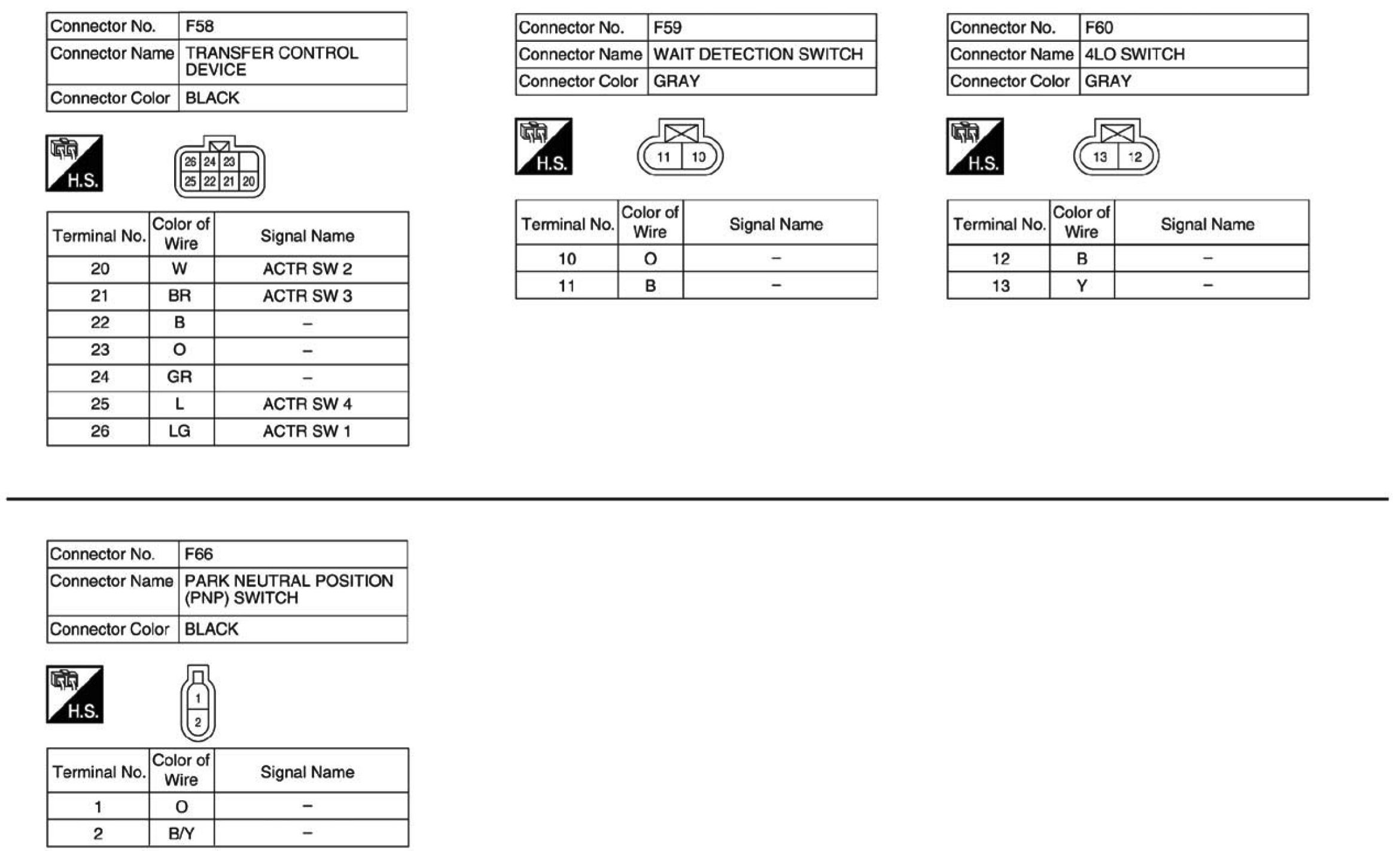

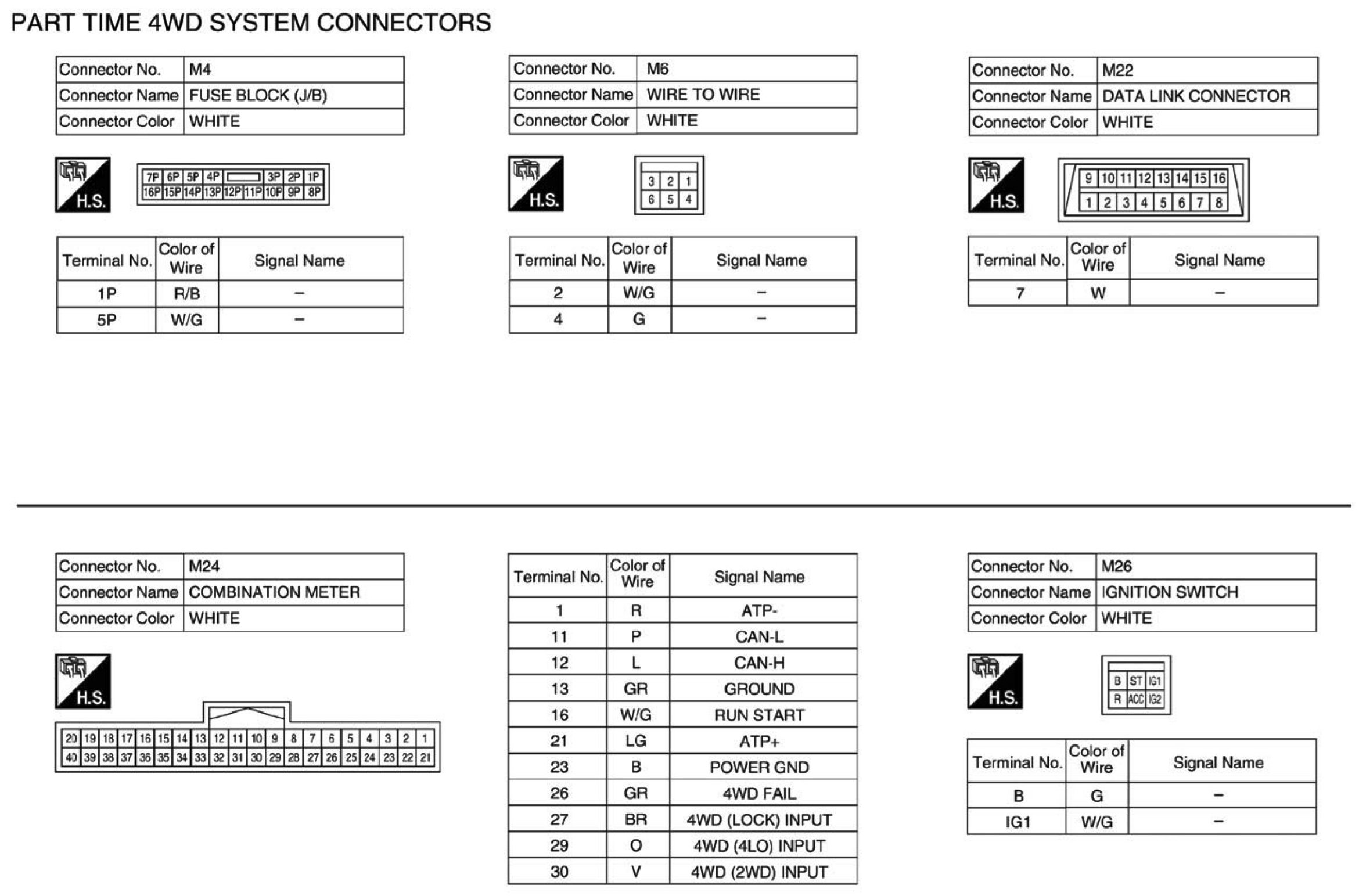

Part Time System Connectors (Part 1):




Part Time System Connectors (Part 2):




Part Time System Connectors (Part 3):




Part Time System Connectors (Part 4):




Part Time System Connectors (Part 5):




Part Time System Connectors (Part 6):
