Home >> Suzuki Truck >> 2010 >> Equator 4WD V6-4.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Data List Mode

Data List Mode

Data List Mode

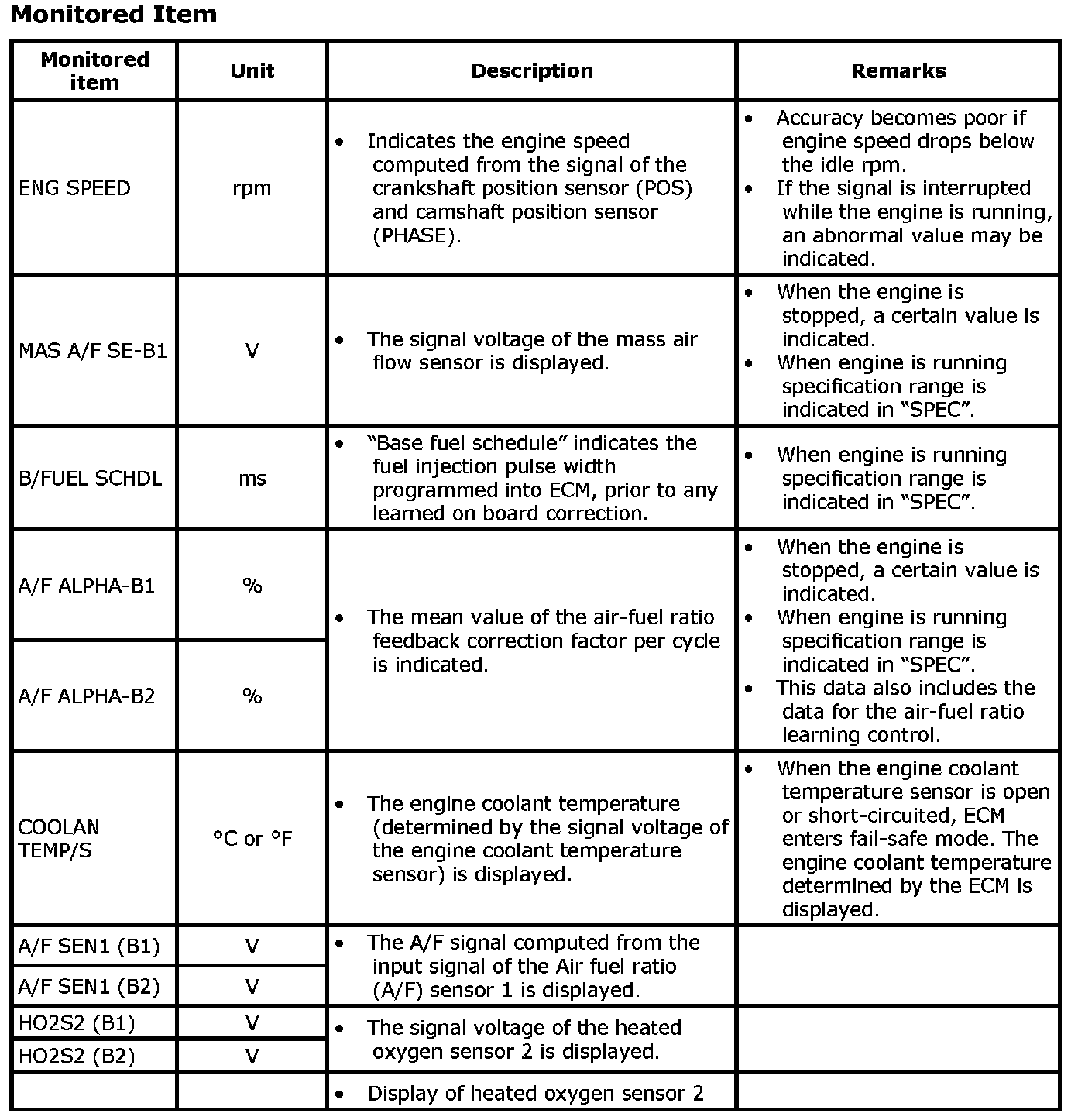

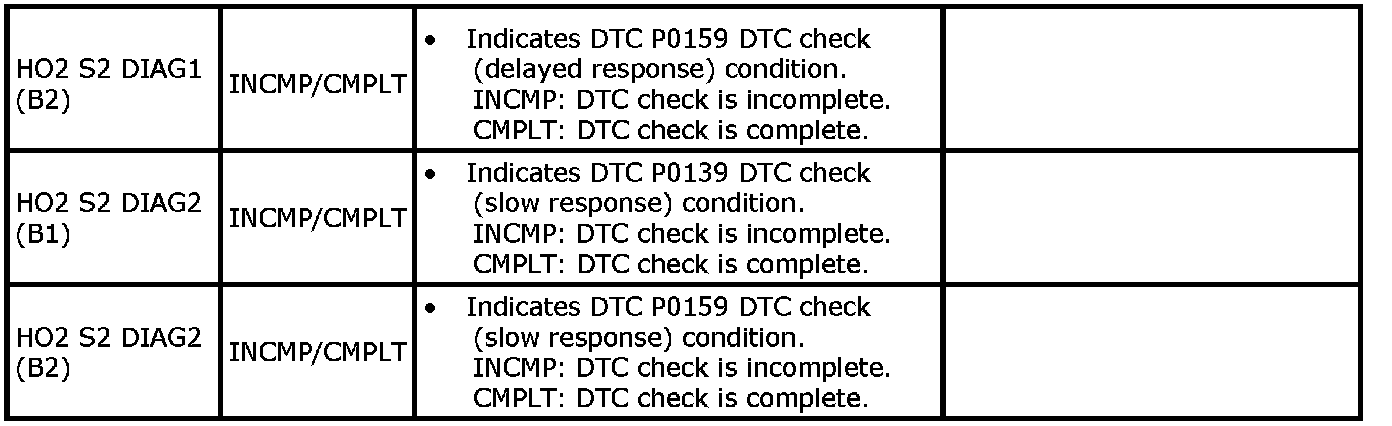

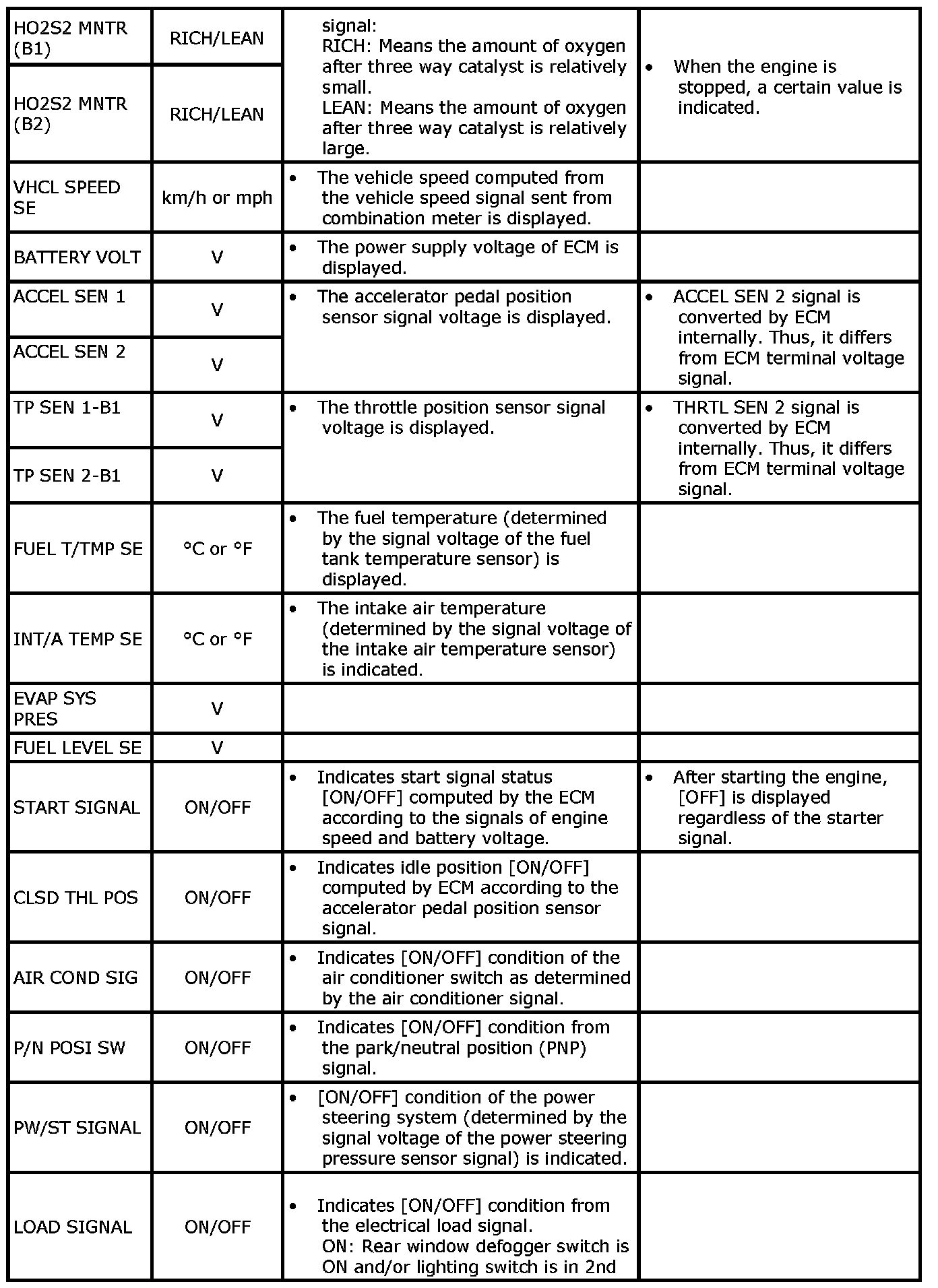

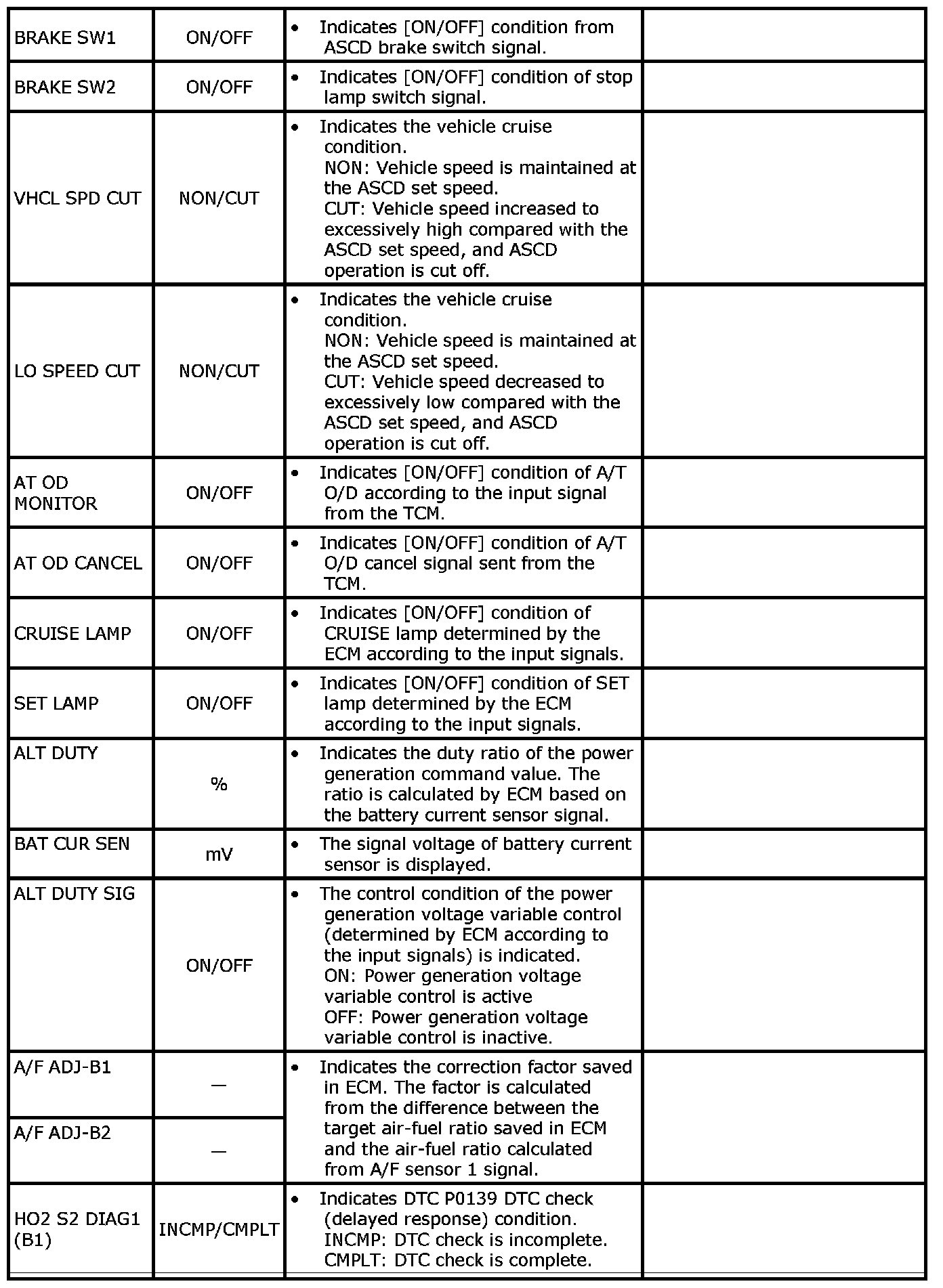

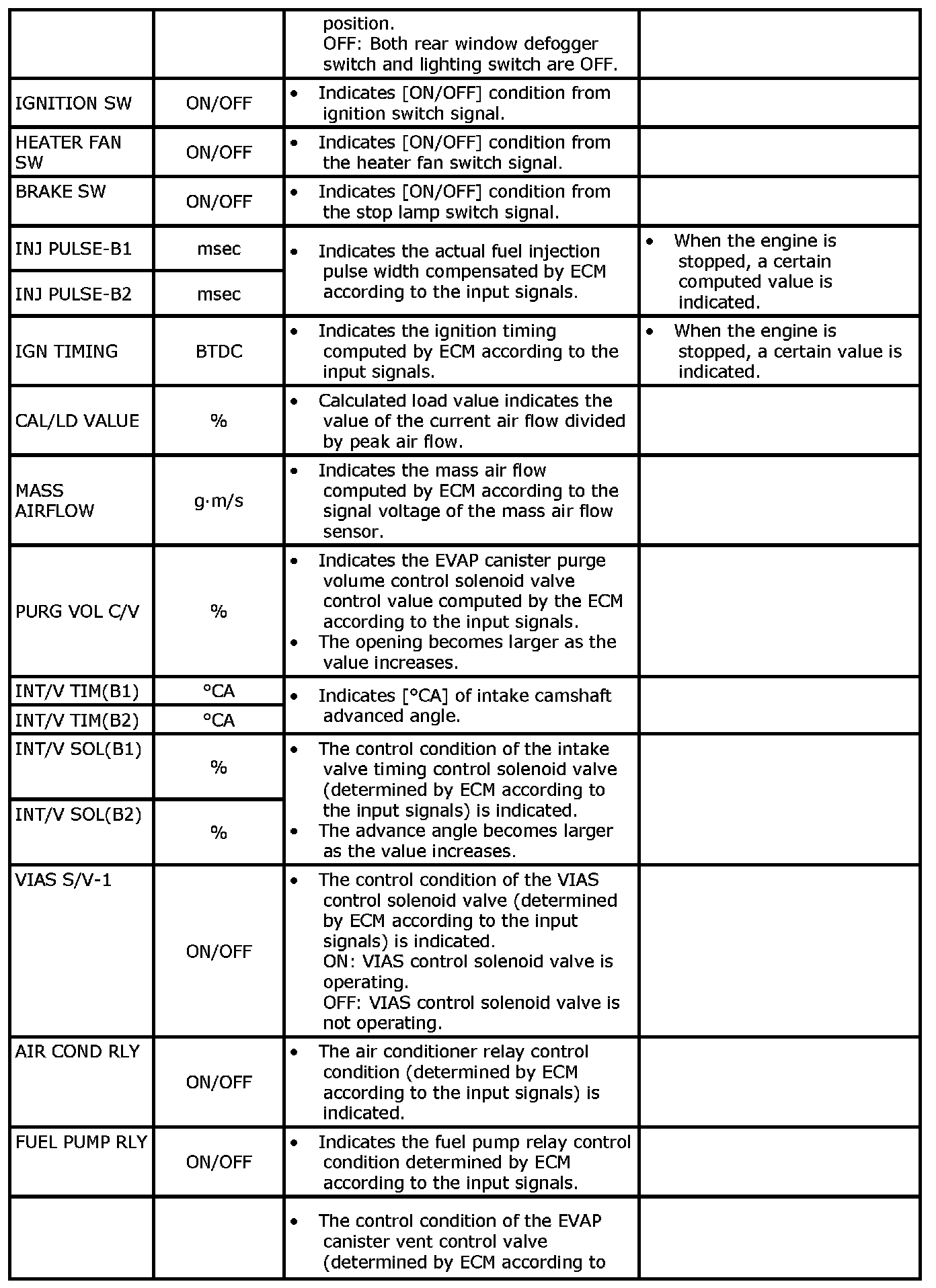

Monitored Item





















NOTE: Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
