Computers and Control Systems
Service Data and SpecificationsFuel Pressure
Fuel pressure at idling Approximately 350 kPa (3.57 kg/cm2, 51 psi)

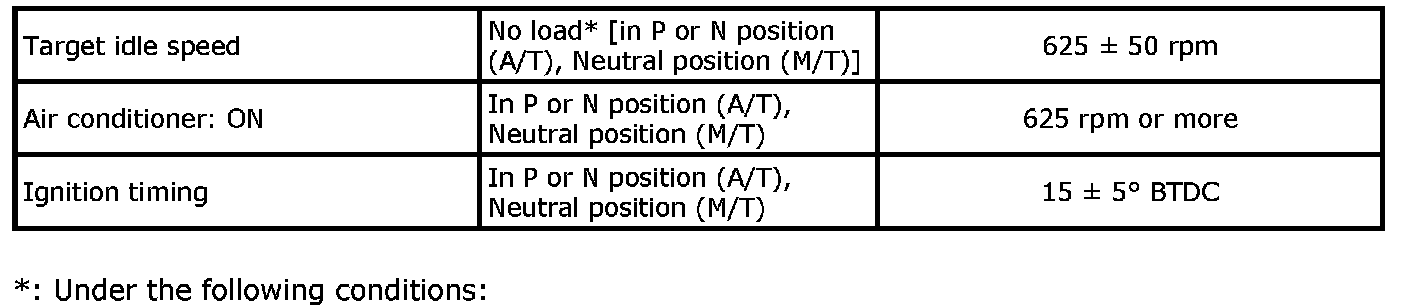

Idle Speed and Ignition Timing
- Air conditioner switch: OFF
- Electric load: OFF (Lights, heater fan & rear window defogger)
- Steering wheel: Kept in straight-ahead position

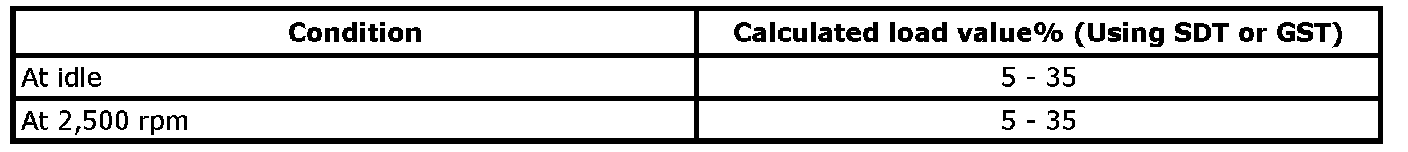

Calculated Load Value

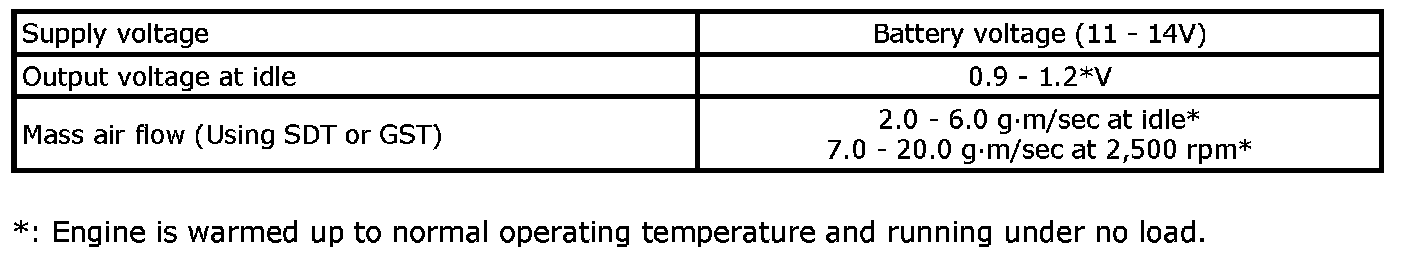

Mass Air Flow Sensor

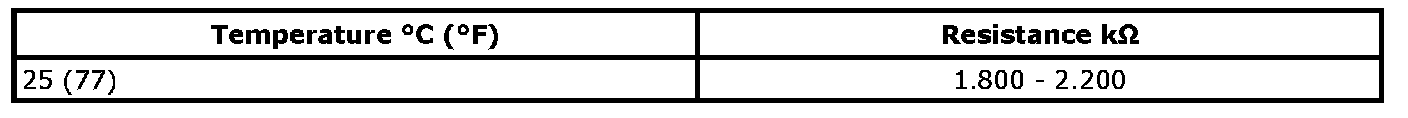

Intake Air Temperature Sensor
Engine Coolant Temperature Sensor
Air Fuel Ratio (A/F) Sensor 1 Heater
Resistance [at 25 °C (77 °F)] 1.80 - 2.44 ohms
Heated Oxygen sensor 2 Heater
Resistance [at 25 °C (77 °F)] 9.9 - 13.3 ohms
Crankshaft Position Sensor (POS)
Refer to [P0335 CKP Sensor (POS)]. P0335
Camshaft Position Sensor (PHASE)
Refer to [P0340, P0345 CMP Sensor (PHASE)]. P0340
Throttle Control Motor
Resistance [at 25 °C (77 °F)] Approximately 1 - 15 ohms
Fuel Injector
Resistance [at 10 - 60 °C (50 - 140 °F)] 11.1 - 14.5 ohms
Fuel Pump
Resistance [at 25 °C (77°F)] 0.2 - 5.0 ohms
