System Specifications

Service Data and Specifications

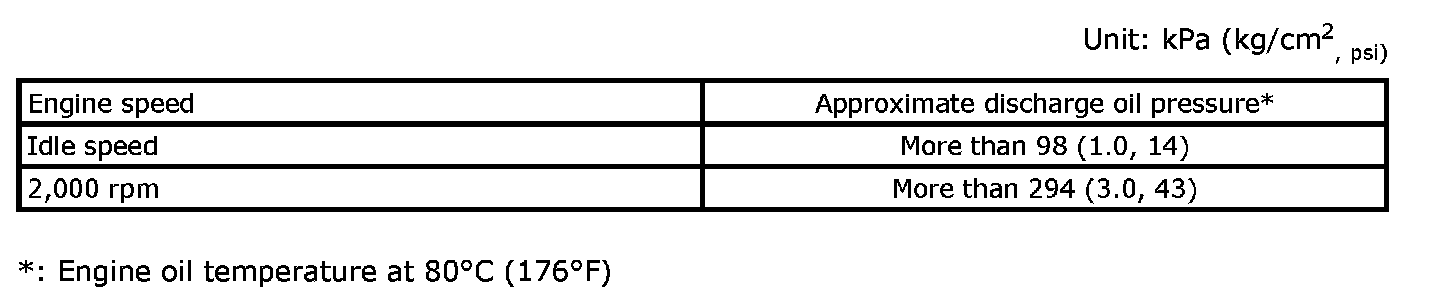

OIL Pressure

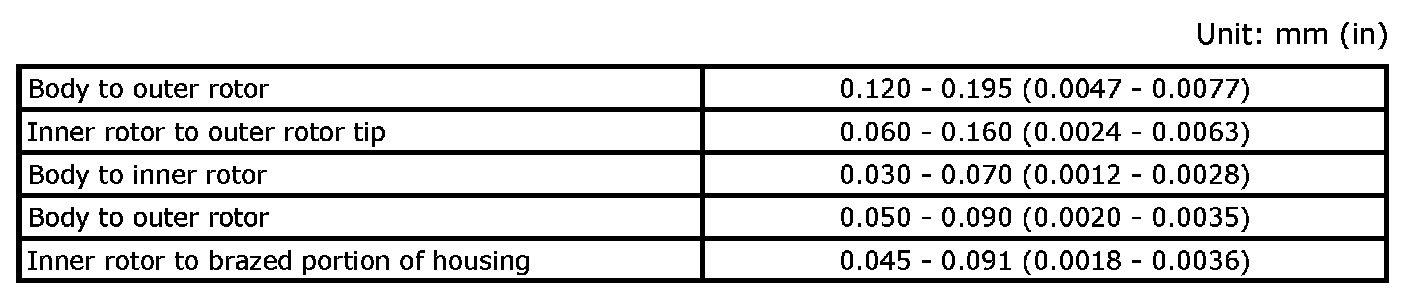

OIL Pump

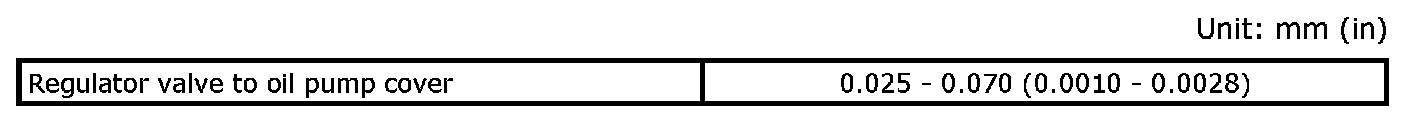

Regulator Valve

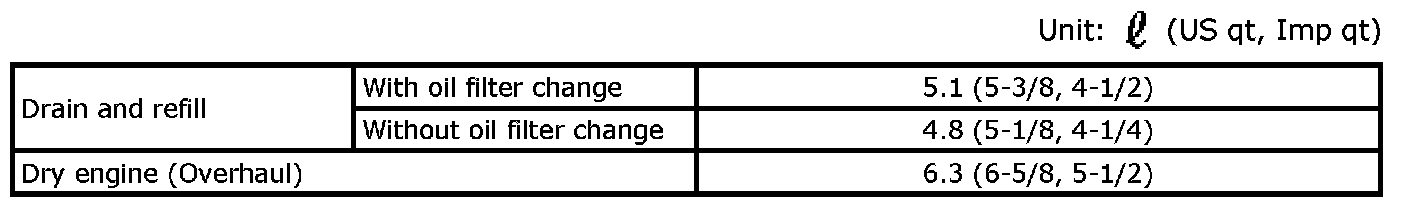

Engine OIL Capacity (Approximate)
