Transfer Assembly Exploded View
Transfer Assembly Exploded View

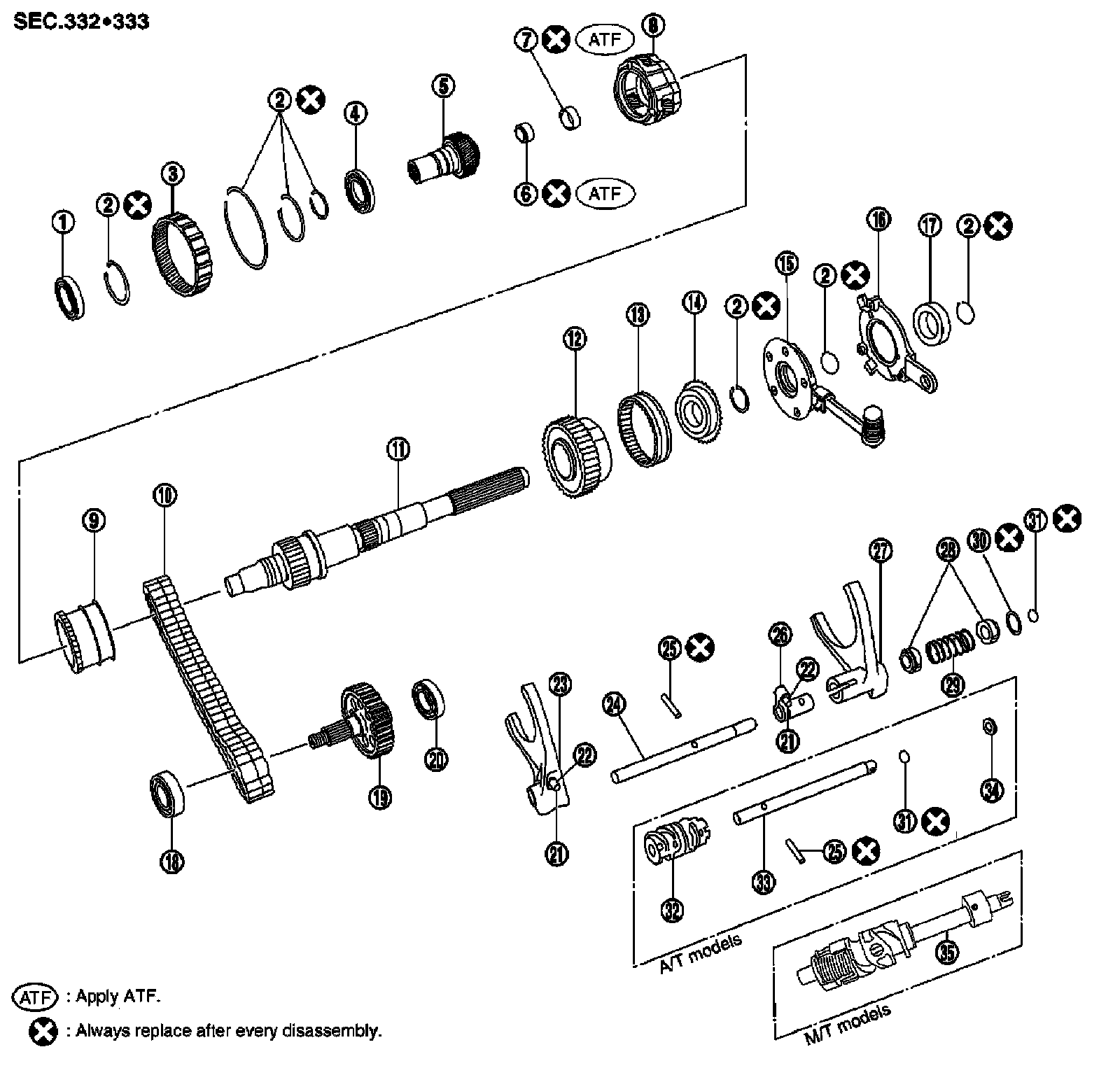

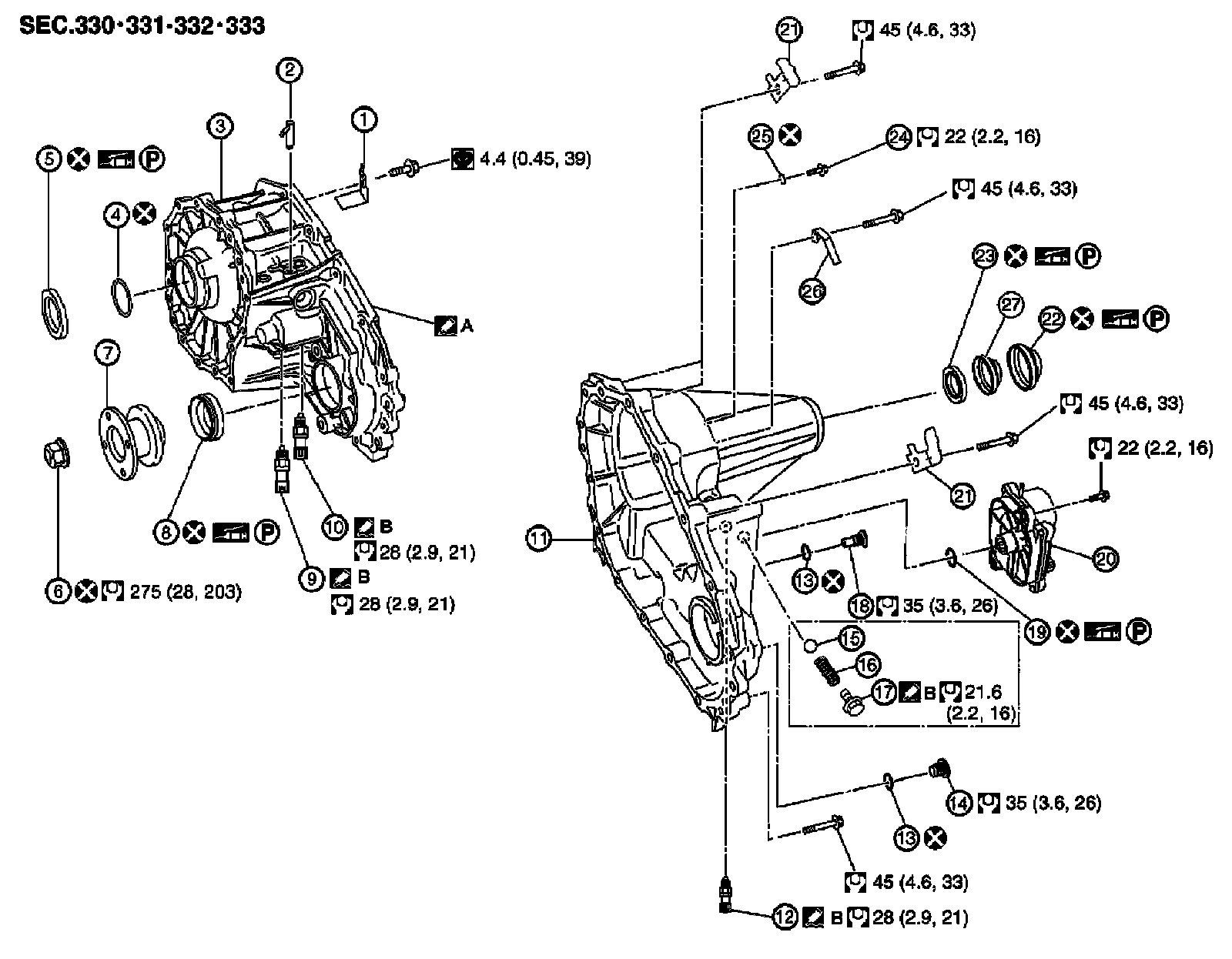

Transfer Assembly: Exploded View

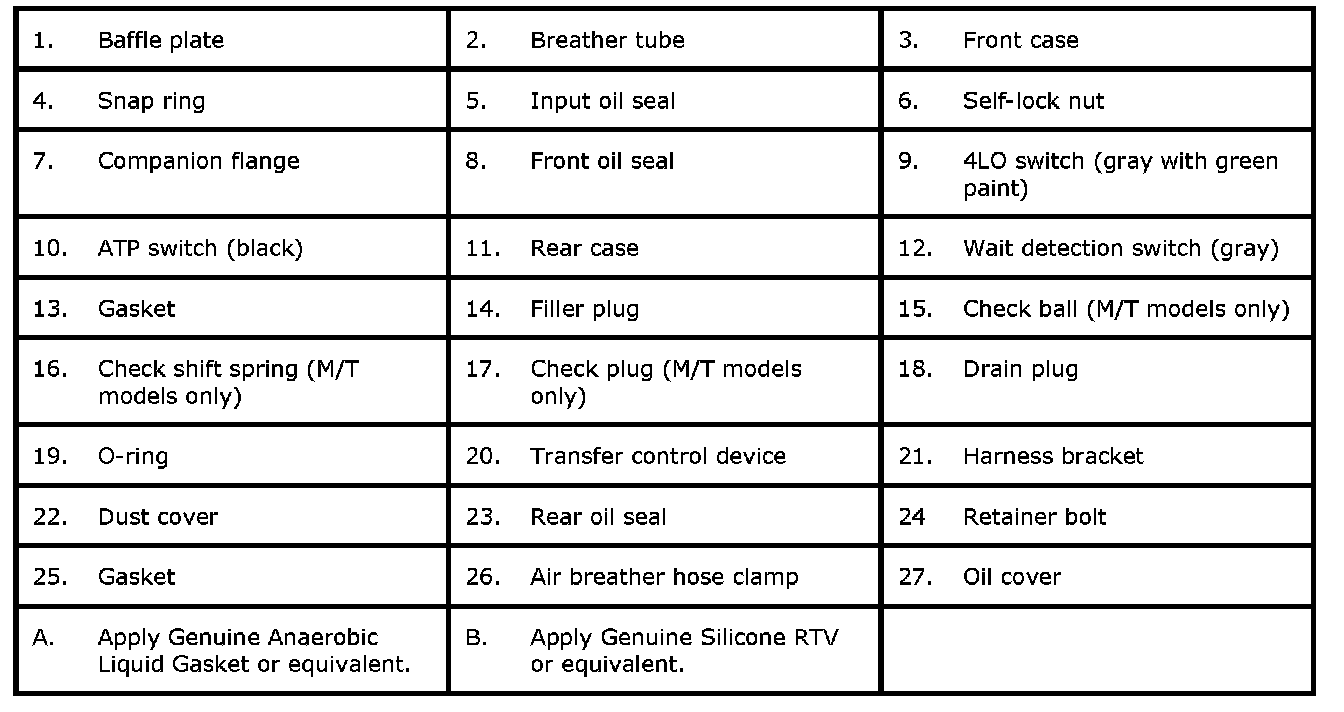

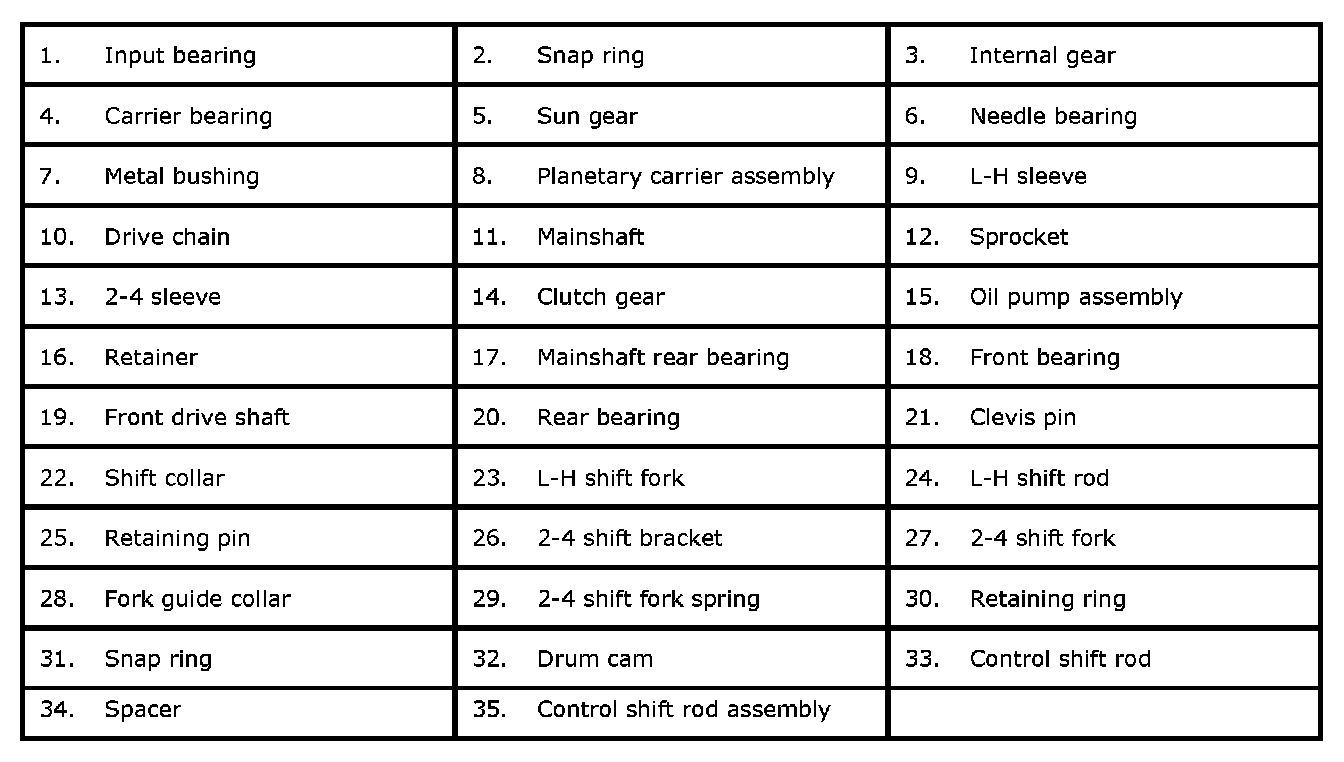

Components
