Repair and Diagnosis: Service Precautions

Warning, Caution and Information Label Location

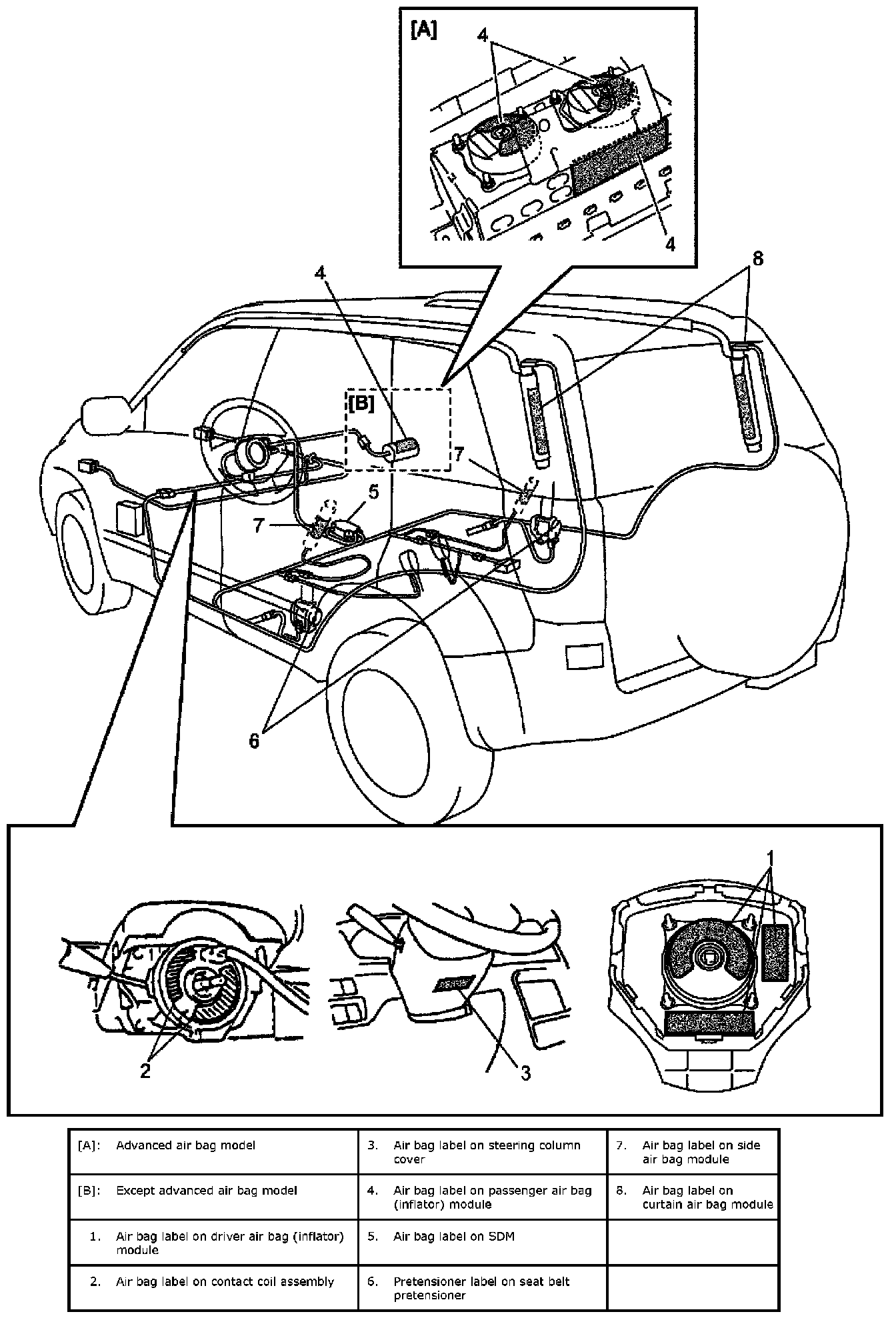

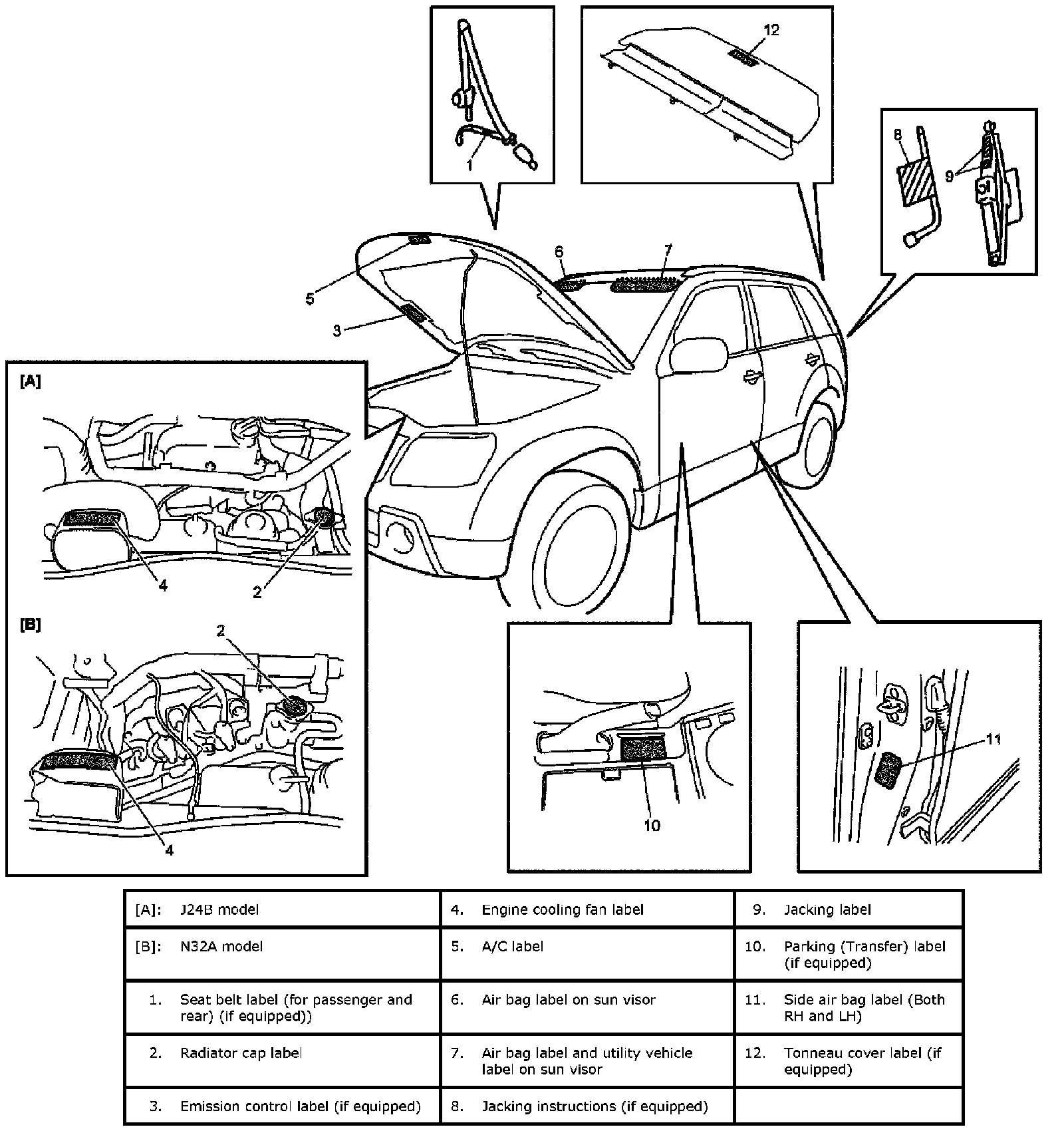

The figure shows main labels among others that are attached to vehicle component parts. When servicing and handling parts, refer to WARNING / CAUTION instructions printed on labels. If any WARNING / CAUTION label is found stained or damaged, clean or replace it as necessary.

NOTE: Air bag labels are attached on the vehicle equipped with air bag system only.
