Tightening Torque Specifications

Tightening Torque Specifications

CAUTION: For fastener with * (asterisk) below, be sure to tighten it according to specified procedure in "Repair Instructions".





NOTE:

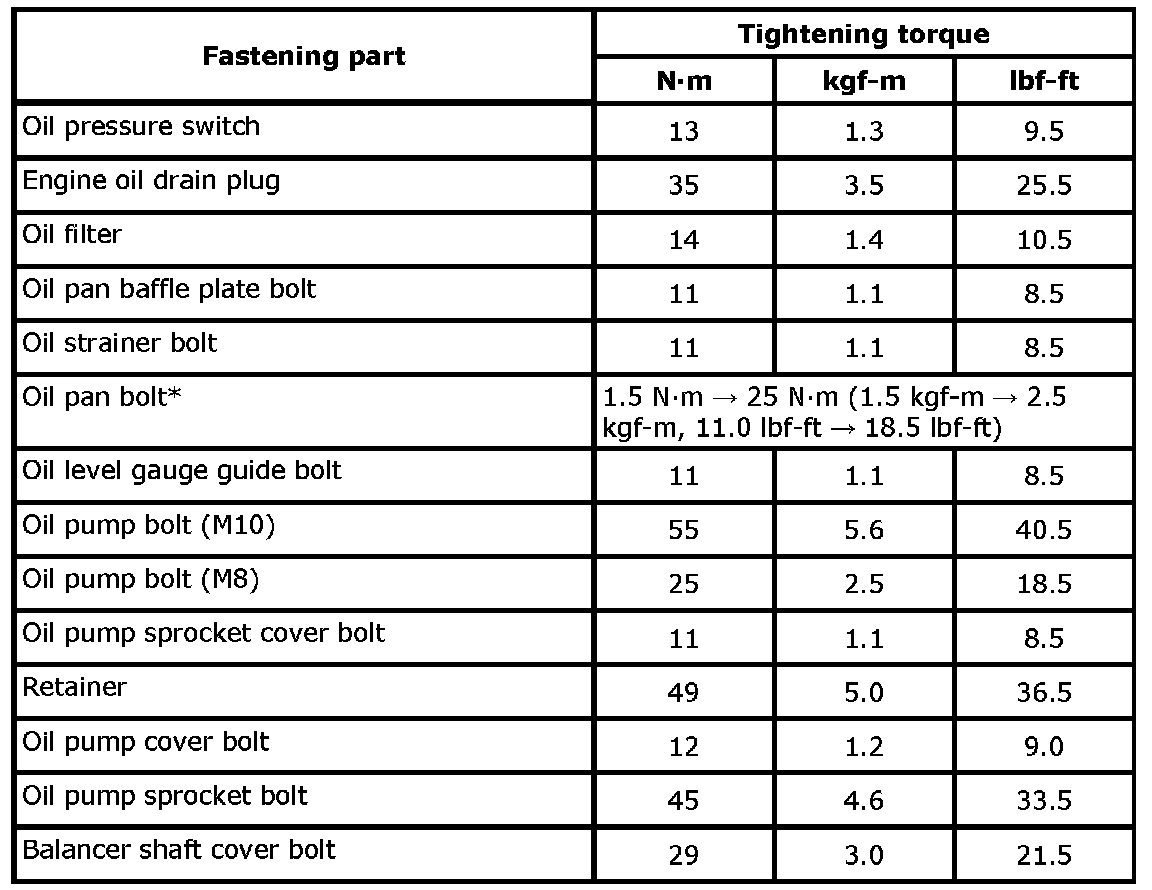

The specified tightening torque is described in the following.
Oil Pan and Oil Pump Strainer Components:J24B
Oil Pump Assembly Components:J24B

Reference:
For the tightening torque of fastener not specified in this section, refer to Fastener Information.
