System Specifications

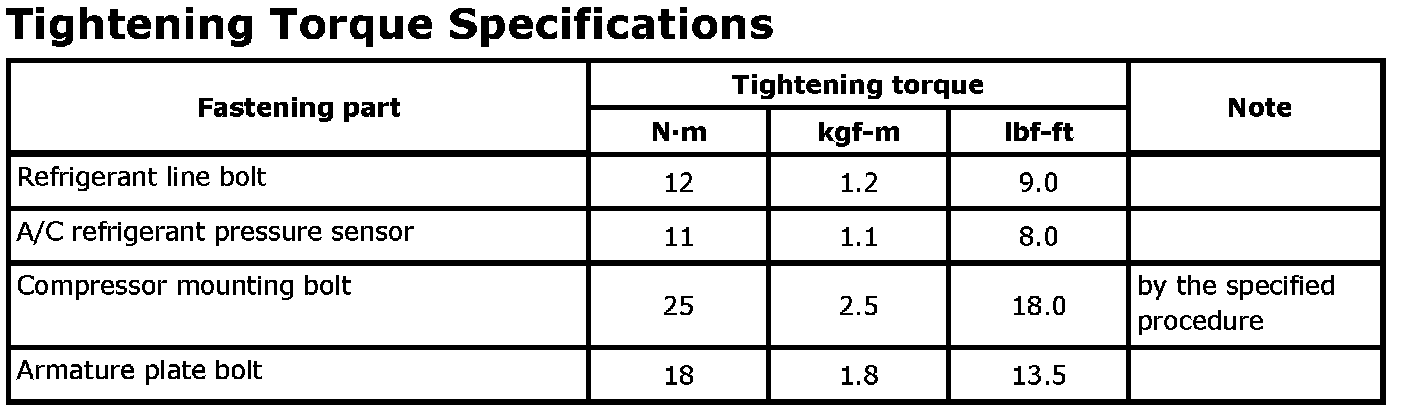

Tightening Torque Specifications






NOTE:
The specified tightening torque is described in the following.
Magnet Clutch Components
