Antilock Brakes / Traction Control Systems: Service and Repair

ESP(R) OFF Switch Removal and Installation

Removal
1) Disconnect negative (-) cable at battery.

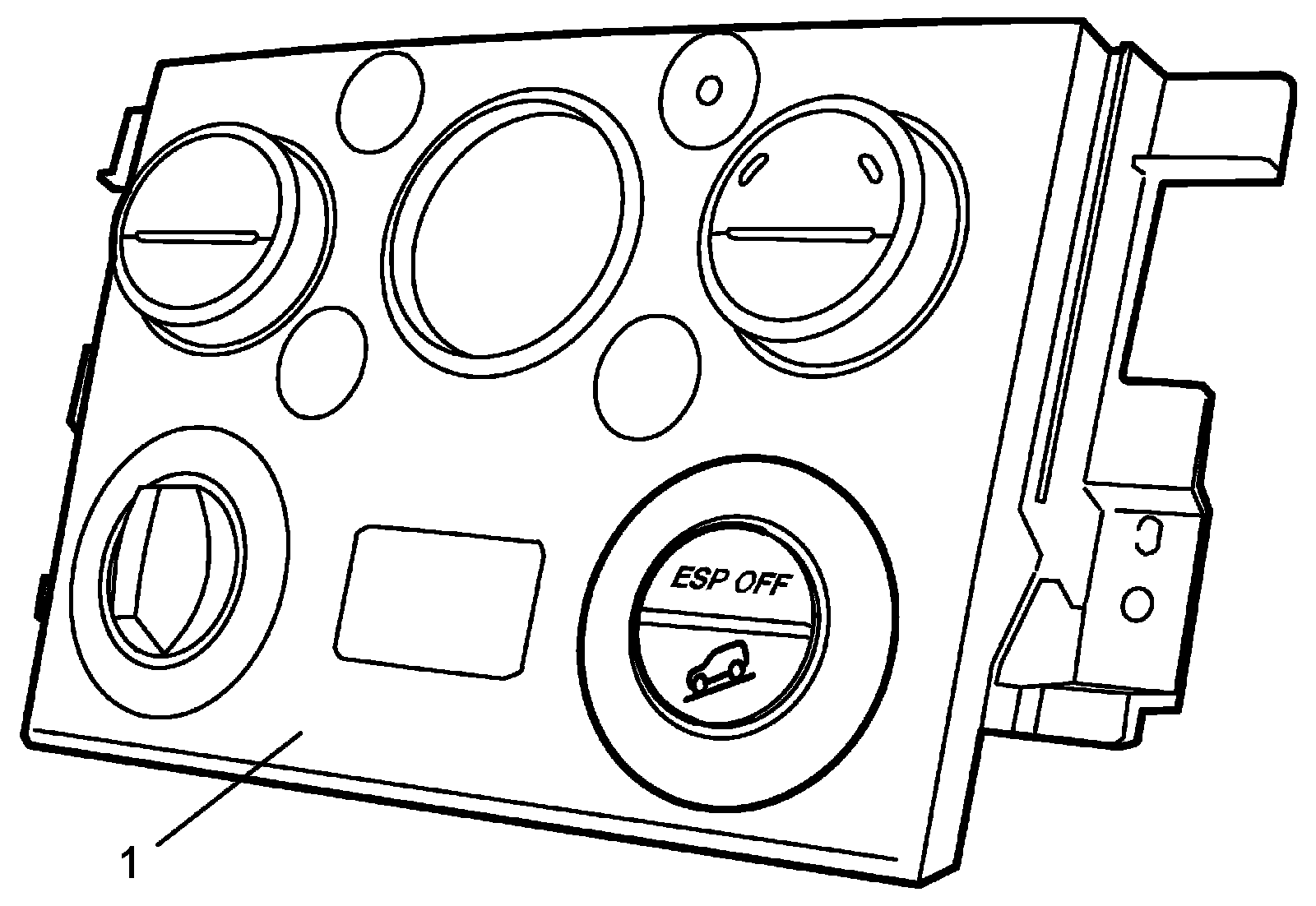

2) Remove center garnish (1) with audio unit (if equipped), HVAC control module and ESP(R) OFF switch.





Installation

Reference: ESP(R) OFF Switch Inspection
Reverse removal procedure.
