Power Mirror Motor: Service and Repair

Mirror Actuator: Disassembly and Assembly

Disassembly and Assembly

Disassembly

1) Remove the door mirror glass. Refer to [Door Mirror Glass: Removal and Installation] Door Mirror Glass.

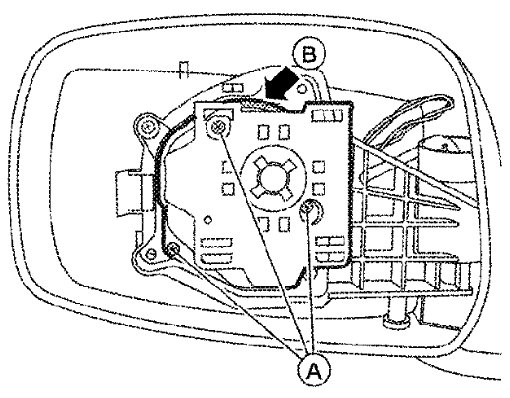

2) Remove the screws (A) and release the actuator from housing (B).

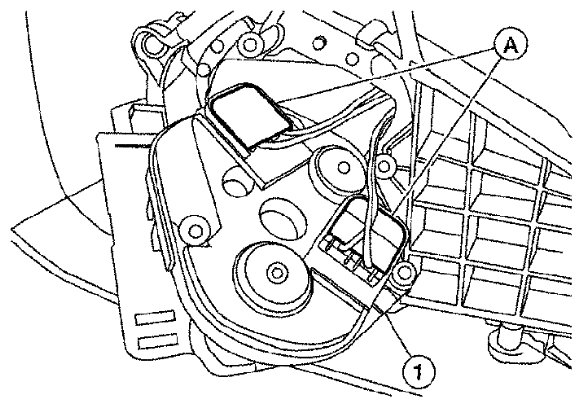

3) Disconnect the connectors (A) and remove the actuator (1).






Assembly

Assembly is the reverse order of disassembly.
