Electronic Brake Control Module: Service and Repair

1. Disconnect battery ground cable.
2. Remove fasteners on lower sound insulator panel under steering column.

Fig. 13 Lower Dash Panel Replacement:

3. Remove EBCM, to dash panel attaching screws, Fig. 13.

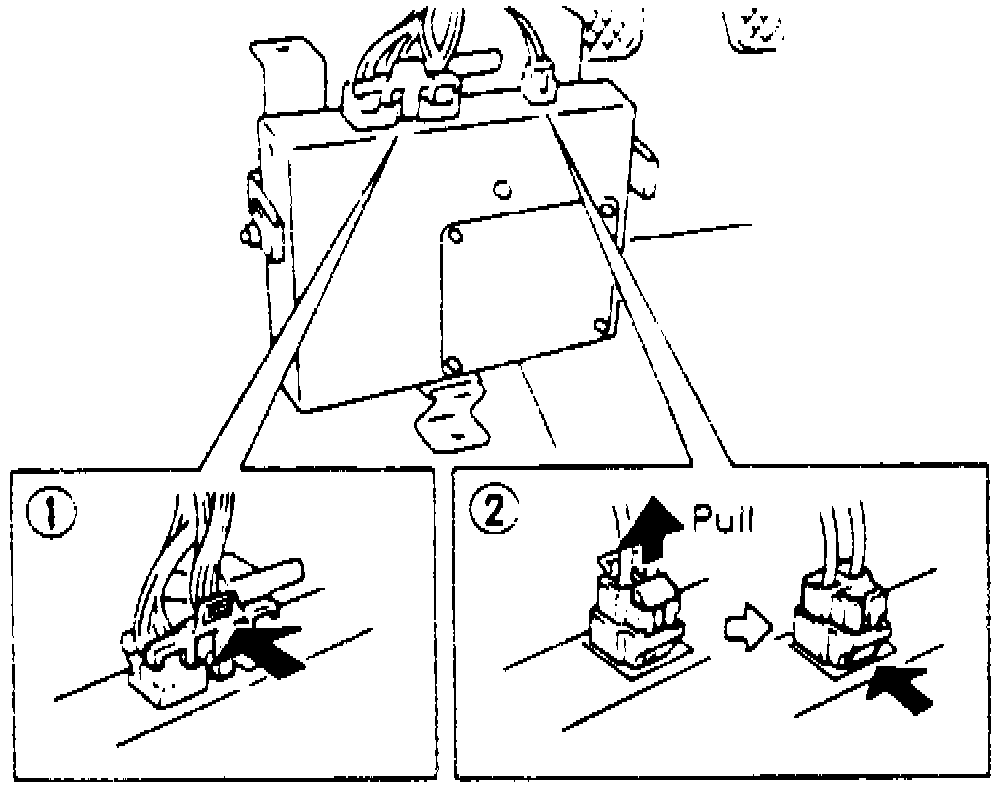

Fig. 14 ABS Electronic Brake Control Module Replacement:

4. Disconnect EBCM electrical connectors, then remove EBCM, Fig. 14.
5. Reverse procedure to install.
