Backing Plate: Service and Repair

REMOVAL
1) Perform steps 1) to 6) of Brake Drum Removal.
Service and Repair

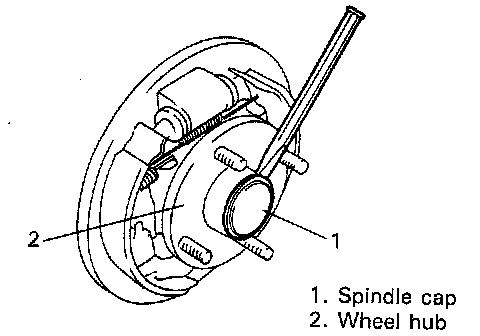

2) Remove spindle cap as shown (by hammering lightly at 3 locations around it so as not to deform or cause damage to seating part of cap).

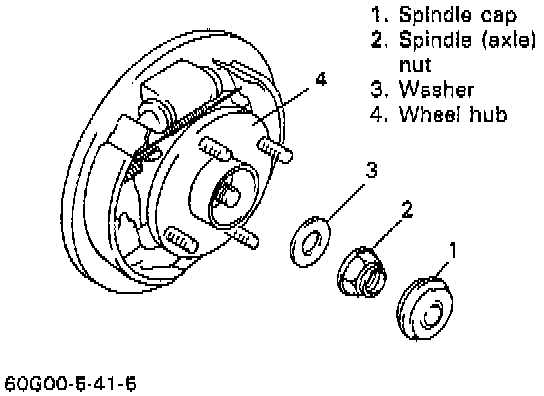

3) Uncalk spindle nut and remove spindle nut and washer.

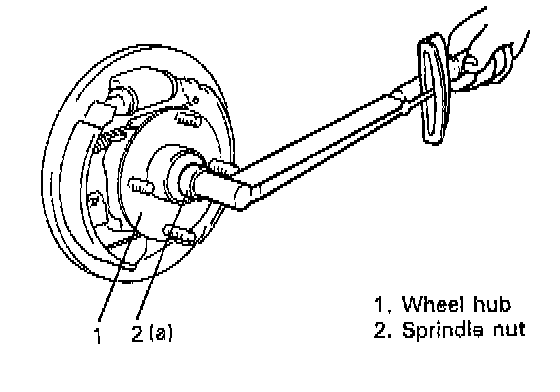

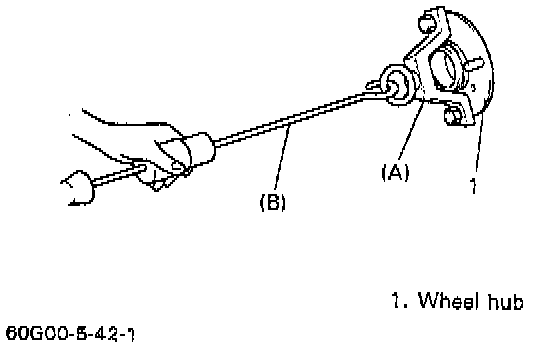

4) Pull wheel hub off by using special tools.

Special Tool
(A): 09943-17912
(B): 09942-15510





5) Perform steps 2)to 4) of Brake Shoe Removal.
Service and Repair

6) Perform steps 3) and 4) of Wheel Cylinder Removal.
Service and Repair

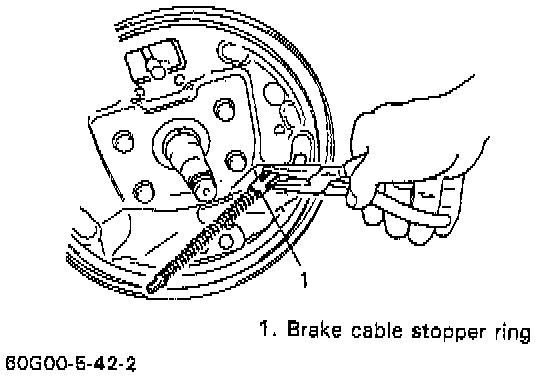

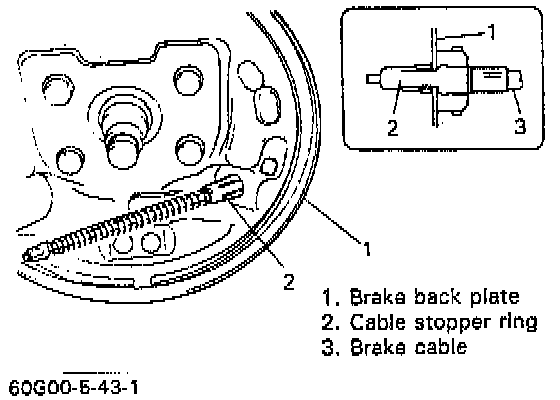

7) Remove cable from brake back plate by squeezing parking brake cable stopper ring.

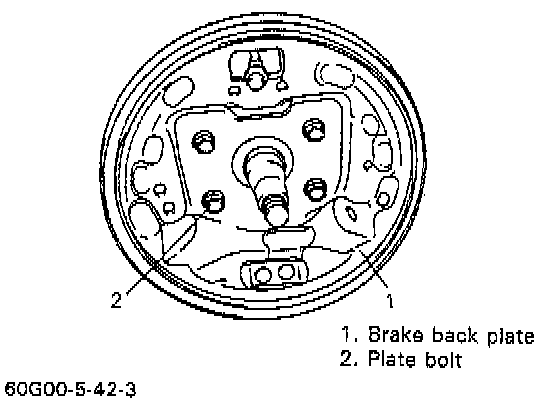

8) Remove brake back plate.





INSTALLATION

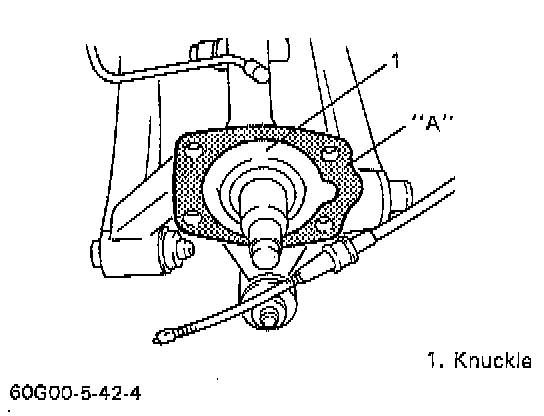

1) Apply water tight sealant to mating surfaces of brake back rotate and rear knuckle.

"A": Sealant 99000-31090





2) Install brake back plate and tighten back plate bolts to specified torque.

Tightening Torque
(a): 23 Nm (2.3 kg-m, 17.0 ft. lbs.)





3) Install parking brake cable to brake plate.

4) Install wheel cylinder, and tighten wheel cylinder bolts and brake pipe flare nut to specified torque.
5) Install brake shoes.
6) Install wheel hub assembly, washer and new spindle nut.





7) Tighten spindle nut to specified torque.

NOTE: Removed spindle nut should be replaced with new one.

Tightening Torque
(a): 175 N.m (17.5 kg-m, 126.5 ft. lbs.)

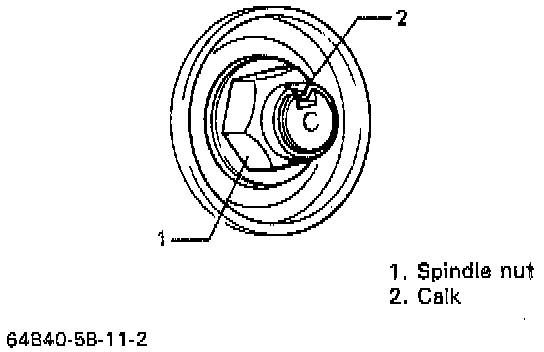

8) Calk spindle nut as shown.

9) Install spindle cap.

NOTE:
- When installing spindle cap, hammer lightly several locations on the collar of cap until collar comes closely into contact with wheel hub.
- If fitting part of cap is deformed or damaged or if it is fitted loosely, replace with new one.

10) For procedures hereafter, refer to steps 6) to 12) of Wheel Cylinder Installation.
Service and Repair
