Front Less ABS

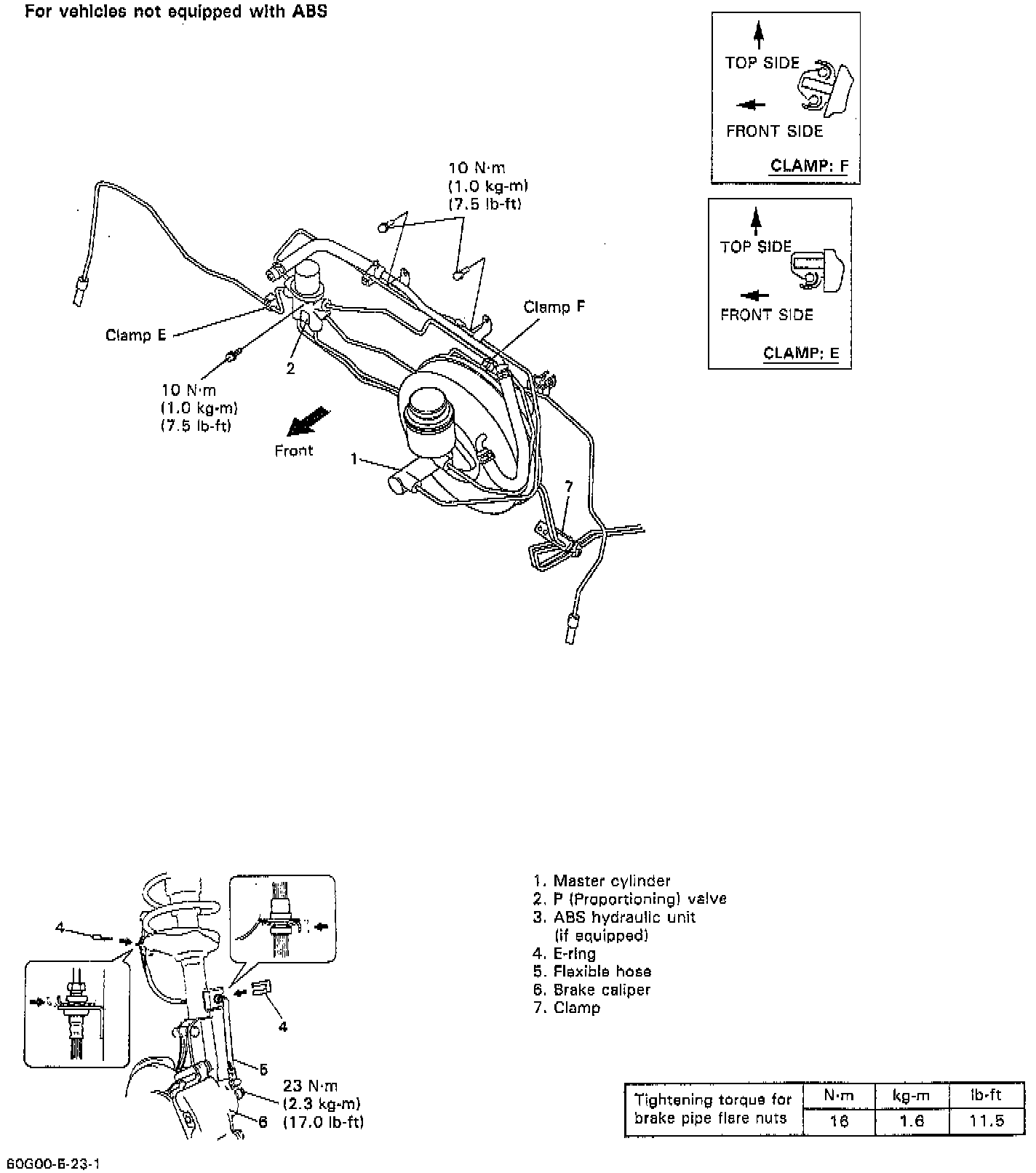

Without ABS:

1. Raise and suitably support vehicle. Remove tire and wheel. This operation is not necessary when removing pipes connecting master cylinder, P valve and Antilock Brake System (ABS) actuator (If equipped).
2. Clean dirt and foreign material from both hose end or pipe end fittings. Remove brake hose or pipe.
3. Reverse brake hose installation procedure. For installation, make sure that steering wheel is in straight forward position and hose has no twist or kink. Check to make sure that hose doesn't contact any part of suspension, both in extreme right and extreme left turn conditions. If it does at any point, remove and correct. Fill and maintain brake fluid level in reservoir. Bleed brake system. Service and Repair
