Disassembly

EVAPORATOR THERMISTOR

Disassembly

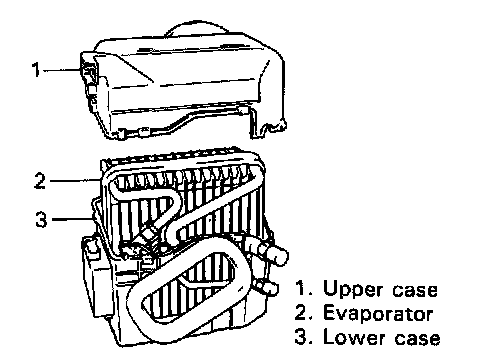

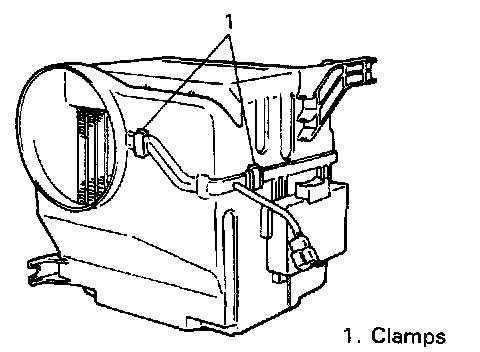

1) Detach clamp to separate evaporator upper and lower cases from each other.





2) Take off case cover and remove evaporator out of positon.
3) Detach following components from evaporator.
- Expansion valve.
- Thermister.
