Front Fender: Service and Repair

Front Fender Removal and Installation

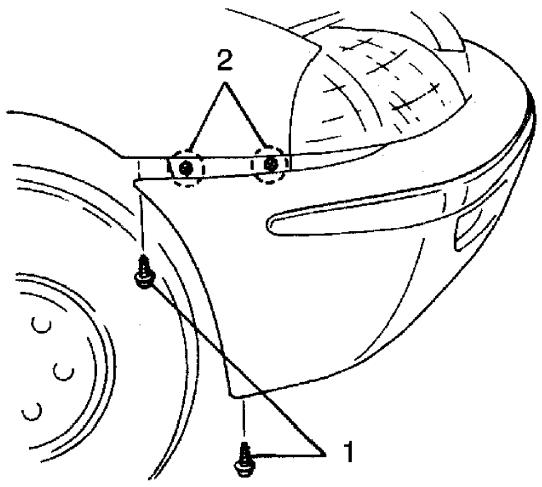

Front Fender Components:

Removal

WARNING: Air bag wiring harness can be identified easily as it is covered with a yellow protection tube. Be very careful when handling it.

1. Remove wiper and cowling ventilator garnish.
2. Remove front fender lining.
3. Remove bumper mounting screw (1) and slide bumper edge.
4. Remove front fender.

Installation
1. Reverse removal procedure for installation.

NOTE: If paint on fender bolt (2) is peeled off, be sure to apply paint again.
