Operation CHARM: Car repair manuals for everyone.
Home >> Suzuki >> 2001 >> Swift GL L4-1298cc 1.3L SOHC MFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> C Connectors

C Connectors

C01 - C15:

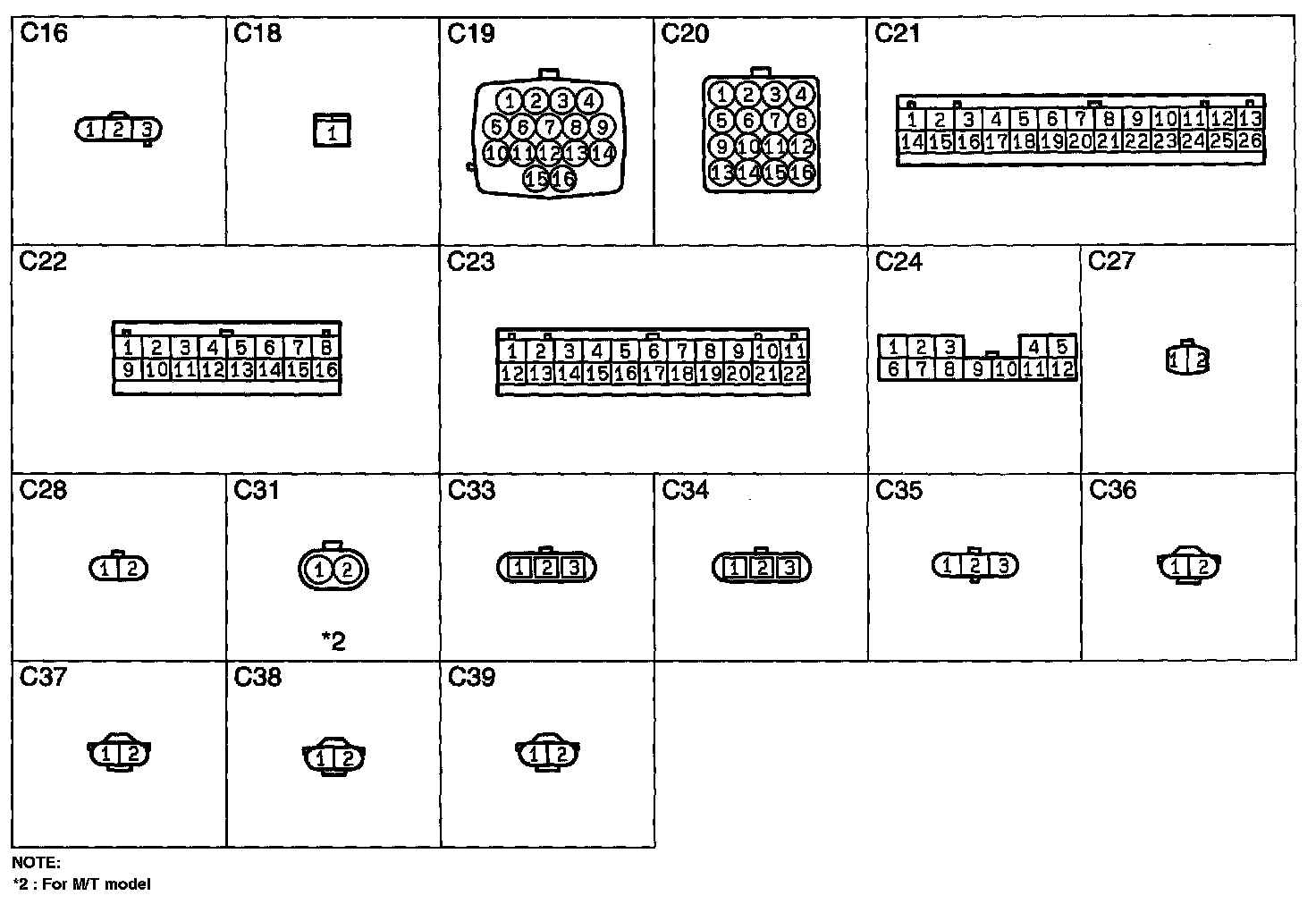

C16 - C39:
