Fluid Filter - A/T: Service and Repair

OIL STRAINER





1. Drain transmission fluid.
2. Remove oil pan.

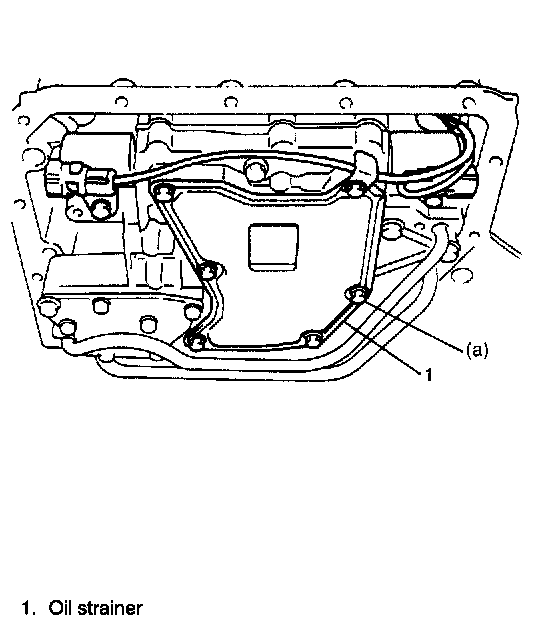

3. Remove oil strainer.
4. Clean oil strainer.
5. Install oil strainer to lower valve body.
Tightening Torque
(a): 5.5 Nm (0.55 kg-m, 4.0 ft. lbs.)
6. Reinstall oil pan and refill transmission fluid.
7. Upon completion of installation, warm up transmission and check for fluid level and leakage.
