Operation CHARM
: Car repair manuals for everyone.
Home
>>
Suzuki
>>
2002
>>
Esteem GL Sedan L4-1.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Fuel Delivery and Air Induction
>>
Fuel Pump
Fuel Pump

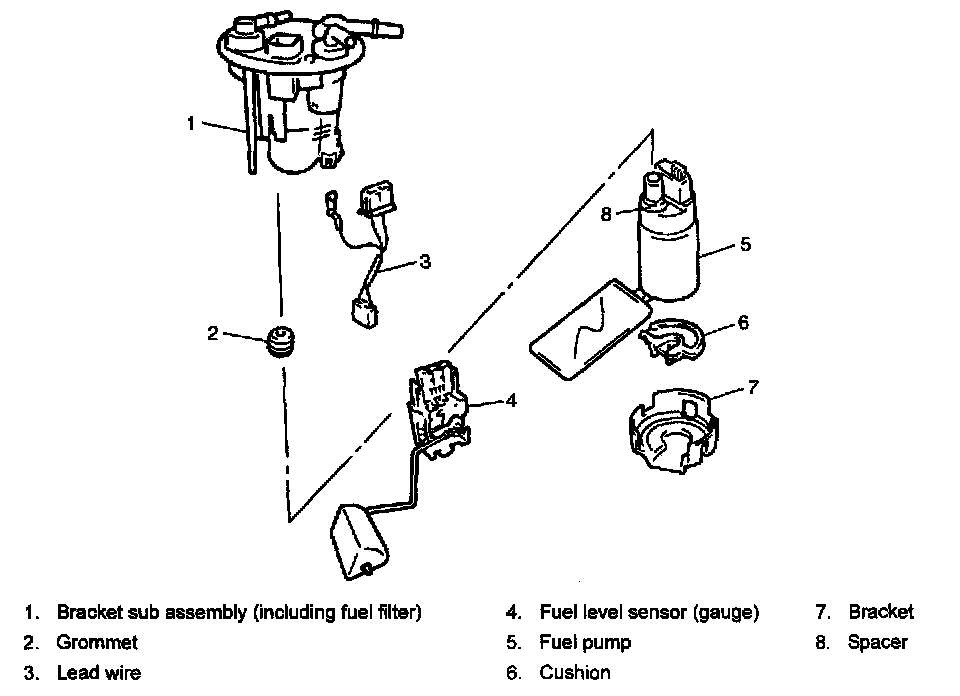

Fuel Pump Assembly (with Fuel Filter, Level Sensor (Gauge) and Fuel Cut Valve):
