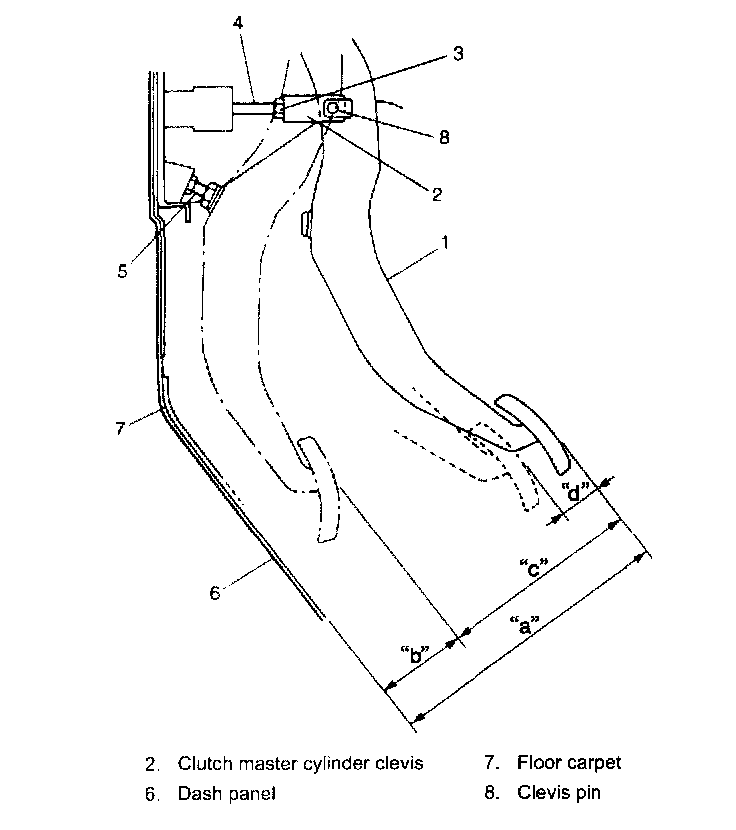

Clutch Pedal Assembly

Clutch pedal height "a"
Left hand steering vehicle 184.3 mm (7.26 inch)
Right hand steering vehicle 192.2 mm (7.57 inch)
Clutch pedal distance "c"
Left hand steering vehicle 130.6 mm (5.14 inch)
Right hand steering vehicle 127.4 mm (5.02 inch)
Clutch pedal free travel
"d" 6 - 13 mm (0.24 - 0.51 inch)

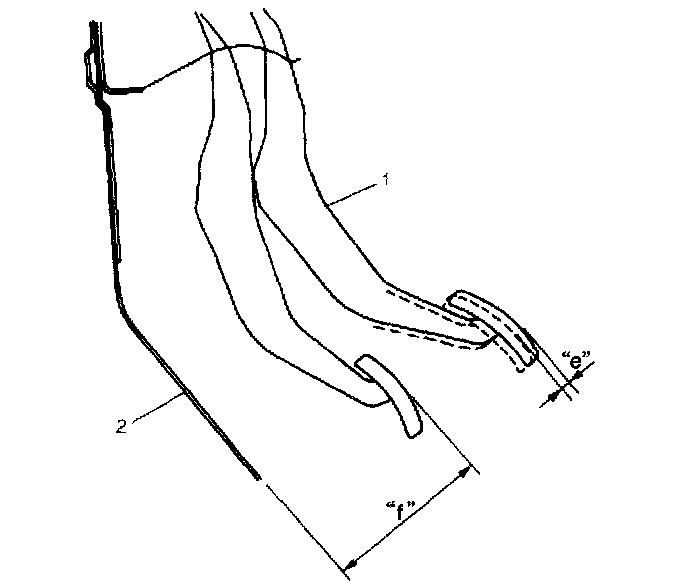

Clutch pedal clearance
"f" 60 mm (2.36 inch) or more
