Shift Cable: Service and Repair
Shift Control Cable Removal1. Disconnect the negative battery cable.
2. Remove the air filter housing assembly and bolts.

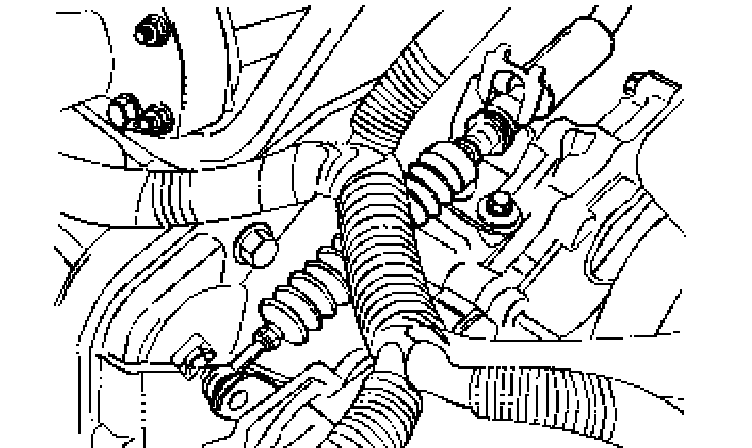

3. Remove the clip from the selector lever connection on the transaxle case and disconnect the shift control cable from the selector lever connection.
4. Remove the clip from the shift control cable at the transaxle mount connection.
5. Remove the floor console.

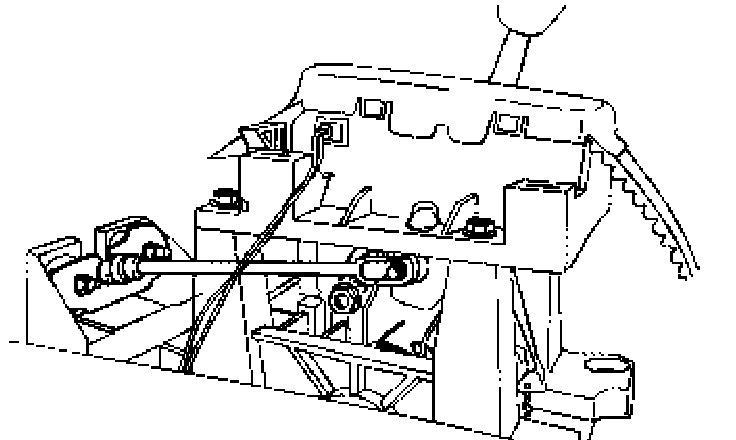

6. Loosen the shift control cable adjuster pinch nut.
7. Loosen the nut from the cable bracket.
8. Remove the shift control cable from the shift control assembly.
9. Remove the shift control cable from the transaxle mount.

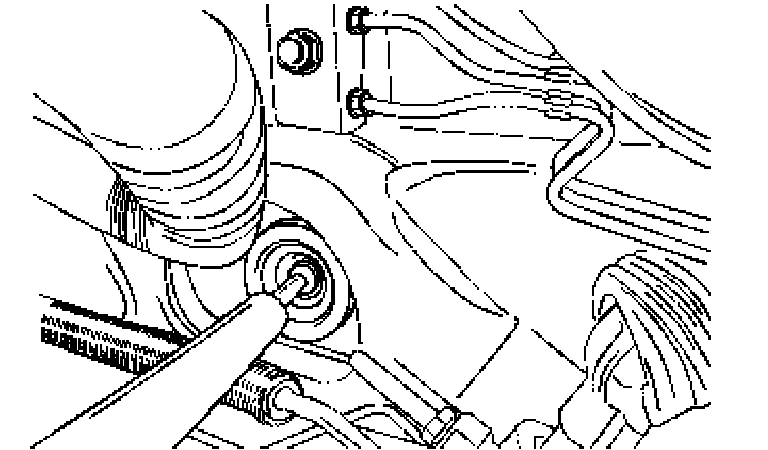

10. Pull the shift control cable through the fire wall of the vehicle, bringing the rubber grommet with it.
Shift Control Cable Installation

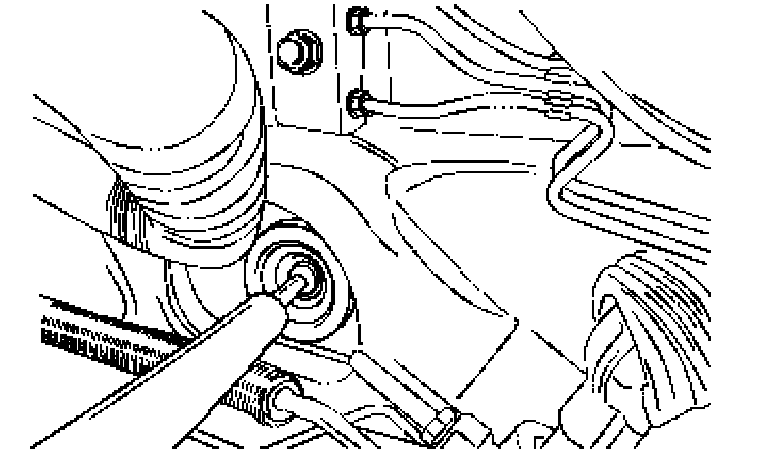

1. Install the shift control cable into the fire wall of the vehicle.
2. Install the shift control cable onto the transaxle mount.

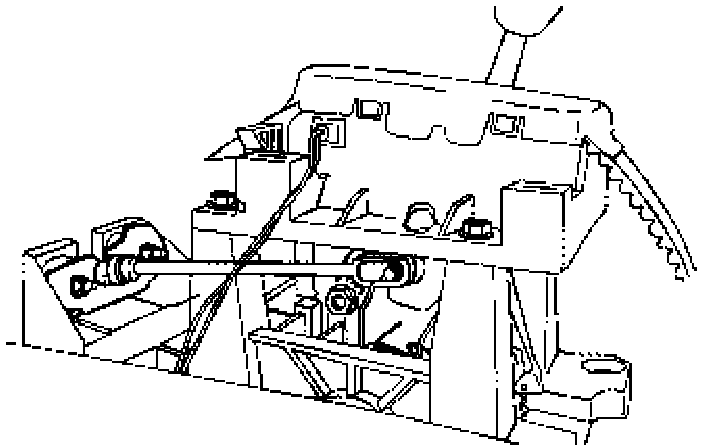

3. Install the shift control cable onto the shift control assembly.
4. Tighten the nut on the cable bracket.
5. Install the shift control cable adjuster pinch nut.
Tighten: Tighten the nut to 8 Nm (71 inch lbs.).
6. Install the clip to the shift control cable at the transaxle mount connection.
7. Install the clip to the select lever connection on the transaxle case.
8. Adjust the shift control cable.
9. Install the air filter housing assembly and bolts.
Tighten: Tighten the bolts to 10 Nm (89 inch lbs.).
10. Connect the negative battery cable.
