Motor (Intake, Mode), Blower Motor and Power TR Circuit

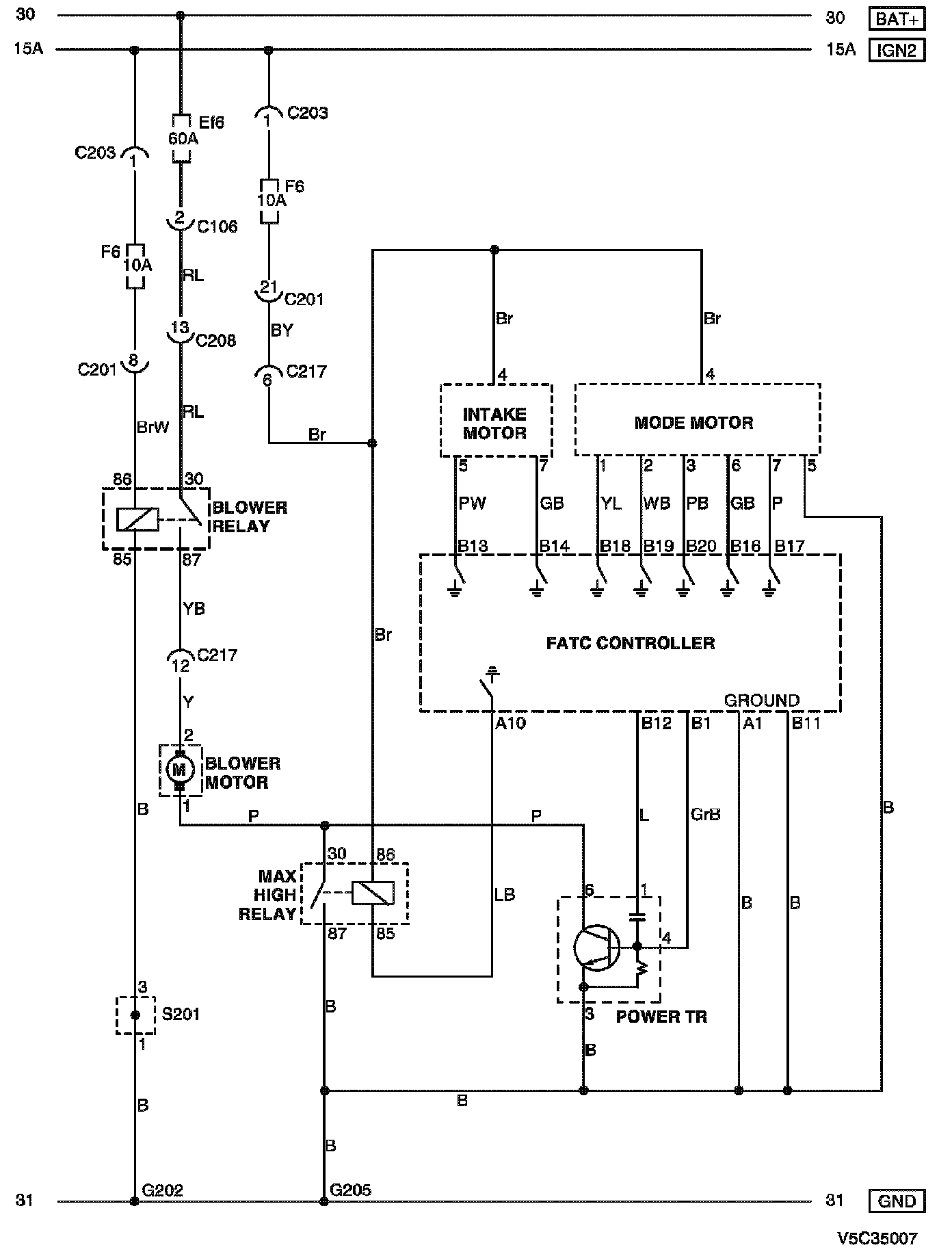

Motor (Intake, Mode), Blower Motor and Power TR Circuit Diagram:
WIRING DIAGRAM
C106 - G205:

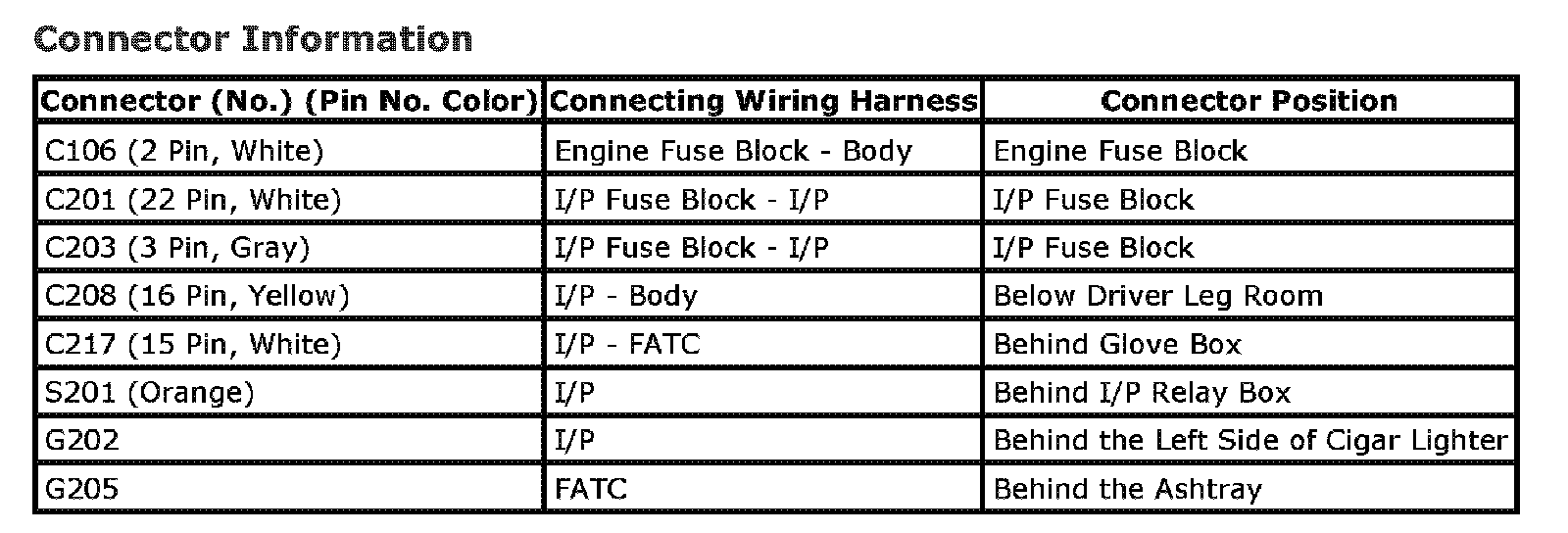

CONNECTOR INFORMATION
Connector Identification Symbol And Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION
W/H INSTRUMENT PANEL:
POSITION OF CONNECTORS AND GROUNDS
S201 (ORANGE):
SPLICE PACK
