Power Supply, Wheel Speed Sensor and TCS Switch Circuit

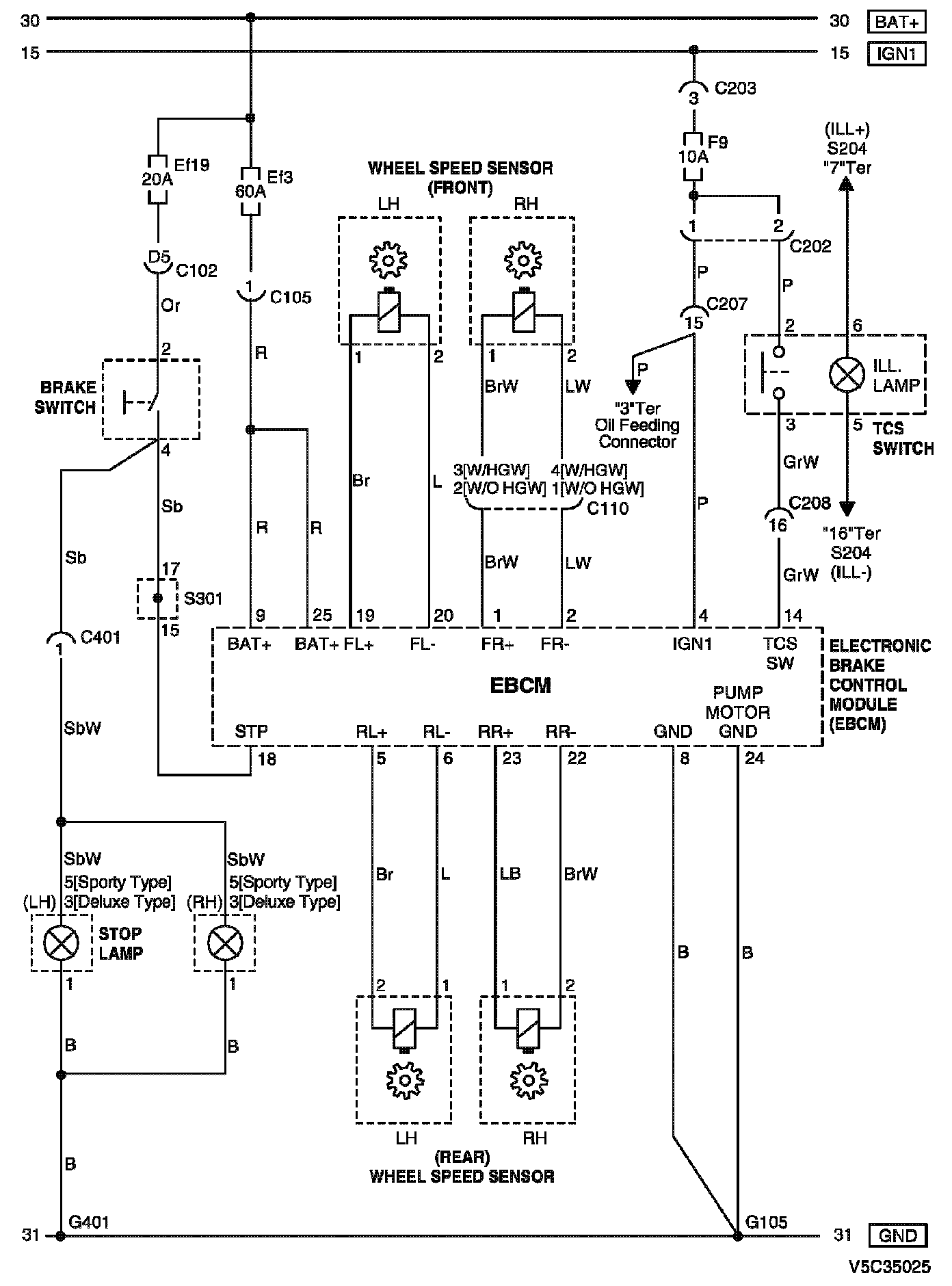

Power Supply, Wheel Speed Sensor and TCS Switch Circuit Diagram:
WIRING DIAGRAM
C102 - C401:

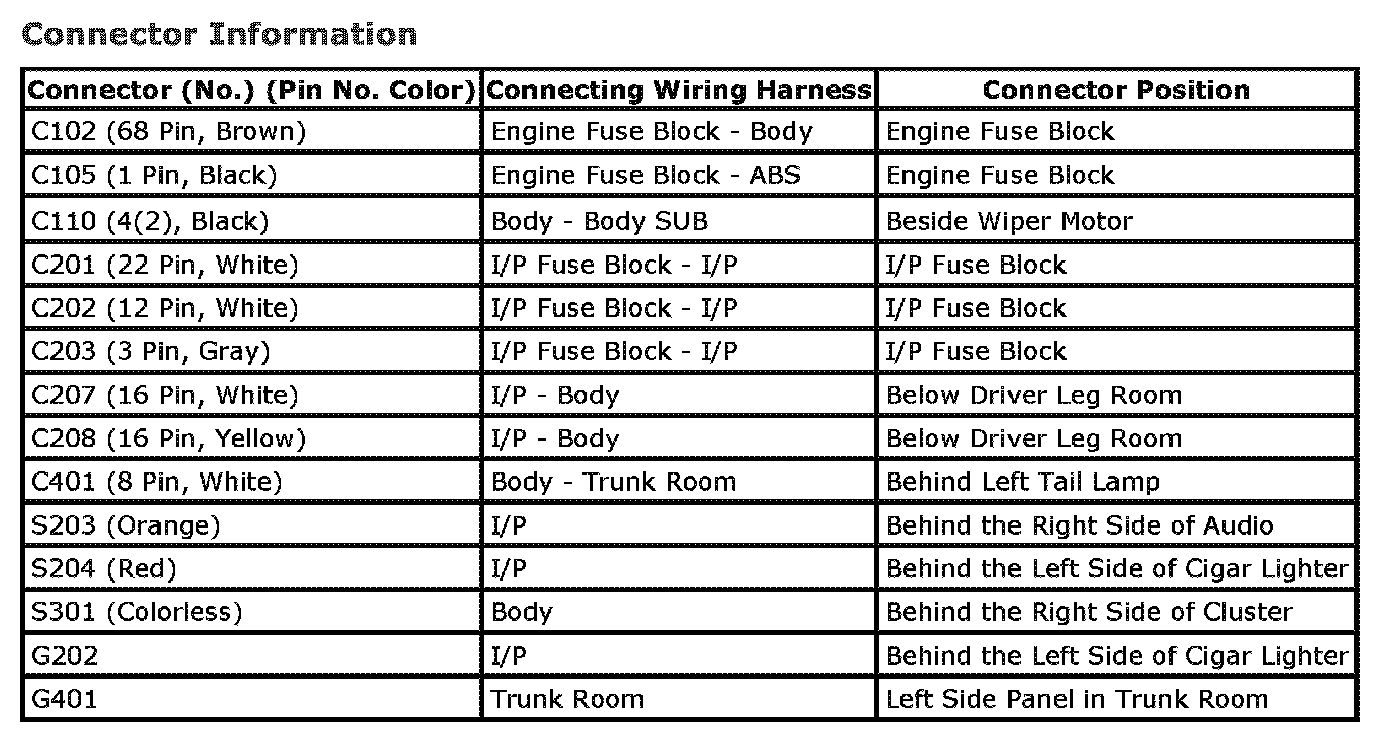

CONNECTOR INFORMATION
Connector Identification Symbol And Pin Number Position:

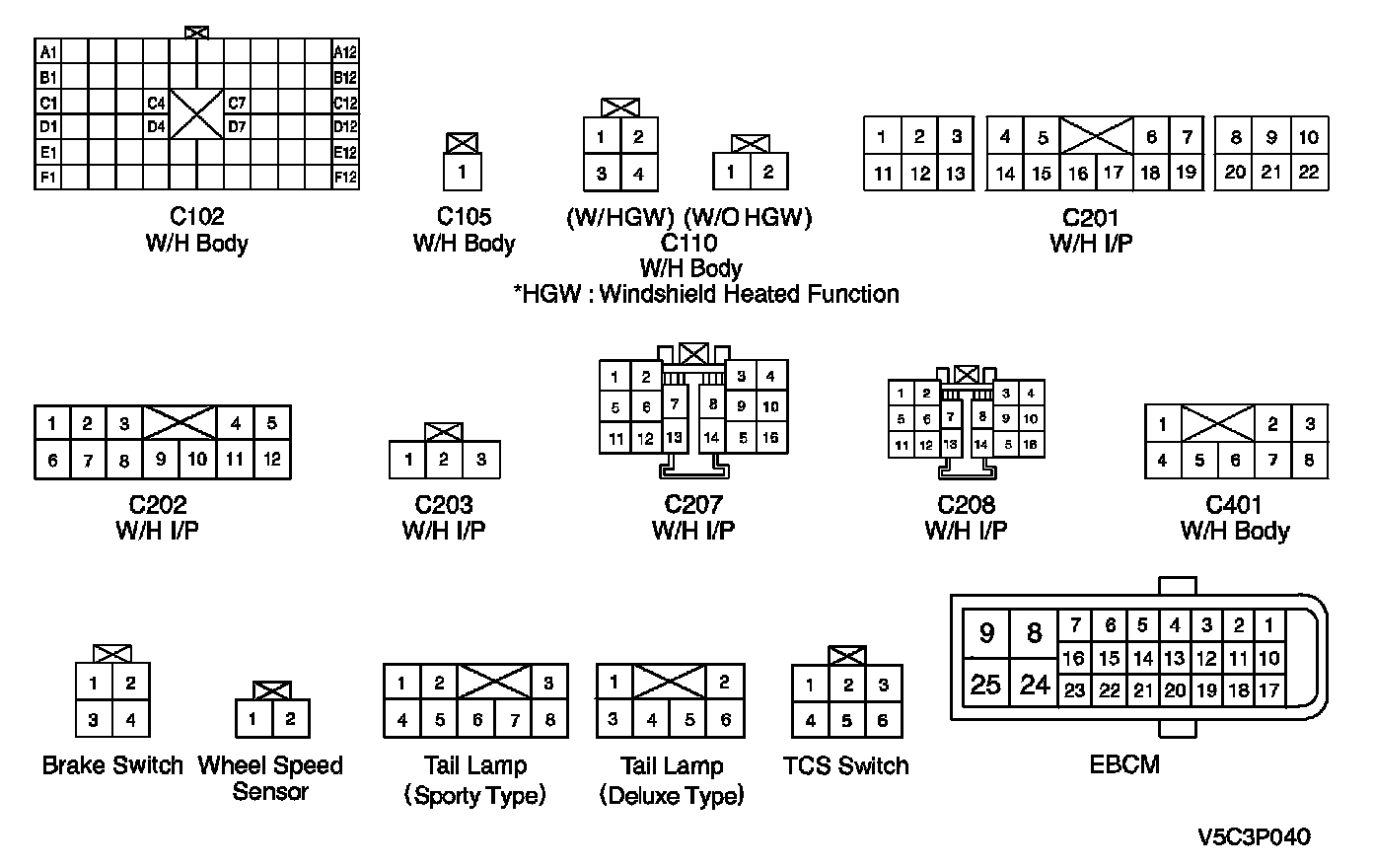

CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION
W/H ABS:

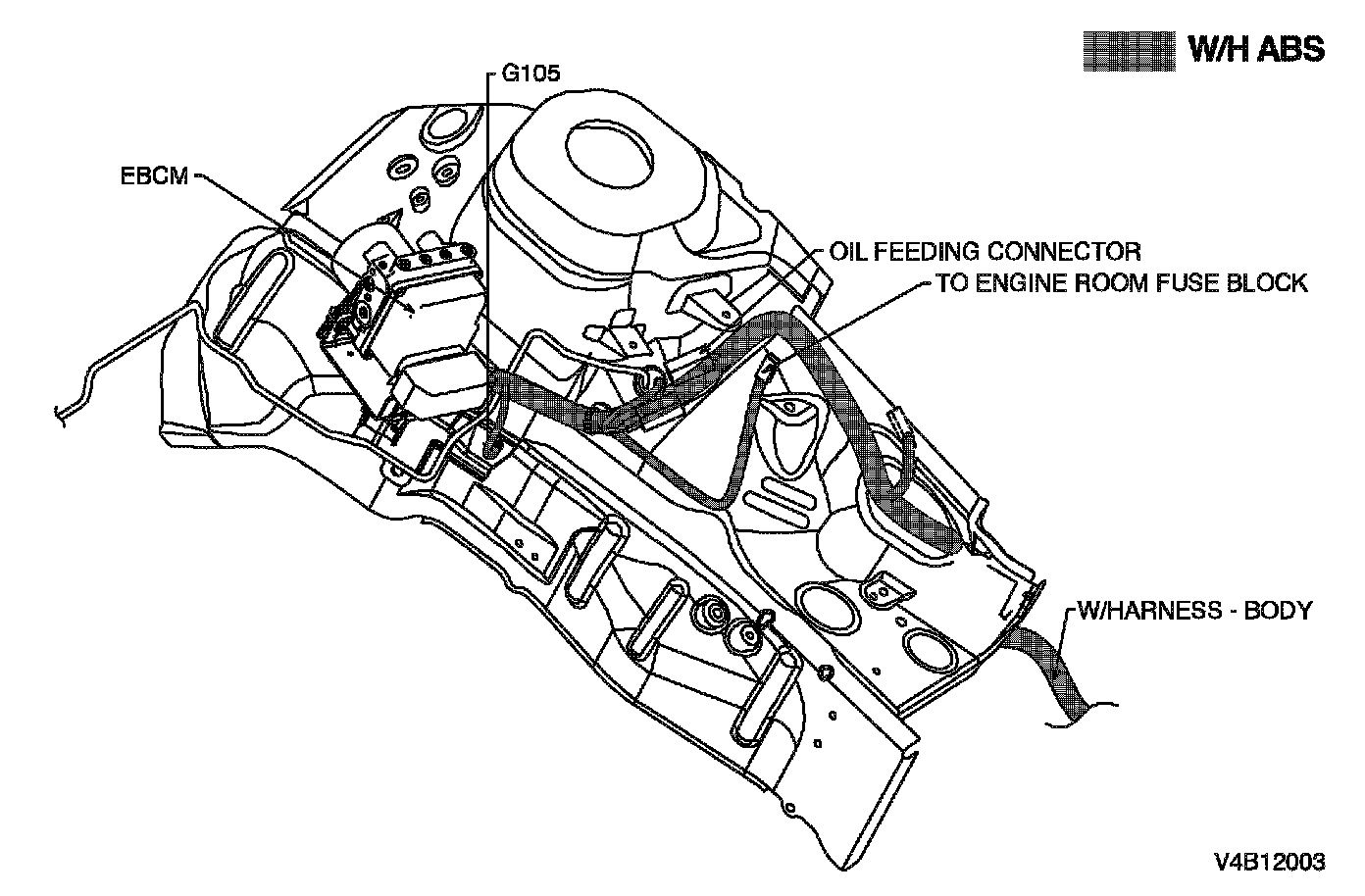

POSITION OF CONNECTORS AND GROUNDS
S203 (ORANGE):
S204 (RED):
S301 (COLORLESS):
SPLICE PACK
