Controller Does Not Illuminate When Light Switch Is on

Controller Does Not Illuminate When Light Switch Is ON:

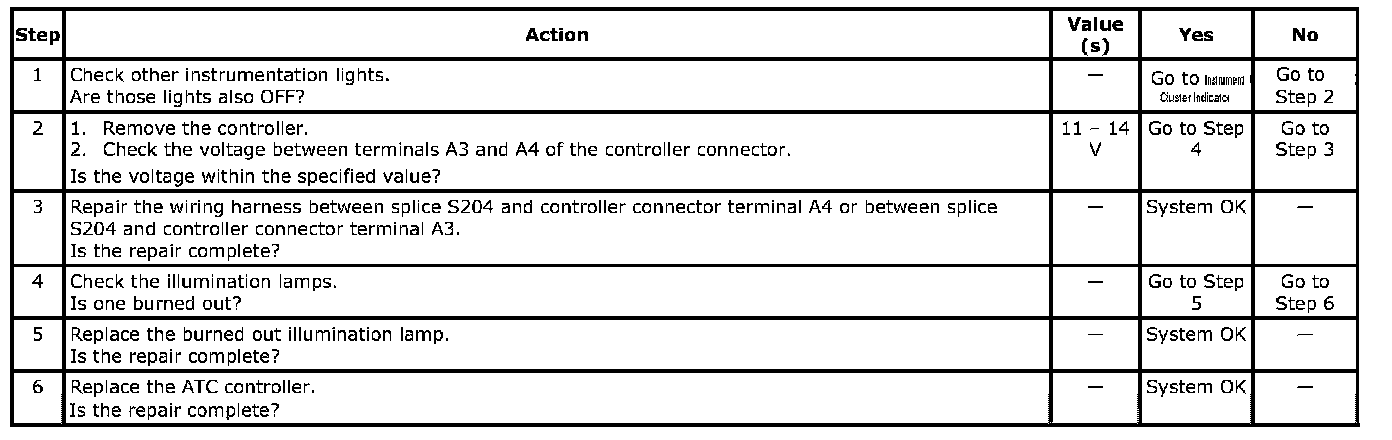

Step 1 - 6:
