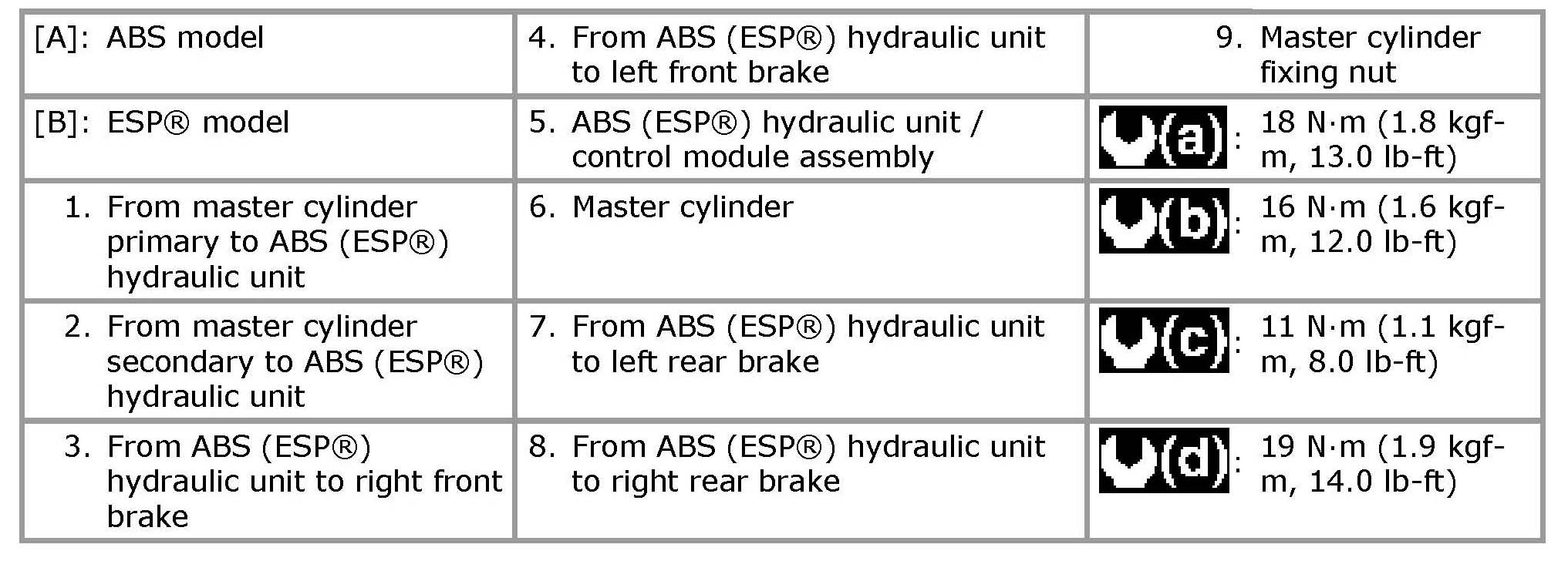

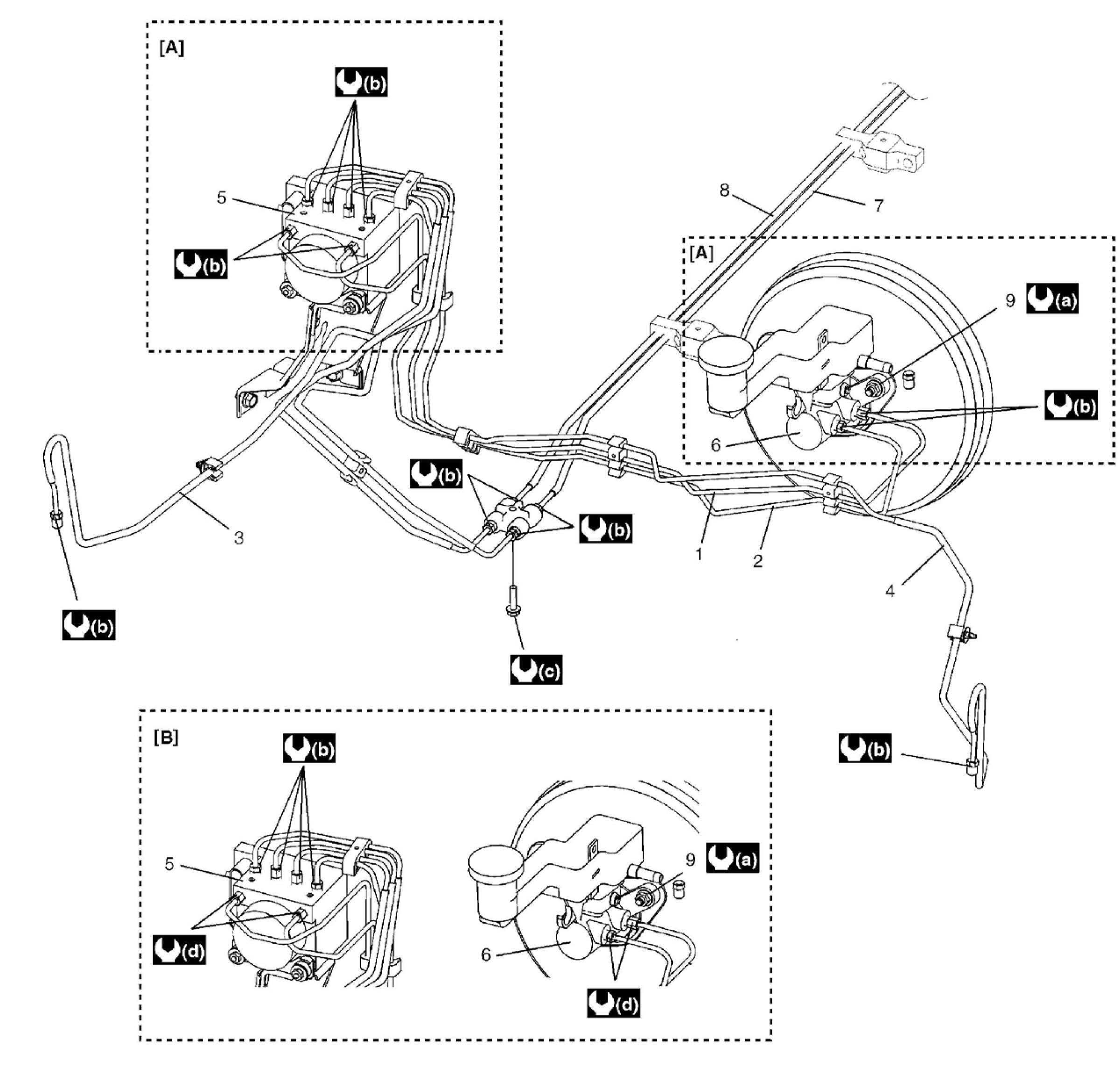

Front Brake Hose / Pipe Construction
Front Brake Hose / Pipe Construction
Front Brake Hose / Pipe Construction
