Cruise Control Module: Locations

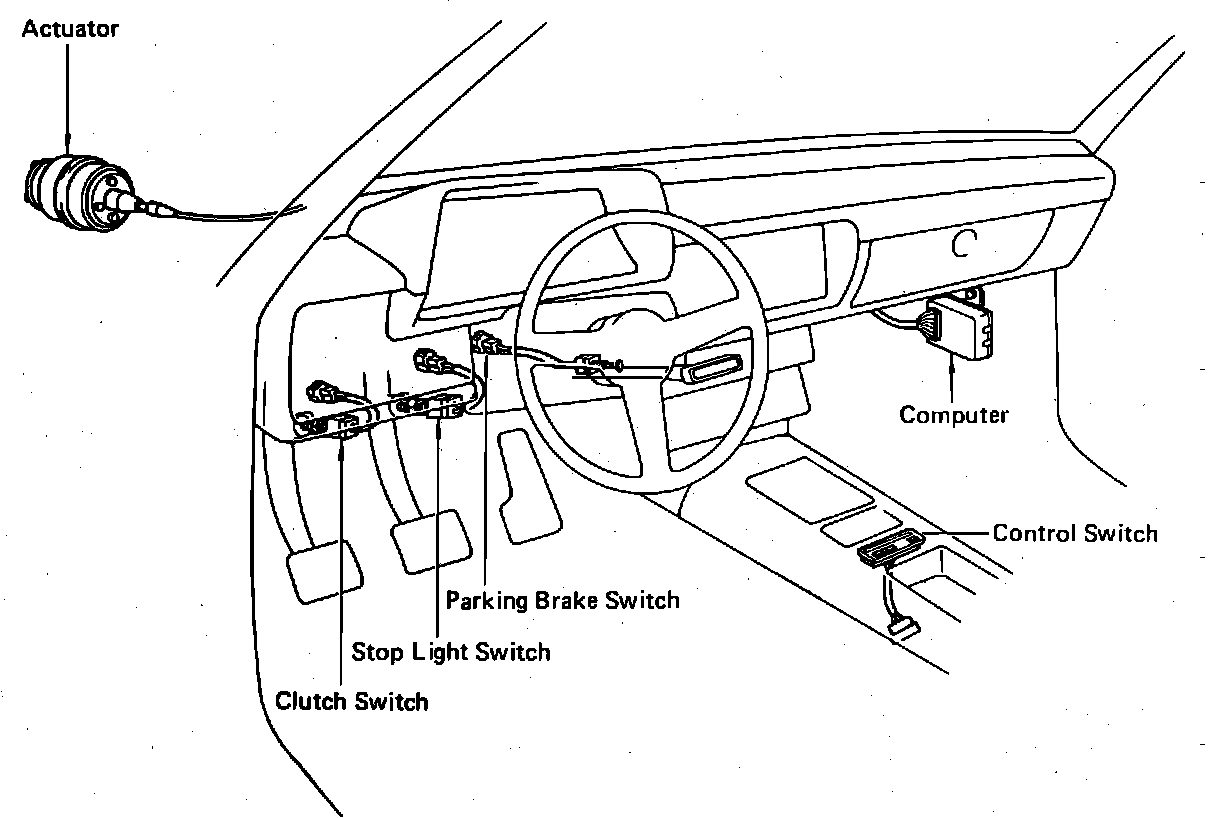

Cruise Control System Component Location.:




Behind Kick Panel RH Side

Applicable to: 1981-83 Models
