Torque Specifications

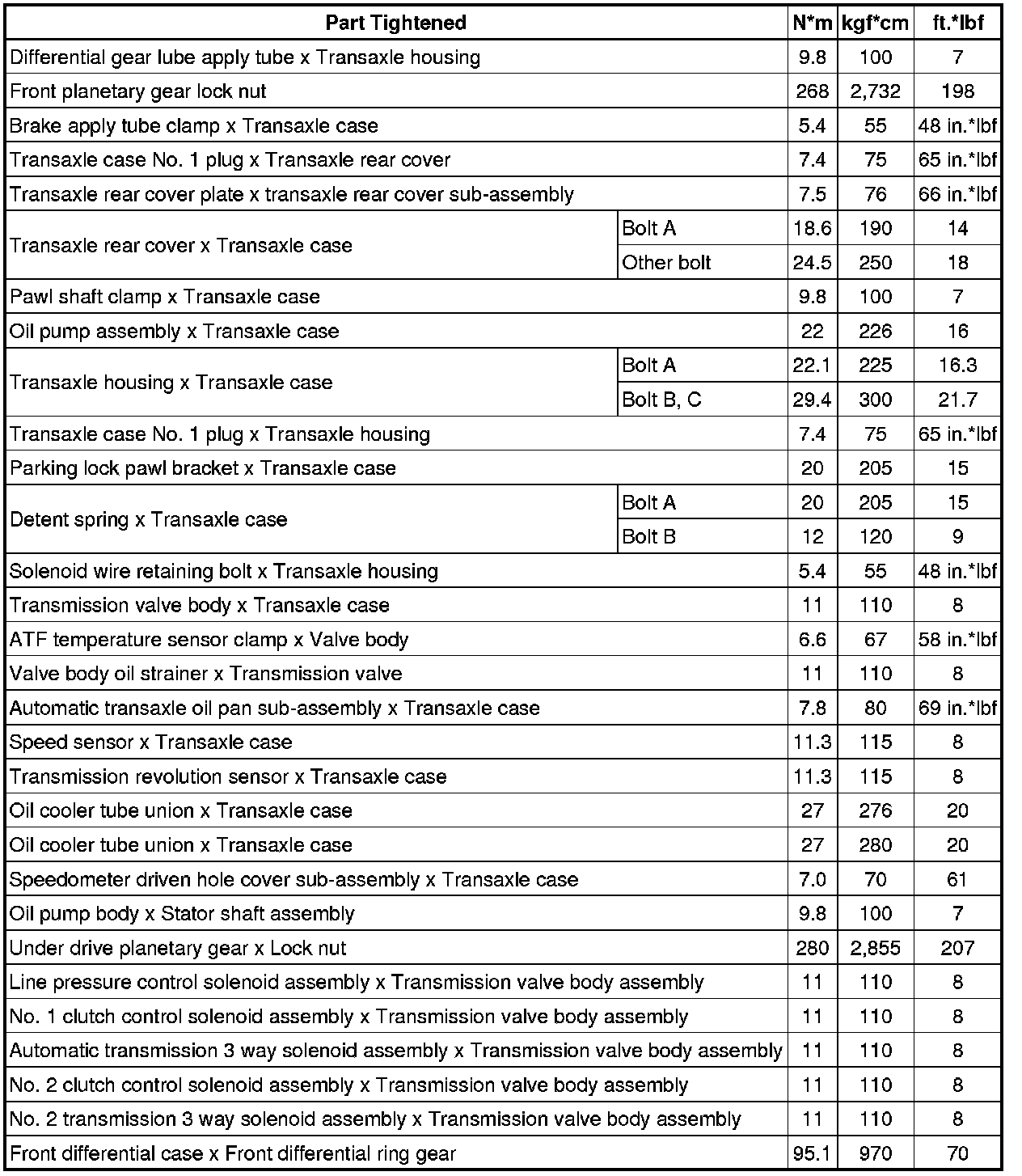

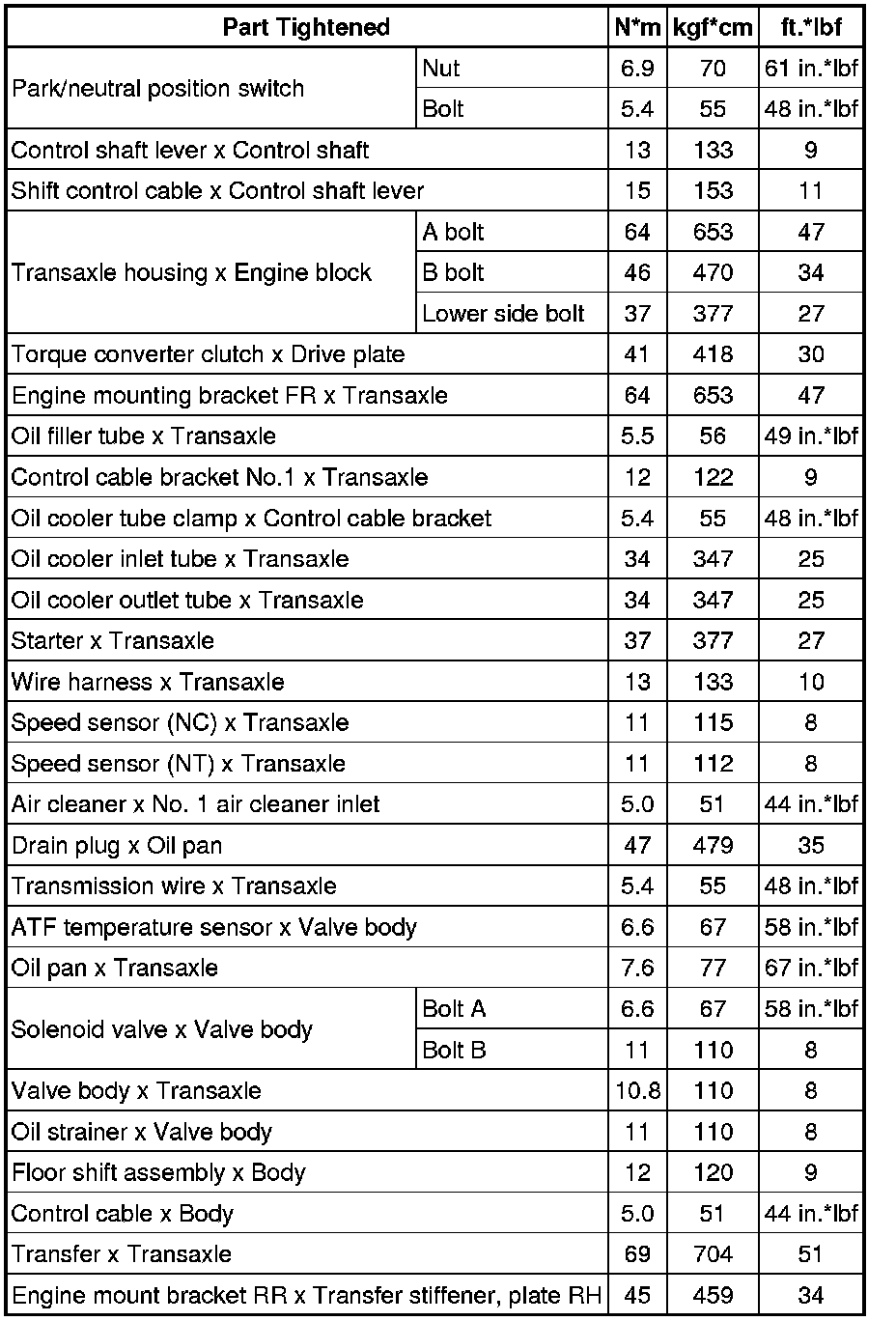

SERVICE SPECIFICATIONS: U140F AUTOMATIC TRANSAXLE: TORQUE SPECIFICATIONS

Automatic Transaxle Assembly





Automatic Transaxle Unit
