Fuse: Locations



Fus Locations

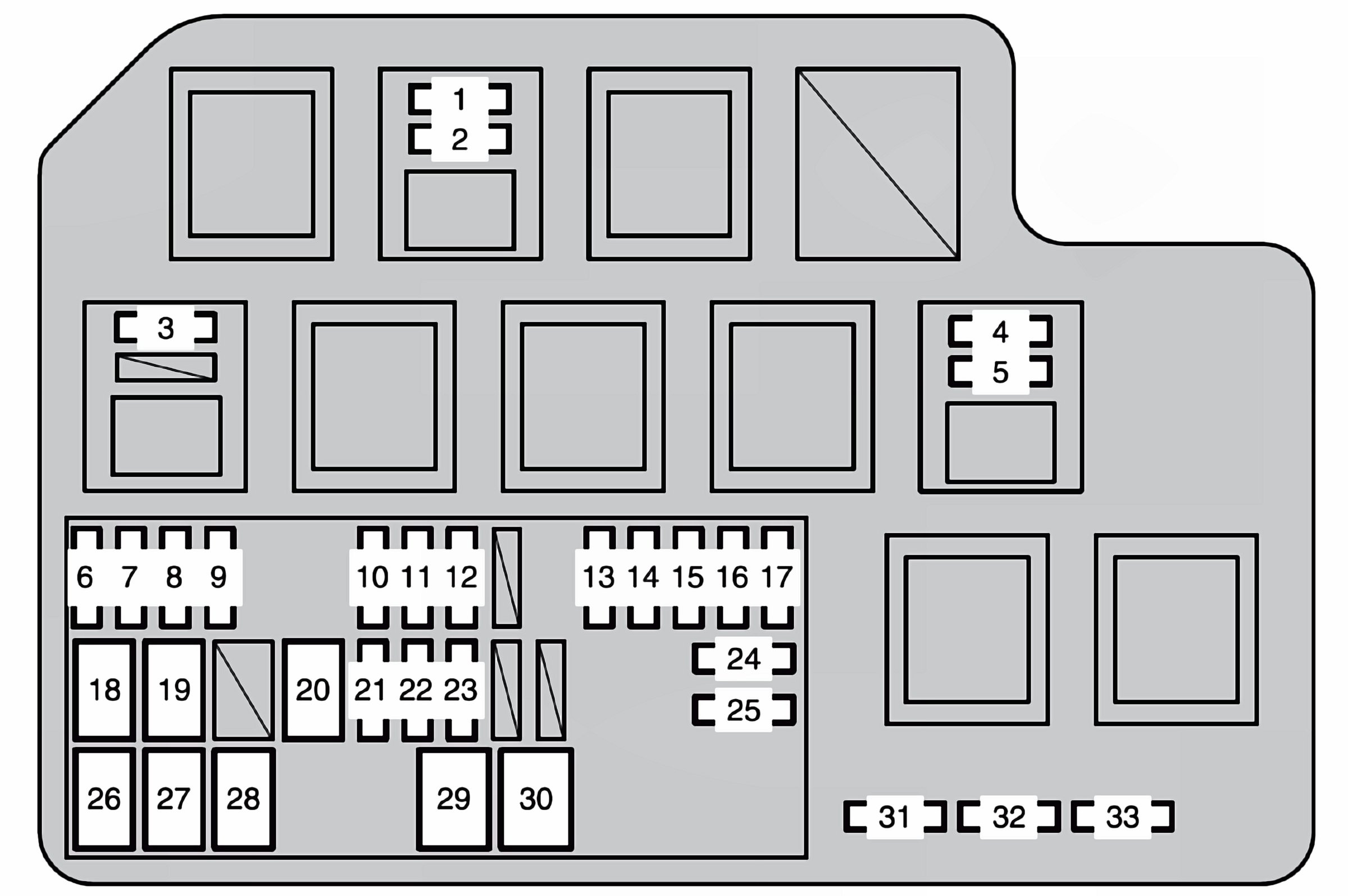

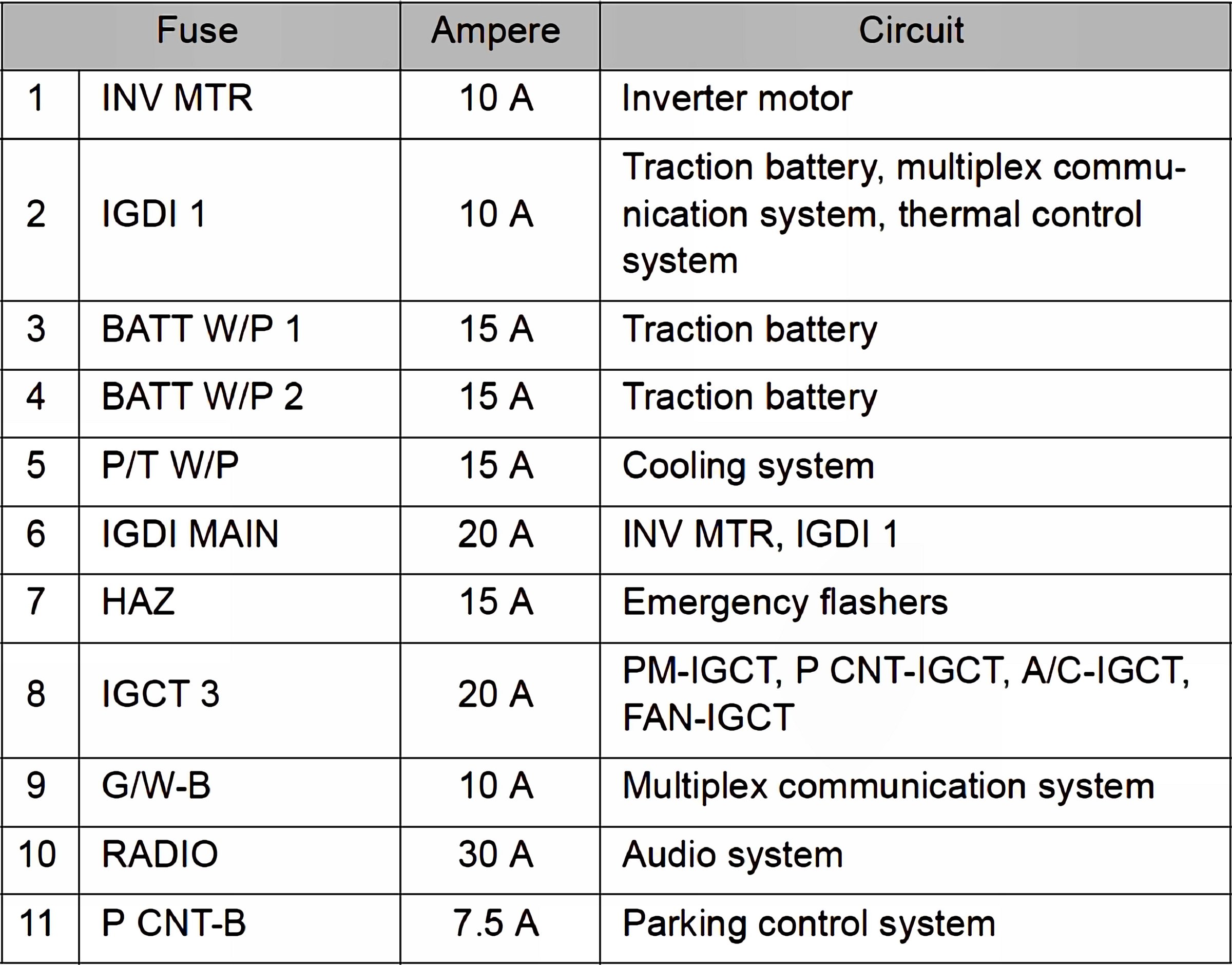

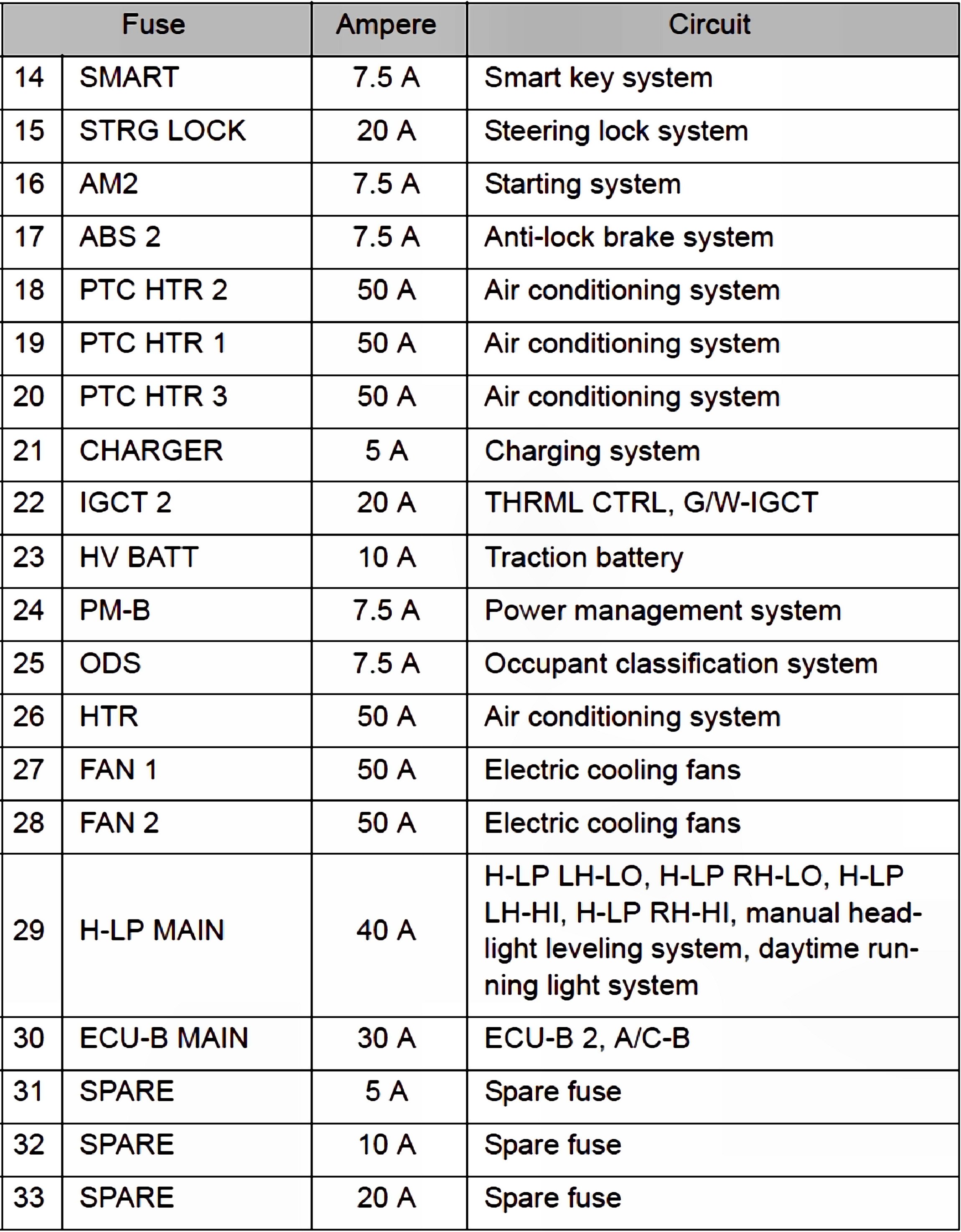

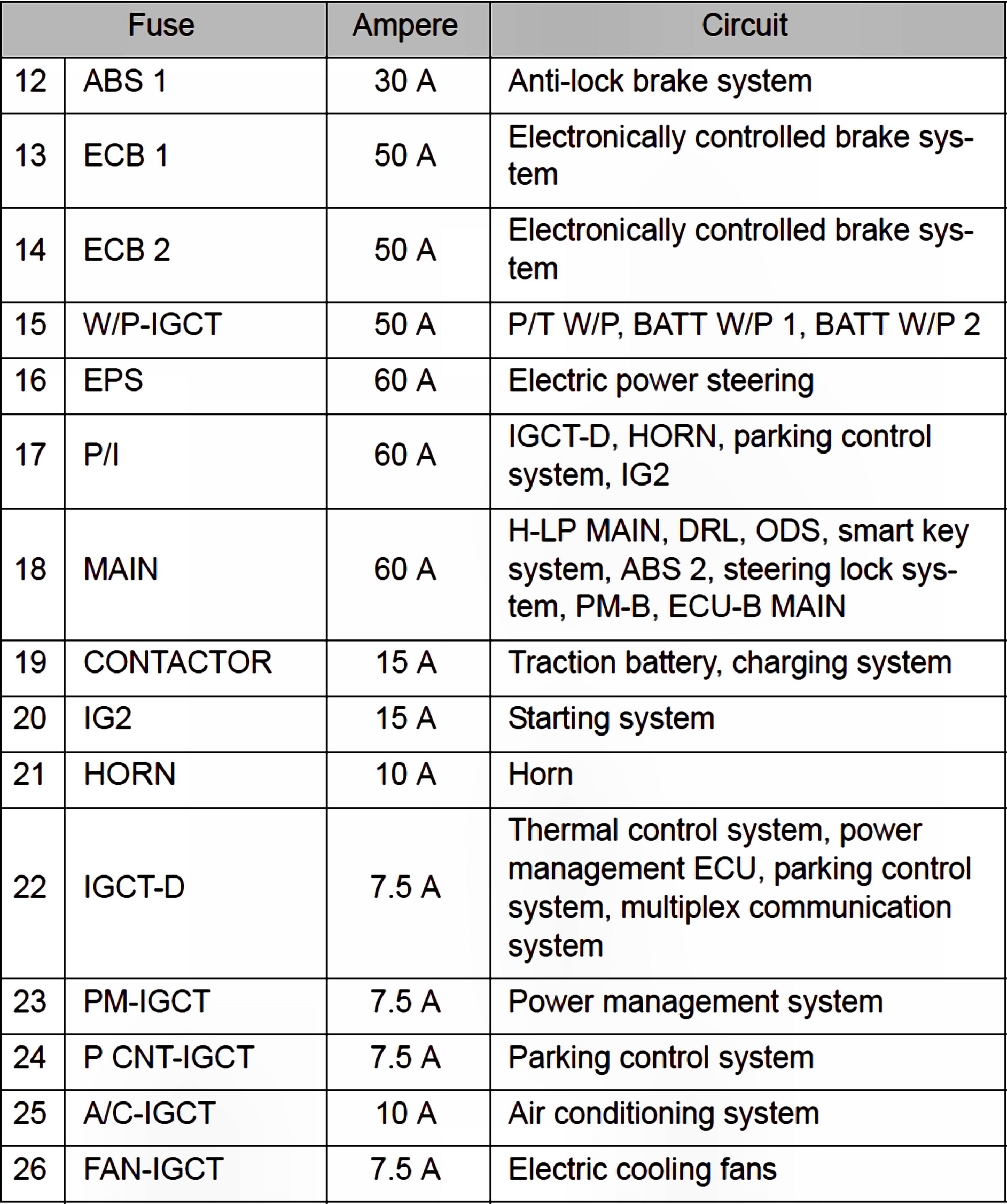

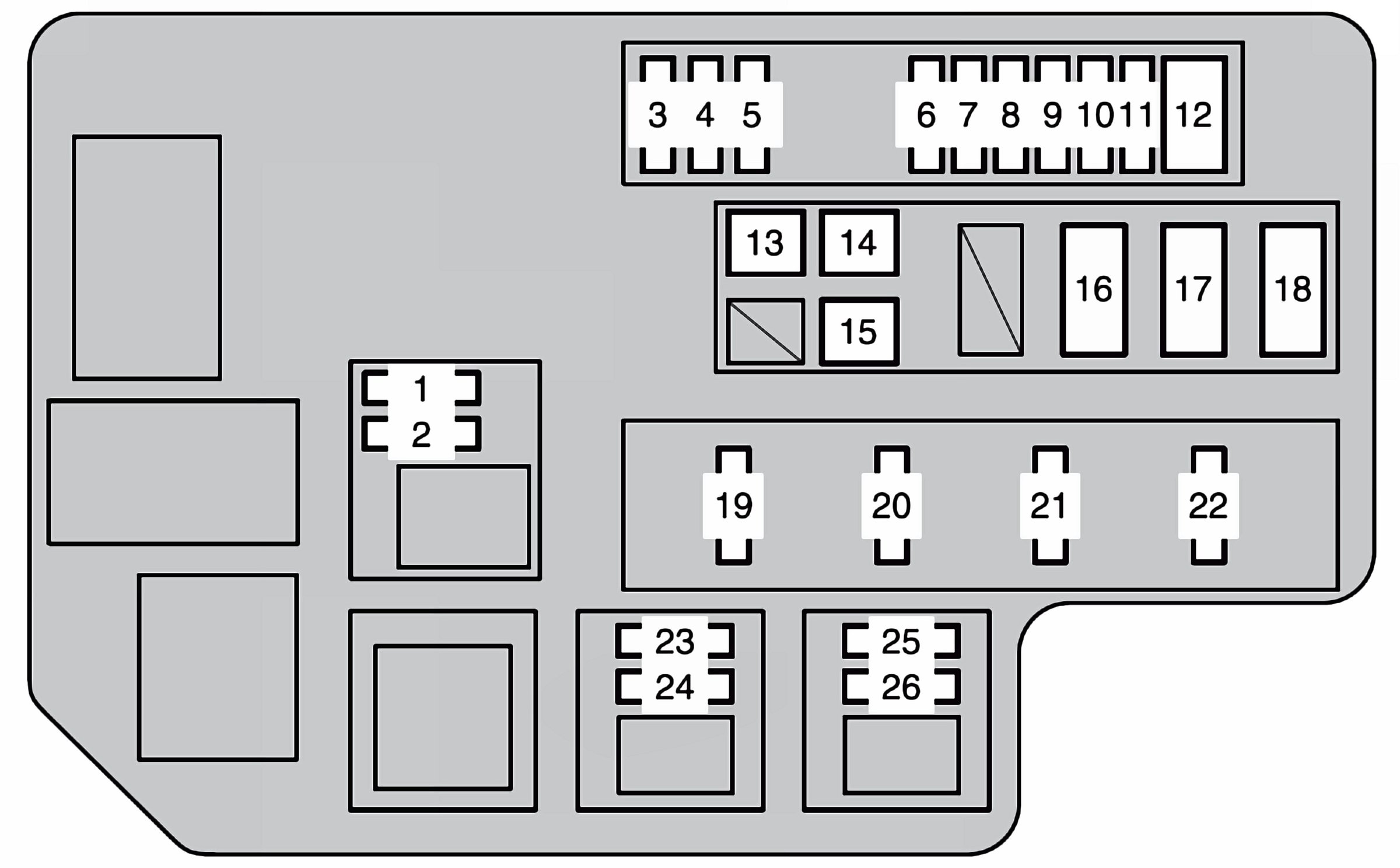

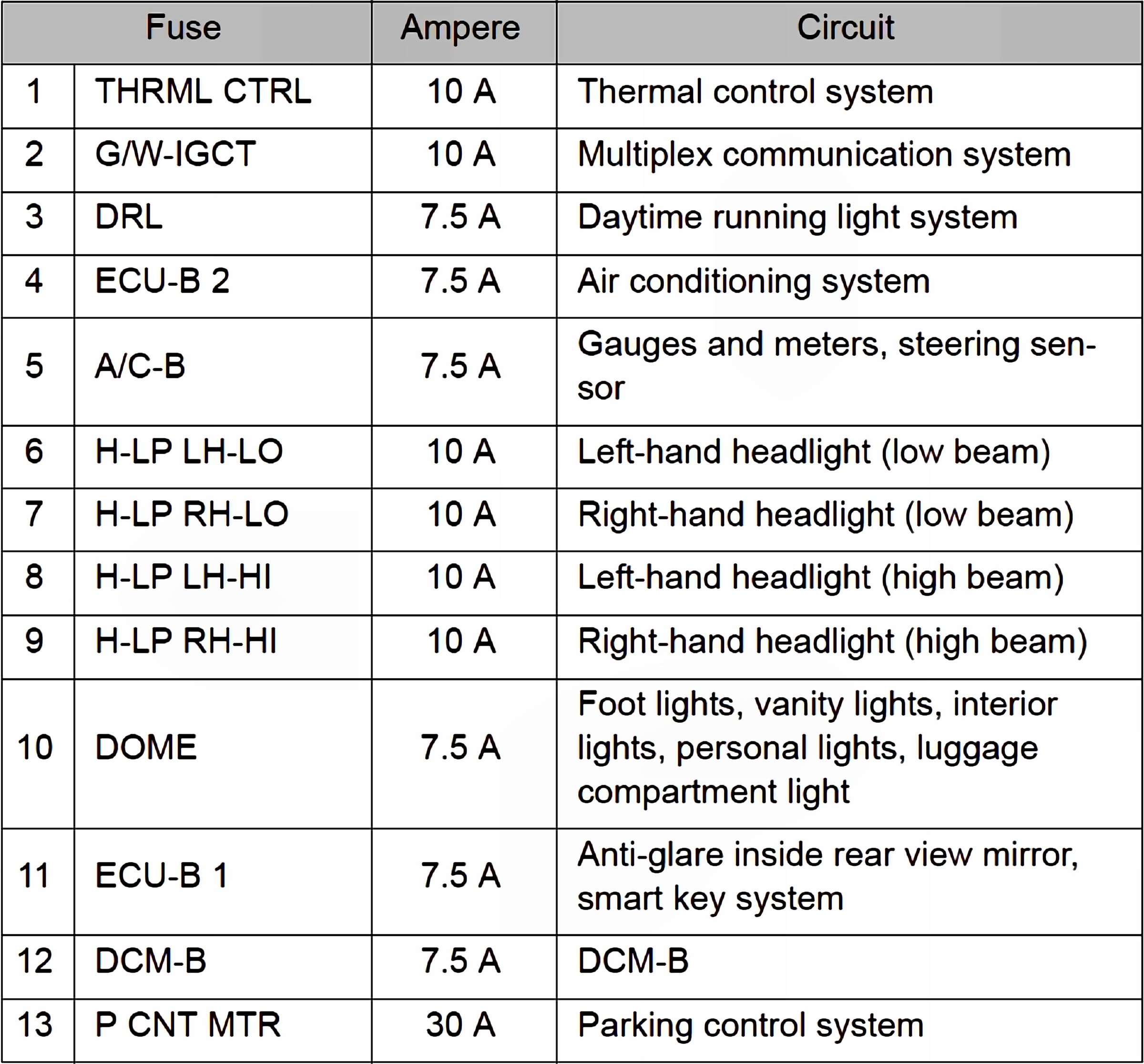

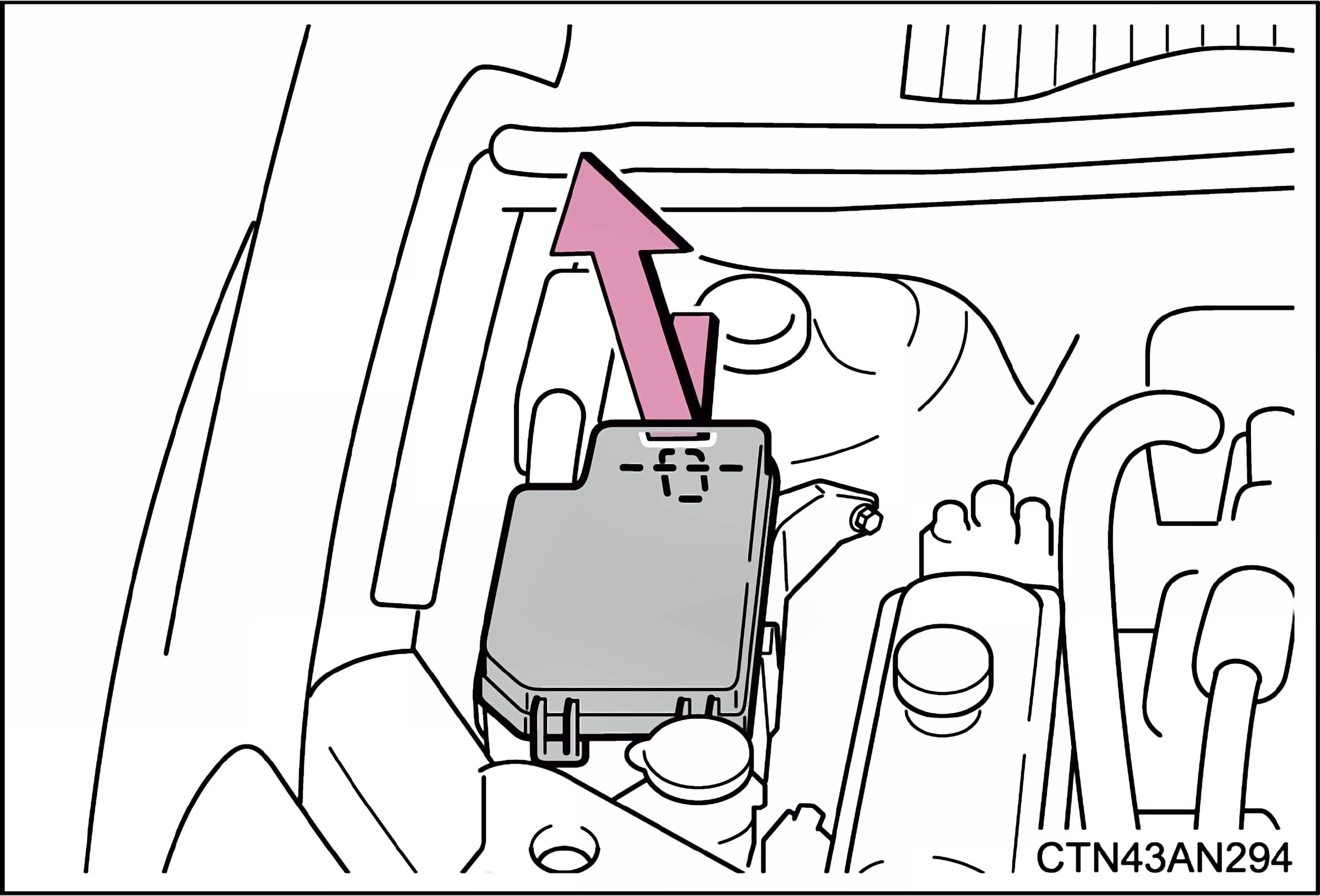

Motor Compartment

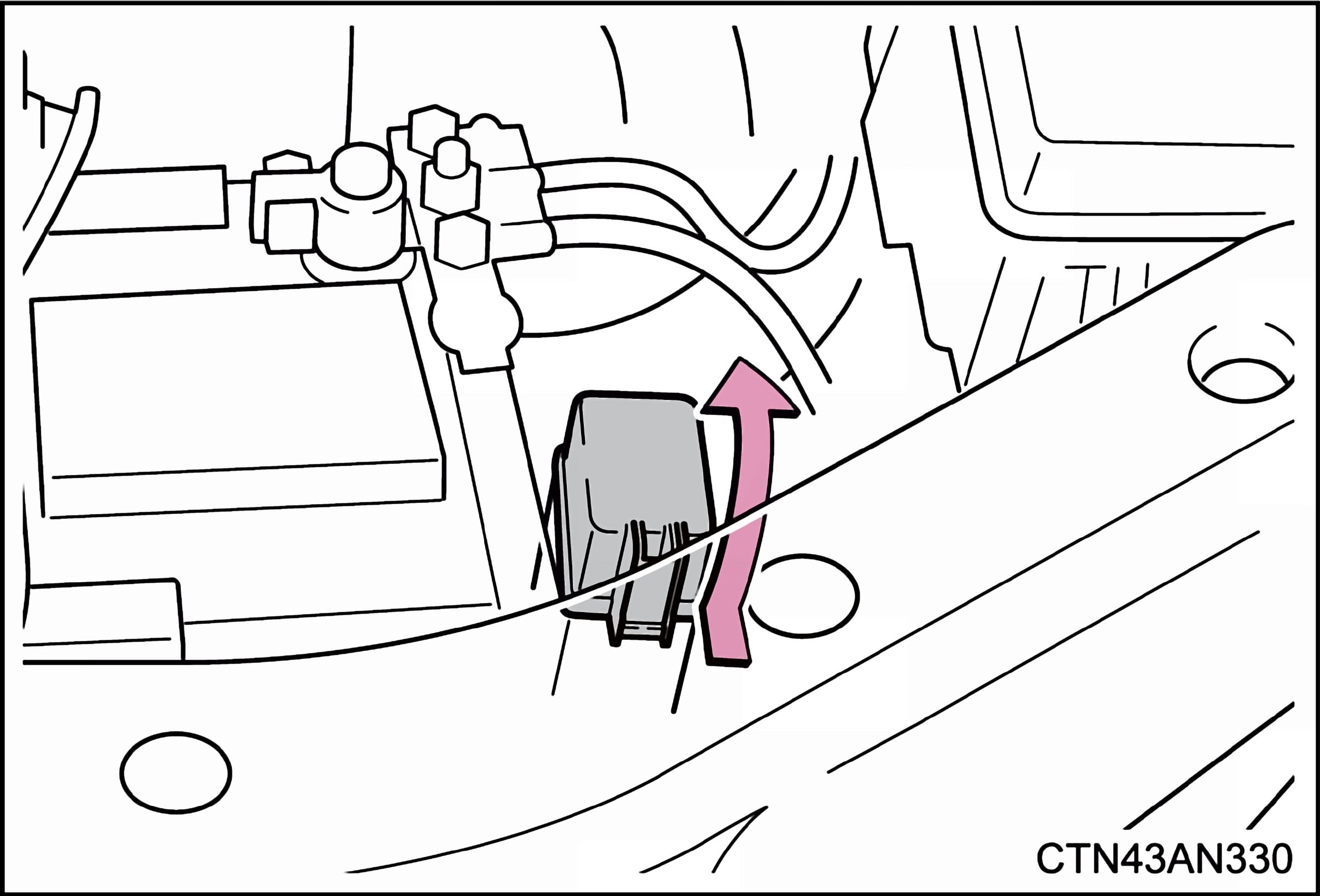

Type A:

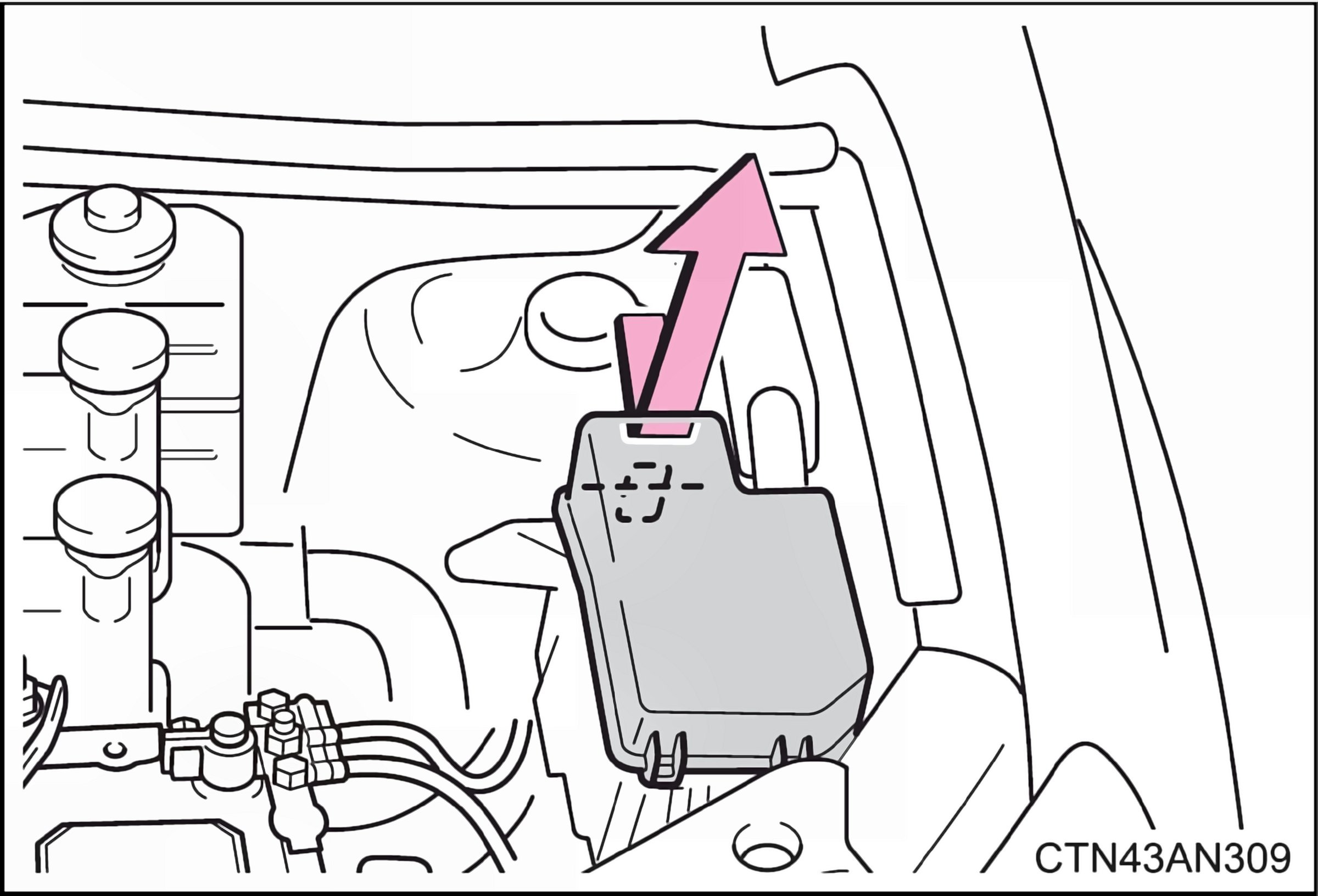

Type B:

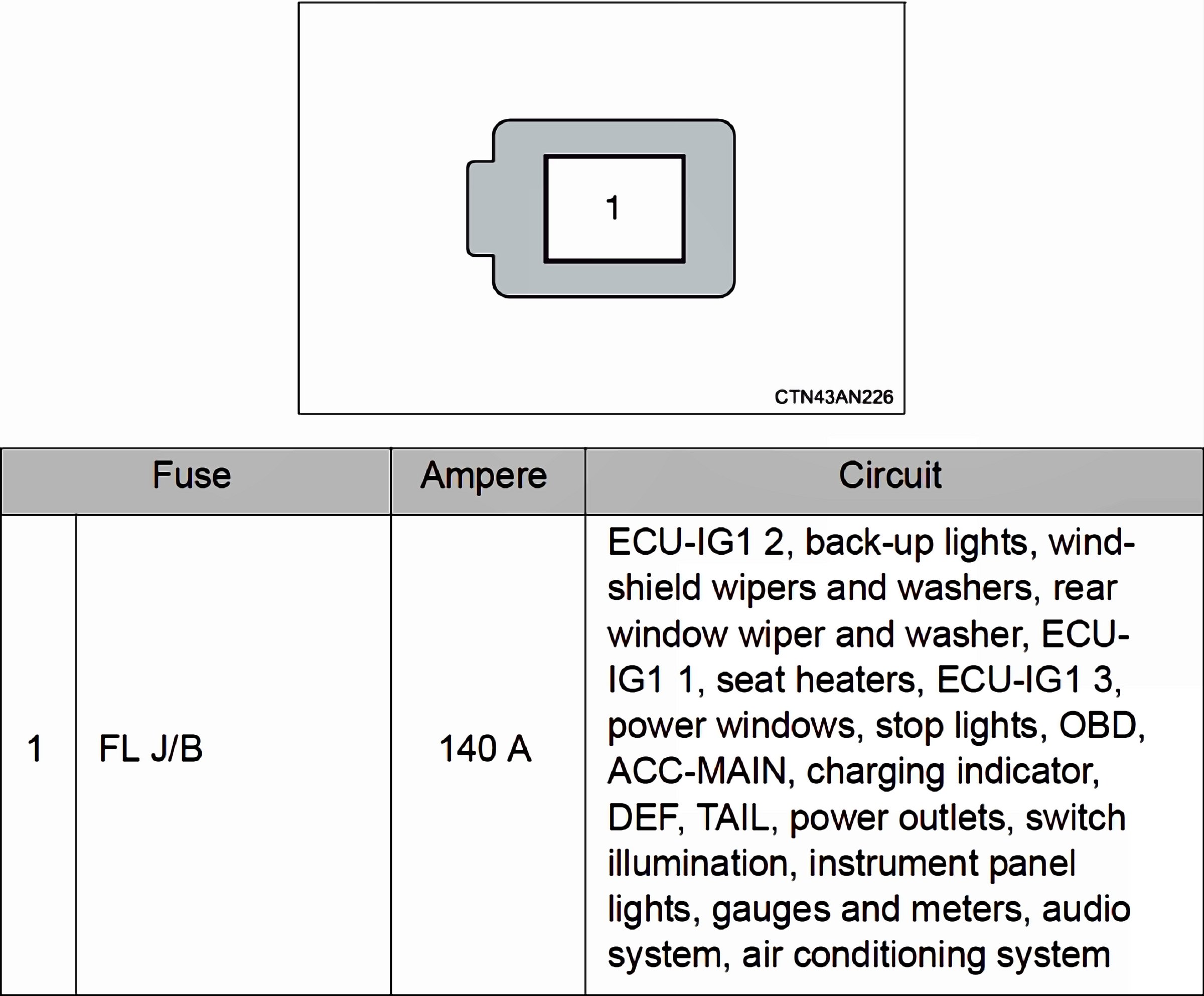

Type C:

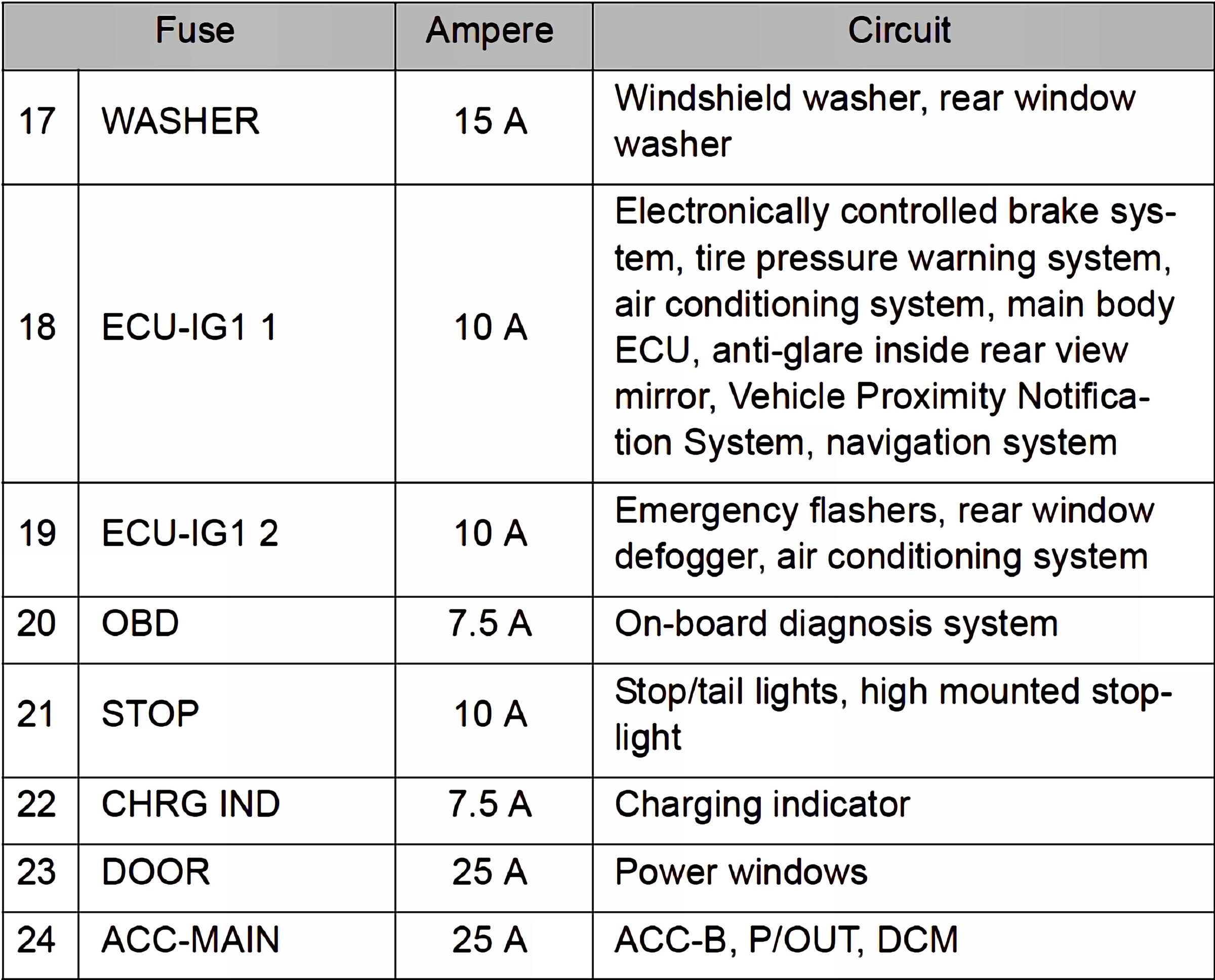

Under the Instrument Panel

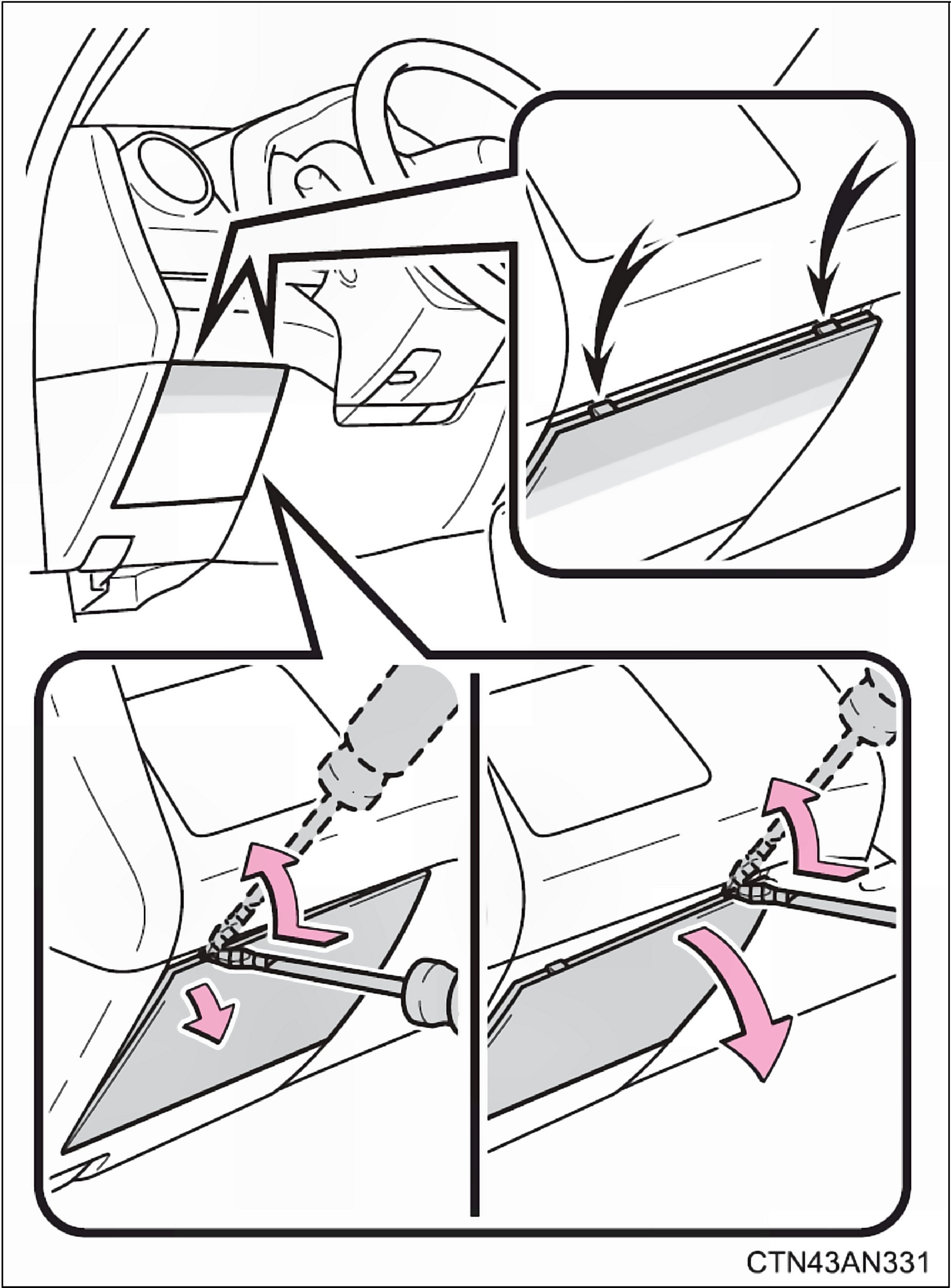

Under The Instrument Panel:

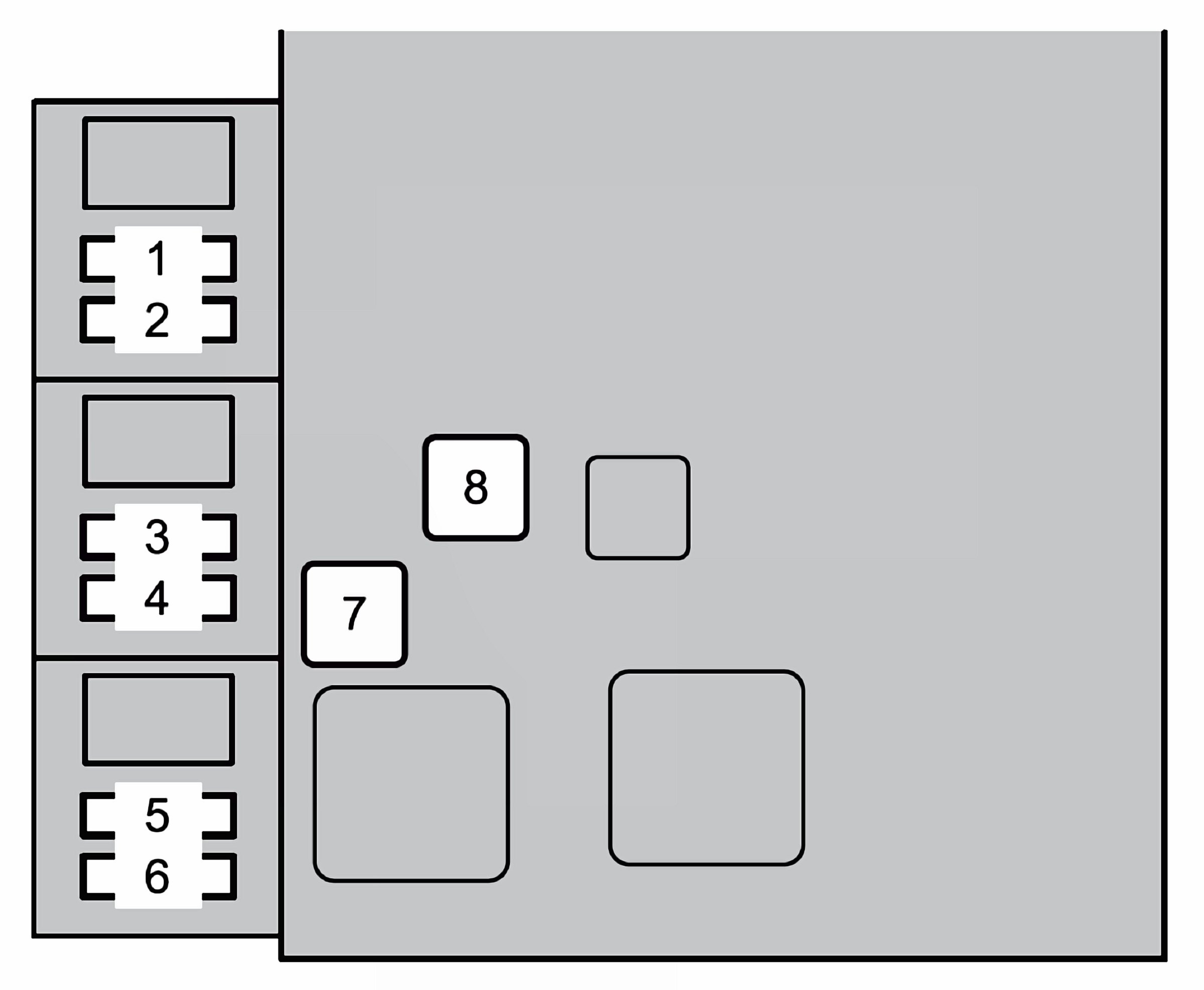

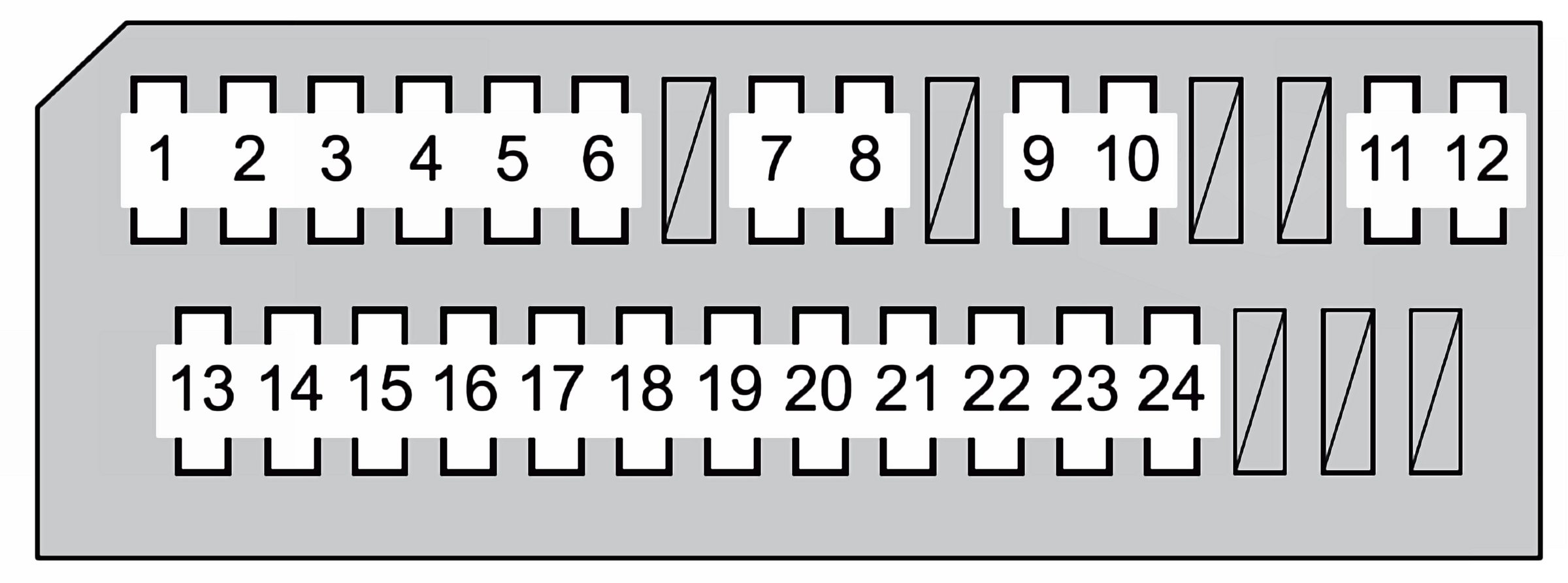

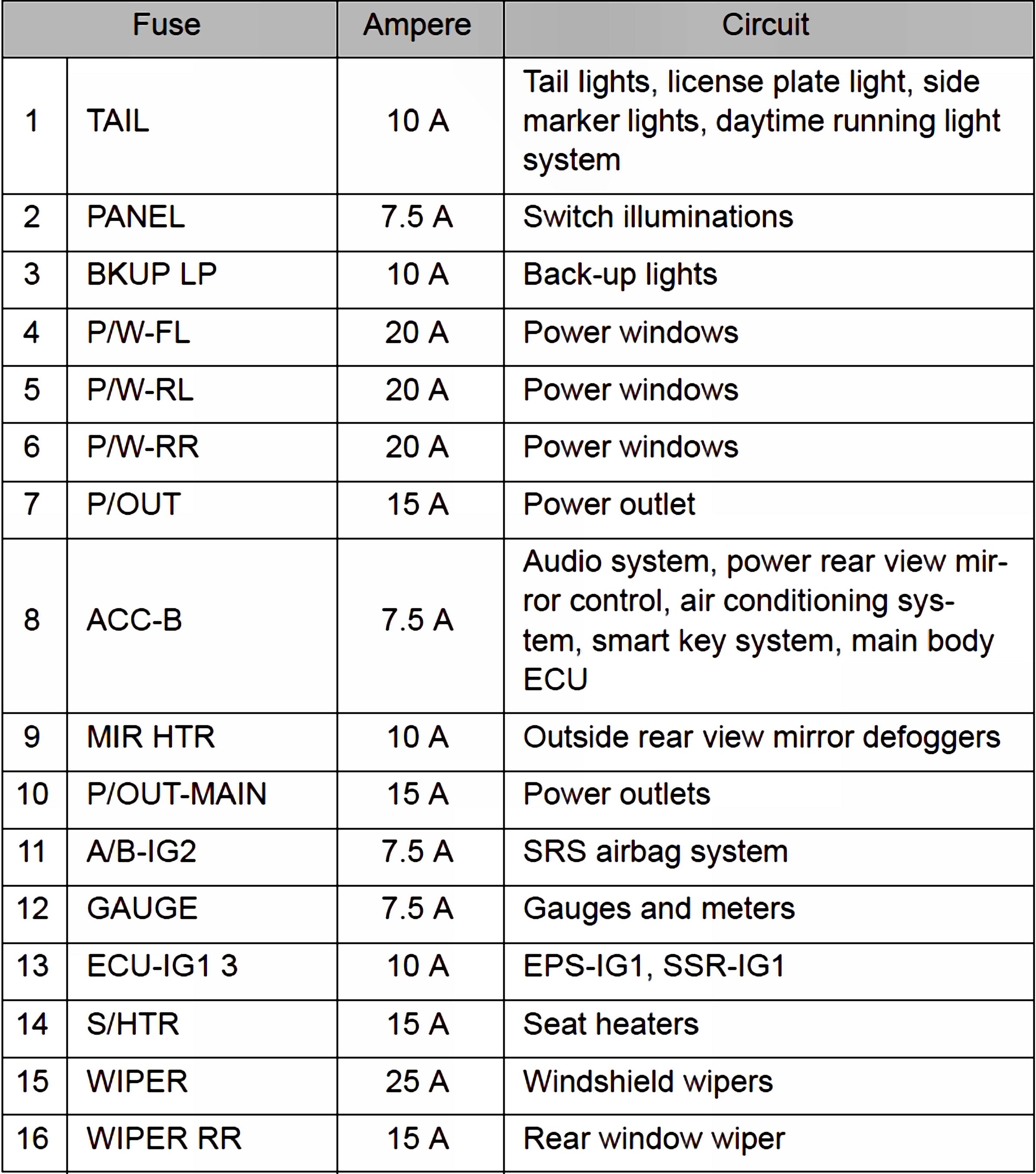

Front Side Of Fuse Block:

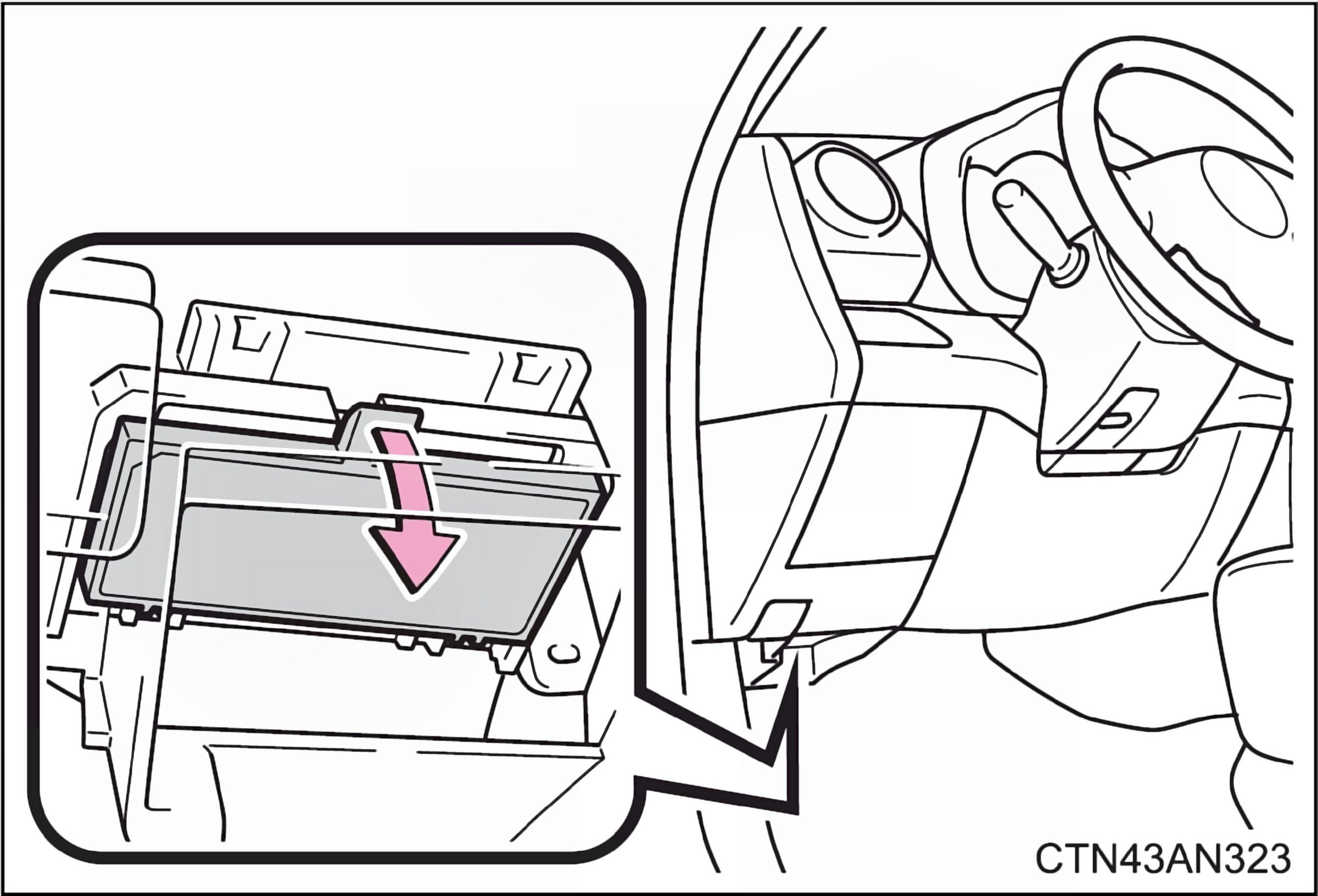

Underside View:

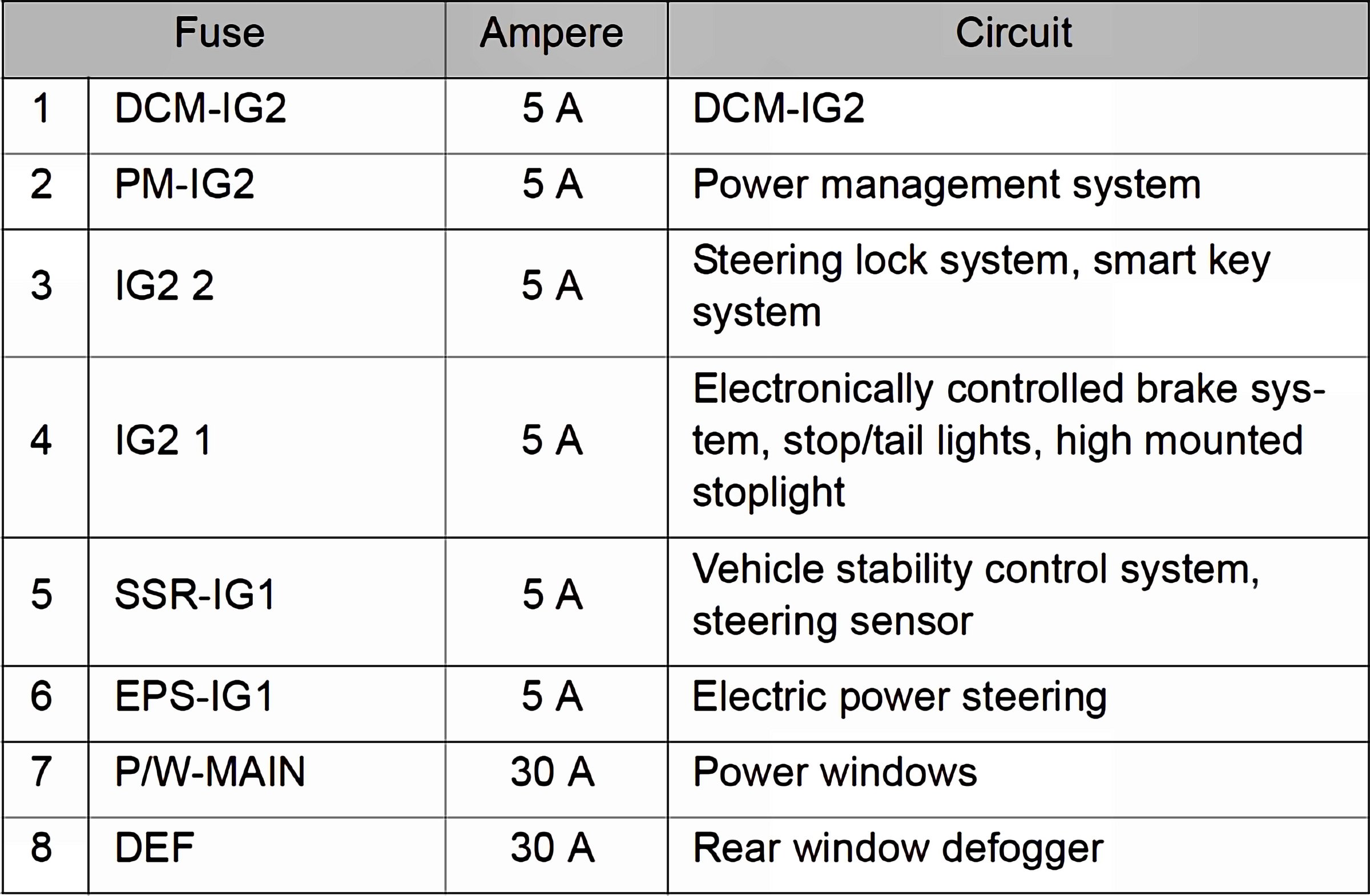

Fuse Block Underside View:
