Alignment

Wheel Alignment Specifications (Unloaded Vehicle)

Standard Vehicle Height:

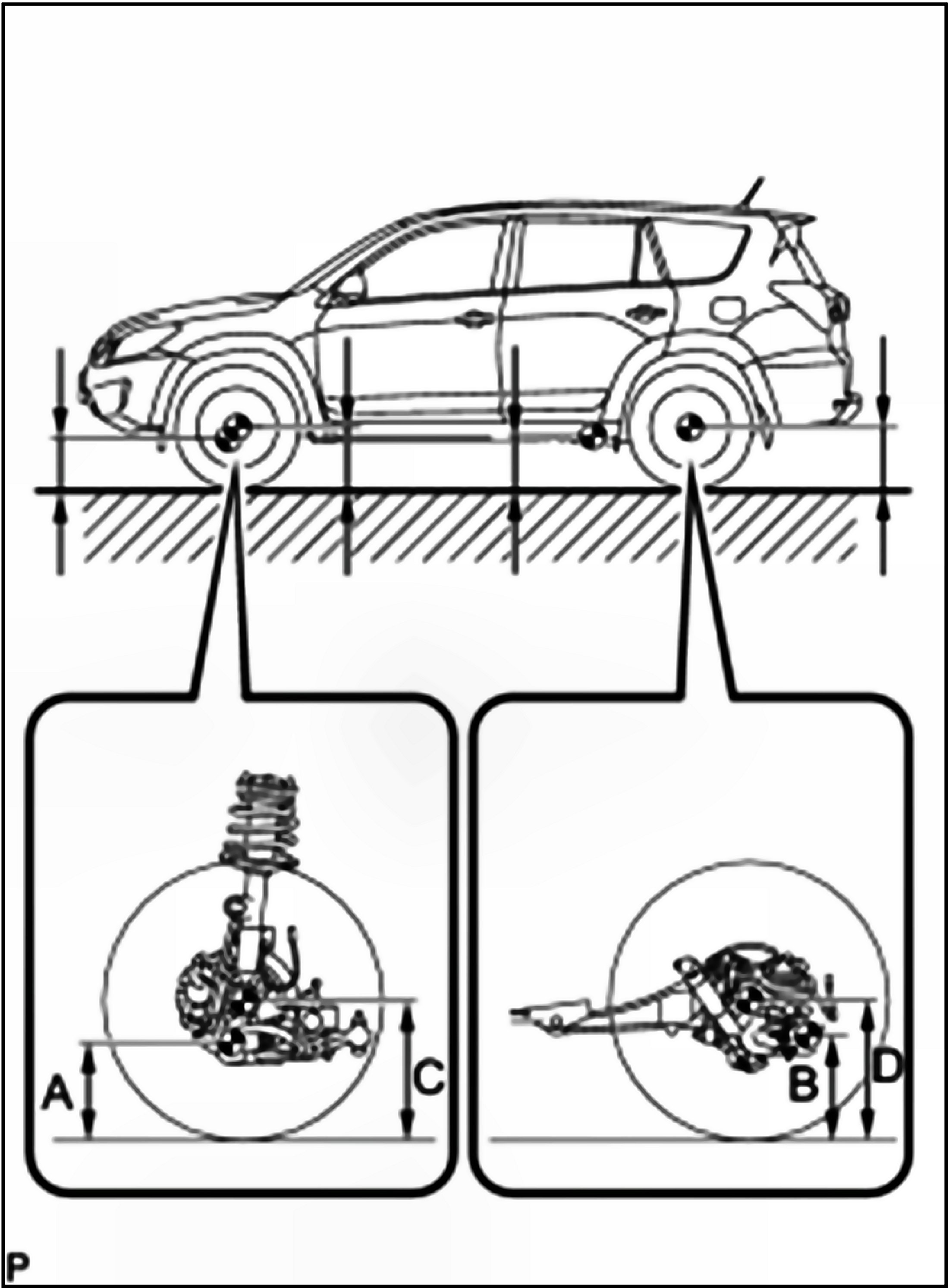

Measuring Points:

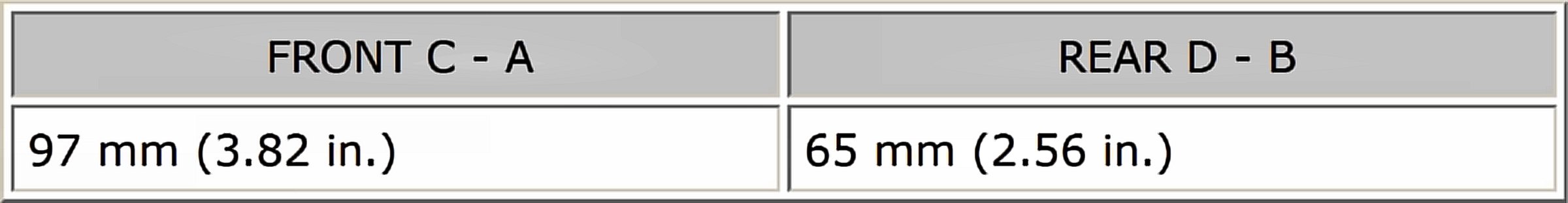

A Ground clearance of center of front No. 1 lower suspension arm bushing set bolt

B Ground clearance of center of rear No. 2 suspension arm bushing set bolt

C Ground clearance of center of front wheel

D Ground clearance of center of rear wheel

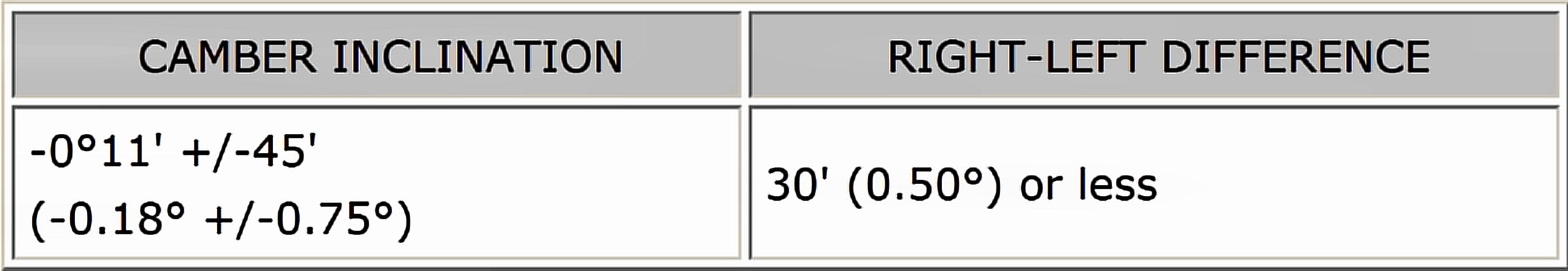

Standard Camber Inclination:

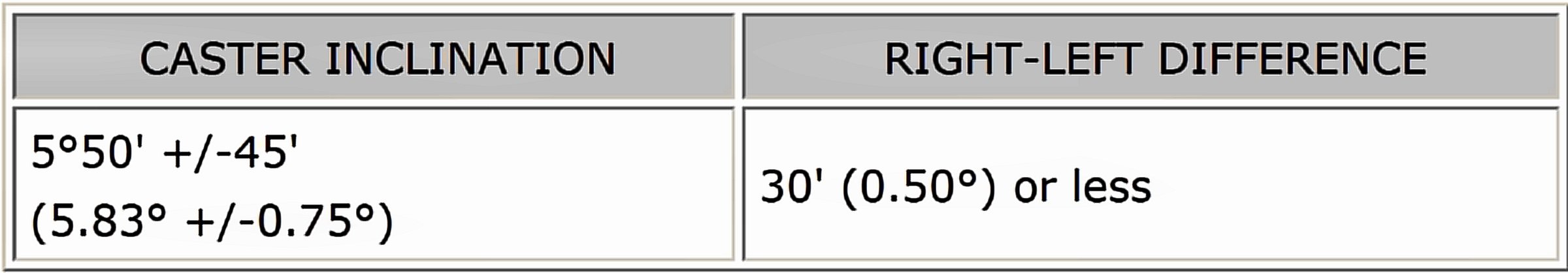

Standard Caster Inclination:

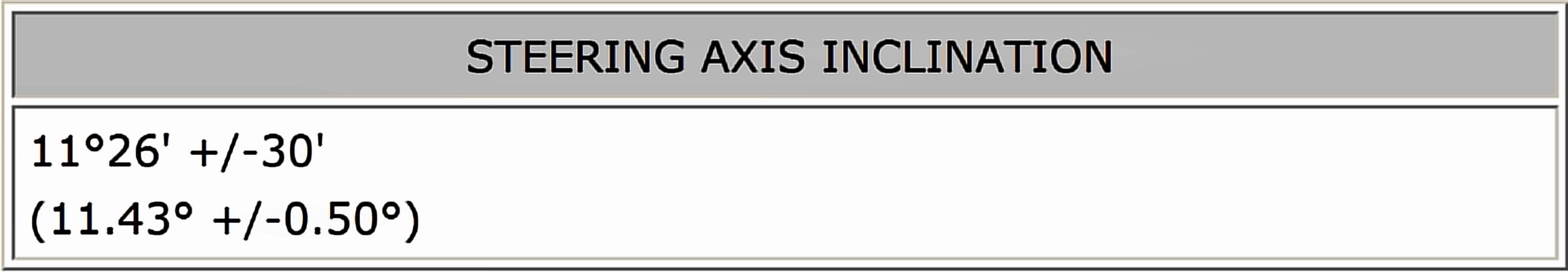

Standard Steering Axis Inclination:

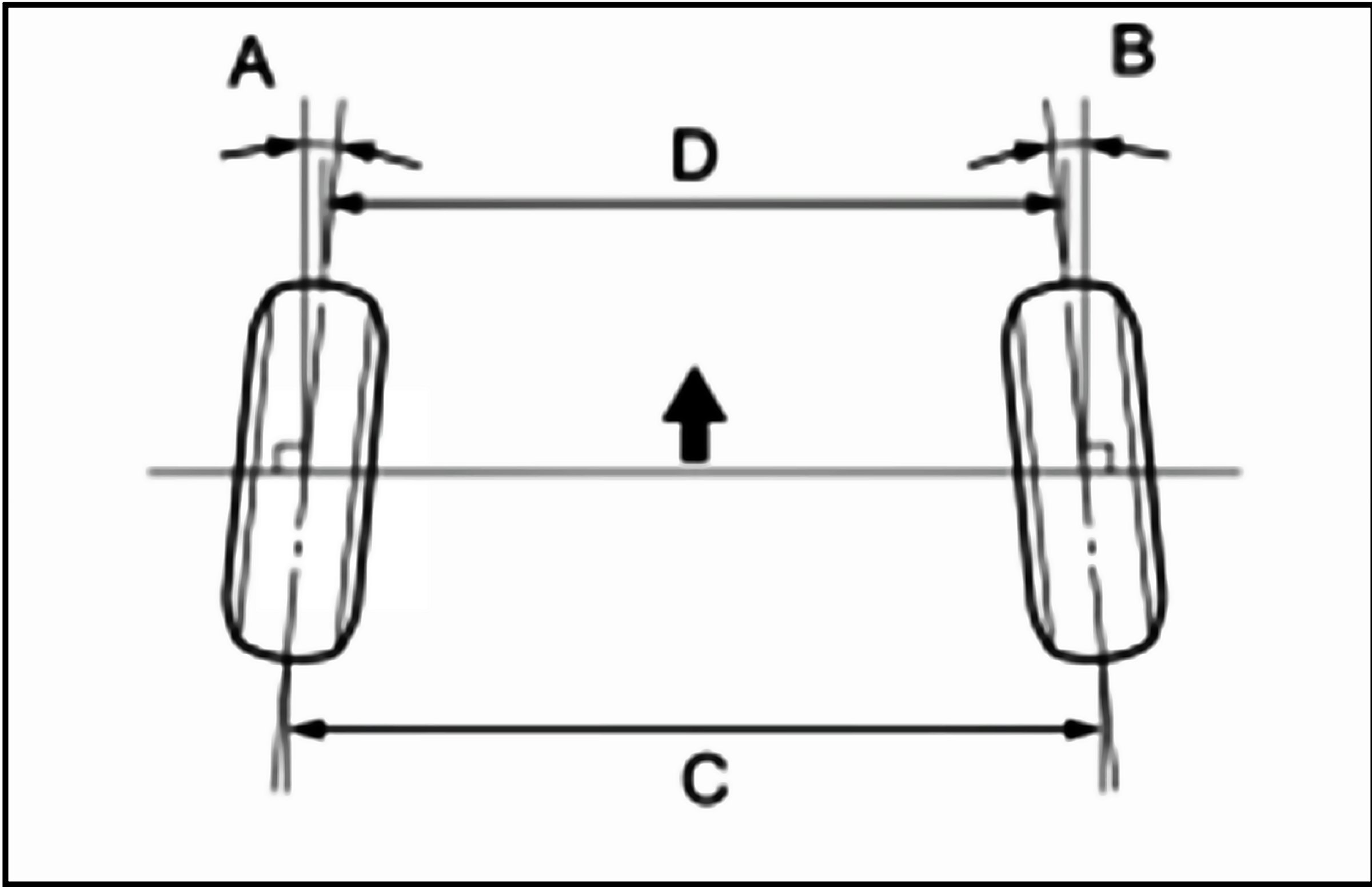

Measurement Points - Toe-in:

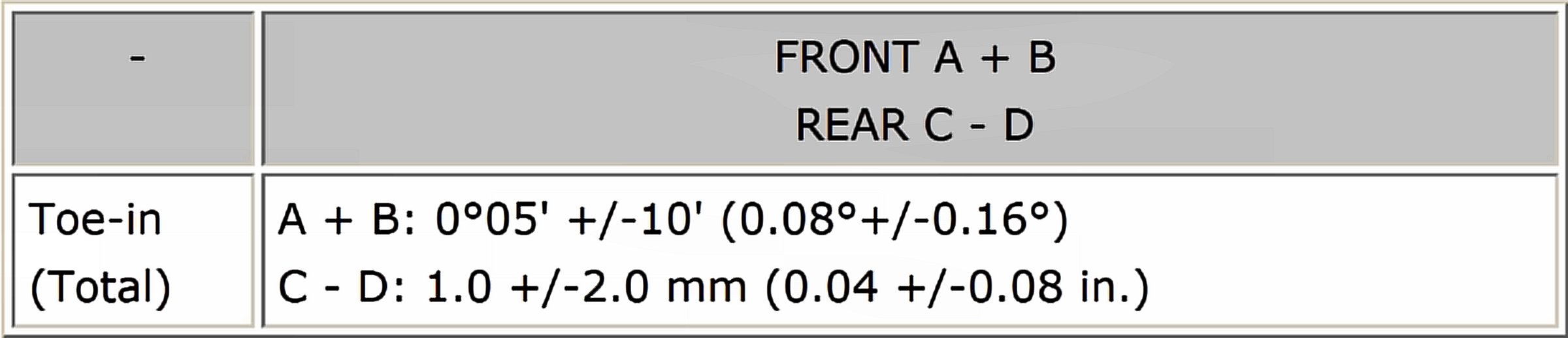

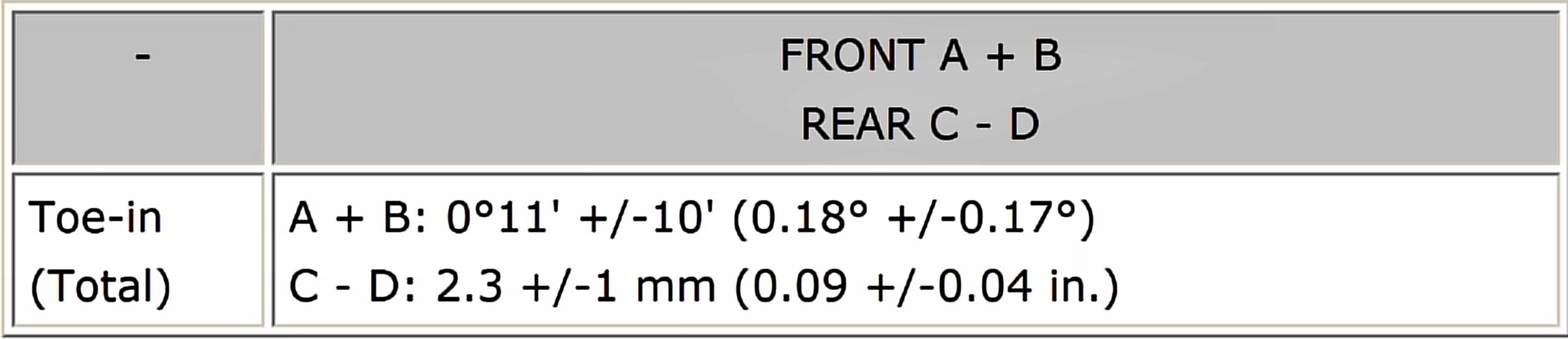

Toe-in:

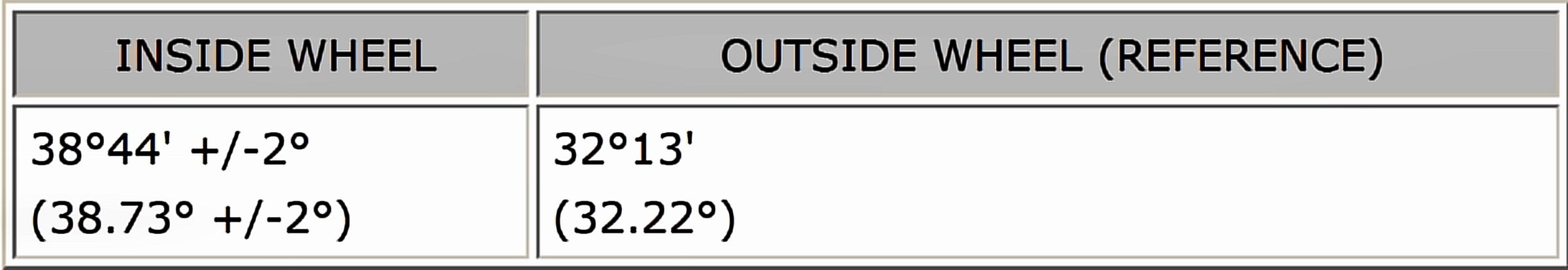

Standard Wheel Turning Angle:

Rear Toe-in:

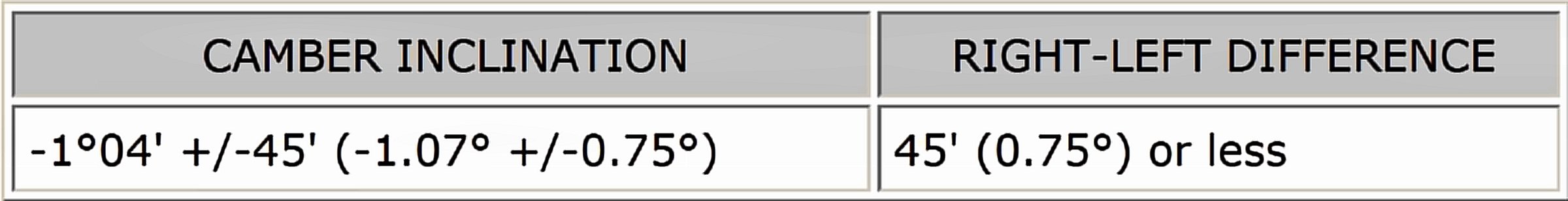

Standard Rear Camber:
